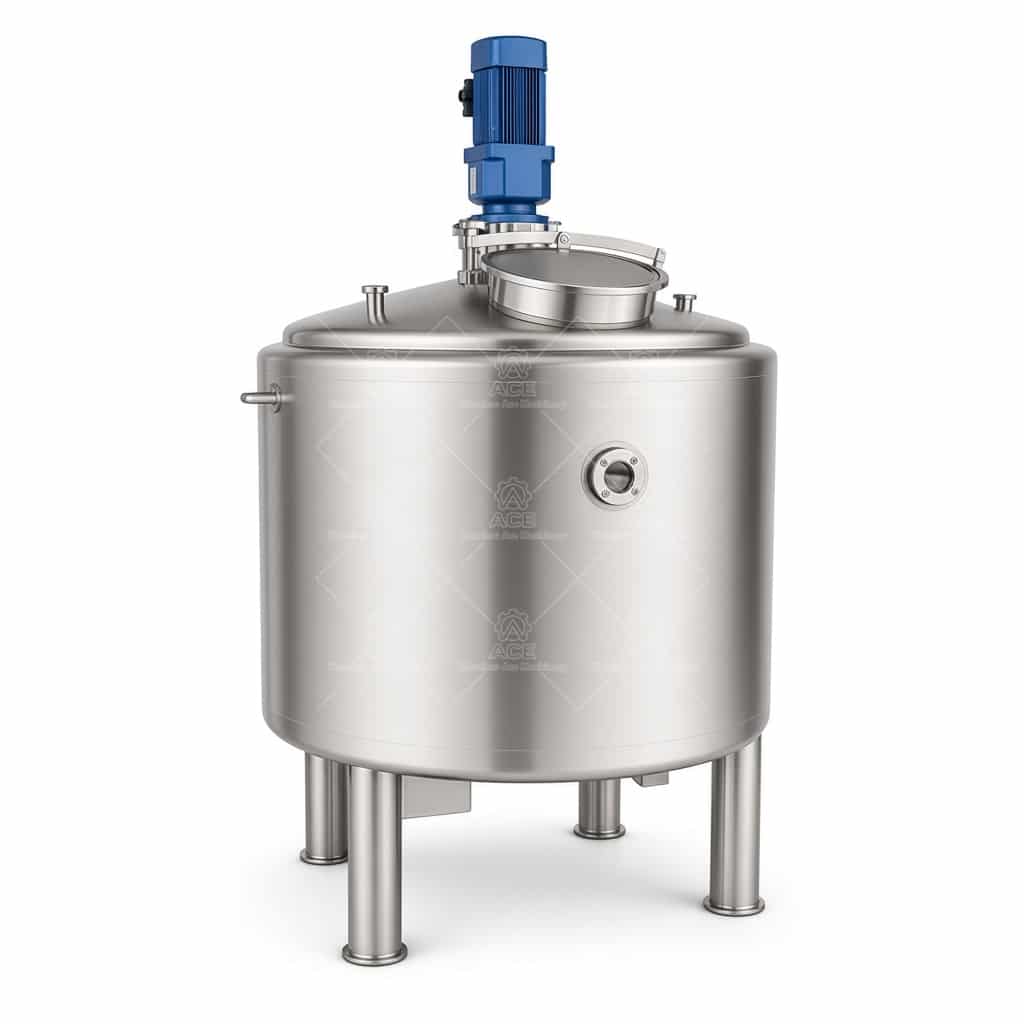

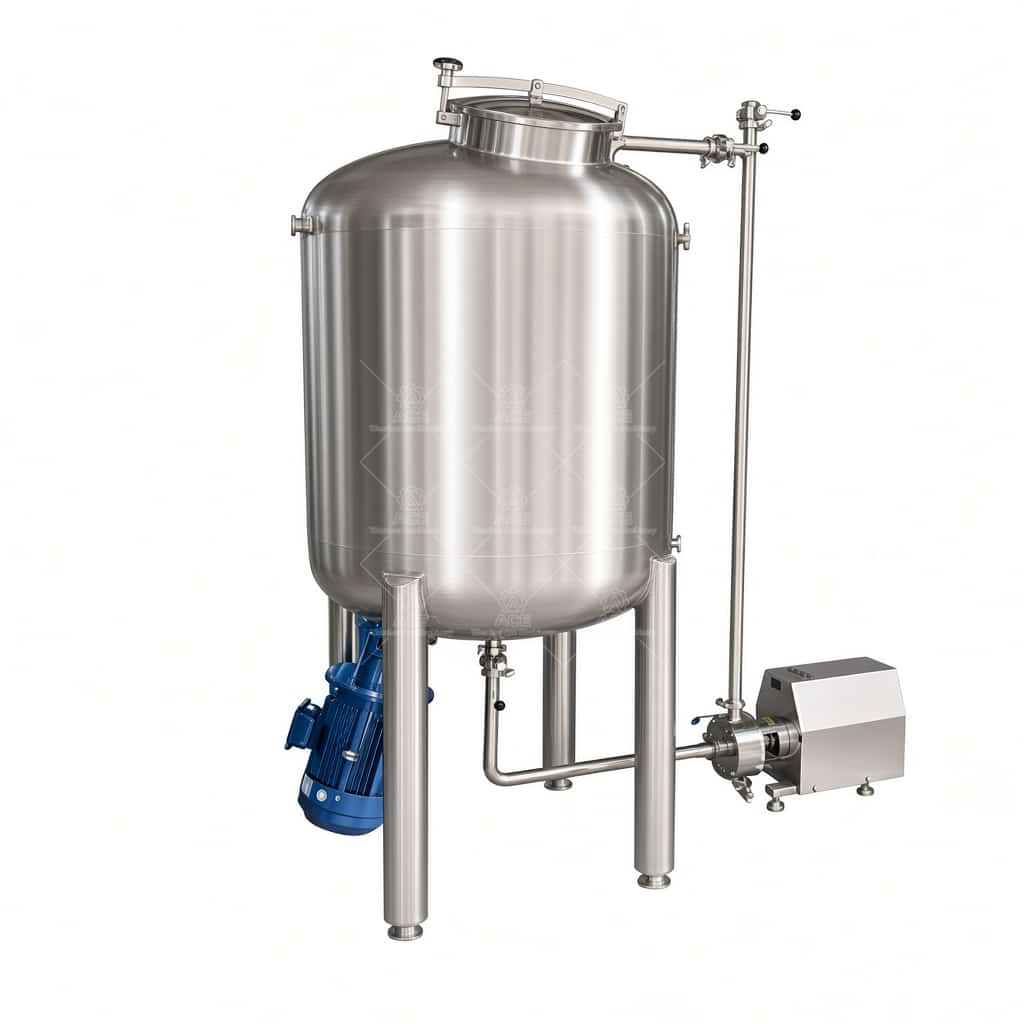

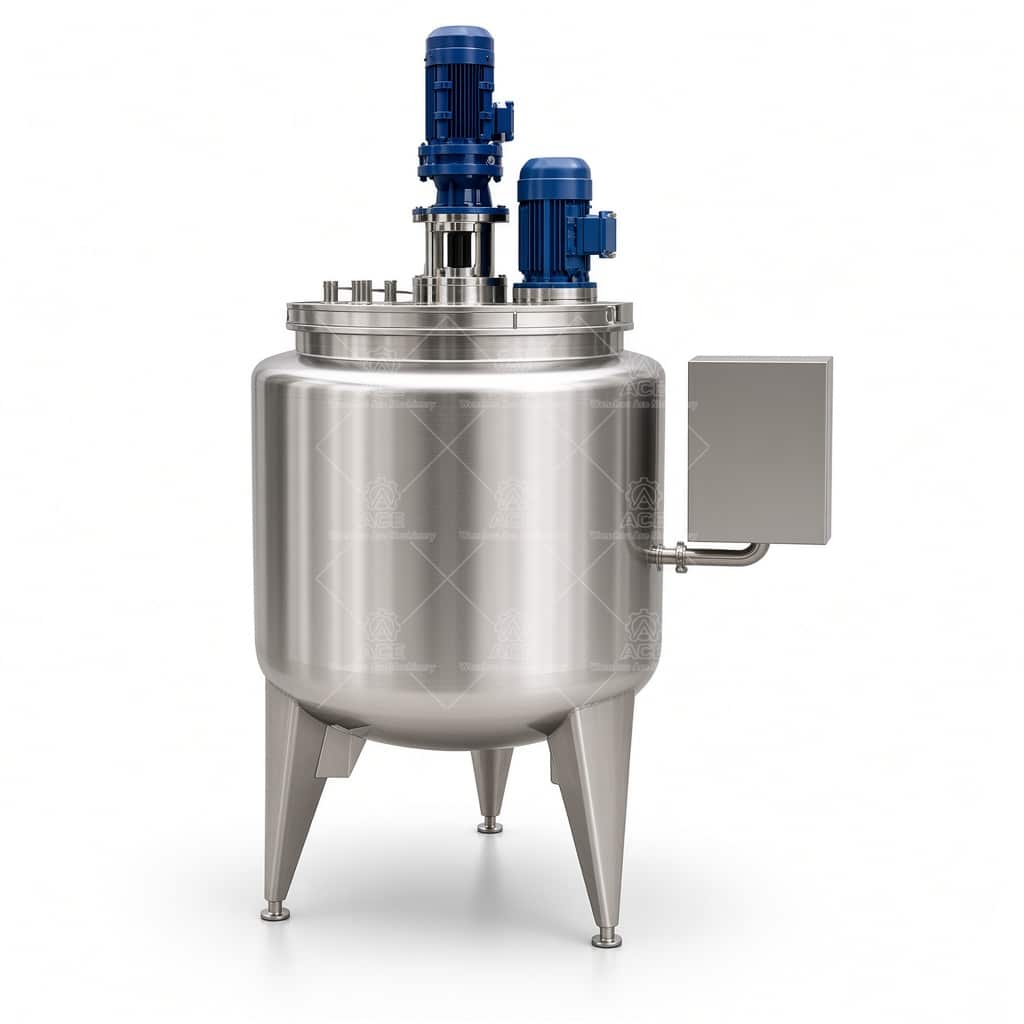

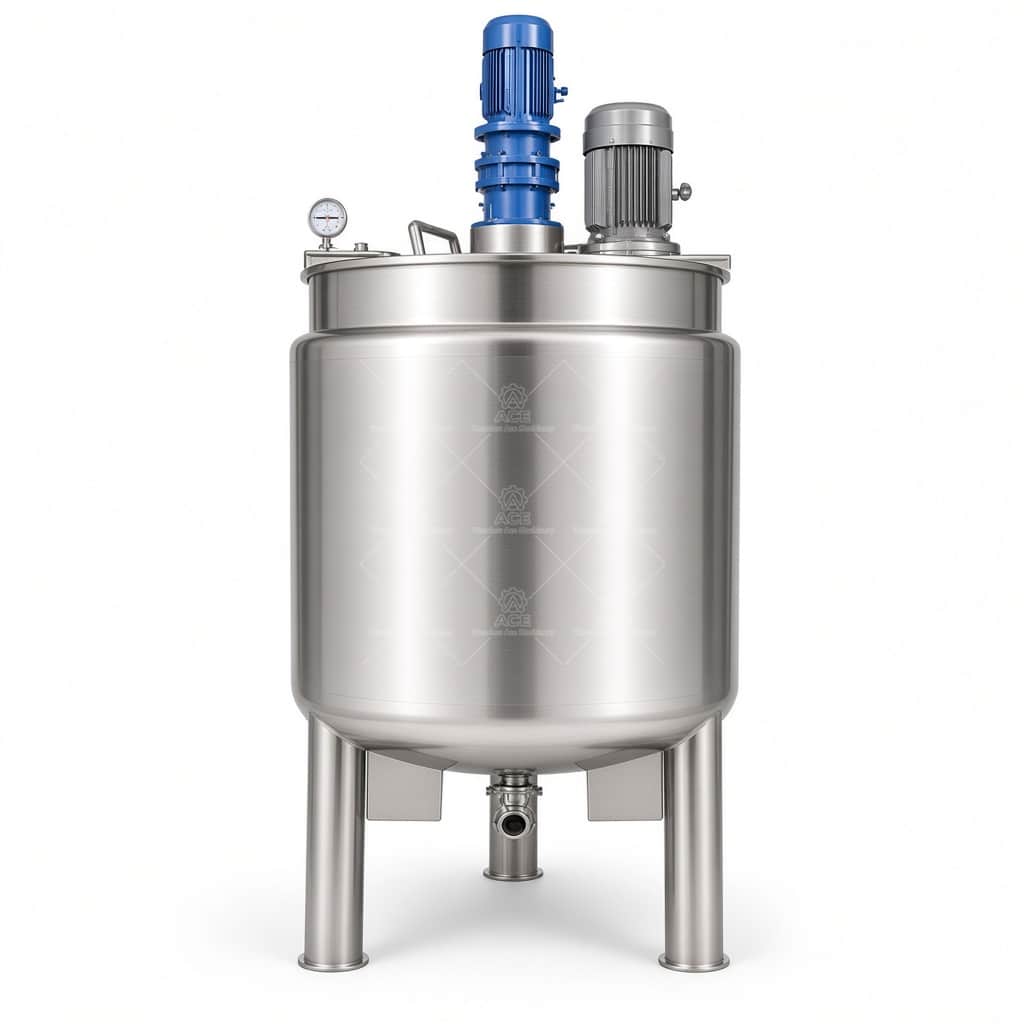

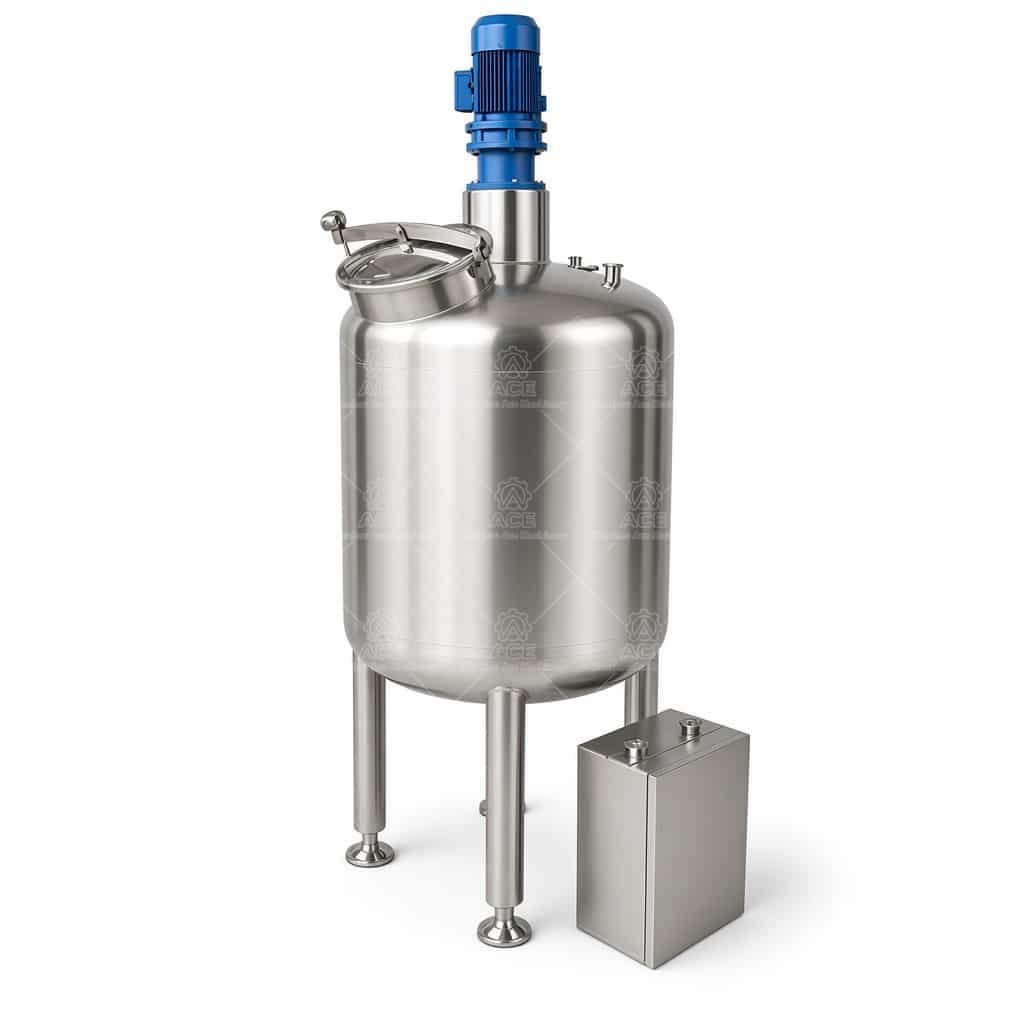

1000L Liquid Soap Mixing Tank for Shampoo Dish Soap Production

1000L Liquid Soap Mixing Tank for Shampoo and Dish Soap

This 1000L mixing tank is intended for manufacturers producing liquid shampoo, dish soap, hand wash, and related detergent formulations. The vessel gives production teams a controlled space for blending surfactants, water, thickeners, fragrances, colors, and other additives. Final configuration depends on viscosity, batch sequence, foaming behavior, and required discharge time.

We normally review the formula before selecting the agitator. A low-shear propeller may suit free-flowing liquids, while anchor or frame agitators are more appropriate for thicker shampoo and gel products. High-speed dispersing can improve powder wetting or color incorporation, but excessive shear may create foam or affect the finished texture. Motor power, gearbox ratio, shaft diameter, and impeller geometry must be matched to the actual product, not selected from tank volume alone.

Construction and Process Details

Product-contact parts are commonly fabricated from stainless steel, with 304 or 316L selected according to the formula, cleaning chemicals, chloride exposure, and sanitary requirements. Welds should be continuous where required, properly finished, and polished to the level appropriate for cleaning access. Surface treatment, internal corners, manways, outlet design, and mechanical seals all affect residue retention and maintenance.

Heating may be added when a formulation requires warm processing or easier transfer. Jacketed heating, electric heating, or another specified method can be evaluated after reviewing the target temperature, heating rate, available utilities, and batch sensitivity. Temperature sensors and controls should be positioned to represent the product, rather than only the vessel wall temperature.

Technical Specifications

FAQ

Can one agitator handle every soap formula?
No. Viscosity, solids, foam, and batch time may require different impeller and drive arrangements.

Is 1000 liters the working volume?
Not necessarily. Allowance for headspace, foam, and safe agitation must be confirmed from the batch recipe.

What information should accompany a quotation request?
Send the formula or viscosity range, batch size, ingredients, target temperature, mixing time, cleaning method, power supply, and required discharge arrangement. These details allow our engineers to recommend a practical vessel, drive, heating system, and sealing configuration.
