High-Capacity Inline High Shear Emulsifier for Cream Cheese Yogurt

Inline high shear mixing for cream cheese, yogurt, and chemical emulsions

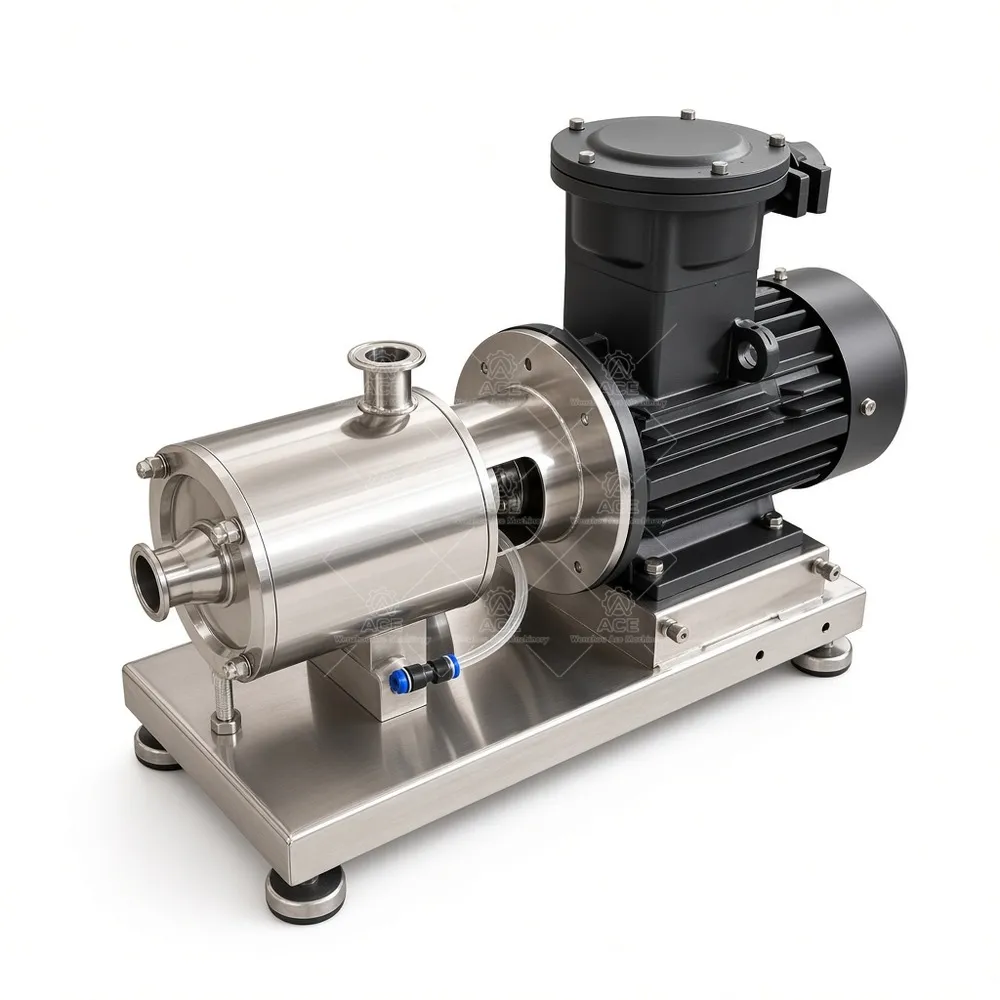

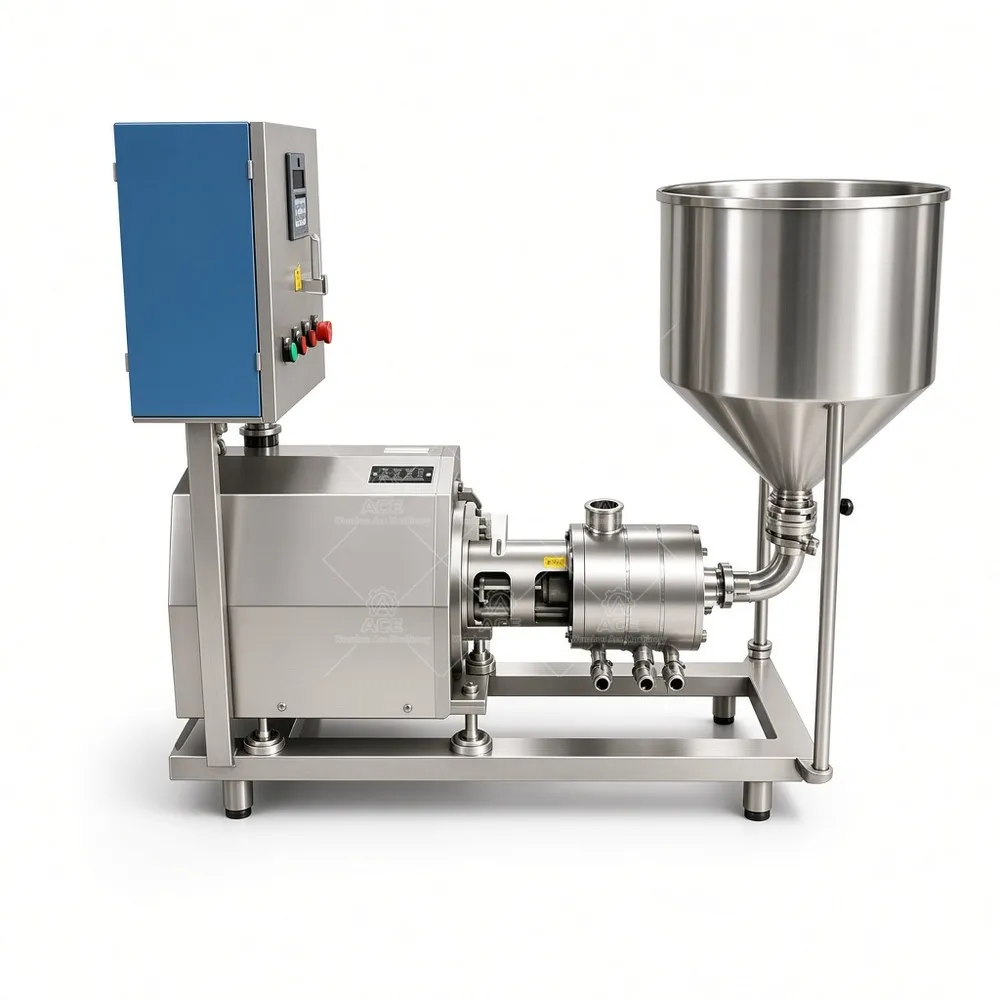

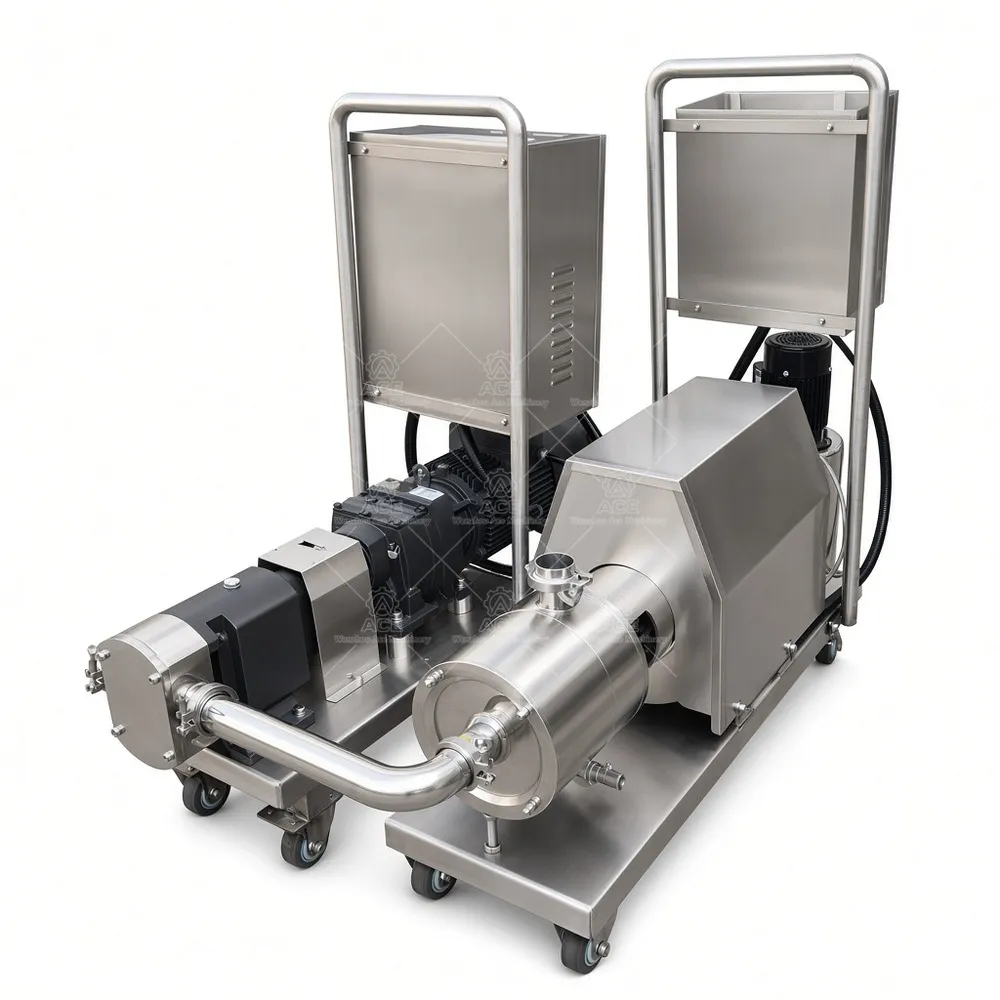

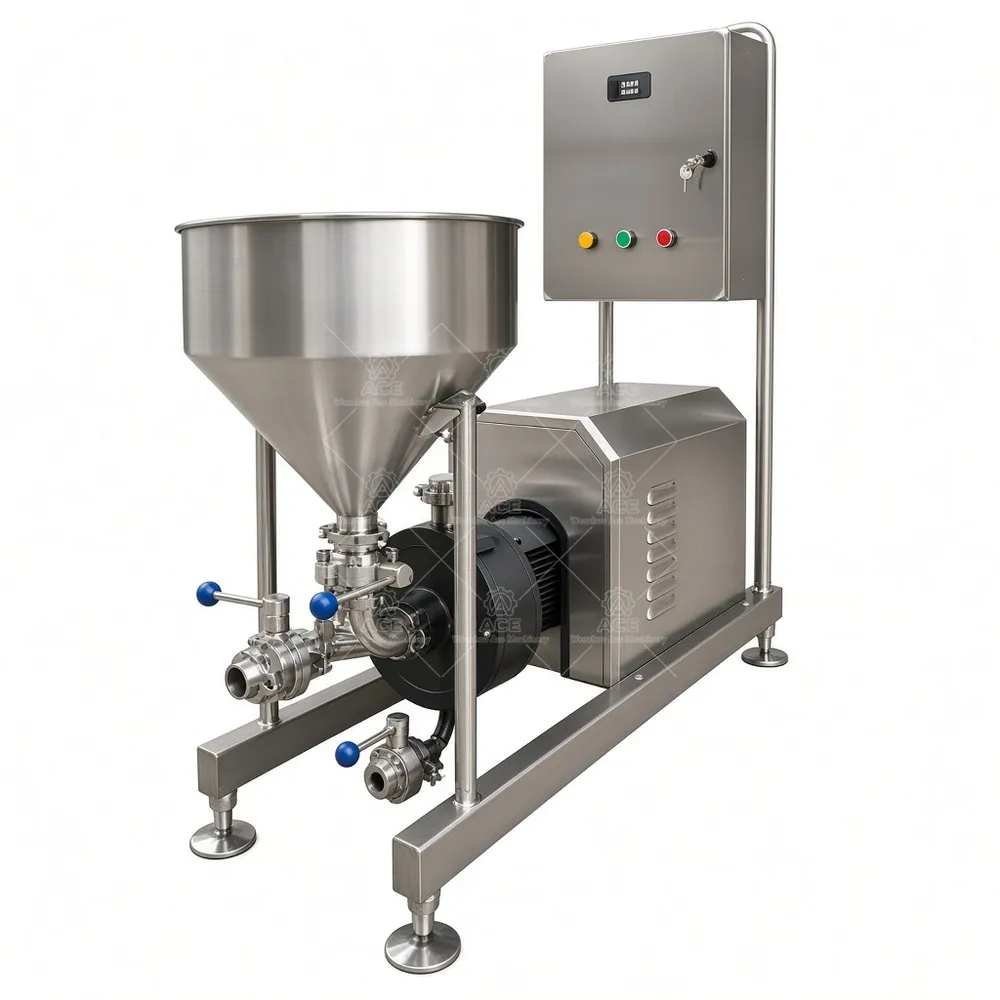

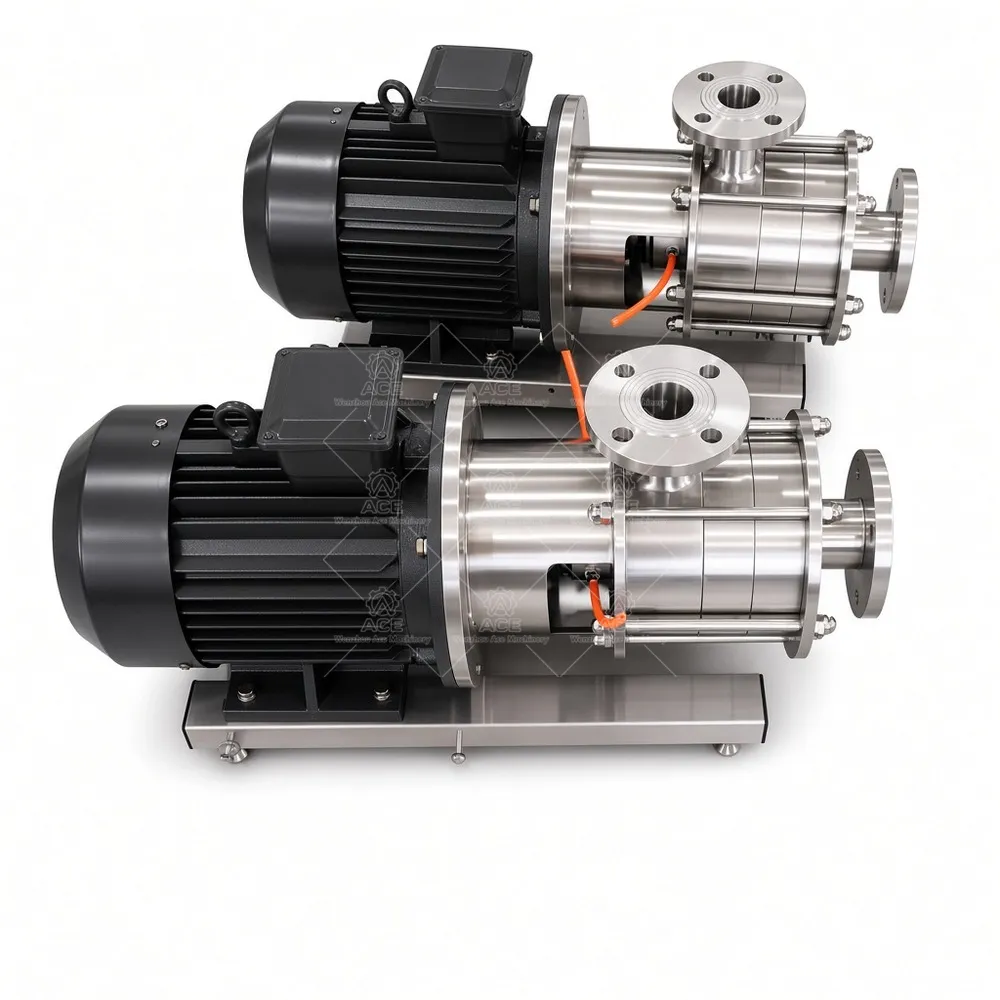

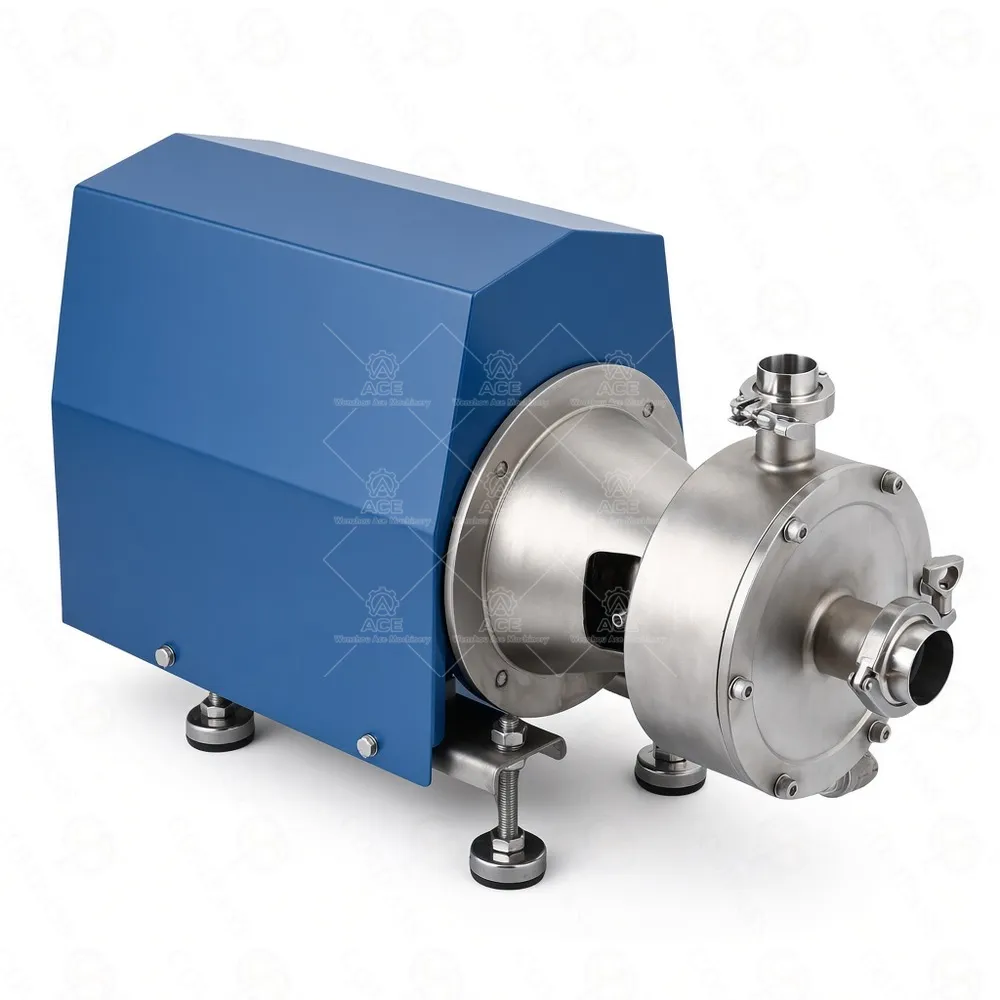

We build this Ace Mixer unit around a high-speed rotor–stator head that installs in a pipe run or circulation loop. Product passes through the mixing chamber instead of sitting in a tank waiting for an agitator to reach it. That gives the rotor–stator a consistent feed and puts high shear where it matters: breaking down droplets, dispersing powders, and smoothing out lumps before they reach filling.

For cream cheese and yogurt bases, the practical gain is tighter batch-to-batch texture and less manual scraping or rework. For sauces, dressings, and compatible chemical emulsions, the same in-line principle helps control oil and water distribution and reduce visible agglomerates. Results depend on formulation, solids loading, viscosity, flow rate, and rotor–stator selection, so we size the head and motor to the duty rather than to a catalog headline.

What the equipment does on line

• High-speed rotor–stator mixing for liquid–liquid emulsification and dispersion.
• Powder wetting and agglomerate reduction when fed correctly into the loop.
• Compact integration with existing tanks, pumps, and transfer lines.
• Stainless steel construction for washdown and industrial process areas.
• Optional VFD control for speed adjustment during circulation or transfer.
• Custom motors, seals, connections, and wetted materials to match the product and plant standards.

An in-line unit often makes more sense than batch mixing when the recipe needs repeatable shear, short cycles, and less operator involvement. It also helps when floor space is tight or when the tank agitator cannot create enough shear at the wall. The tradeoff is that the pump, piping, and feed method have to be right. Dry powder added too fast can choke a loop; abrasive or high-viscosity products can change seal and rotor choices. We review those details before quoting.

Typical applications

Food and beverage: sauces, dressings, mayonnaise, syrups, liquid flavorings, dairy blends, and starch, gum, stabilizer, or thickener dispersion. Personal care: creams, lotions, shampoos, conditioners, and liquid detergents. Pharmaceutical and chemical: compatible liquid formulations, excipient dispersions, coatings, adhesives, and water-based emulsions. One pump configuration will not handle every formula. Material compatibility, viscosity, temperature, cleaning method, and required particle size all affect the final selection.

Common purchasing questions

Can it run in a circulation loop? Yes, when the loop volume, pump curve, and rotor–stator head are sized together. We need your batch size and target cycle time.

How do I choose motor power and speed? Start with product viscosity, solids, flow rate, and desired shear. A VFD helps where recipes vary, but it does not replace correct head selection.

What about sanitary or chemical duty? We match wetted materials, seals, connections, and surface finish to your process and local standards.

Send your batch size, material properties, required motor power, and local electrical specifications. Our team will recommend the right Ace Mixer configuration and prepare a quote.
