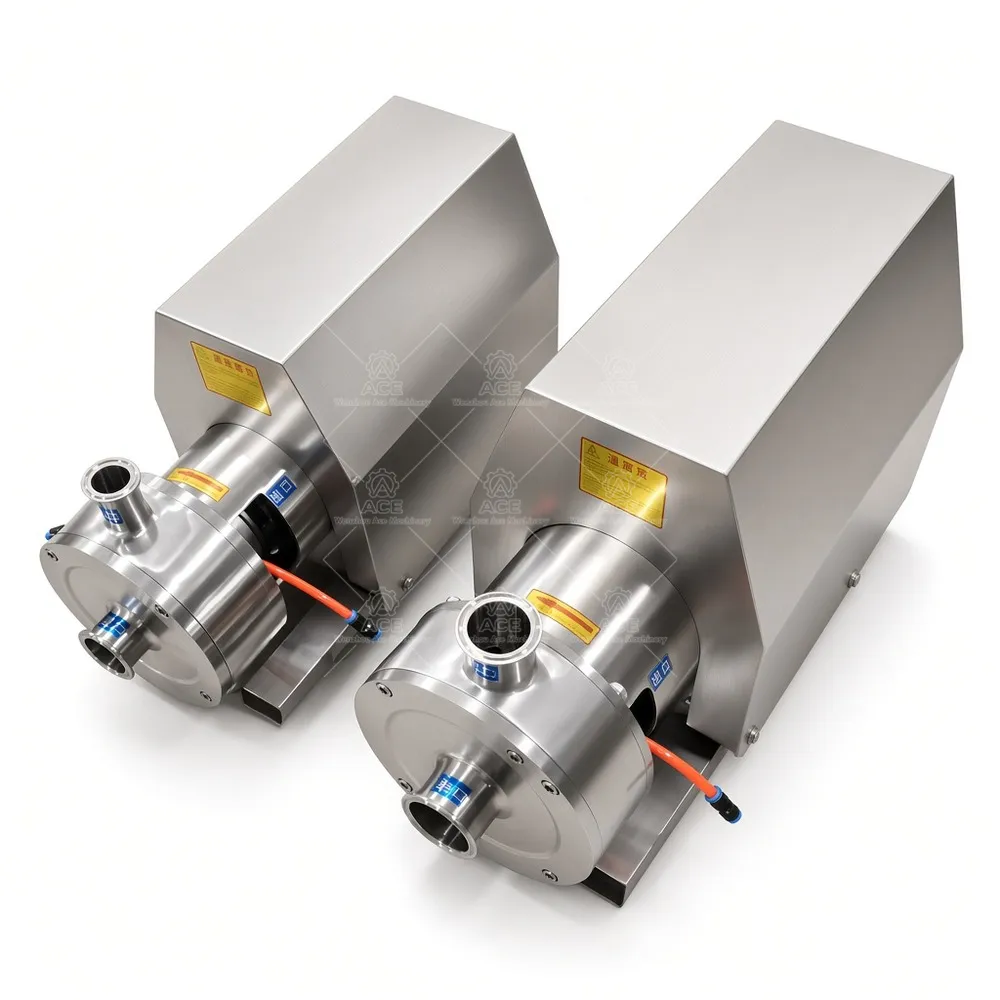

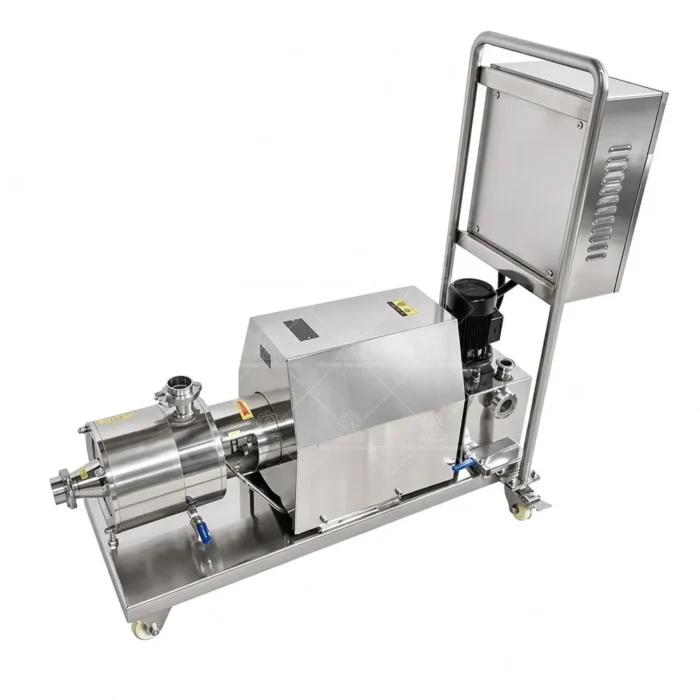

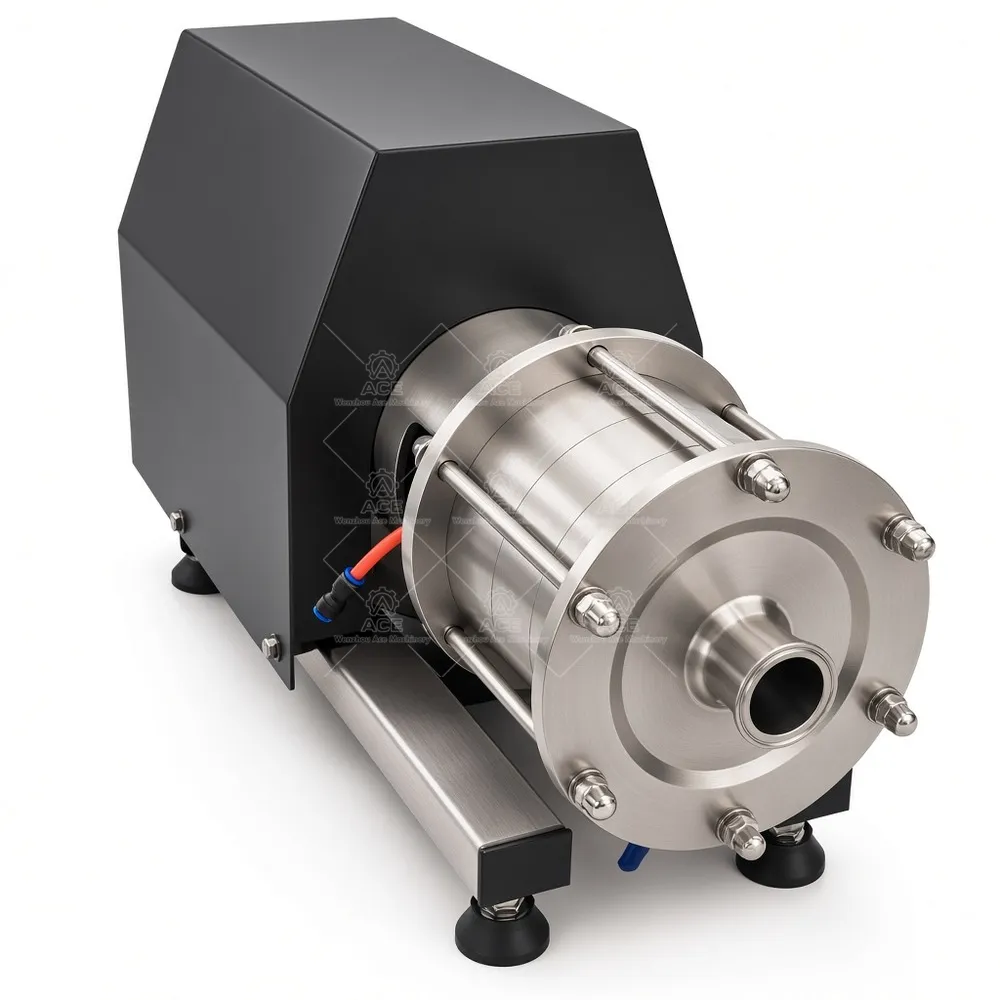

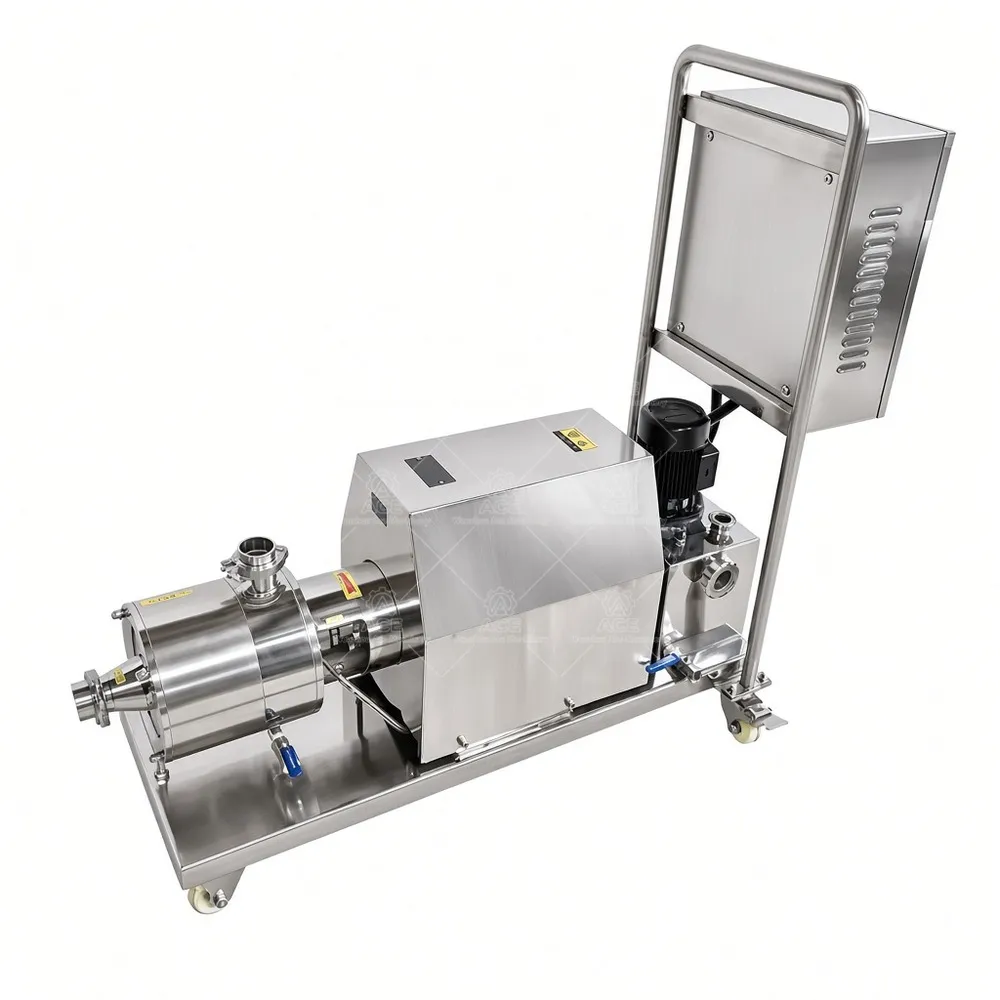

Sanitary High Shear Rotor-Stator Homogenizer Pump Jacketed Hopper
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $1,904.97 through $2,033.36
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Inline shear for real production lines
Ace Mixer builds this sanitary high-shear pump for plants that need to disperse powders, emulsify liquids, or reduce lumps while product is moving. The multi-stage rotor-stator works in a pipe or recirculation loop, so the tank can stay closed and the batch does not rely on an open agitator reaching every corner. We match the 380 V, 50 Hz motor to viscosity, solids load, and target flow; a VFD is available when shear needs to change by recipe.

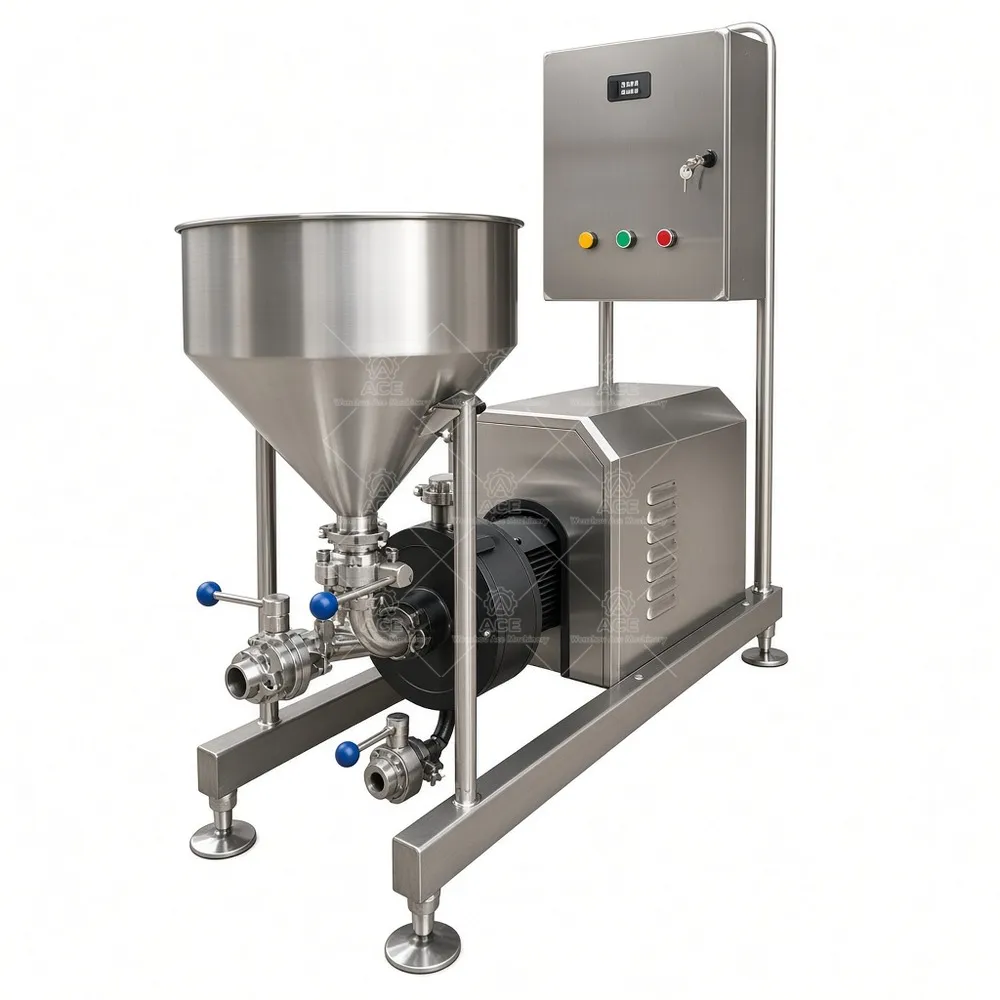

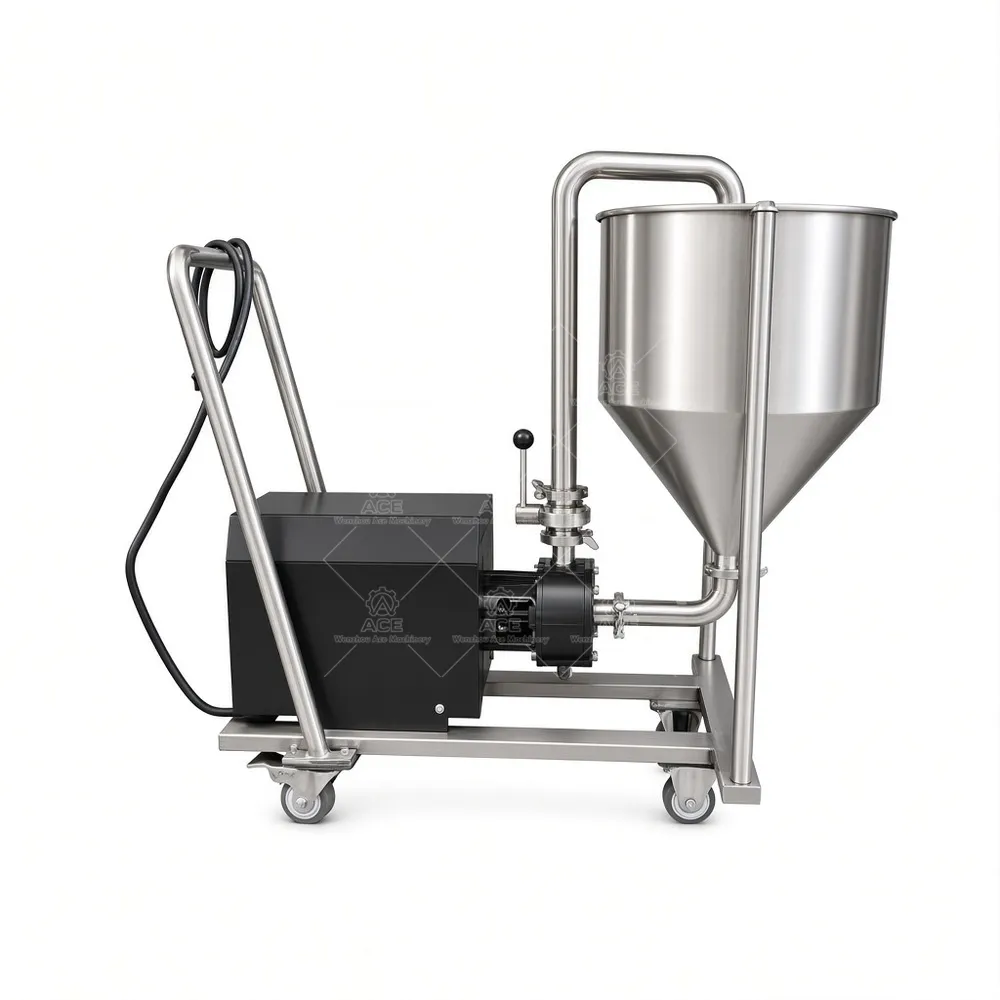

The jacketed housing helps hold process temperature during sustained shear. The hopper supports controlled powder addition, and the water tank is useful for flush, premix, or washdown routines. Wetted parts are stainless steel. Seals, connections, and contact materials are selected around your product, cleaning chemicals, and duty cycle.
What the pump does in the line
Product enters the rotor-stator head and passes through staged shear zones. That action breaks agglomerates, wets powders, and drives oil-water or solid-liquid dispersion. It suits continuous runs and recirculation loops. Results depend on formulation, temperature, feed rate, and rotor speed, so we size the unit from your process data rather than a generic curve.
- Inline mounting reduces floor space and tank headroom compared with batch mixers.
- Staged rotor-stator shear improves consistency from one batch to the next when feed and speed are controlled.
- Jacket ports allow cooling or heating during emulsification.
- Hopper and water tank simplify powder addition and flush steps.
Typical applications
Food and beverage: sauces, dressings, syrups, dairy blends, starches, gums, and stabilizers. Personal care: creams, lotions, shampoos, conditioners, and liquid detergents. Pharmaceutical: liquid formulations and excipient dispersions when the configuration suits the process. Chemical: coatings, adhesives, waterborne products, and compatible emulsions. Not every formulation runs well in the same pump build.
FAQ
Can it run in a recirculation loop? Yes. Most installations use a tank-to-pump loop or inline feed. We confirm NPSH, flow, and back pressure before release.
Will it eliminate all lumps? No single pump can guarantee that. Powder feed method, wetting, viscosity, and rotor speed all matter.
What do you need for a quote? Batch size, viscosity, solids content, target particle size or texture, flow rate, available voltage, and cleaning requirements.
Send those details to Ace Mixer. We will recommend the rotor-stator stage, motor power, seal, jacket piping, hopper, and water tank layout for your line.
Ace Mixer\’s sanitary 380 V 50 Hz high-shear pump combines a multi-stage rotor-stator, jacketed housing, hopper, and water tank for inline emulsifying, dispersing, and powder wetting. It suits food, personal care, pharmaceutical, and chemical batches where tank space is tight and repeatability matters. Tell us batch size, viscosity, solids load, and local power for a configured quote.
