Custom High-Speed Dissolver Mixing Tank for Cosmetics, Paint, Soap and Pigments

Mixing and dissolving for batch production

This custom dissolver mixing tank is configured around the material, batch size, and process sequence—not just the product name. A high-speed disperser can help wet out pigments and break down agglomerates in paint, nail polish, and selected liquid soap formulations. Beverage batches may require a different, hygienic configuration and mixing approach. We review viscosity, powder addition rate, target dispersion, cleaning method, and the need for vacuum or heating before recommending a layout.

Construction and process options

Wetted parts can be specified in stainless steel grades such as 304 or 316L according to corrosion exposure, cleaning chemicals, and hygiene requirements. For beverage or cosmetic service, weld finish, drainability, internal polish, and cleanable connections need to be defined for the actual process. Solvent-based nail polish calls for a separate safety review: solvent compatibility, area classification, ventilation, electrical equipment, and seal materials must be confirmed before the drive and instrumentation are selected.

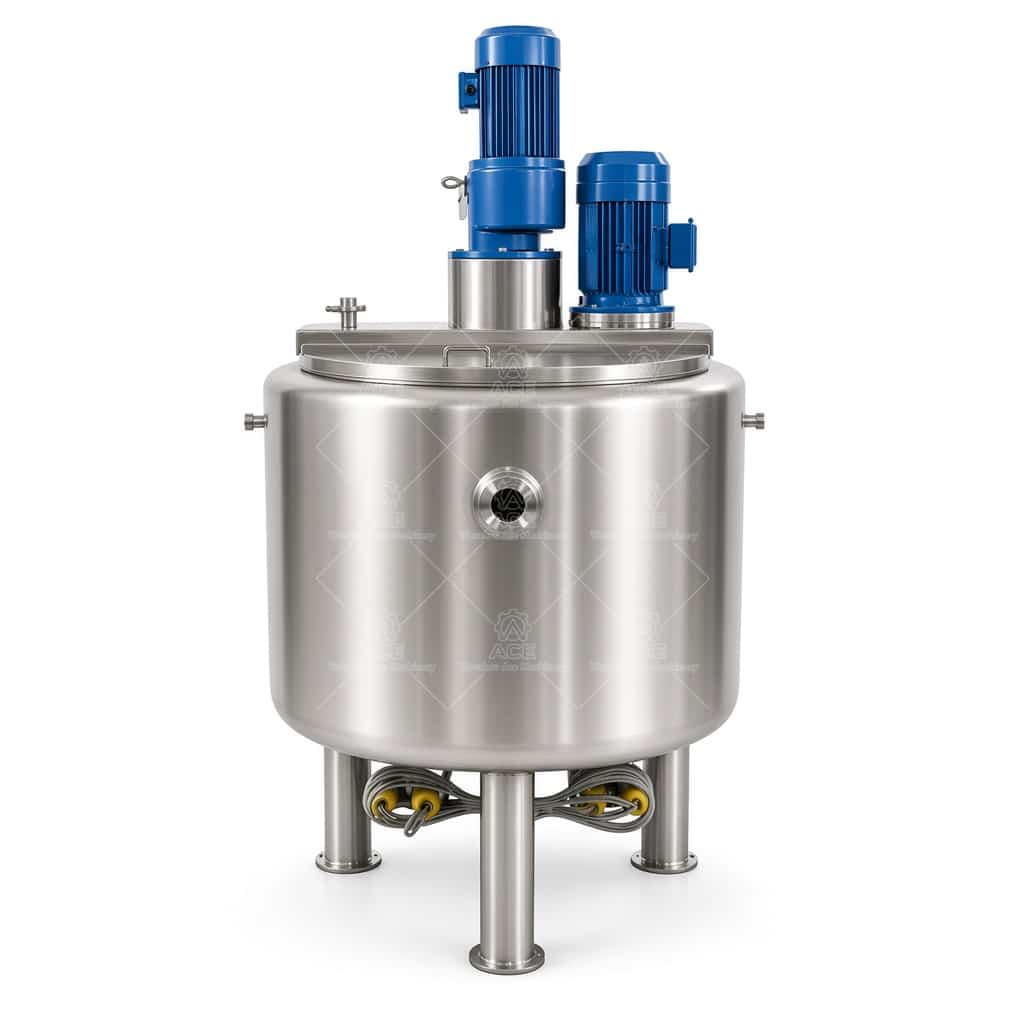

Agitator selection depends on the job. A disperser blade provides localized shear for powders and pigments; an anchor or other low-speed agitator may be appropriate for viscous material or wall turnover. Some batches need both, with independent drives or a combined arrangement. Motor and gearbox sizing depends on viscosity, working volume, speed, and duty cycle. Heating may use a jacket or another agreed method; temperature range, control accuracy, and heat-transfer needs determine the design.

Configuration information

Questions from production teams

Can one tank handle different products? It may, if materials, seals, cleaning validation, and changeover requirements are compatible. Is a high-speed disperser always needed? No. It can add unnecessary shear or entrain air when the process calls for gentle blending.

To size the equipment, send batch volume, ingredient list or SDS, viscosity range, powder loading, target temperature, mixing time, cleaning procedure, and available power. These details let our engineers recommend a practical configuration and prepare a meaningful quotation.
