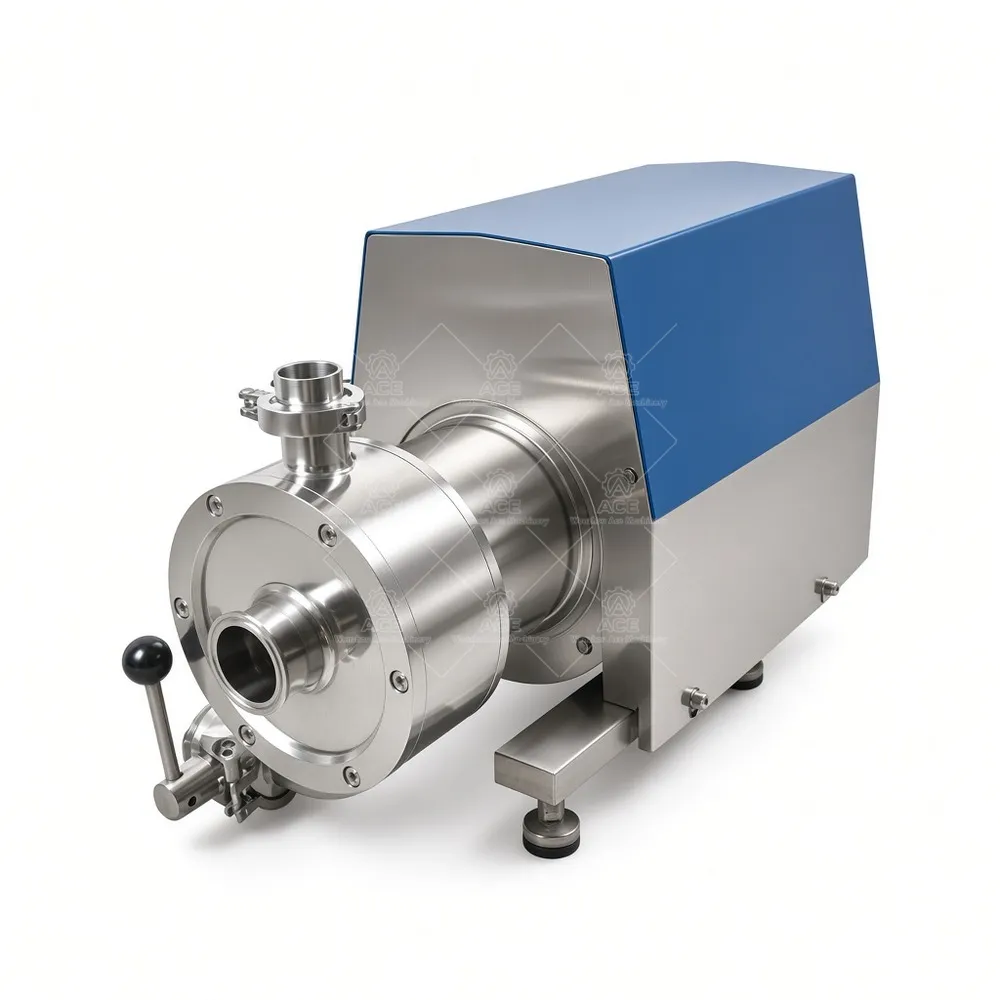

4KW 5.5HP Pipeline High Shear Emulsifying Pump Mixer with VFD Cabinet
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,125.70 through $2,251.33
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Built for inline emulsifying and powder wet-out
Ace Mixer supplies this 4 kW (5.5 hp) pipeline one-stage high shear emulsifying pump for processors who need tighter emulsions, faster powder incorporation, and less manual intervention in a continuous or recirculation loop. The single-stage rotor-stator runs at high tip speed inside a compact housing. Product enters the working chamber, passes through the rotor-stator slots, and exits under pump pressure. Shear, cavitation, and turbulence act on the stream in one pass; recirculation increases exposure without requiring a separate batch mixer.
Many formulations run better when stabilizers, gums, starches, and thickeners meet the rotor-stator directly instead of being dumped into a slow-moving tank. Feed rate and dilution stage still need control. Get those right, and there are fewer lumps to chase and less time lost to manual mixing. Emulsion droplet size and dispersion quality depend on formulation, temperature, number of passes, and rotor-stator selection. We size the unit around those variables, not just motor power.
What the package includes
- 4 kW / 5.5 hp motor with variable frequency drive and control cabinet for speed adjustment during startup and process tuning.
- Stainless-steel contact construction for industrial processing areas; material grade, seals, and connections are confirmed against your product.
- Pipeline connections that fit existing tanks, transfer lines, and recirculation skids.
- Optional customization for voltage, frequency, mechanical seal, flange standard, and product-contact elastomers.
Typical applications
Food plants use these units for sauces, dressings, syrups, dairy blends, and stabilizer dispersions. Cosmetics and personal care producers run creams, lotions, shampoos, and liquid detergents through inline shear to smooth texture and combine oil and water phases. Pharmaceutical and chemical processors use similar configurations for compatible liquid formulations, adjuvants, coatings, adhesives, and aqueous dispersions. Seal materials and wetted parts must match the chemistry and cleaning regime.
FAQ
Can it replace a batch mixer? Sometimes. Recirculation loops often work well; high-solids or high-air-entrainment products may still need staged addition.
What affects price and lead time? Motor voltage, seal type, flange connections, contact material, and VFD enclosure rating.
What do you need to recommend a unit? Batch size, flow rate, viscosity, solids loading, temperature, cleaning method, and local electrical supply.
Send your process details to Ace Mixer for a specification review and quote. Include batch size, material characteristics, desired motor power, and local electrical requirements so we can propose a practical configuration.
Ace Mixer’s 4 kW (5.5 hp) pipeline one-stage high shear emulsifying pump combines inline rotor-stator mixing with a VFD control cabinet for continuous or recirculation processing. Use it to improve emulsion uniformity, disperse powders, reduce lumps, and shorten batch cycles. Contact Ace Mixer with flow rate, viscosity, batch size, and electrical specifications for configuration and pricing.

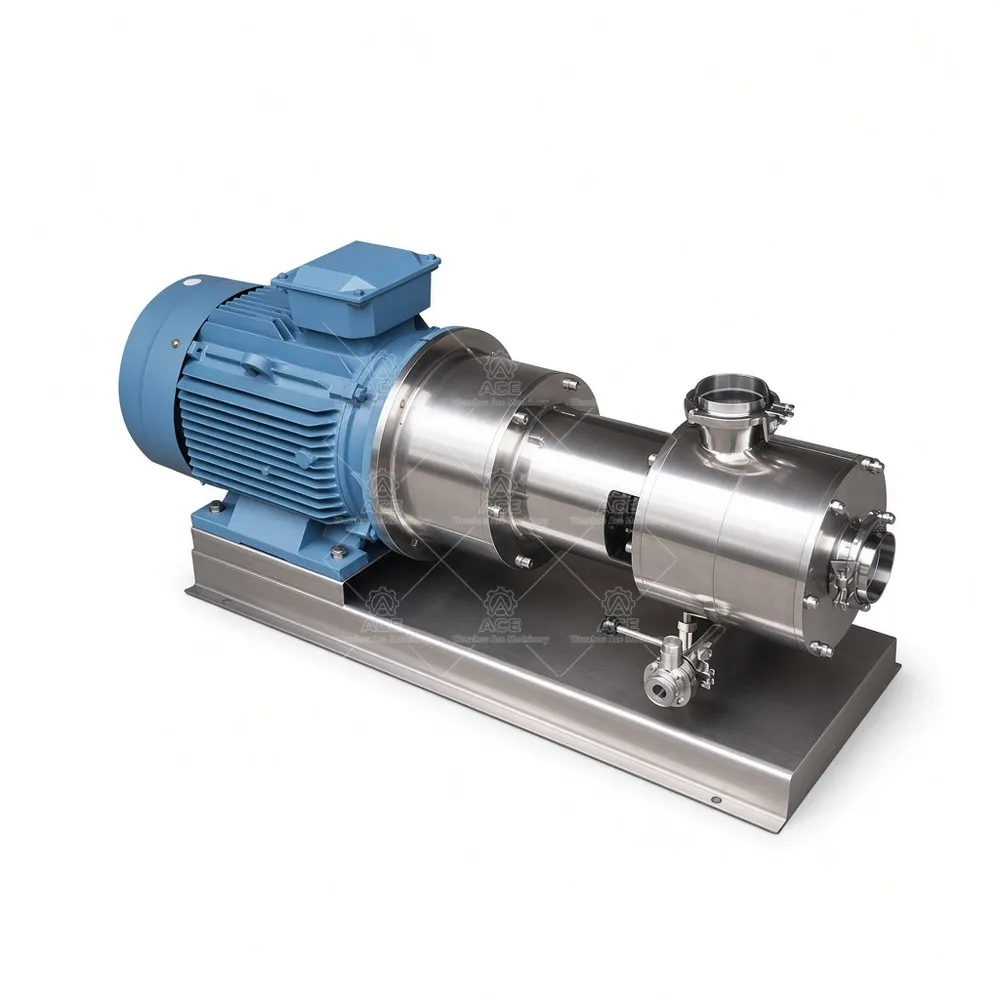

Single-stage in-line mixer

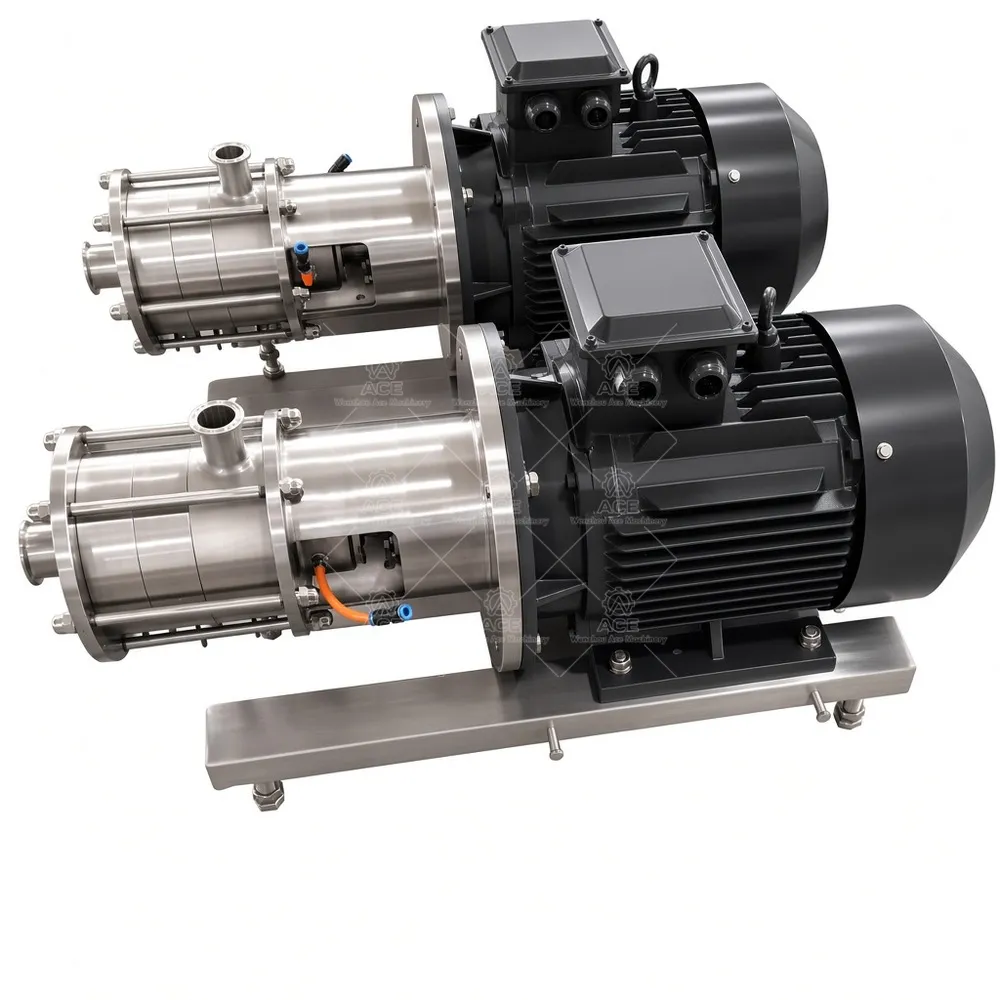

Three-stage in-line mixer
High-Shear Mixer with lift
High shear mixer
