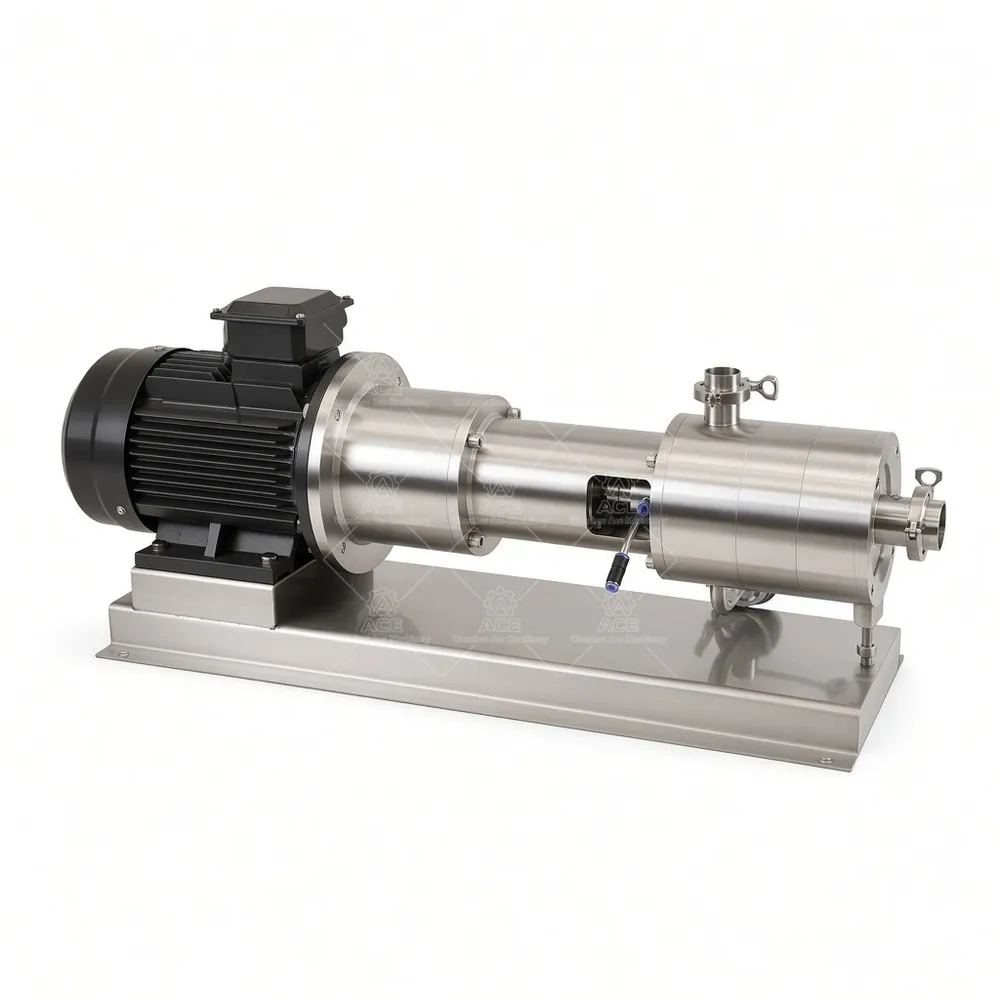

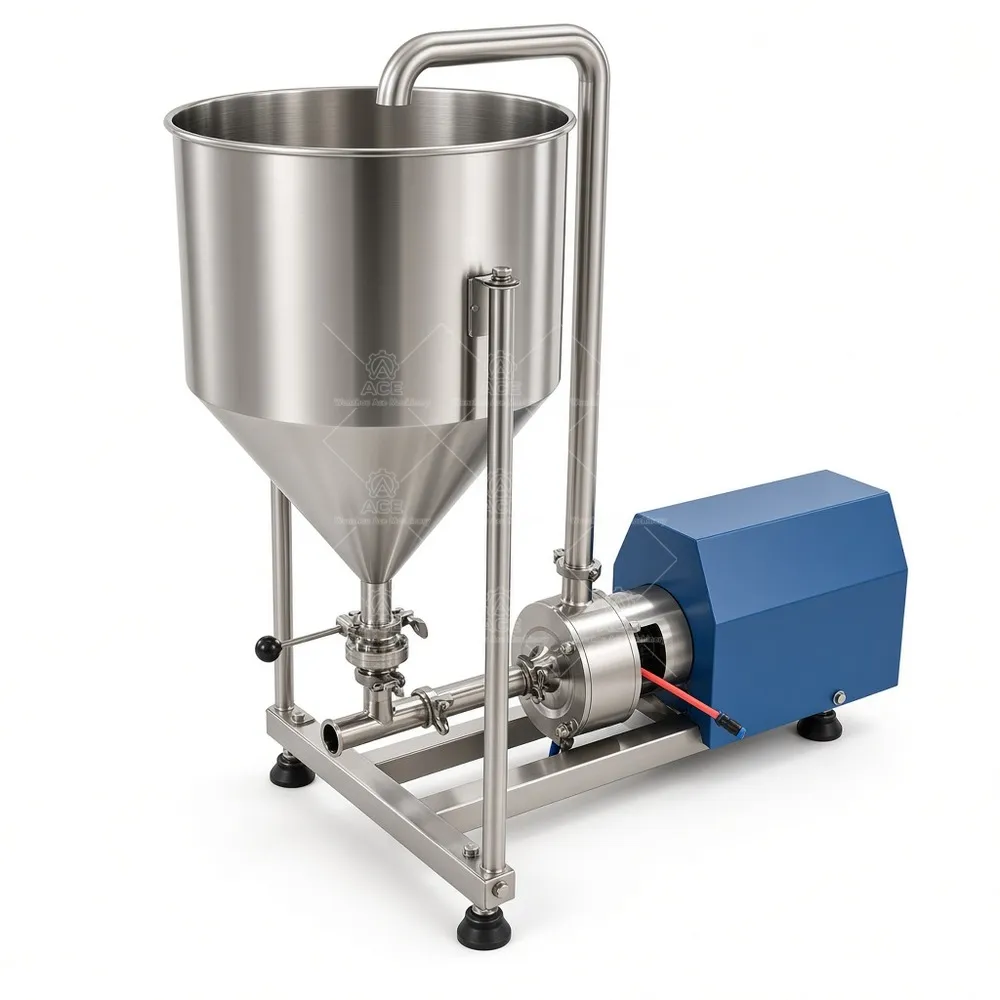

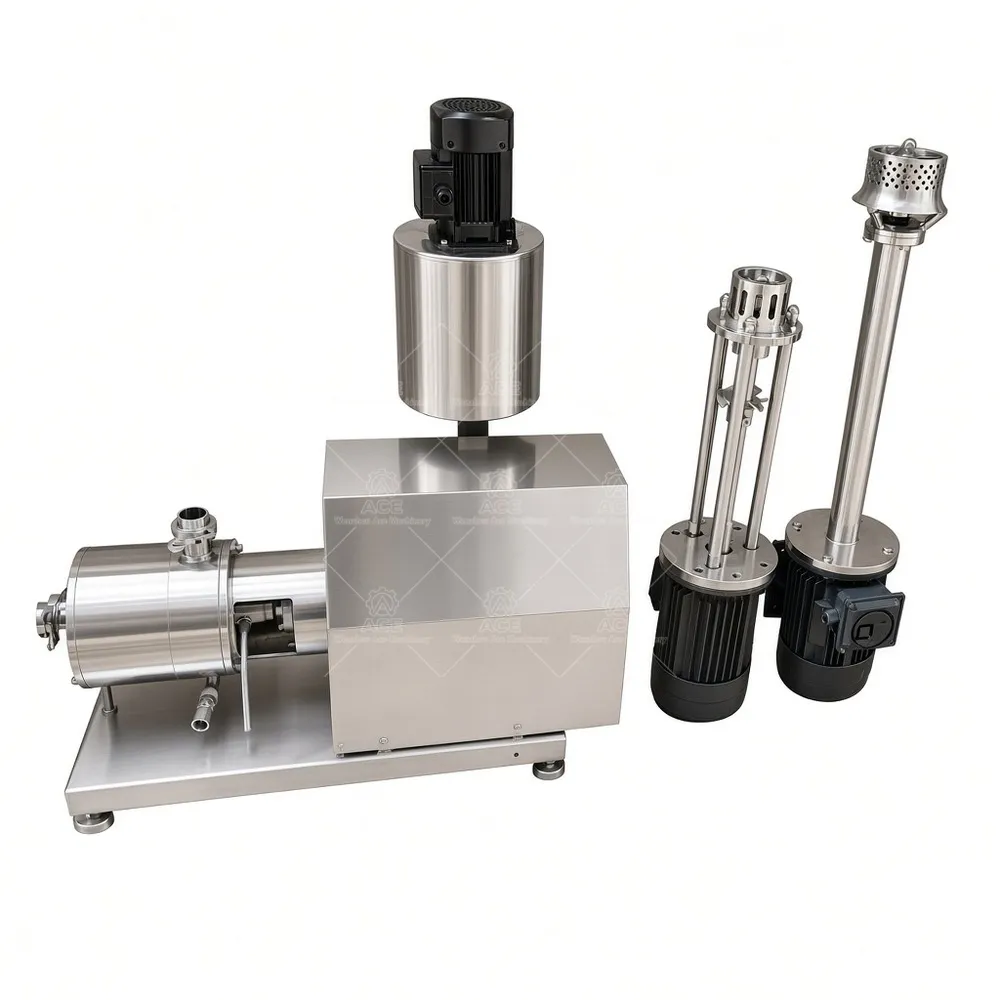

Single Stage Emulsifying Homogenizing Pump with Hopper for Dairy, Mayo, Xanthan
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,095.88 through $2,297.29
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Single-Stage Inline Emulsifying Pump for Powder Wet-Out and Emulsion Control
This Ace Mixer single-stage emulsifying homogenizing pump with hopper is built for production lines that need to pull powders into a liquid stream and shear the mix without turning the tank into a batch blender. The hopper feeds dairy additives, stabilizers, xanthan gum, or mayonnaise ingredients into the rotor-stator zone. High tip speed wets the powder and breaks down agglomerates before they reach the tank. That means less manual dusting, shorter recirculation time, and fewer lumps.
The pump mounts inline in a pipe or circulation loop. Liquid enters the housing, passes through the high-speed rotor-stator, and returns to the tank or moves to the next process step. For mayonnaise, dressings, dairy blends, syrups, and liquid seasonings, the shear action supports oil-water emulsification and ingredient dispersion. Results depend on formulation, viscosity, solids load, flow rate, and pass count. A single-stage unit is often the practical choice when one controlled shear pass or loop recirculation matches the target texture. Tighter droplet size or higher solids may call for a different rotor-stator arrangement.
What matters at selection
- Flow rate and line pressure: the pump must fit the loop, not just the tank size.
- Viscosity and solids loading: xanthan gum and dairy powders behave differently once wetted.
- Motor and VFD: speed control helps operators tune shear without changing hardware.
- Seal and contact materials: match the product, cleaning routine, and local electrical supply.
Wetted parts are stainless steel. We can discuss motor power, connections, seals, and contact materials around your process. Compact skid or inline layouts keep existing tanks and piping in service.
Applications
Food and beverage: sauces, salad dressings, mayonnaise, syrups, dairy mixtures, beverage concentrates, starch and gum dispersion. Personal care: creams, lotions, shampoos, conditioners, liquid detergents. Pharmaceutical and chemical: liquid formulations, auxiliary dispersion, water-based preparations, and compatible emulsions where the selected materials and seals suit the duty.
FAQ
Can it run in a recirculation loop? Yes, when the pump, pipe size, and tank arrangement are matched to the duty.
Will it eliminate all lumps? It reduces agglomerates, but powder feed rate, addition point, viscosity, and recipe control still matter.
Can we adjust shear? A VFD is available for speed changes. Final selection depends on motor, seal, and process conditions.
Send batch size, material properties, required motor power, and local electrical specs. We will recommend a suitable configuration and quote.
Ace Mixer’s single-stage emulsifying homogenizing pump with hopper handles dairy additives, mayonnaise, sauces, and xanthan gum dispersions in inline or recirculation systems. The high-speed rotor-stator wets powders, breaks agglomerates, and supports consistent emulsions. Specify flow rate, viscosity, solids loading, motor power, seal type, connections, and electrical supply for a matched configuration.

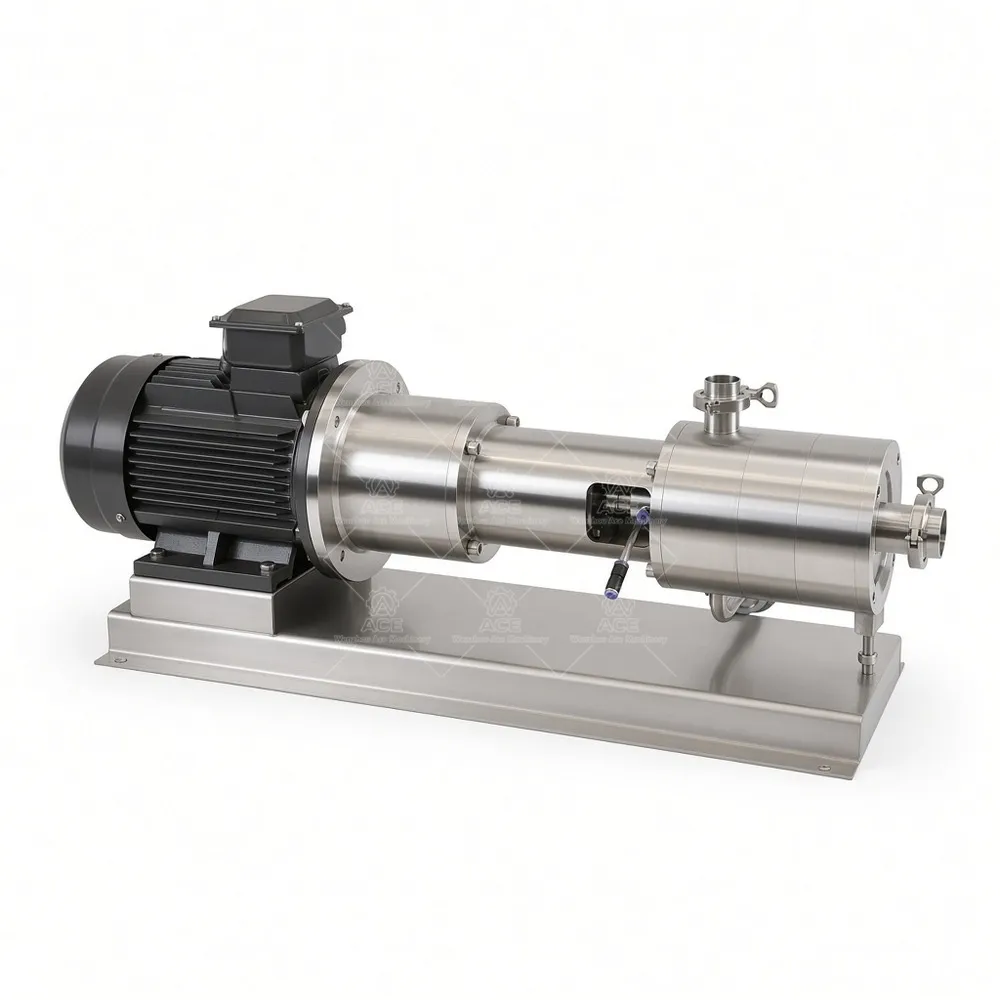

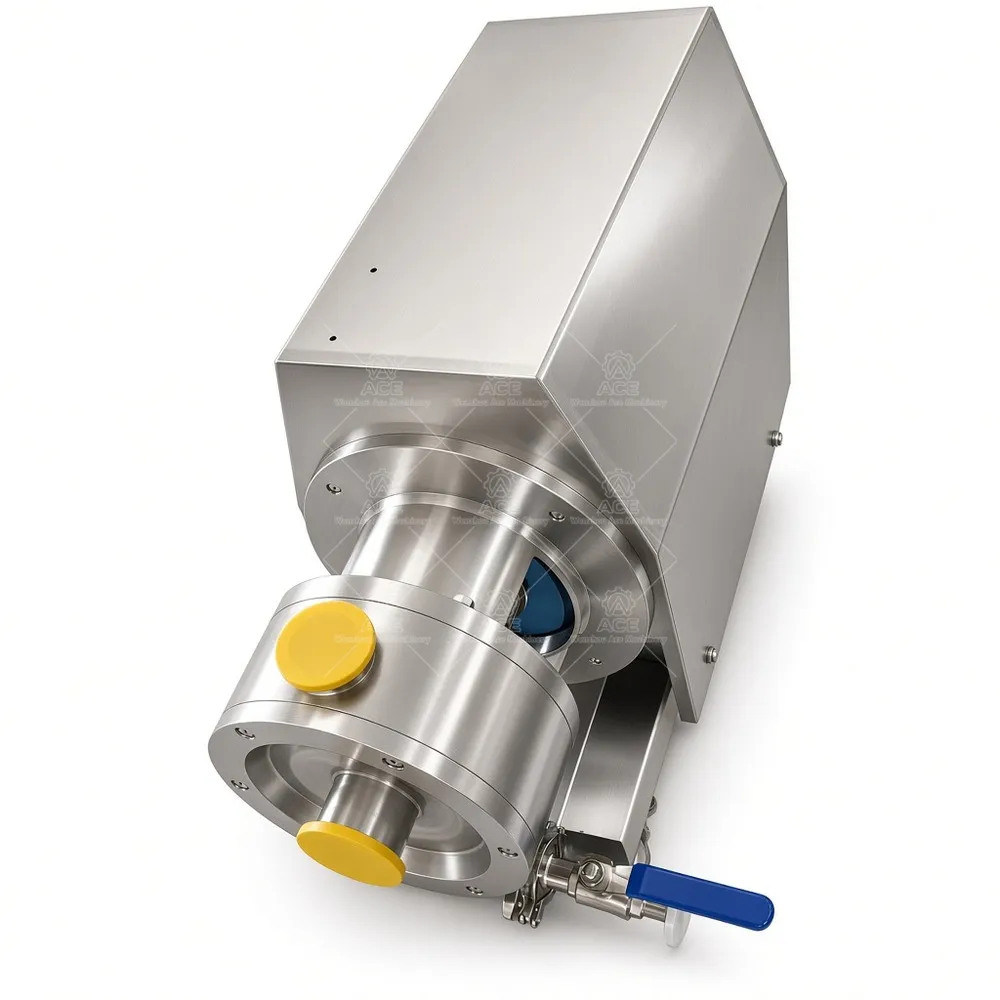

Single-stage in-line mixer

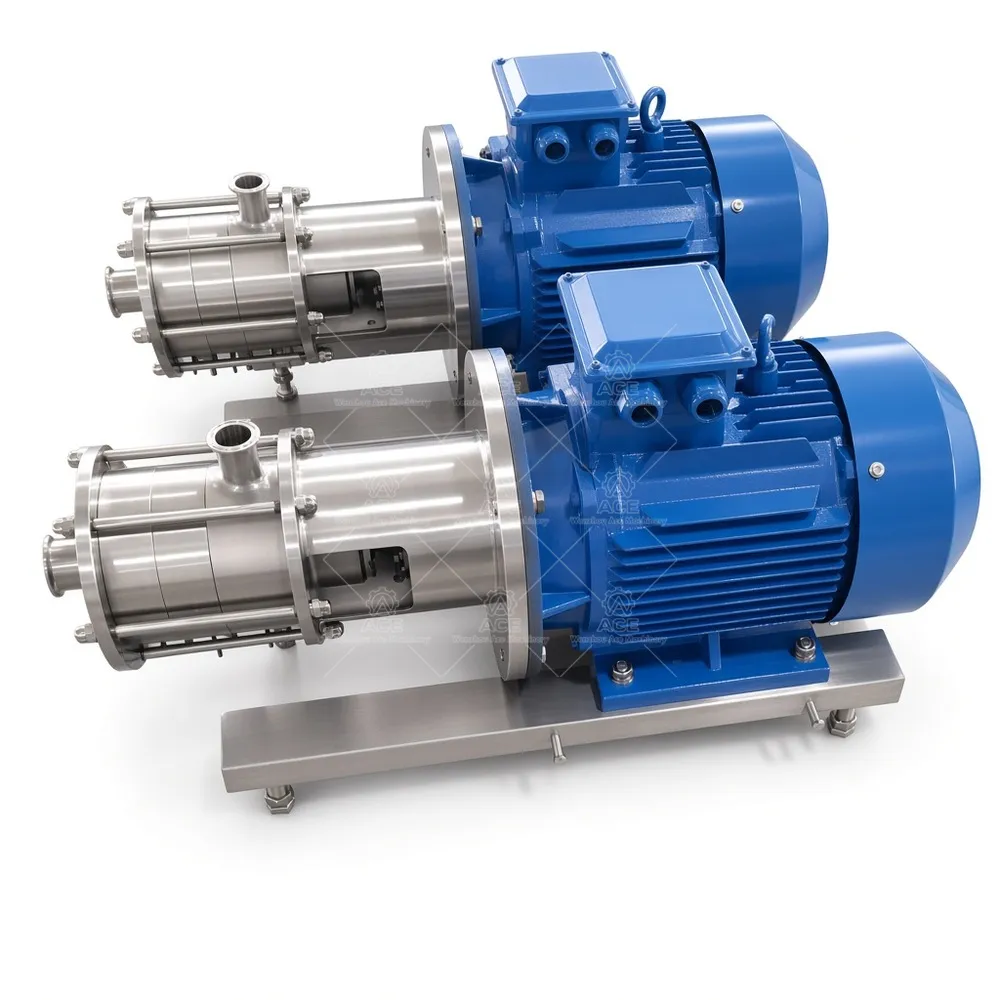

Three-stage in-line mixer
High-Shear Mixer with lift
High shear mixer
