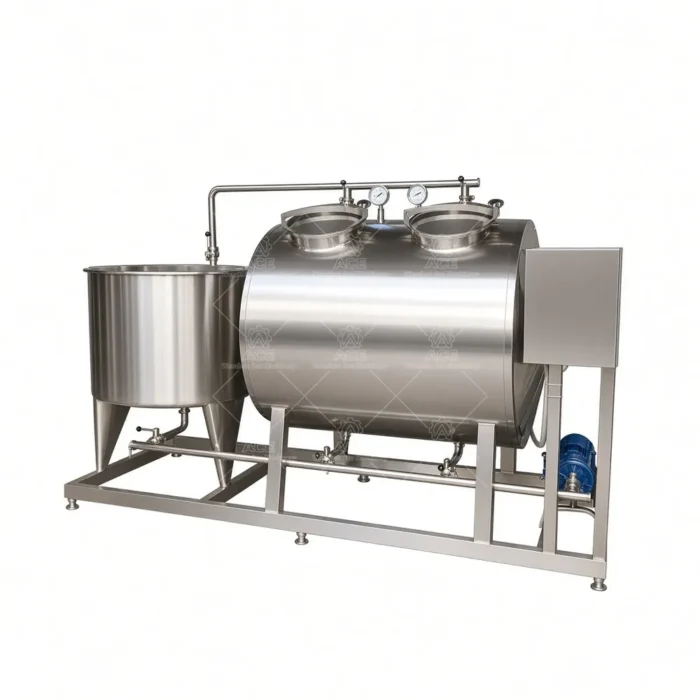

200L Manual CIP Cleaning Cart, 304 Stainless Tank & Pump
The 200 L manual CIP cleaning vehicle combines a 304 stainless tank, motor-driven pump, and simple manual controls for routine recirculation cleaning in dairy, beverage, brewery, and liquid-process plants. It suits small batches and satellite wash points. Optional heating, multi-tank layouts, monitoring, and PLC control are available when confirmed for the project.
- Tank Capacity: [100L–5000L or specify actual capacity]
- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $7,871.27 through $9,509.28
Guaranteed Safe Checkout
We build this 200 L manual CIP cleaning vehicle for plants that need a dedicated wash loop without a fixed skid. The 304 stainless tank, motor-driven pump, hose connections, and manual valves suit small batches, pilot lines, and satellite cleaning points. It handles routine recirculation where the operator controls chemical concentration, temperature, and contact time. It is not a full automated CIP replacement.
Cleaning cycle
Fill the tank, add detergent or rinse water, and heat only if the selected configuration includes a heater. Connect supply and return hoses to the vessel or pipe run. Start the pump, set flow with the manual valve, and watch temperature and pressure. Drain, flush, and repeat per your procedure. Keep return lines short and sized to the pump; restricted returns cause cavitation and weak spray coverage.
Applications
Used across dairy, beverage, brewery, distillery, sauce, liquid-food, cosmetic, and pharmaceutical processing. Check wetted elastomers, surface finish, and cleaning chemistry against your product and wash SOP. 316L construction and alternative connections are available when the duty requires them.
Configuration notes
Base manual carts normally have one 200 L tank. Project-specific options include single-, double-, triple-, or multi-tank layouts; acid/caustic and hot-water tanks; electric or steam heating; circulation and return pumps; stainless piping, valves, and fittings; temperature, flow, pressure, and level monitoring; and manual, semi-automatic, or PLC control. Only features confirmed on the order are supplied.
Technical specifications
| Item | Specification |
|---|---|
| Cleaning tank capacity | 200 L; custom sizes available |
| Number of tanks | Single tank standard; multi-tank optional |
| Stainless grade | 304; 316L optional |
| Heating | None standard; electric or steam optional |
| Pump flow and pressure | Model-dependent; confirmed at quotation |
| Working temperature | Ambient to selected heater and pump limits |
| Control | Manual; semi-automatic or PLC optional |
| Cleaning circuits | Single loop standard; custom manifold optional |
| Power supply | Project-specific; confirm voltage and frequency |
| Dimensions | Depends on tank, pump, and options |
| Custom options | Tank size, circuits, heating, monitoring, automation |
FAQ
Can the cart heat cleaning solution? Only when ordered with electric or steam heating; confirm temperature and heat source at quote.
What pump flow should I specify? Match flow and pressure to the longest circuit, spray device, and return line. We need pipe size and layout to recommend it.
Can it serve several tanks? Yes, with valves and hoses or a multi-tank layout. Confirm circuits and cleaning schedule first.
Request a quote
Send your industry and processed product, tank and piping details, required cleaning capacity, heat source, automation level, stainless grade, and installation location. We will recommend the tank, pump, and control configuration and provide a factory-direct quotation.
