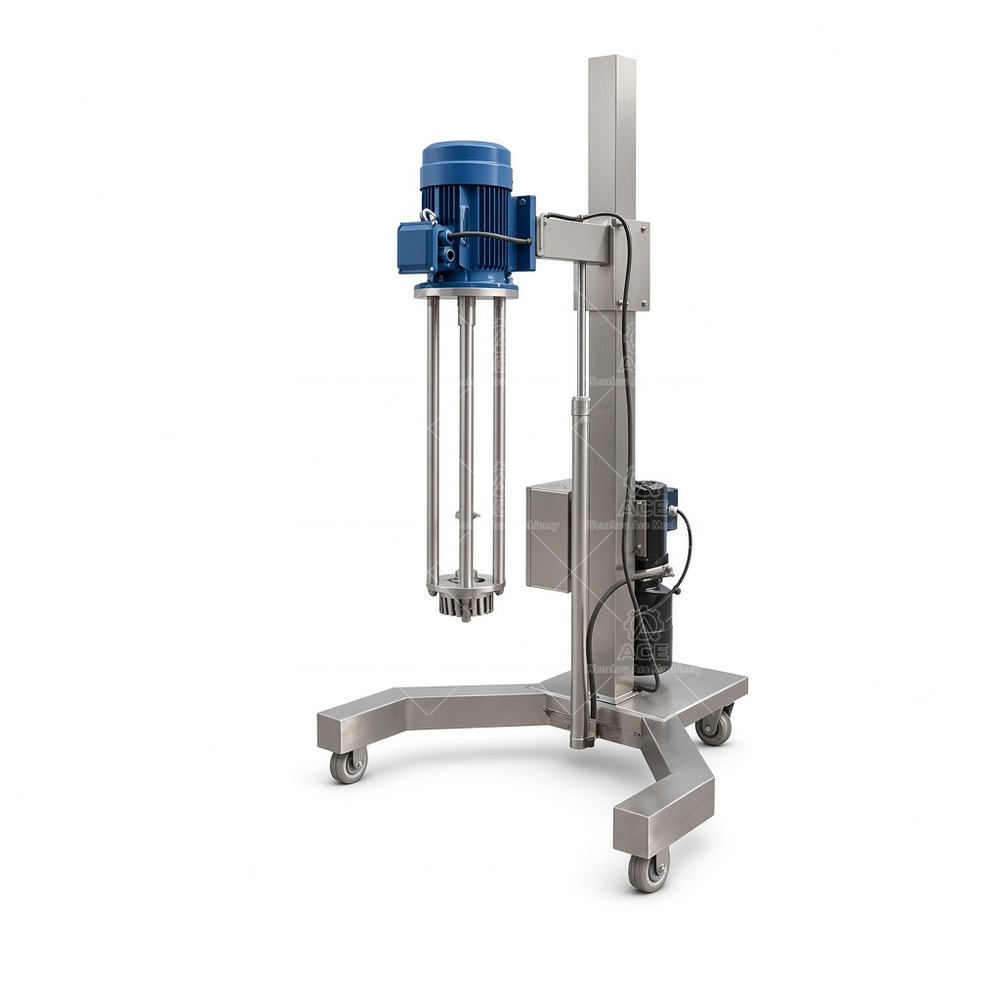

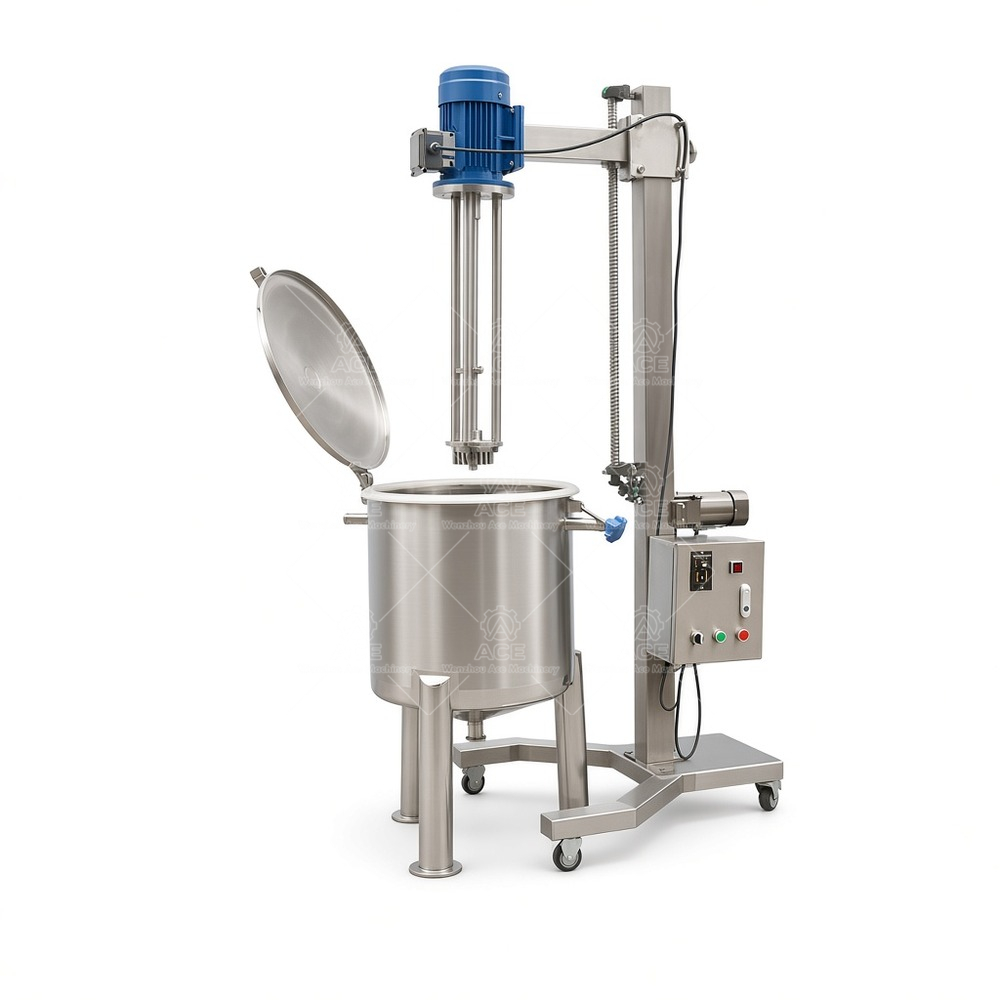

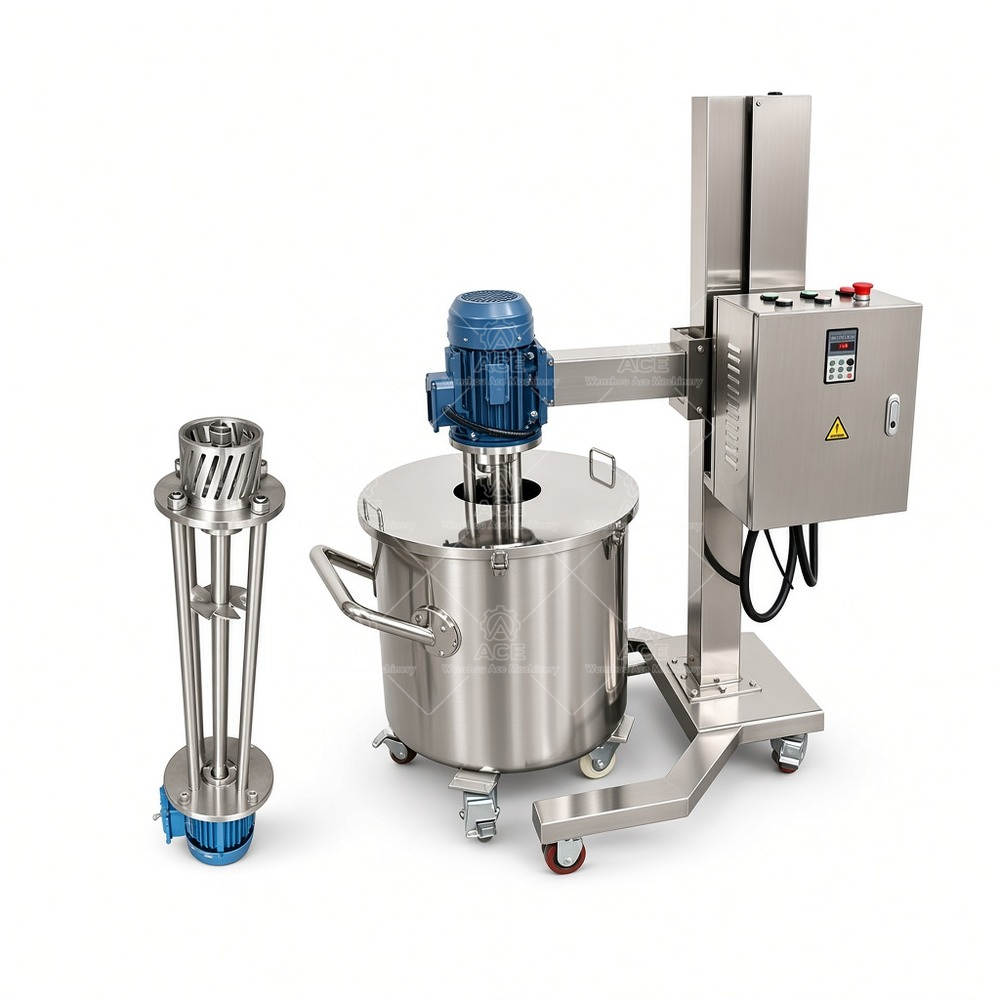

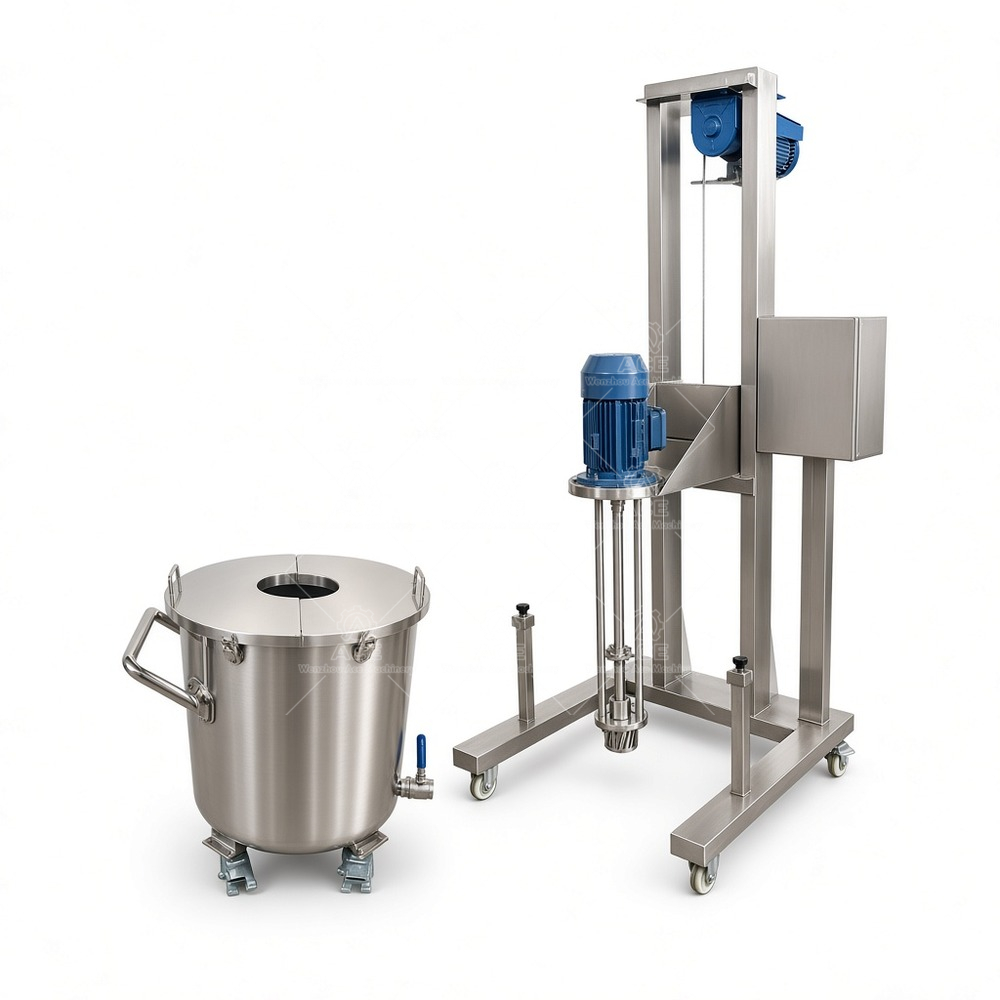

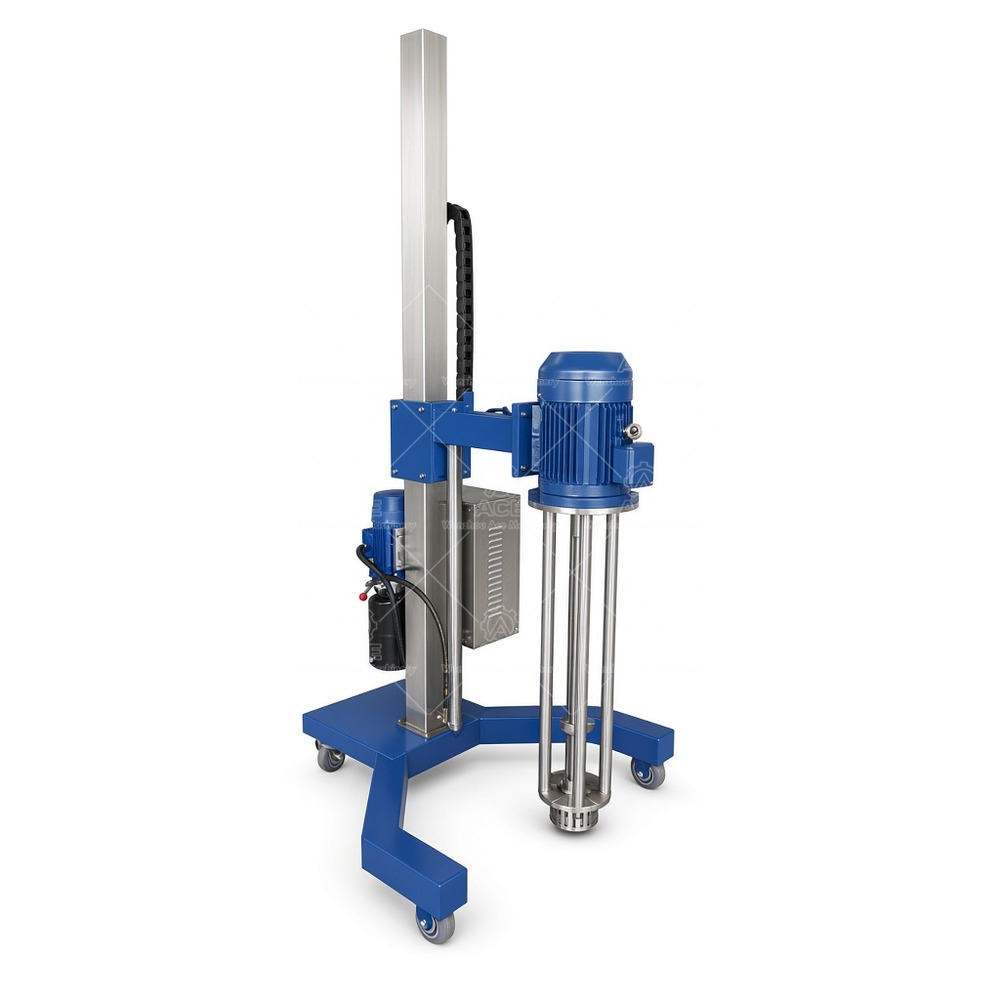

Electric Lift High Speed High Shear Homogenizer Mixer for Shower Gel Food Paste
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,189.66 through $3,343.33
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
For open-vessel batches that change often
Shower gel, food paste, and similar products often fail at the same point: powders do not wet out cleanly, agglomerates remain, or an emulsion breaks during handling. This electric lift high shear homogenizer mixer is a batch high shear mixer for plants running several recipes in open vessels. The electric lift frame helps position the head; casters let operators move the unit between stations where the layout permits.
Configuration details
- Mobile high shear mixer with casters for moving between production areas or vessels.
- Optional VFD speed control, 0 to 3000 rpm depending on motor and configuration.
- Voltage: 220V to 480V; frequency, phase, and electrical arrangement confirmed for the market.
- Motor power: 1.5 kW to 11 kW, selected by process demand and model.
- Functions: high shear, dispersion, emulsification, and powder incorporation.
- Customization: motor power, voltage, control system, mixing head, and other details matched to the application.
- Structure: stainless steel product-contact parts and contact materials can be specified; a stainless steel high shear mixer when configured with stainless wetted parts.
- Manufacturer: Ace Mixer, an industrial high shear mixing equipment manufacturer offering configurable units.
Applications
We supply this industrial high shear mixer for food and beverage processing, cosmetics and personal care, pharmaceutical and healthcare preparations, chemical processing, paints, coatings, and compatible industrial formulations. It supports powder dispersion and liquid-liquid emulsification when the head, wetted materials, and operating parameters match the product. For a variable speed high shear mixer, shaft speed depends on viscosity, solids loading, batch size, and the dispersion target.
Choosing a configuration
Start with batch size and vessel dimensions, then viscosity and ingredient behavior. A high shear mixer for powder dispersion may need a different head than an emulsification job. Motor power, target speed, and a high shear mixer with VFD should be selected together. Check local voltage, frequency, and phase before quotation. A mobile high shear mixer suits changing stations; a fixed unit may fit a dedicated line. One common error is ordering by tank size alone and finding later that head, lift height, or electrical package does not match the installation.
FAQ
Can it run 0 to 3000 rpm? Only when the motor, VFD, and configuration support that range. We confirm working speed against your product.
How are wetted materials confirmed? Send the formulation, cleaning routine, and contact-part requirements. Product-contact stainless steel and other materials are specified per application.
Does it disperse powders and form emulsions? Yes, with a suitable head and procedure. Powder wet-out and emulsion stability vary by formula.
Request a recommendation
Send batch size, material characteristics, target rpm, required motor power, and local electrical specifications. Ace Mixer will review the duty and recommend a suitable batch high shear mixer configuration for quotation.
Electric lift high shear homogenizer mixer for batch processing of cosmetic shower gel, food paste, and compatible formulations. The unit offers mobile positioning, optional VFD speed control, 1.5–11 kW motor options, and 220–480V electrical configurations. Product-contact stainless steel parts and mixing head details can be specified. Ace Mixer reviews batch size, viscosity, target rpm, and local power requirements before recommending a configuration and quoting.
