2.2KW SS316L Movable Lifting High Shear Homogenizer Mixer Batch Dispersing
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,152.01 through $3,160.60
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Movable high shear mixing for batch production

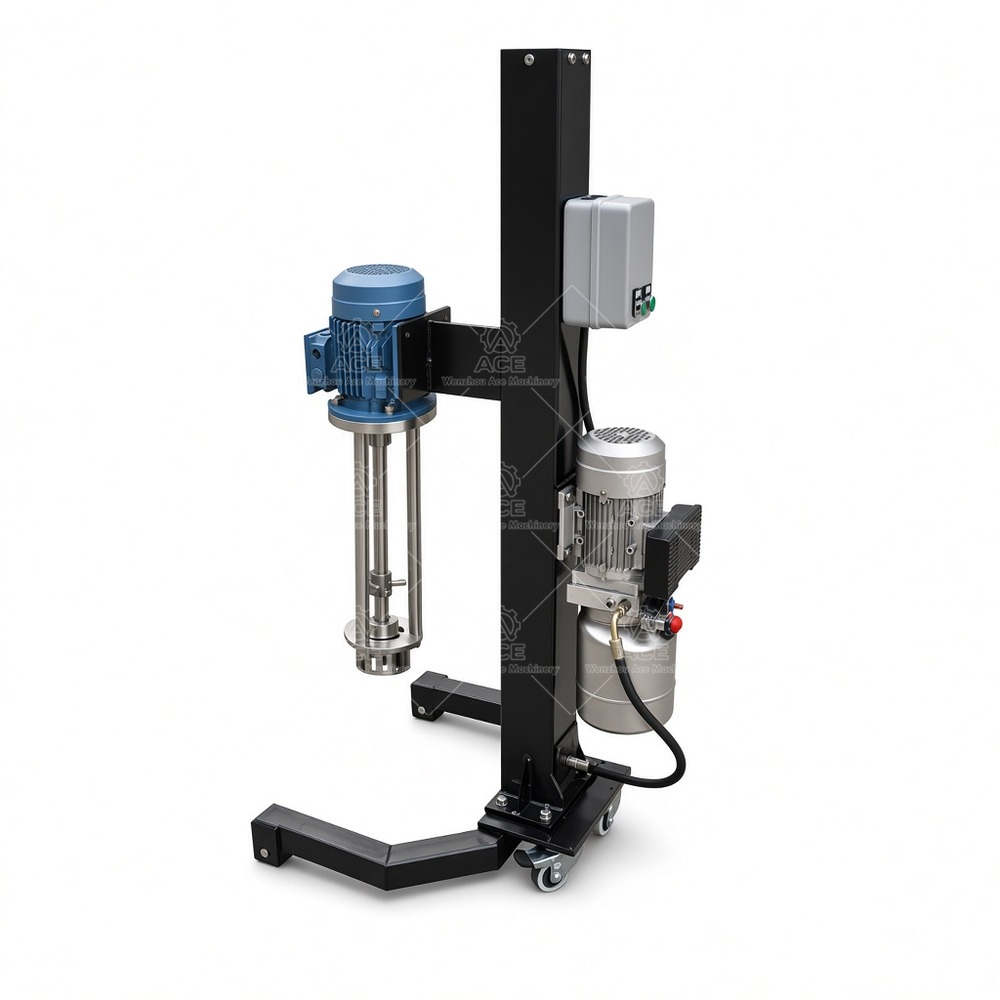

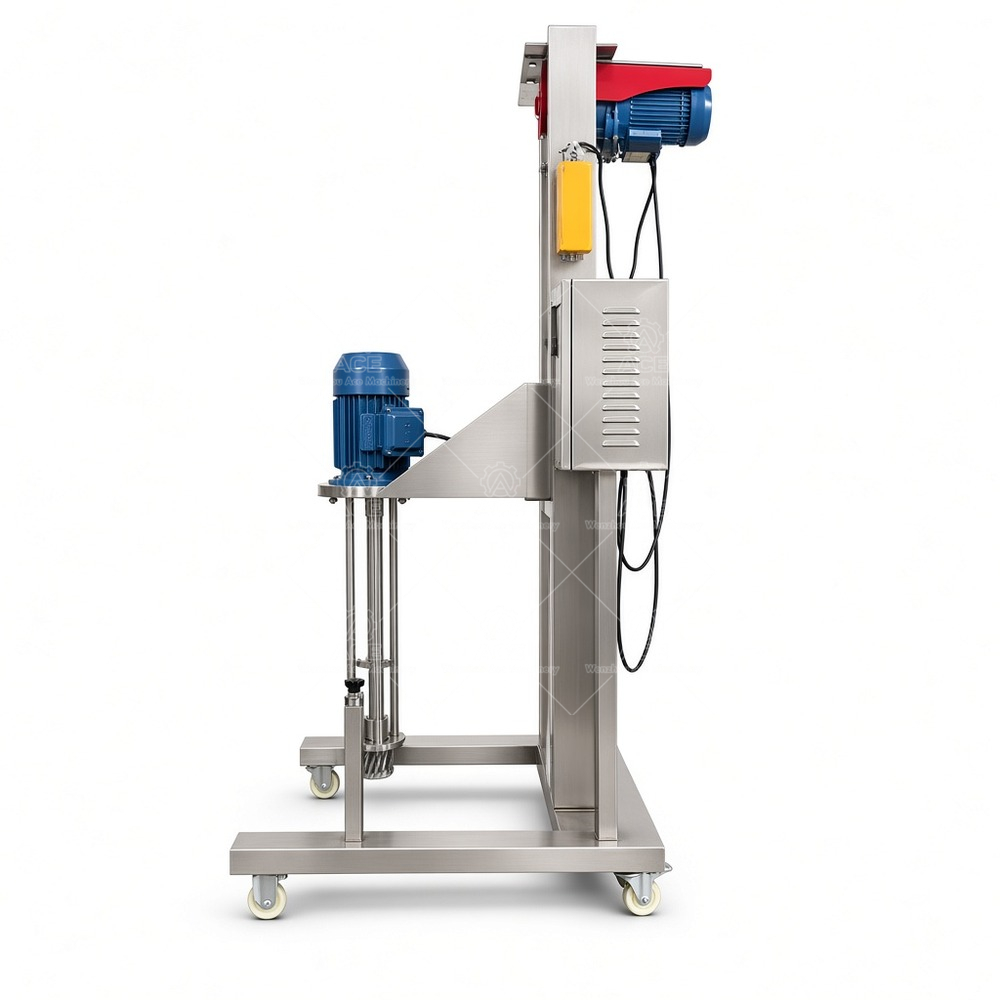

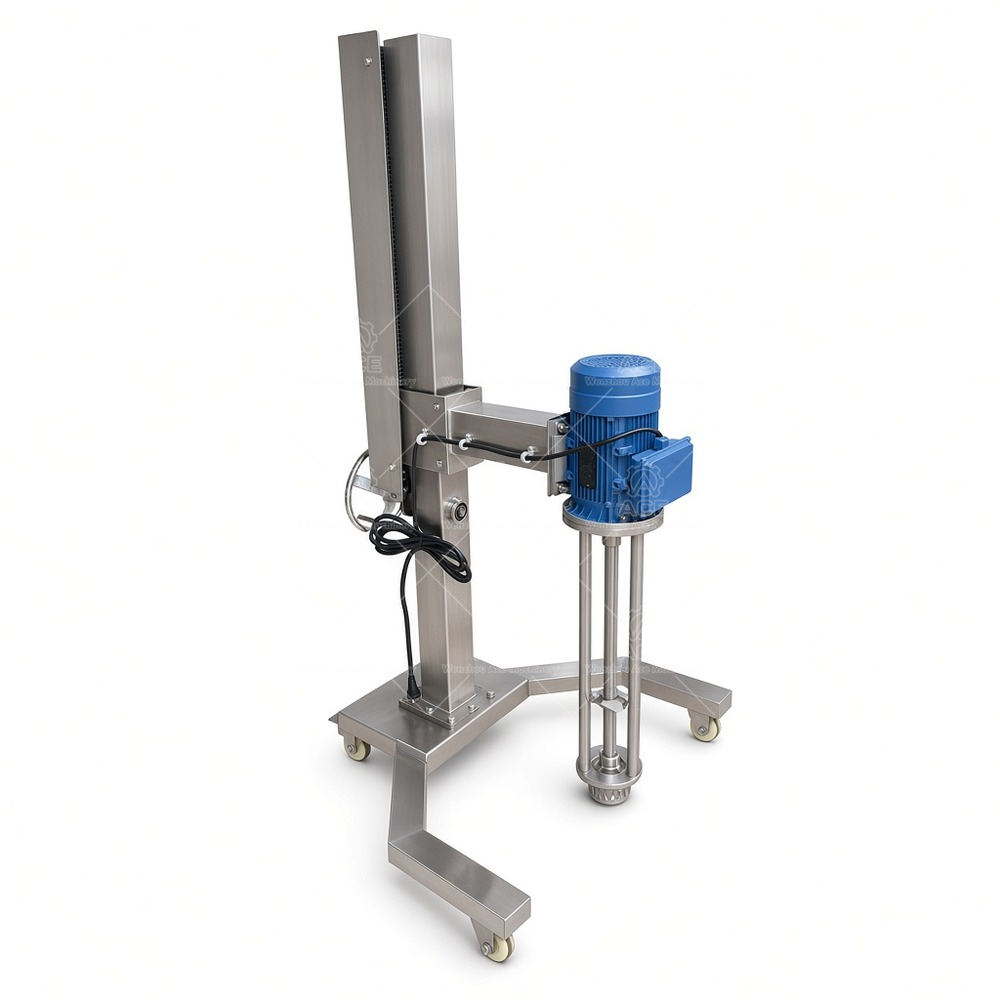

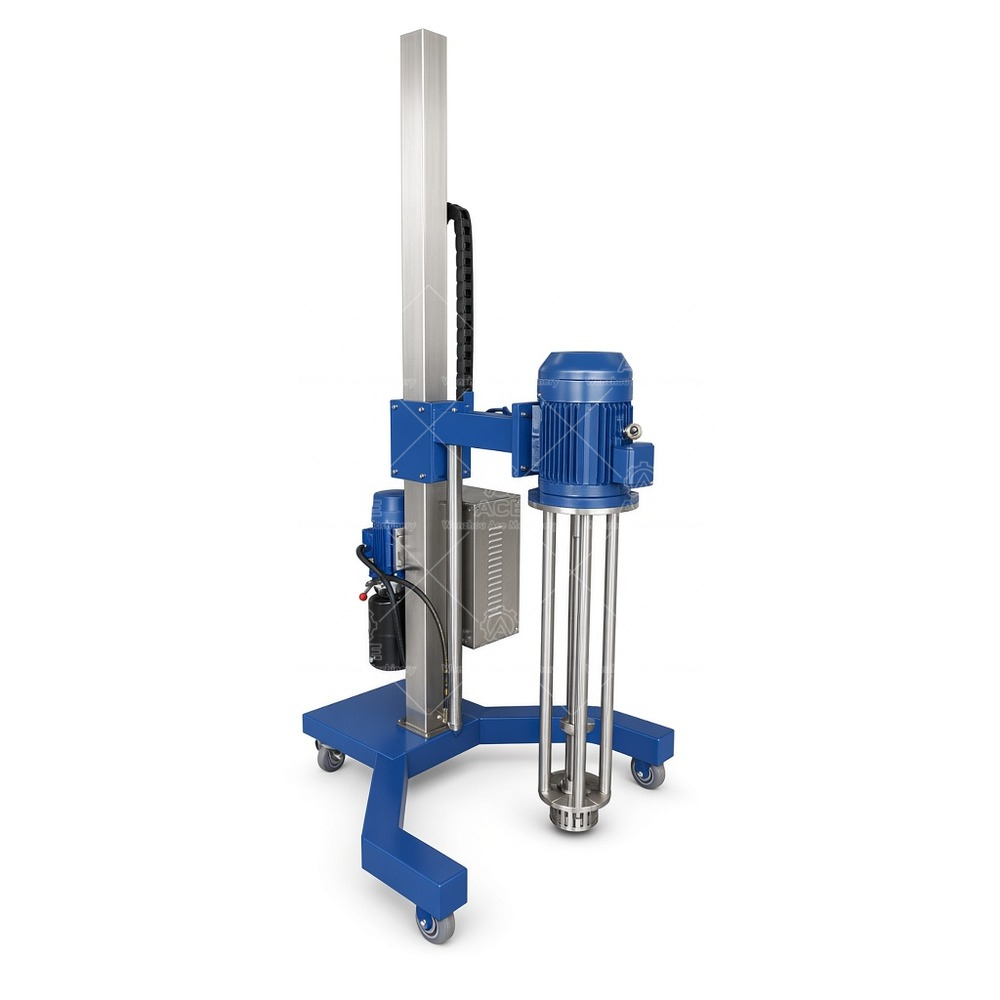

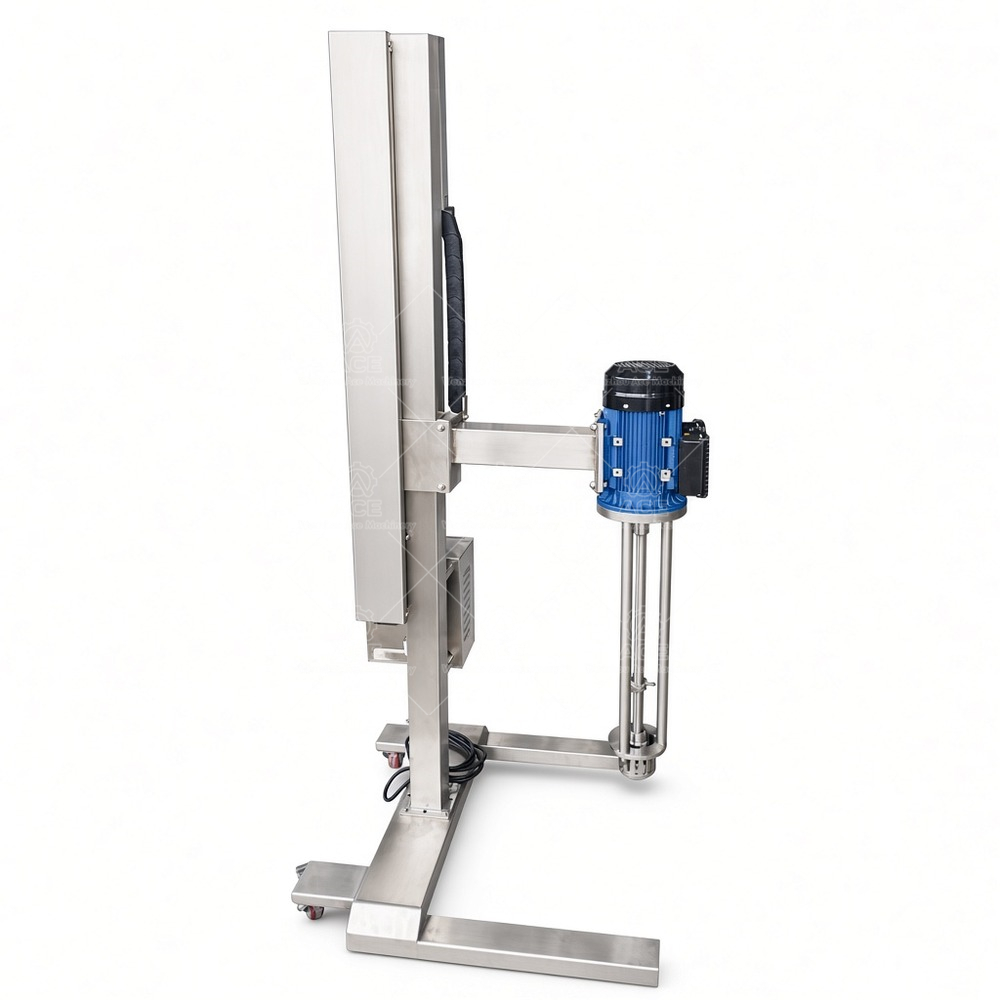

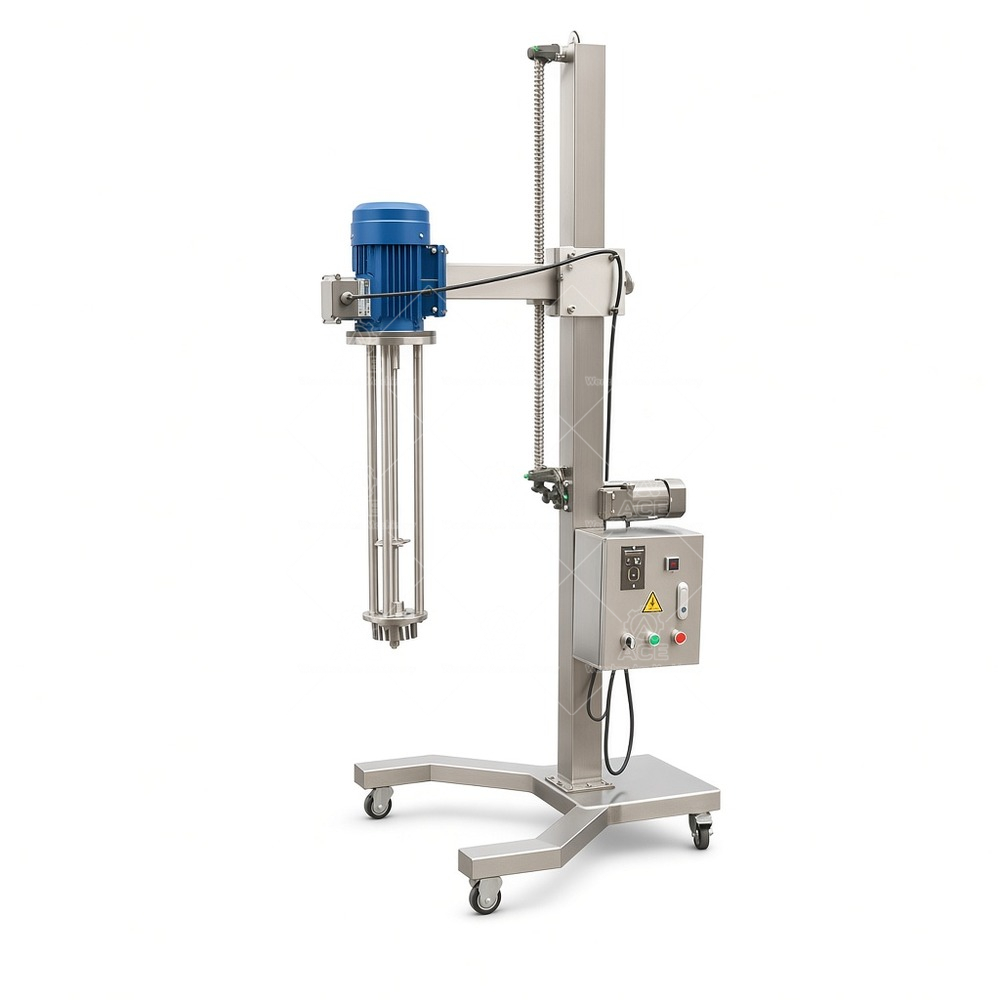

Ace Mixer builds this 2.2 kW industrial high shear mixer for batch mixing where the vessel stays in place and the high shear head moves to the product. A lifting frame and casters let operators position the working head over drums, tanks, or shallow vessels without transferring the batch. It handles high shear dispersing, emulsifying, and powder incorporation into liquids. Wetted stainless steel parts can be specified in SS316L, with other contact materials confirmed against the formulation and cleaning routine.
Speed control is available through a VFD, with adjustment up to 3,000 rpm depending on motor and configuration. Motor power spans 1.5 kW to 11 kW across models; the 2.2 kW version is a common mid-range choice for pilot and small production batches. Voltage is configured to 220–480 V, and we confirm frequency, phase, and electrical details for the destination market. We do not quote a single maximum batch capacity because viscosity, solids loading, and vessel geometry change the working range.
Specifications and configuration
- Movable frame with casters and lifting function
- 2.2 kW motor in this configuration; 1.5–11 kW available
- VFD speed control, up to 3,000 rpm depending on selected motor
- 220–480 V electrical options; confirmed at order
- High shear dispersing and emulsifying working head
- SS316L and other product-contact materials on request
- Custom head design, controls, and mounting details
Applications
Batch high shear mixing equipment fits food and beverage processing, cosmetics and personal care, pharmaceutical and healthcare preparations, chemical processing, and compatible paints and coatings. Powder dispersion and liquid-liquid emulsification are common duties. The right head, material, and operating parameters depend on viscosity, ingredients, and process requirements; we review those details before recommending a configuration.
Specifying a batch high shear mixer
Start with batch size and vessel dimensions, then define viscosity and solids behavior. Required rpm and motor power follow, along with voltage, frequency, and phase. Consider whether a movable high shear mixer or fixed installation better matches your layout. Working head design and product-contact parts should match the formulation and cleaning method. A variable speed high shear mixer with VFD lets operators tune shear without changing hardware.
FAQ
Can this unit run in a drum? The lifting frame and head size determine whether a drum opening works. Share the drum dimensions and we will check the fit.
Can motor power be changed? Yes. We build 1.5–11 kW versions and match the electrical configuration to your site.
Send batch size, material characteristics, target rpm, required motor power, and local electrical specifications. Ace Mixer\’s engineering team will recommend the suitable stainless steel high shear mixer and quote accordingly.
The 2.2 kW SS316L movable lifting high shear homogenizer mixer is built for batch dispersing, emulsifying, and powder incorporation. A lifting frame and casters position the working head over drums or tanks, while VFD speed control and 1.5–11 kW motor options let processors match the unit to viscosity, batch size, and local electrical specifications.
