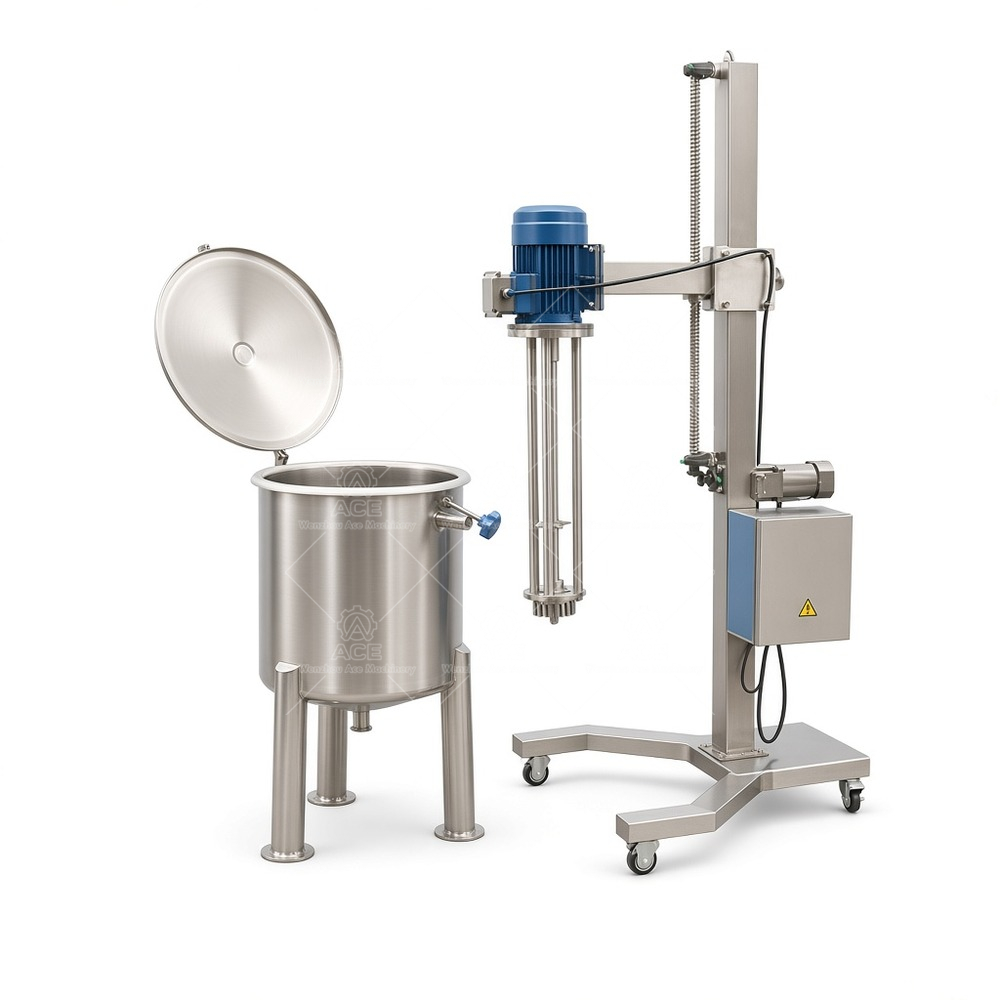

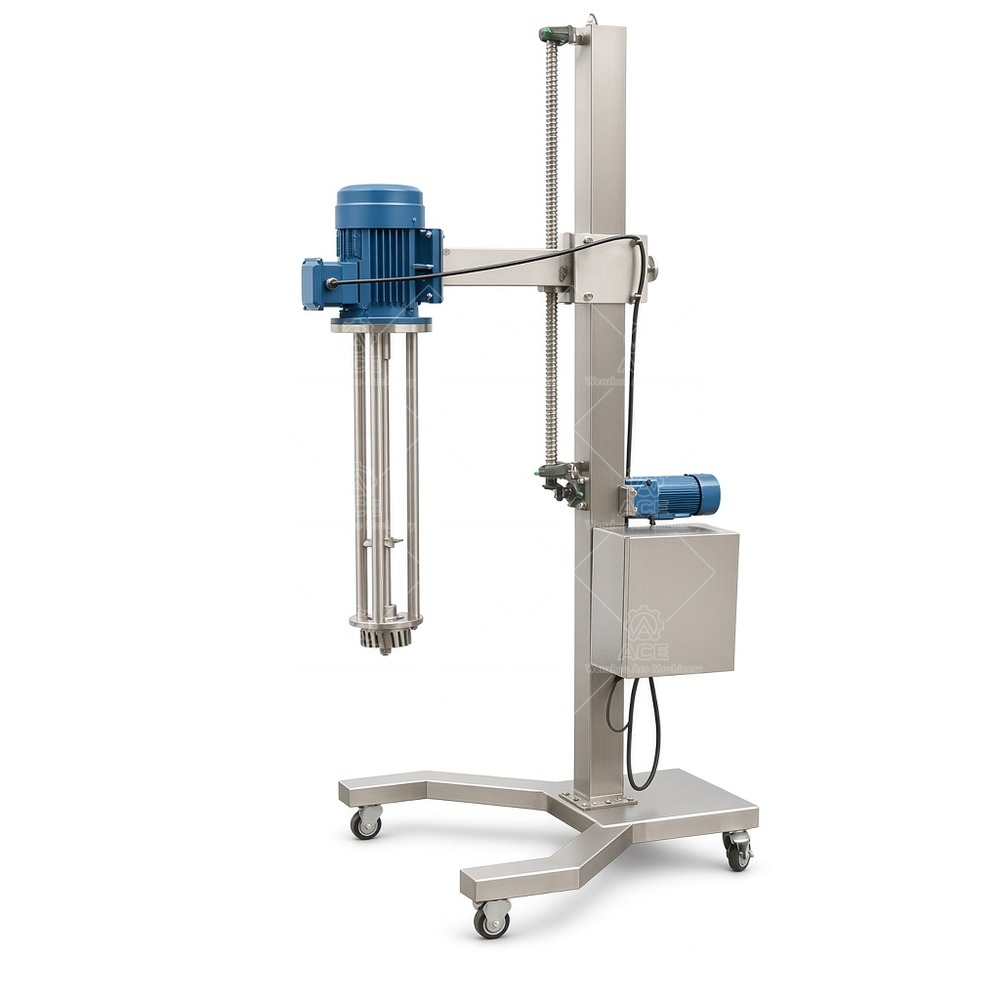

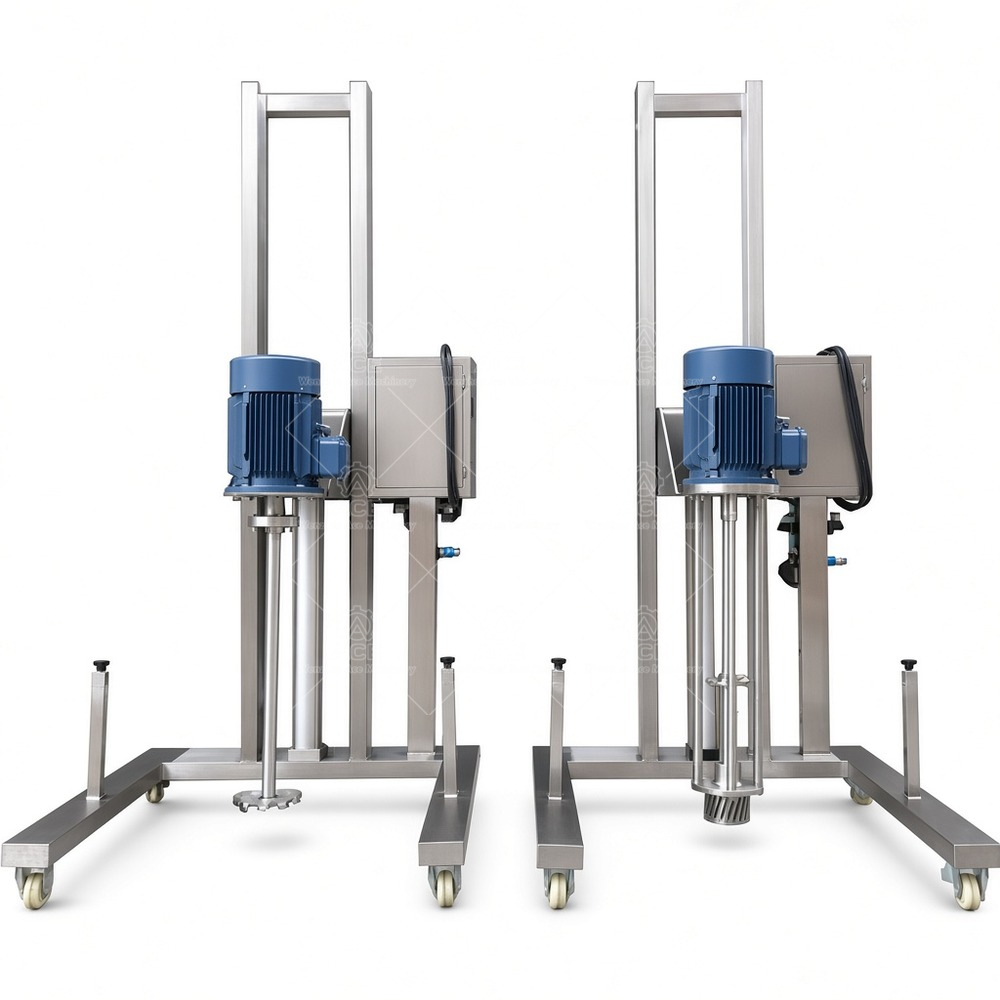

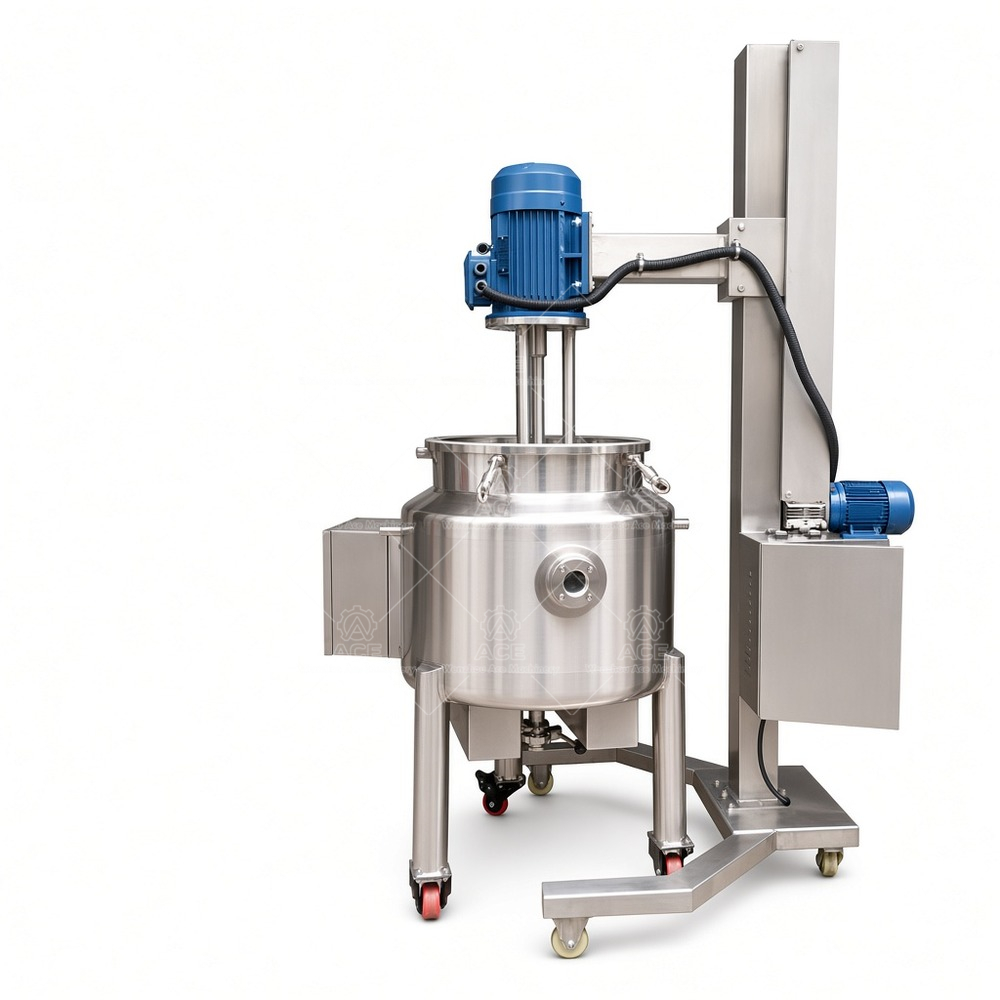

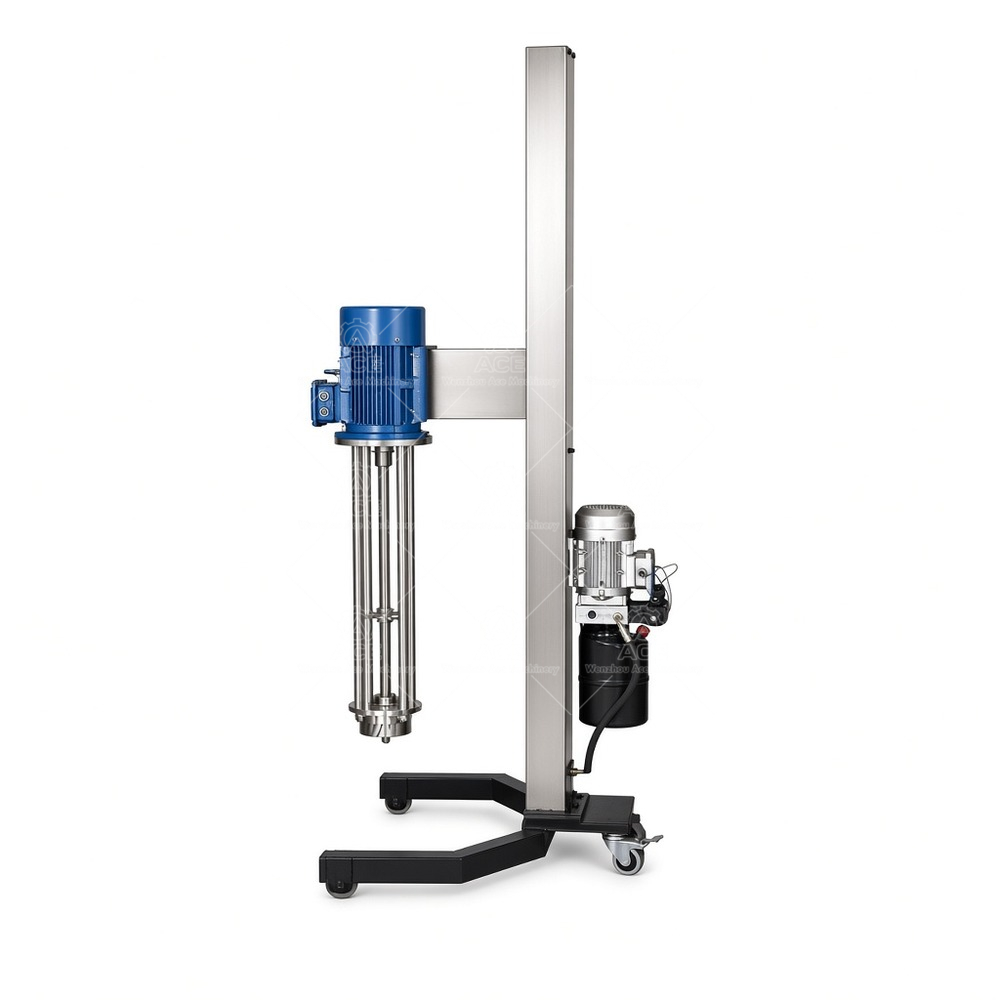

Industrial Carbomer Oil Cream High Shear Mixer Homogenizer Emulsifying
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,465.68 through $3,920.97
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Built for carbomer and oil-cream batch processing
Carbomer gels, oil creams, and similar emulsions often fail where powder first meets liquid. The batch high shear mixer from Ace Mixer is configured around that contact point: the head, speed, motor, and wetted materials are selected for your batch size, viscosity, and solids loading rather than sold as a one-size unit.
Configurable specifications
- Mobile frame with casters for movement between vessels and production bays where layout permits.
- Optional VFD for adjustable speed control, up to 3,000 rpm depending on motor and configuration.
- Motor power from 1.5 kW to 11 kW, matched to processing demand.
- Voltage options from 220 V to 480 V; voltage, frequency, phase, and electrical arrangement confirmed for the destination market.
- High shear mixing, dispersing, emulsifying, and powder-into-liquid incorporation.
- Wetted stainless steel and contact materials specified to product requirements.
- Custom motor, control system, mixing head, and configuration details available for the application.
As an industrial high shear mixer manufacturer, we ask for batch volume, product viscosity, solids content, target speed, and local power before recommending a head. A variable speed high shear mixer with VFD helps when formulations change across a production week; a fixed-speed drive can suit a narrow, repeatable process. For powder dispersion, the feeding method and head design matter as much as rpm. Keep in mind that the right head and operating parameters depend on viscosity, ingredients, and process requirements.
Where batch high shear mixing equipment fits
Food and beverage processing, cosmetics and personal care, pharmaceutical and healthcare preparations, chemical processing, and compatible paints, coatings, and industrial formulations all use batch high shear mixing equipment. A mobile high shear mixer can serve multiple vessels; a fixed installation may be cleaner where floor space and utilities are dedicated. Stainless steel high shear mixer construction and contact materials are specified per product.
FAQ
What batch details do you need for a quote? Batch size, vessel dimensions, viscosity, powder or oil phase details, target rpm, required motor power, and voltage/frequency/phase.
Can the unit move between tanks? Mobile frames with rollers are available where the layout allows. Confirm floor conditions, vessel height, and utility routing.
How do I choose the mixing head? Head selection follows product viscosity, solids loading, and whether the job is powder dispersion, emulsification, or both. We review the process before finalizing.
Send your batch size, material characteristics, target speed, motor power, and local electrical specifications for a suitable recommendation and quotation.
Ace Mixer builds the industrial carbomer cream high shear mixer for powder dispersion, emulsifying, and homogenizing in batch production. Mobile frames, optional VFD speed control, 1.5–11 kW motors, and 220–480 V electrical configurations are matched to your vessel, viscosity, and batch size. Share your process details for a configuration recommendation.
Single-stage in-line mixer
Three-stage in-line mixer
High-Shear Mixer with lift
High shear mixer
