SS304/316L Cosmetic Cream High Shear Dispersing Emulsifier Lifting Mixer
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,207.98 through $3,604.07
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Built for batch emulsifying, not just mixing

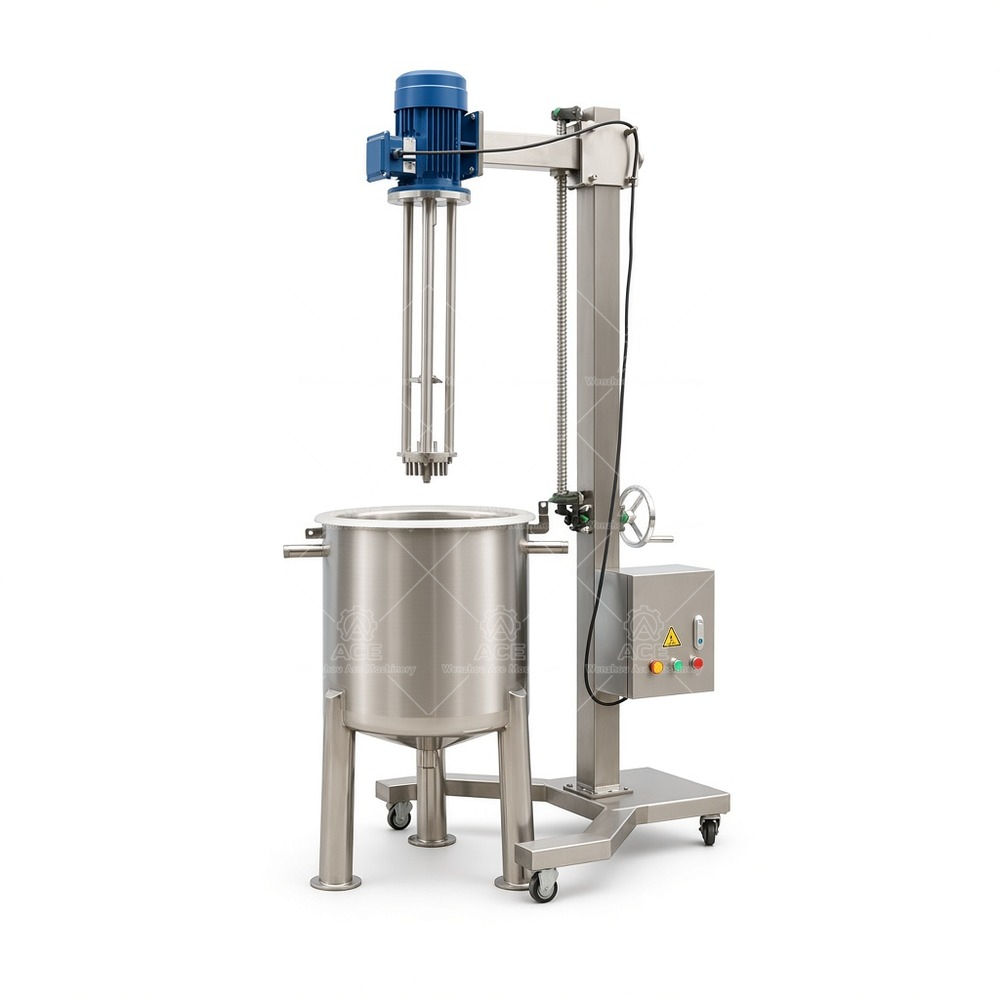

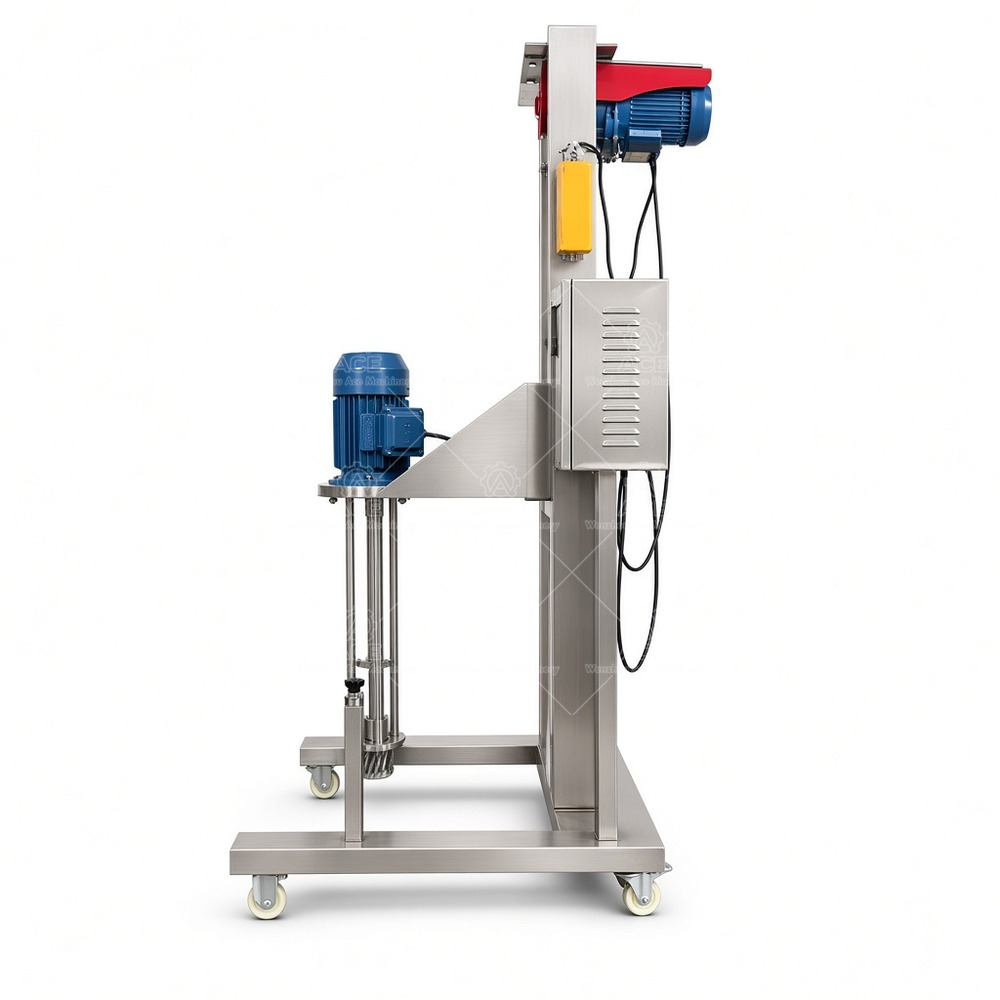

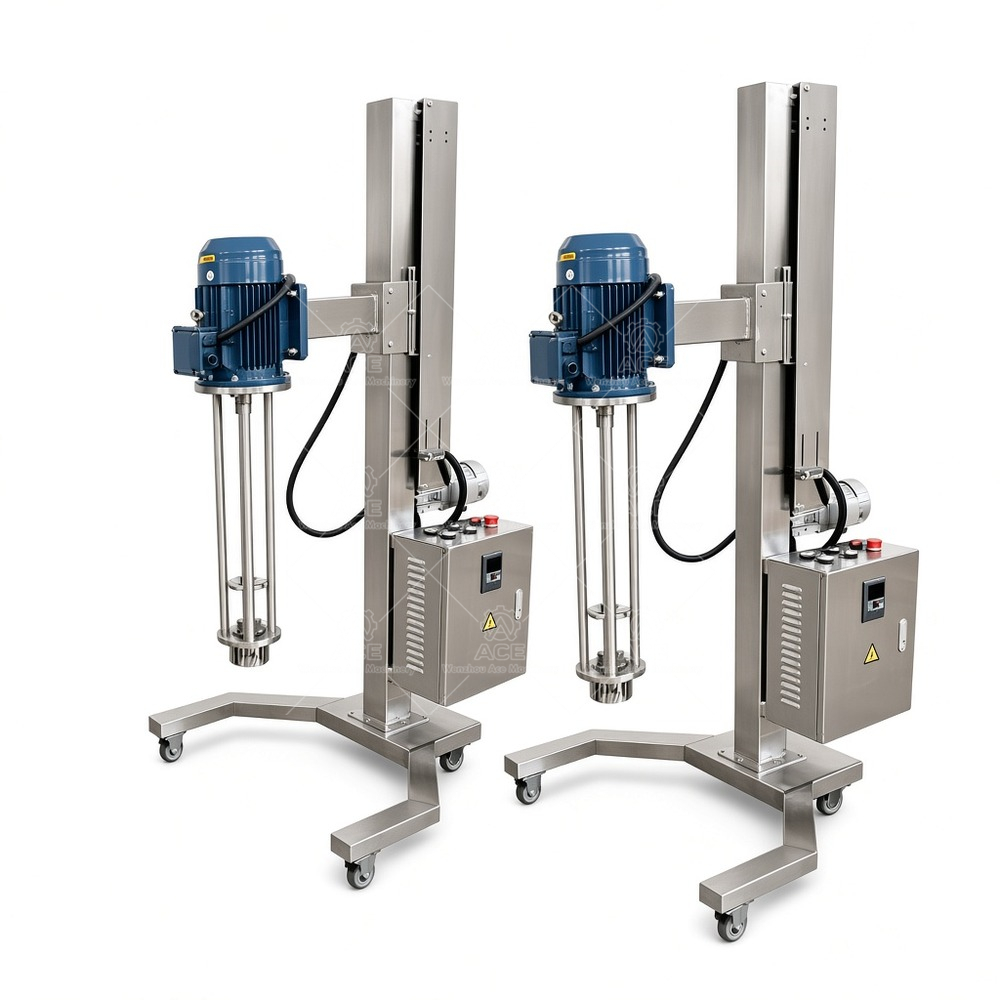

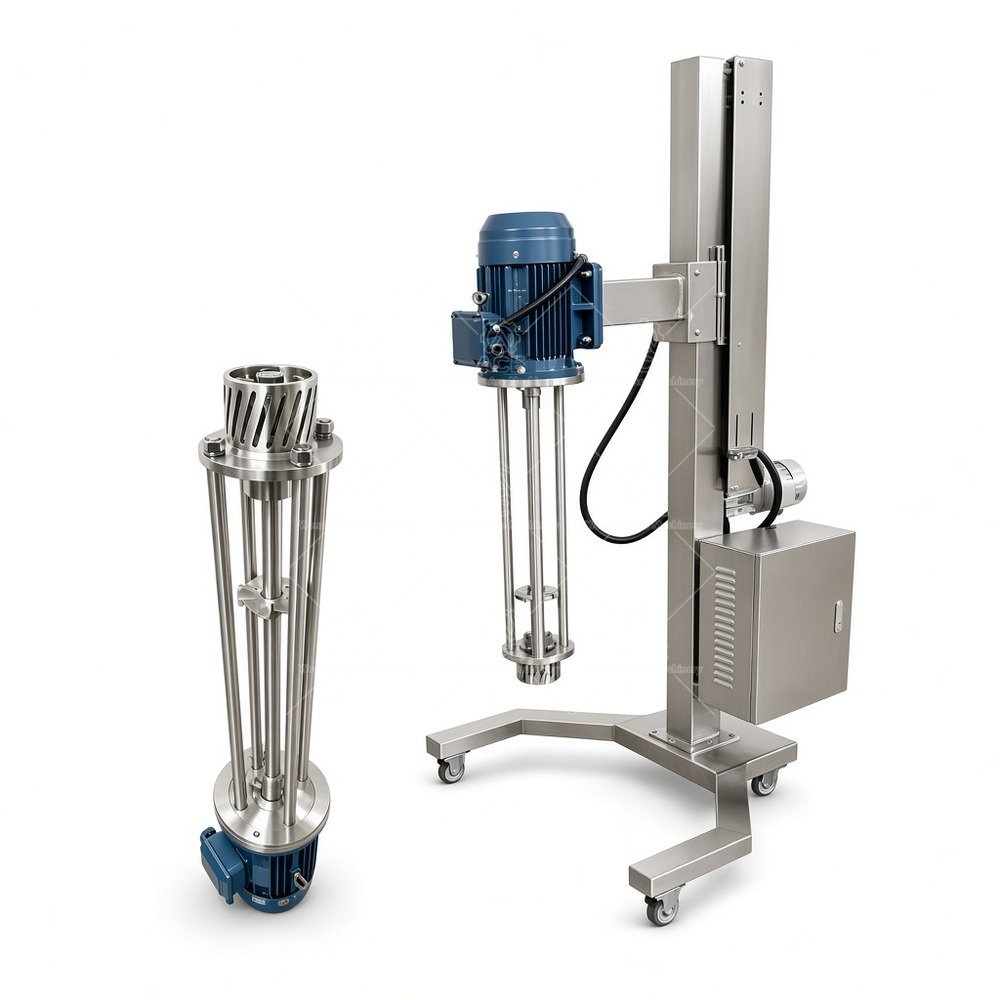

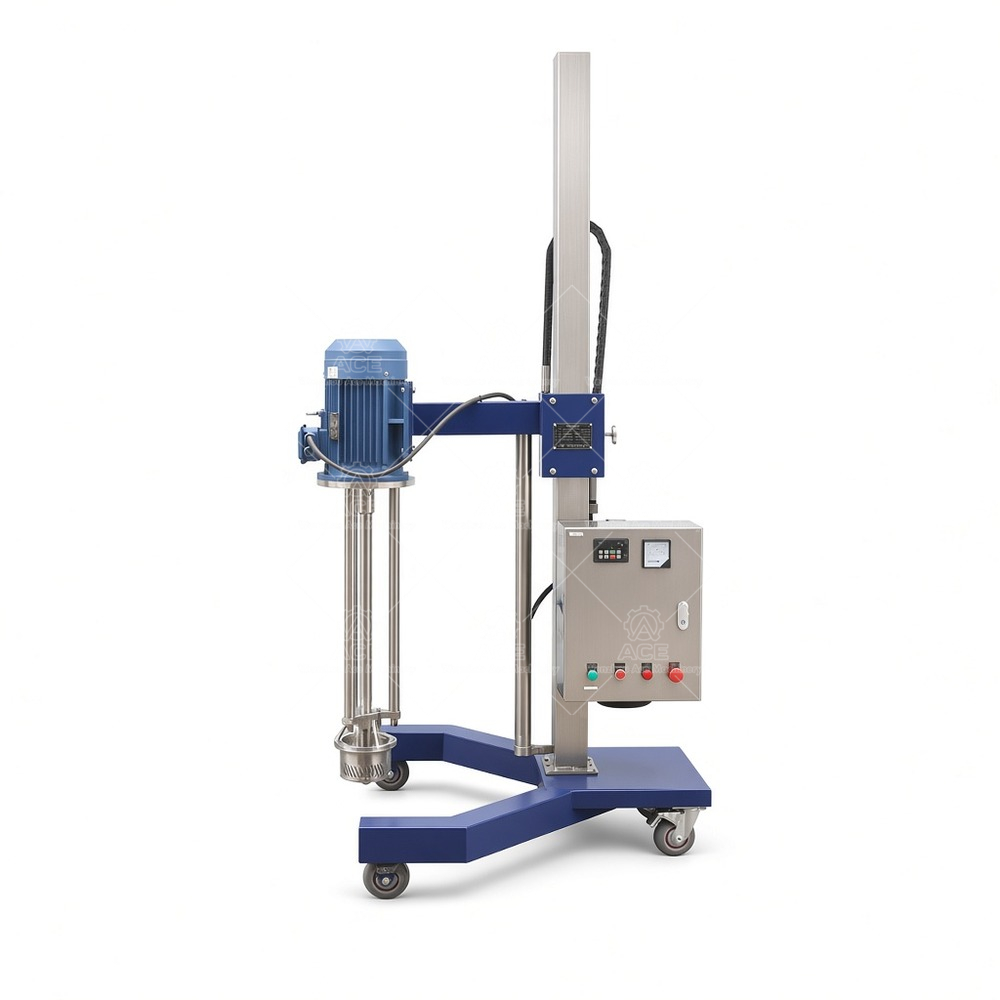

This lifting-type sanitary high shear mixer is configured for cosmetic lab and pilot production where a face cream batch needs consistent dispersion, emulsification, and powder wet-out. The head lowers into the vessel, runs at controlled shear, and can be raised for cleaning or vessel changes. Because the unit is mobile on casters, one frame can serve several containers or processing rooms when layout and services allow.
We build around the actual process: contact parts in SS304 or SS316L, motor power from 1.5 kW to 11 kW, and voltage from 220 V to 480 V confirmed for your market, including frequency and phase. A VFD can provide variable speed up to 3000 rpm depending on motor and configuration. Mixing functions include high shear dispersion, emulsification, and powder incorporation into liquids. Customization covers motor power, voltage, control system, mixing head, and other configuration details.
Selection points that affect the quote
- Batch size and vessel dimensions, including working volume and head clearance.
- Product viscosity, solids content, and whether powders must be wetted out or agglomerates broken down.
- Required mixing speed and motor power, matched to the head design and batch behavior.
- Local voltage, frequency, phase, and control preference, including VFD if needed.
- Contact material and mixing head style for the formulation and cleaning routine.
- Mobile or fixed installation, based on floor space, utilities, and vessel movement.
These choices matter more than a generic horsepower rating. A cream with high oil phase loading behaves differently from a low-viscosity gel or a pigment dispersion. The right batch high shear mixer depends on how the product flows, not just the nameplate.
Where it fits
Cosmetic and personal care production, pharmaceutical and healthcare preparations, food and beverage processing, chemical processing, paints and compatible coatings, powder dispersion, and liquid-liquid emulsification. Suitable head, material, and operating parameters depend on viscosity, ingredients, and process requirements. Ace Mixer supplies configurable industrial high shear mixing equipment for these duties.
FAQ
Can one unit handle multiple vessels? Often yes if the mobile frame, lifting height, and electrical connections suit the room layout. Check head position and vessel rim clearance first.
Is a VFD necessary? It helps when you need to adjust shear for different batches or avoid overmixing. The final speed range depends on motor and configuration.
What should I send for a recommendation? Batch size, material properties, target rpm, required motor power, and local electrical specifications. We will match the head, contact parts, and drive configuration to your process.
Send those details and we will quote a sanitary high shear dispersing emulsifier mixer that fits your production floor.
Mobile sanitary high shear mixer for cosmetic lab and pilot batches, with SS304/SS316L contact parts, lifting head, optional VFD speed control, and 1.5–11 kW motor options. Configured for dispersing, emulsifying, and powder incorporation. Ace Mixer builds units around batch size, viscosity, vessel dimensions, voltage, and cleaning needs.
