Batch High Shear Mixer Hydraulic Lift VFD Cream Shampoo Pomade
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,130.78 through $3,241.91
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM

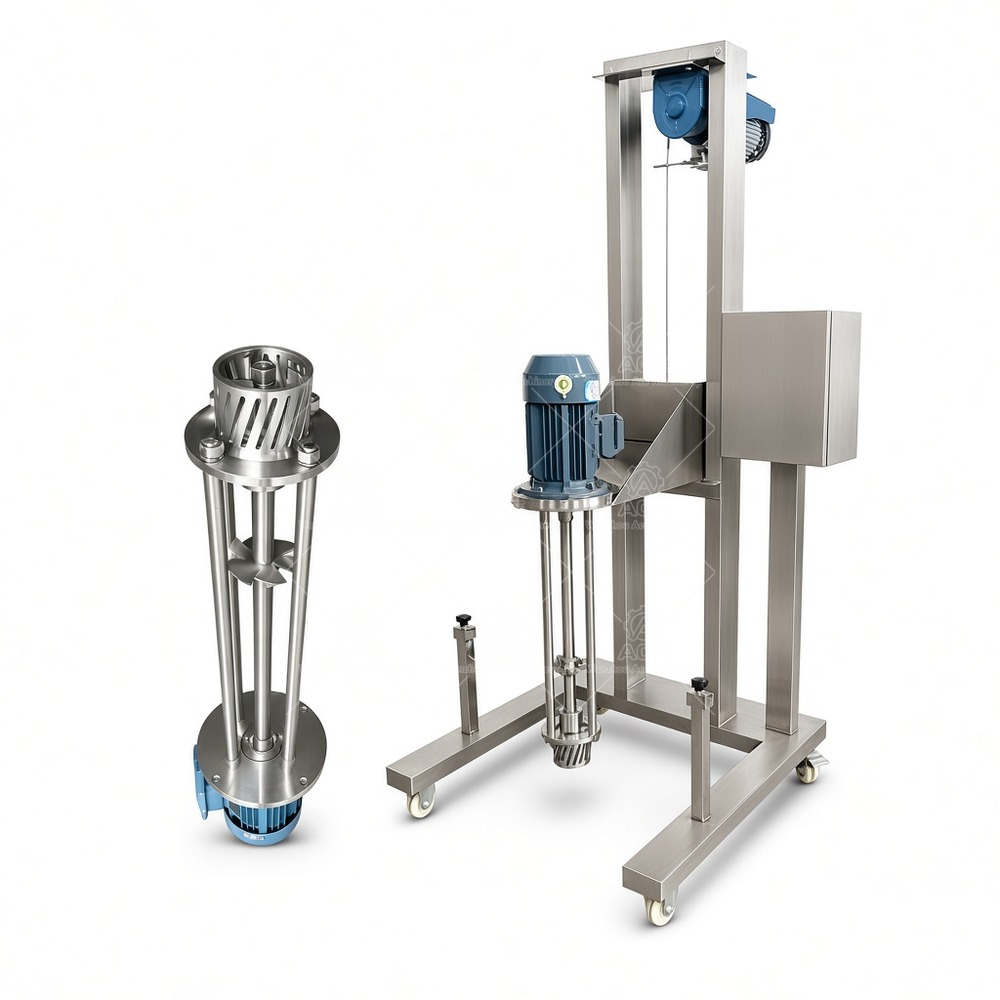

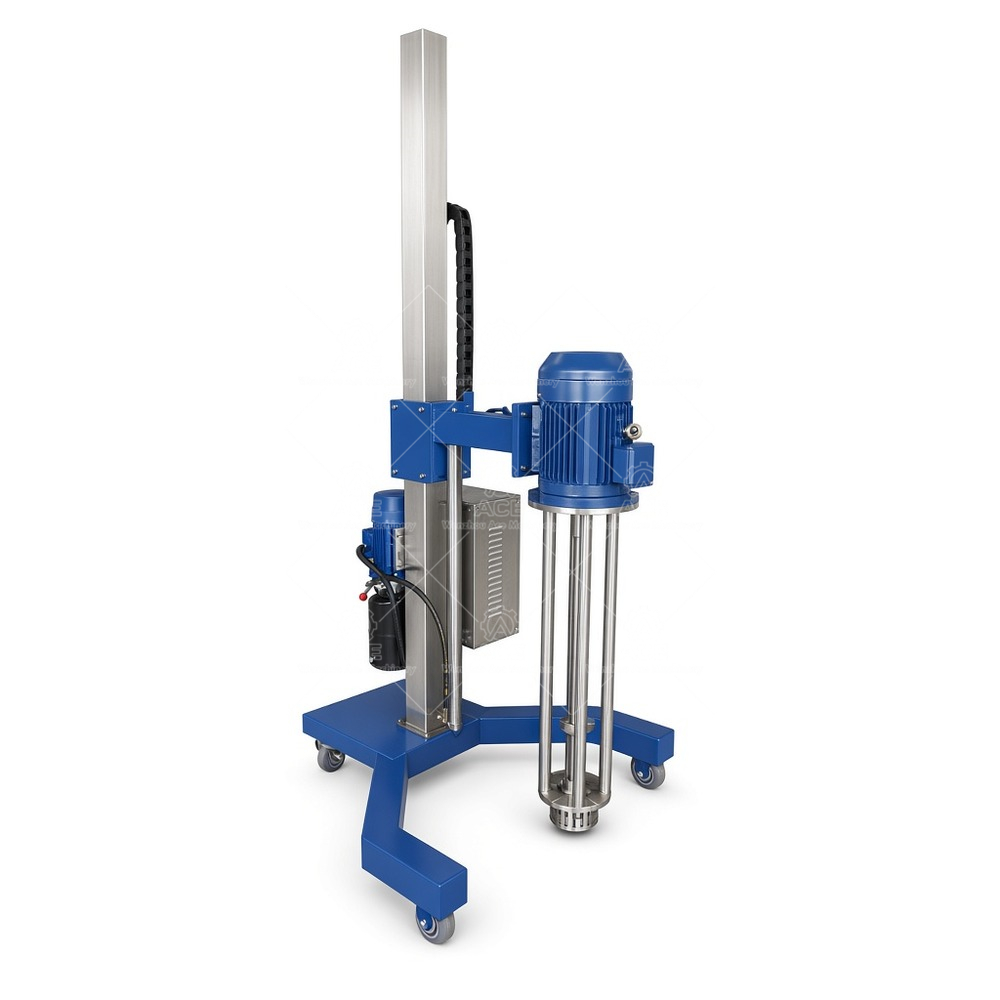

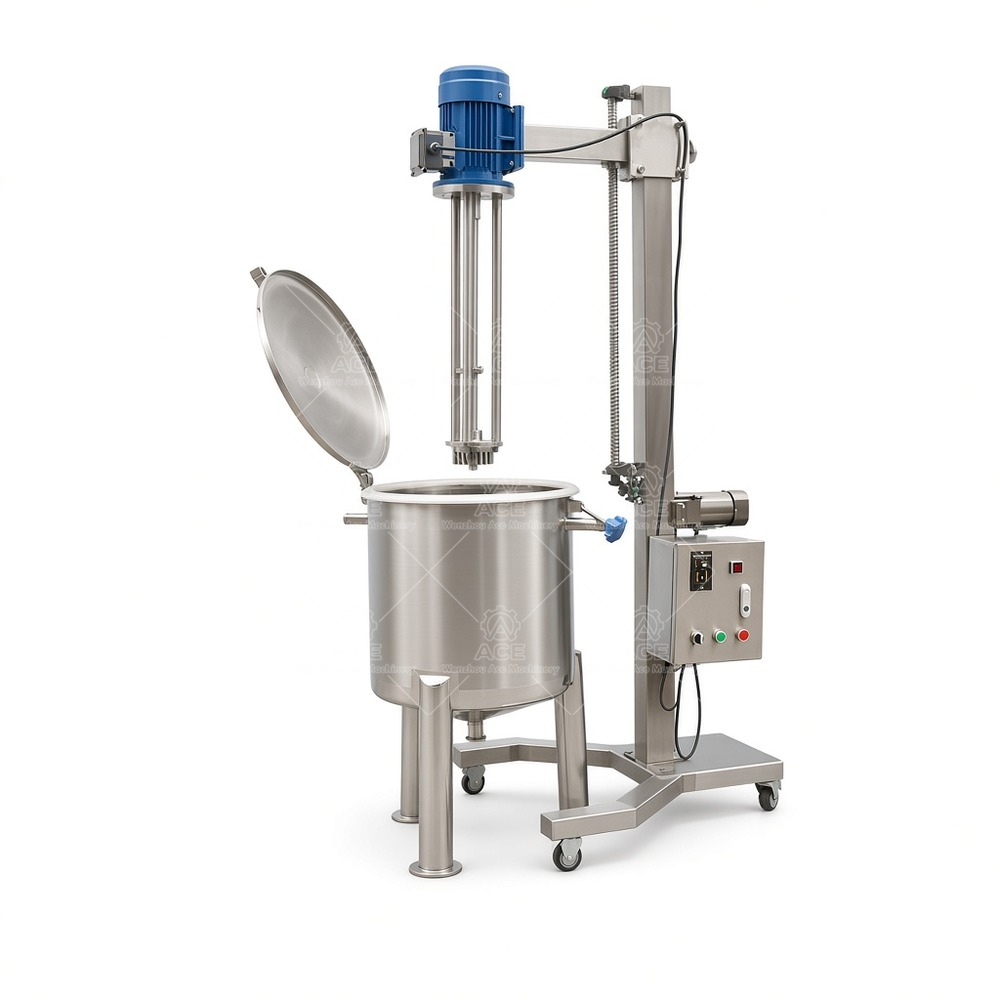

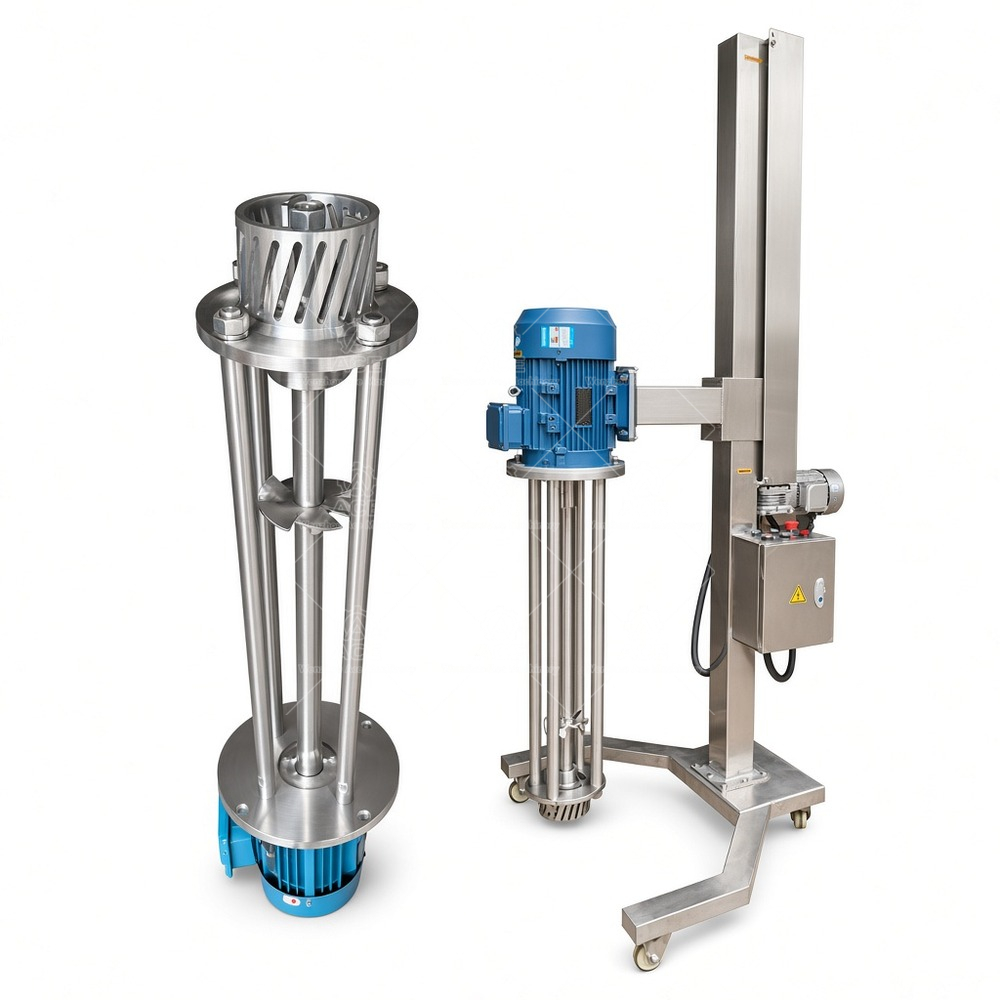

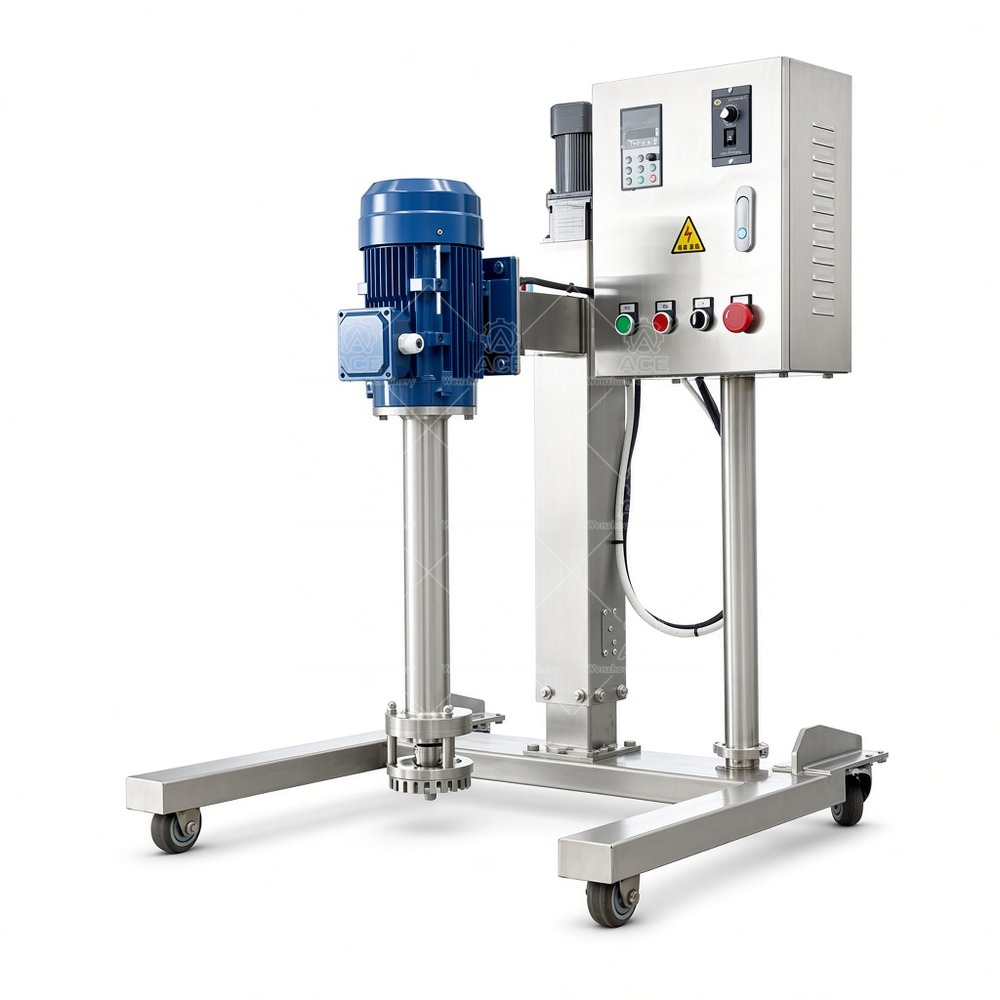

Ace Mixer builds this batch high shear mixer for plants that need one unit to handle changing batches without a fixed single-product line. The hydraulic lift frame positions the mixing head over the vessel, and the mobile base lets operators move the unit between tanks when the floor plan and utilities allow. If movement is not needed, the same platform can be specified for fixed installation.
Core configuration is selected around the product, not the catalog. Motor power ranges from 1.5 to 11 kW depending on viscosity, batch size and shear demand. Voltage is confirmed for the destination market from 220 to 480 V, including frequency and phase. A VFD option provides variable speed control up to 3000 rpm depending on motor and selected configuration. Contact parts can be supplied in stainless steel and other specified materials to suit the formulation and cleaning routine.
Mixing functions
The head performs high shear mixing, dispersion and emulsification, and can help incorporate powders into liquids. Suitable work includes food and beverage processing, cosmetics and personal care products such as shampoo and cream, pharmaceutical and healthcare preparations, chemical processing, paints and compatible coatings, powder dispersion and liquid-liquid emulsification. The right head, material and operating parameters still depend on product viscosity, ingredients and process requirements.
Selection points
- Batch size and vessel dimensions, including headroom and caster clearance.
- Viscosity, solids content and whether powders must be wetted out.
- Target speed range and motor power for the duty.
- Local voltage, frequency and phase before quotation.
- Mixing head design and wetted part material.
- Mobile versus fixed installation, plus utility and cleaning access.
FAQ
Can one unit run shampoo and thicker cream? Often yes, but the motor, head and speed range must be matched to the viscosity range and batch size. A variable speed high shear mixer with VFD is commonly requested for multi-product work.
Do you supply stainless steel contact parts? Yes. We specify stainless steel and other contact materials according to the product and cleaning requirements.
Can the mixer be moved between vessels? A mobile high shear mixer with casters can be moved where layout, floor condition and services permit. For tight layouts, fixed mounting may be more practical.
Send your batch size, material properties, target rpm, required motor power and local electrical specification. Our engineering team will recommend a suitable industrial high shear mixer configuration and quote accordingly.
Ace Mixer offers a configurable batch high shear mixer with hydraulic lift, mobile base, 1.5–11 kW motor, 220–480 V options and VFD speed control up to 3000 rpm. It handles emulsification, dispersion and powder incorporation for cosmetics, food, pharmaceutical and chemical batches. Selection depends on vessel size, viscosity, head design and local electrical specifications.
