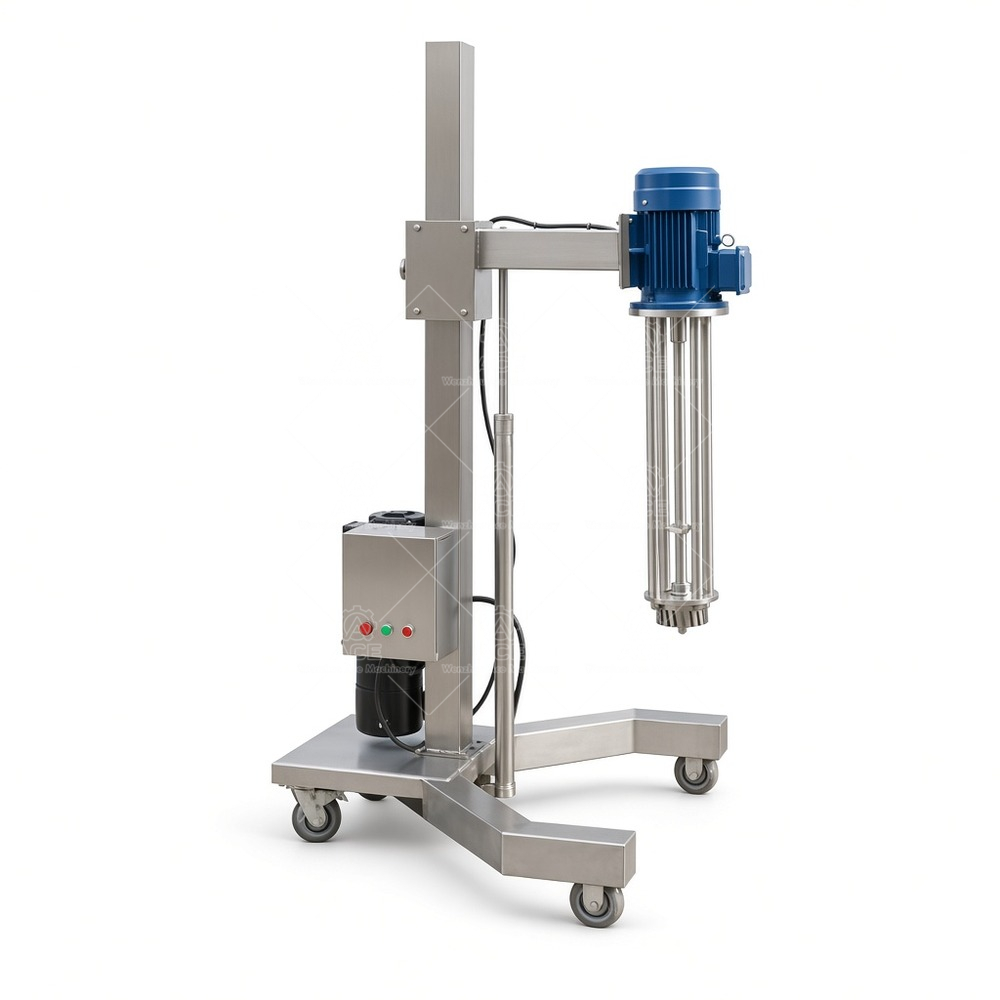

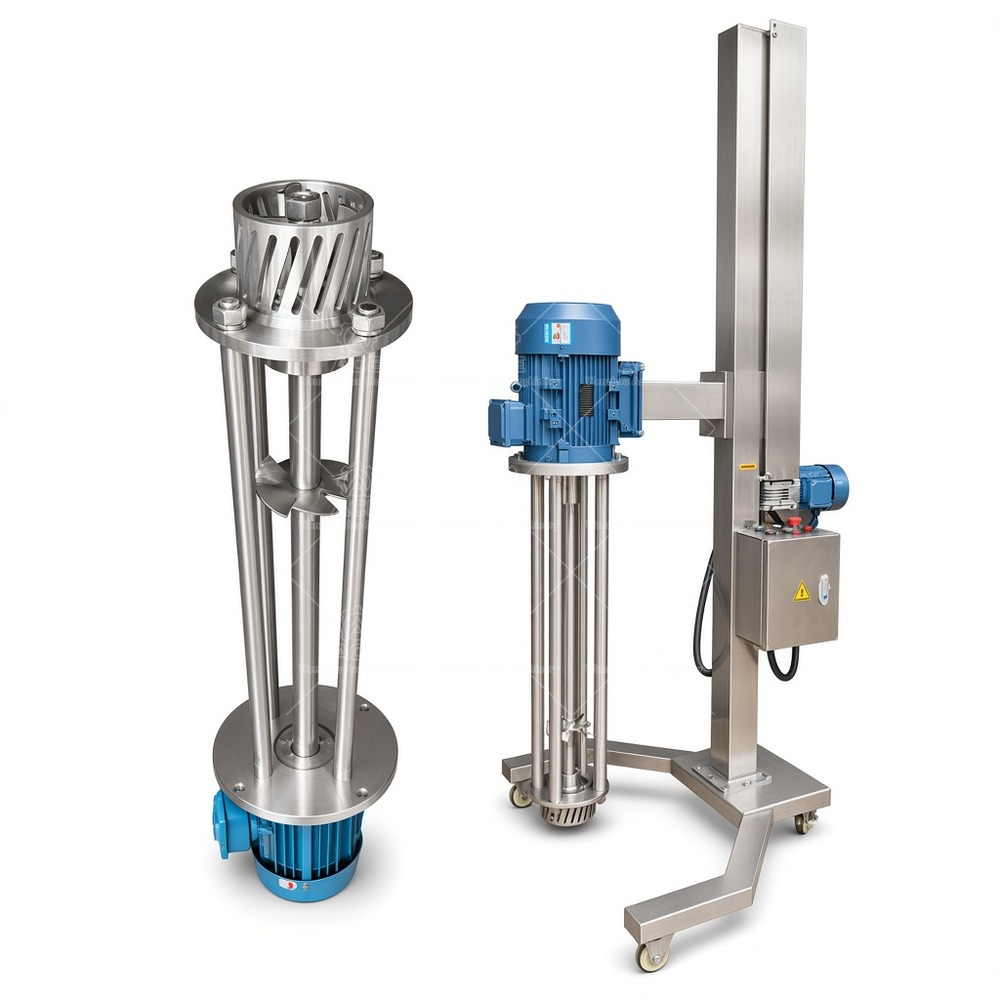

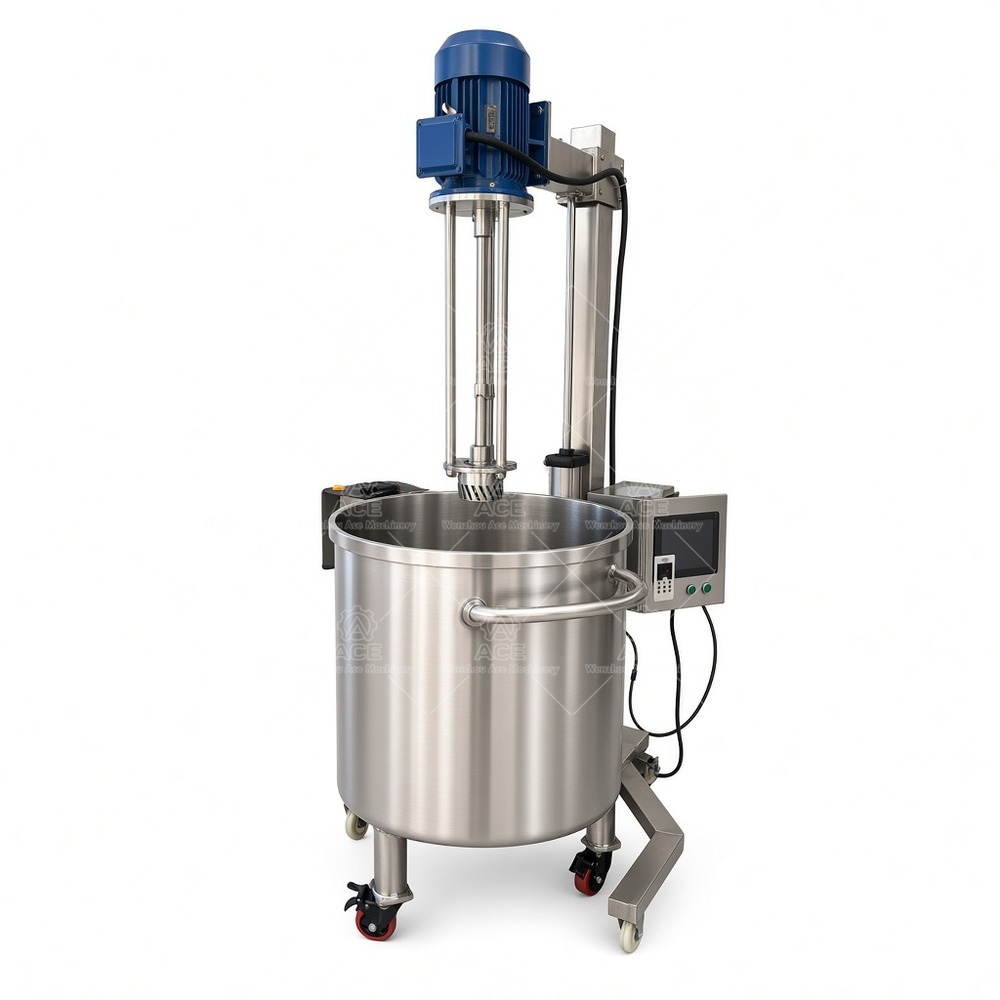

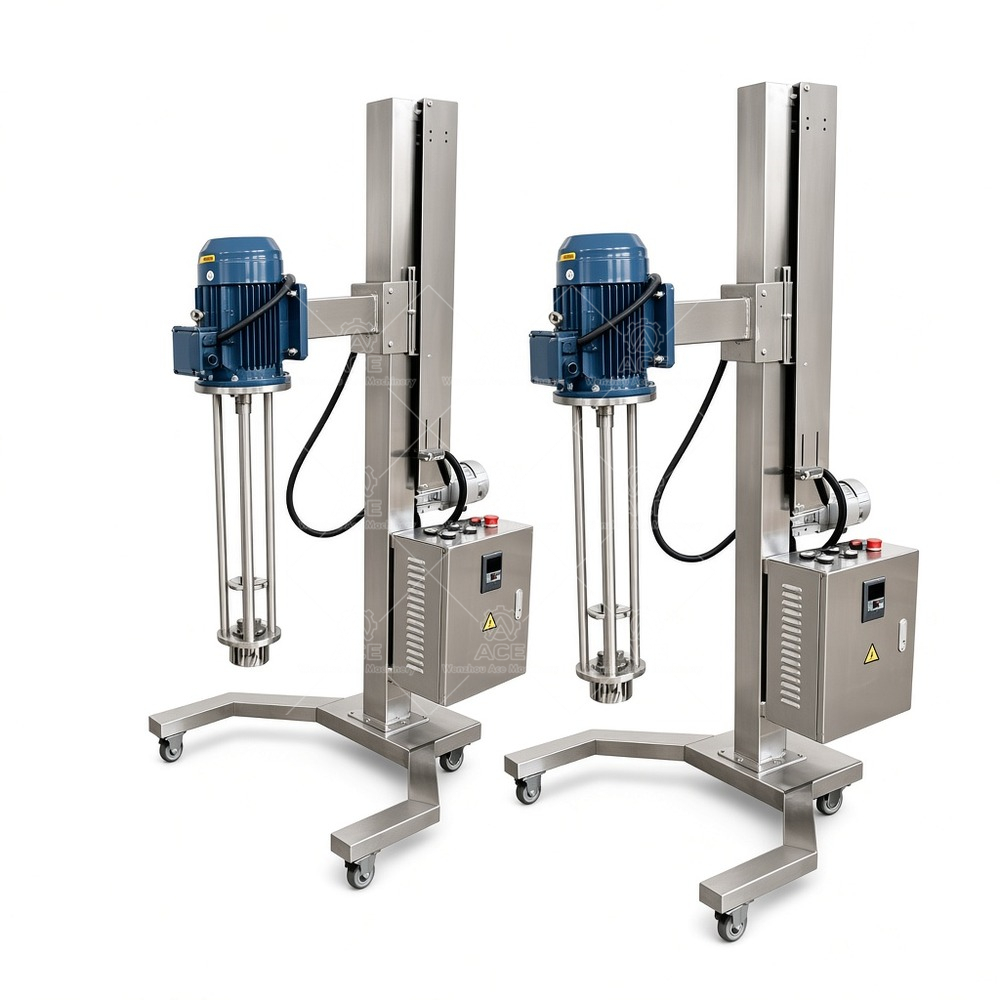

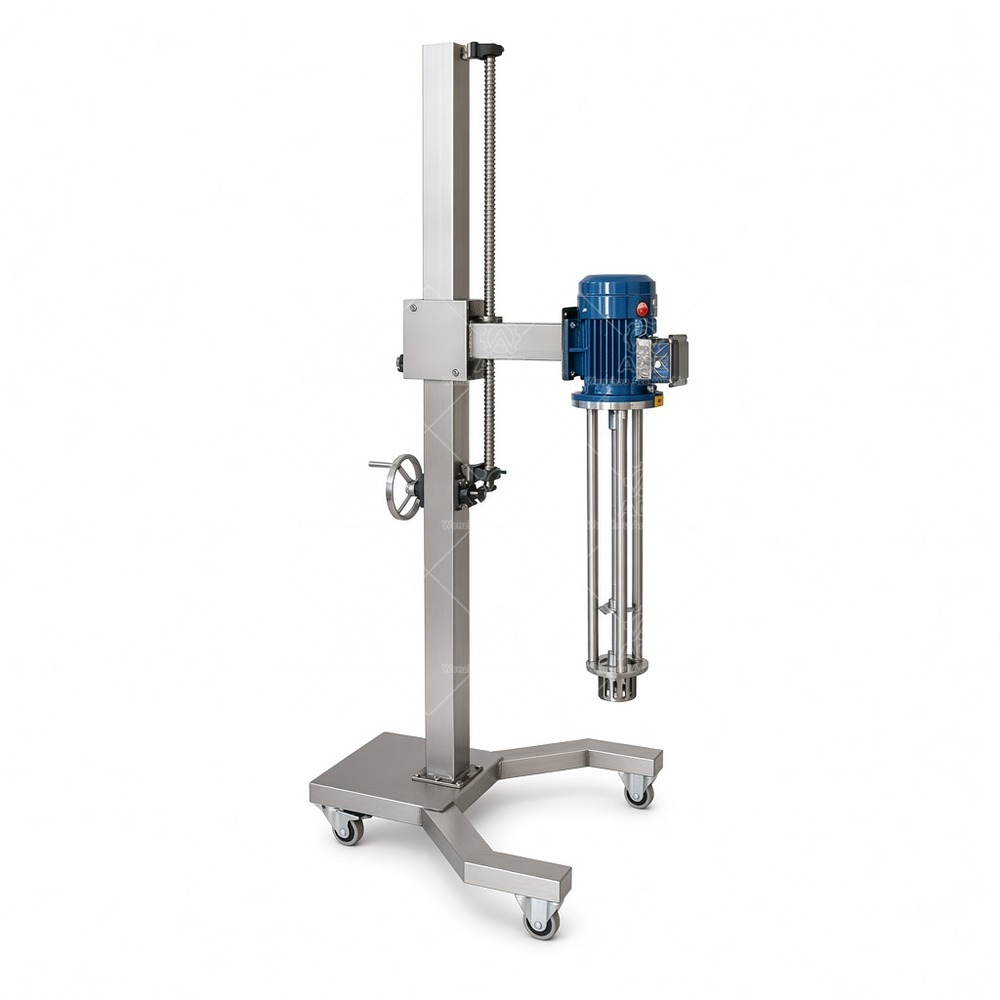

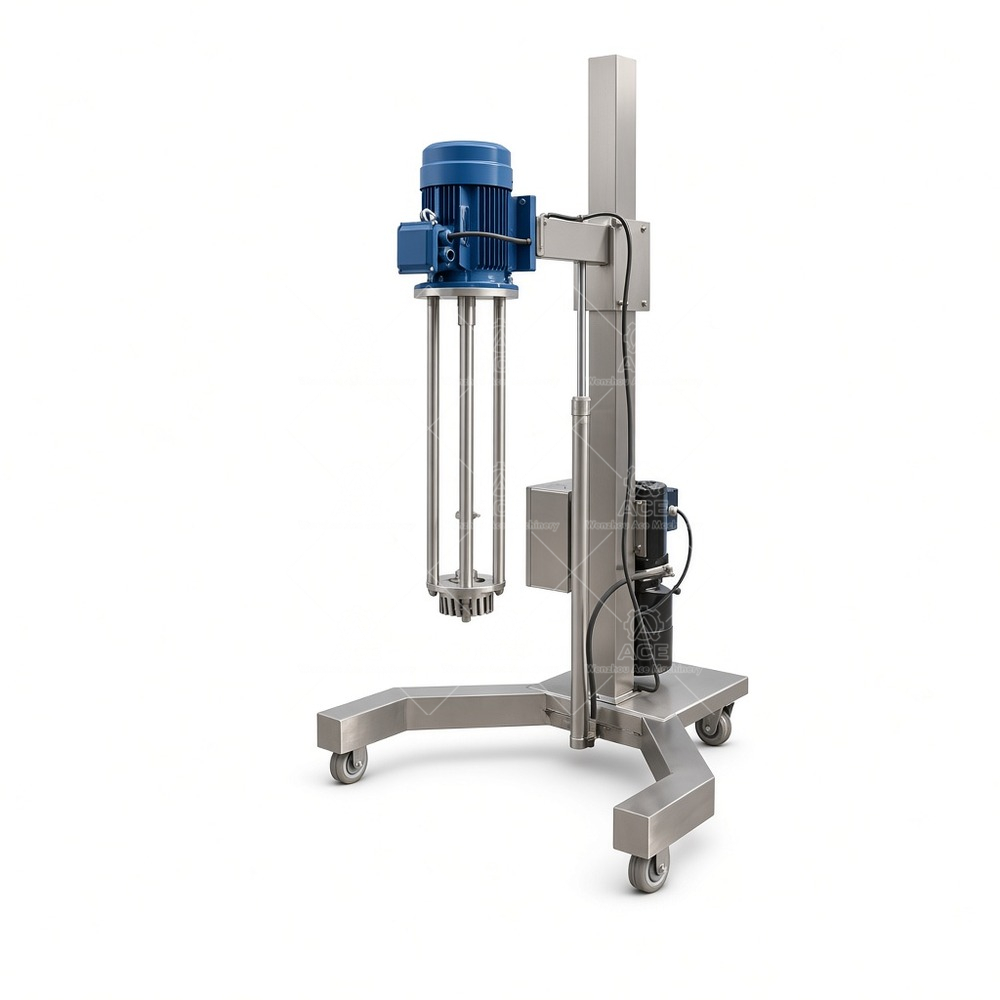

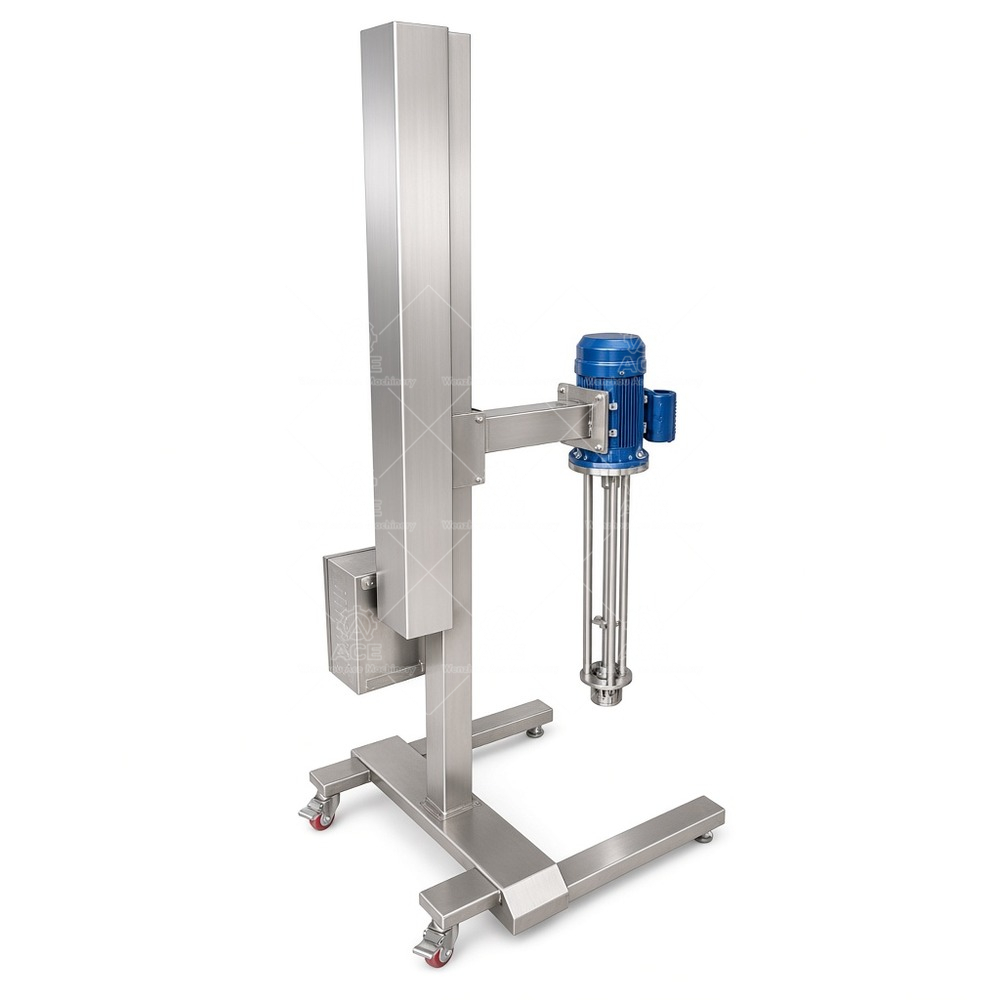

50-100L Mobile Batch High Shear Mixer | Hydraulic Lift & VFD
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,412.85 through $3,459.20
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Built for batch dispersion, not guesswork
Ace Mixer builds this 50–100L mobile batch high shear mixer for plants that need to disperse, emulsify, and blend powders into liquids without tying up a full production line. Hydraulic lift raises and lowers the head so operators can move between vessels and clean the shaft and impeller with less handling. Rollers let the unit move between mixing stations where the layout permits.
The drive is selected around your batch. Motor power runs from 1.5 kW to 11 kW, and a VFD can provide 0–3000 rpm adjustment depending on the motor and configuration. Electrical supply is confirmed to 220–480 V, with frequency, phase, and control options matched to the destination market. Wetted parts can be specified in stainless steel; for aggressive products, confirm the grade before choosing a stainless steel high shear mixer.
What to match to your process
- Batch size and vessel dimensions: diameter, working volume, and head clearance affect shaft length and impeller position.
- Viscosity and solids: high-solids paint, emulsion, or powder dispersion needs a different head design than a low-viscosity liquid blend.
- Speed and power: choose the rpm range and motor kW around the product, not the machine frame alone.
- Electrical supply: confirm voltage, frequency, phase, and control panel requirements before quotation.
- Mixing head and contact parts: impeller style, shaft length, and stainless steel grade should follow the formulation.
- Mobile or fixed: mobile high shear mixers suit multi-vessel rooms; fixed units suit dedicated tanks with fixed piping.
Where this mixer fits
Food and beverage plants use high shear mixing equipment for slurries and liquid blends. Cosmetics and personal care production use it for emulsions and dispersions. Pharmaceutical and healthcare preparations may require specified contact materials and cleaning access. Chemical processing, paints, coatings, and compatible industrial formulations use batch high shear mixers for powder wet-out and liquid-liquid emulsification. For powder wet-out, specify a high shear mixer for powder dispersion with the correct impeller. The right head, material, and operating parameters depend on viscosity, ingredients, and process requirements; we confirm those before recommending a configuration.
FAQ
Can this unit run at variable speed?
Yes. We configure a high shear mixer with VFD when matched with the selected motor and controls.
How do I choose between mobile and fixed installation?
Choose mobile when one unit must serve several vessels. Choose fixed when the tank, piping, and controls stay in one position.
What should I send for a quote?
Send batch size, vessel dimensions, product viscosity, target rpm, required motor power, contact material needs, and local voltage/frequency/phase. We will recommend a suitable industrial high shear mixer configuration and quote accordingly.
Ace Mixer builds this 50–100L mobile batch high shear mixer with hydraulic lift, optional VFD speed control, and 1.5–11 kW motor options. Use it for emulsions, dispersion, powder wet-out, paints, and compatible chemical products. Send batch size, viscosity, vessel dimensions, target rpm, and local voltage/frequency/phase for a matched configuration and quote.
