High Shear Pneumatic Lifting Water Powder Mixer Emulsifier for Peanut Butter
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,057.65 through $3,078.14
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM

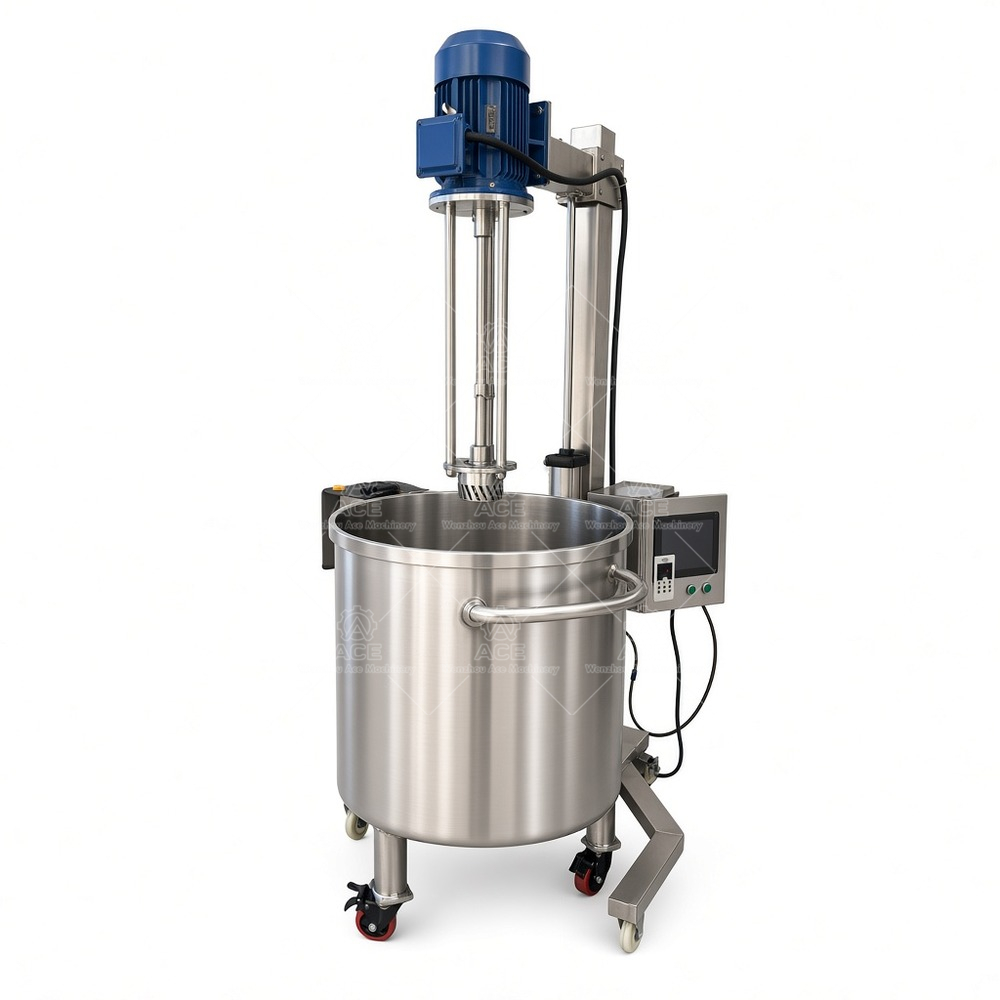

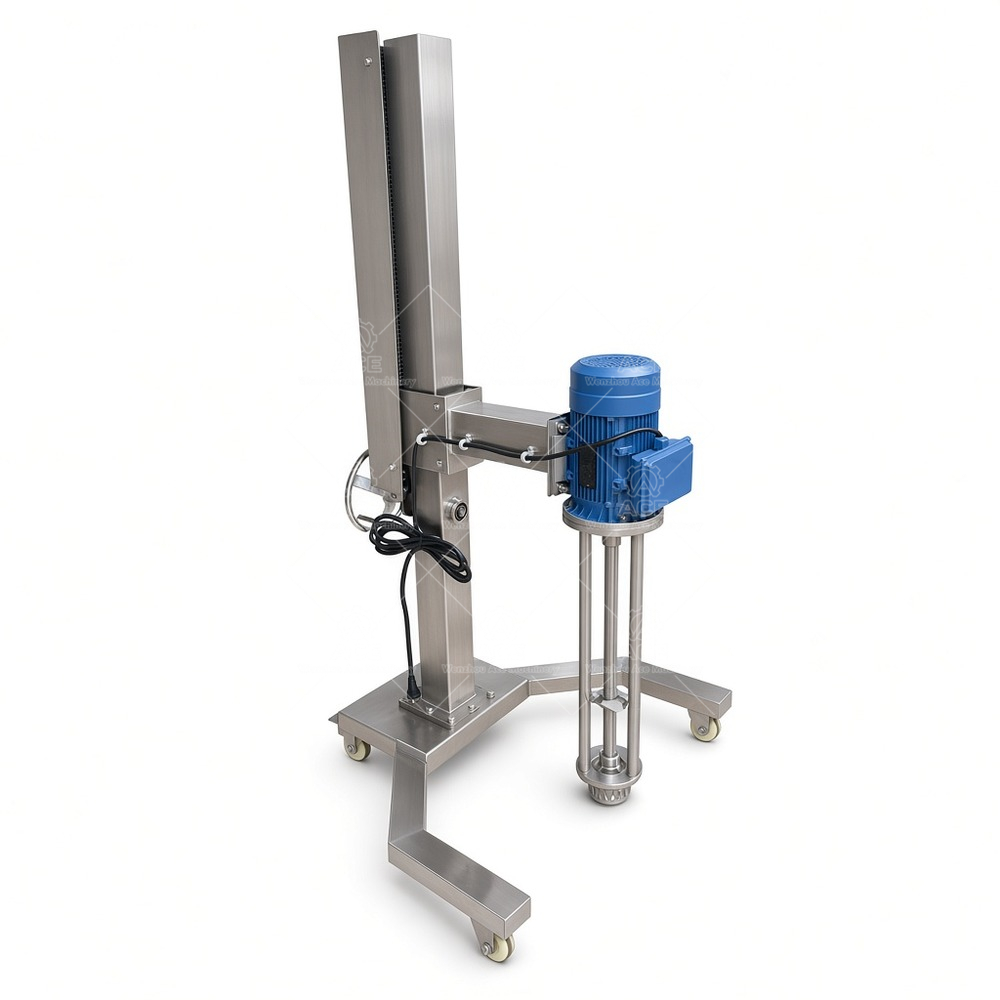

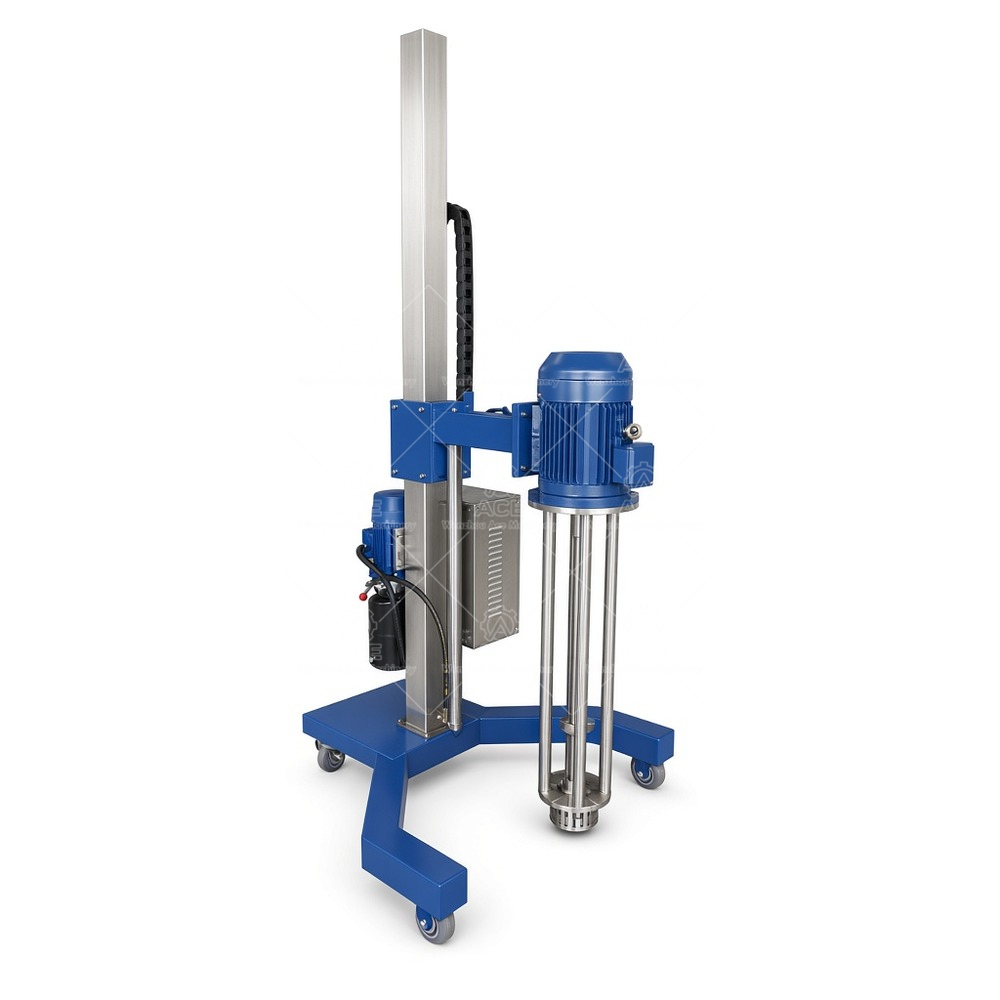

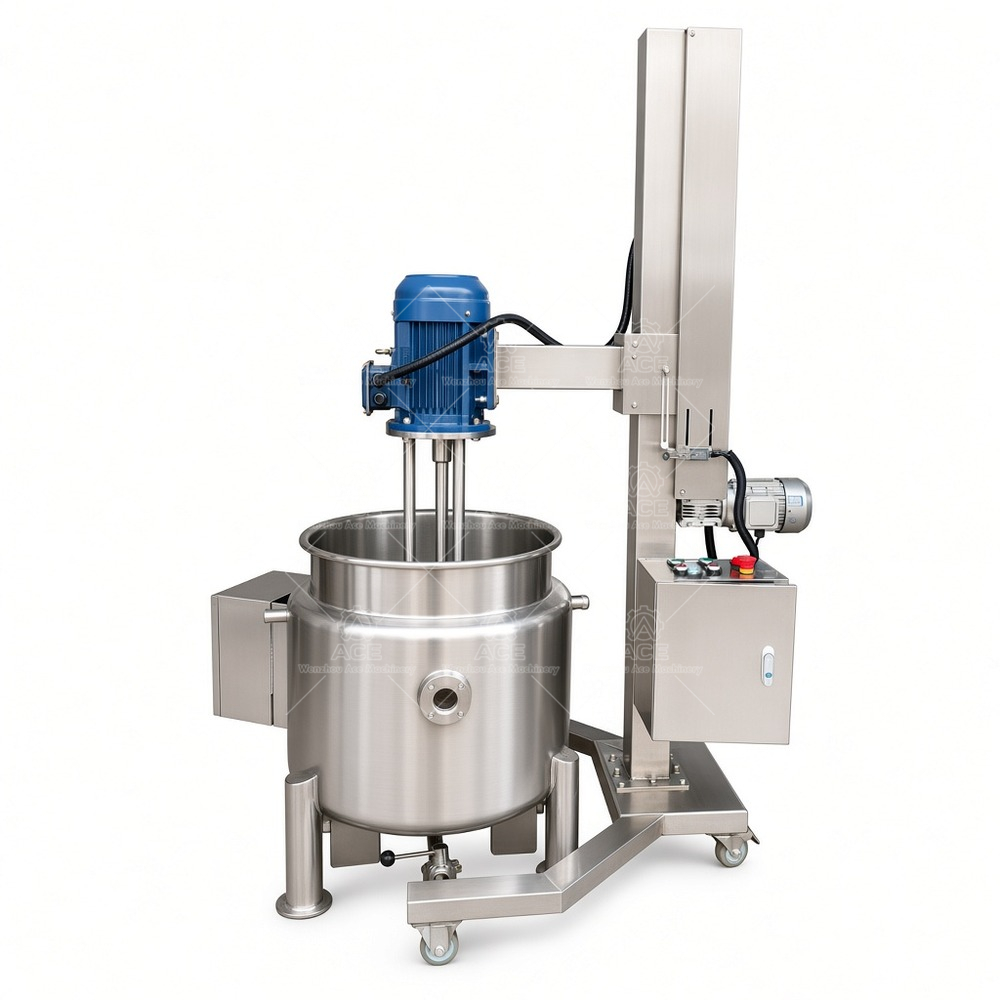

This pneumatic lifting industrial high shear mixer moves a batch-style mixing head between vessels without dedicating a fixed drive to one tank. The air-powered lift raises and lowers the head; the rotor/stator handles powder wet-out, dispersion, and emulsification. With an optional VFD, it works as a variable speed high shear mixer. We configure each unit around the batch.
The core is a batch high shear mixer head driven by a 1.5-11 kW motor. The VFD trims speed from 0 to 3000 rpm to suit viscosity and aeration risk. Voltage is set for the destination market: 220V to 480V, with frequency and phase confirmed at order. Casters let one mobile high shear mixer serve several production areas. Contact parts are specified in stainless steel or other materials, so the unit can be built as a stainless steel high shear mixer.
Typical duties
Food plants use these units for peanut butter pre-mixes, sauces, and beverage concentrates. Cosmetics and personal care producers run creams and gels. Pharmaceutical and healthcare batches benefit when a movable head supports scale-up. Chemical, paint, and coating lines use it as a high shear mixer for powder dispersion or liquid-liquid emulsification. The right head, material, and operating window depend on viscosity, solids loading, and cleaning routine.
Specifications
- Mixing: high shear, dispersion, emulsification, powder incorporation
- Motor: 1.5-11 kW, by model and duty
- Speed: optional VFD, 0-3000 rpm by selected motor/configuration
- Voltage: 220V-480V; frequency and phase confirmed
- Mobility: caster-mounted frame
- Construction: stainless steel and other contact materials specified to product
- Customization: motor, voltage, controls, head, configuration
Matching drive, head, and vessel
Start with batch size and vessel dimensions, then list viscosity, solids, and temperature. Those details drive motor power, shaft length, and head design. Confirm local voltage, frequency, and phase before we quote. If one unit will serve several tanks, check floor clearance and lift height. Fixed mounting may suit a single high-volume vessel better than a mobile high shear mixer.
FAQ
Can one unit handle different batch sizes? Often yes, but the head and shaft must suit the smallest and largest vessel. We review both before recommending a configuration.
Do you supply stainless steel contact parts? We specify contact materials based on product and cleaning method; grade and finish are confirmed against your process.
What do you need for a quote? Batch size, viscosity and ingredients, target rpm, required motor power, and local electrical specifications.
Send your batch volume, material behavior, and plant electrical details. Ace Mixer builds high shear mixing equipment and will return a practical configuration for your line.
Ace Mixer builds this pneumatic lifting high shear mixer for batch powder wet-out, dispersion, and emulsification. The caster-mounted frame moves between vessels, while an optional VFD trims speed to suit viscosity. Motor sizes from 1.5 to 11 kW, voltage to 480V, and stainless steel contact parts are configured to your product and plant electrical supply.
