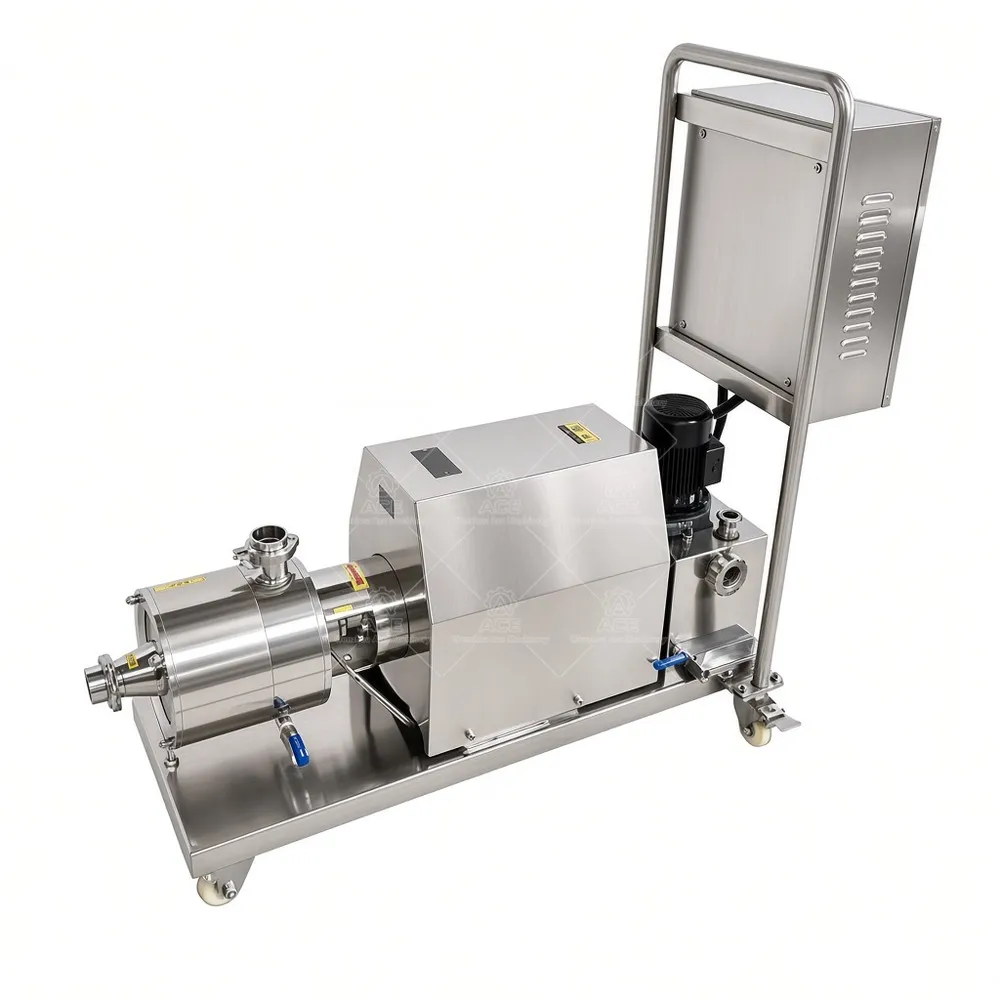

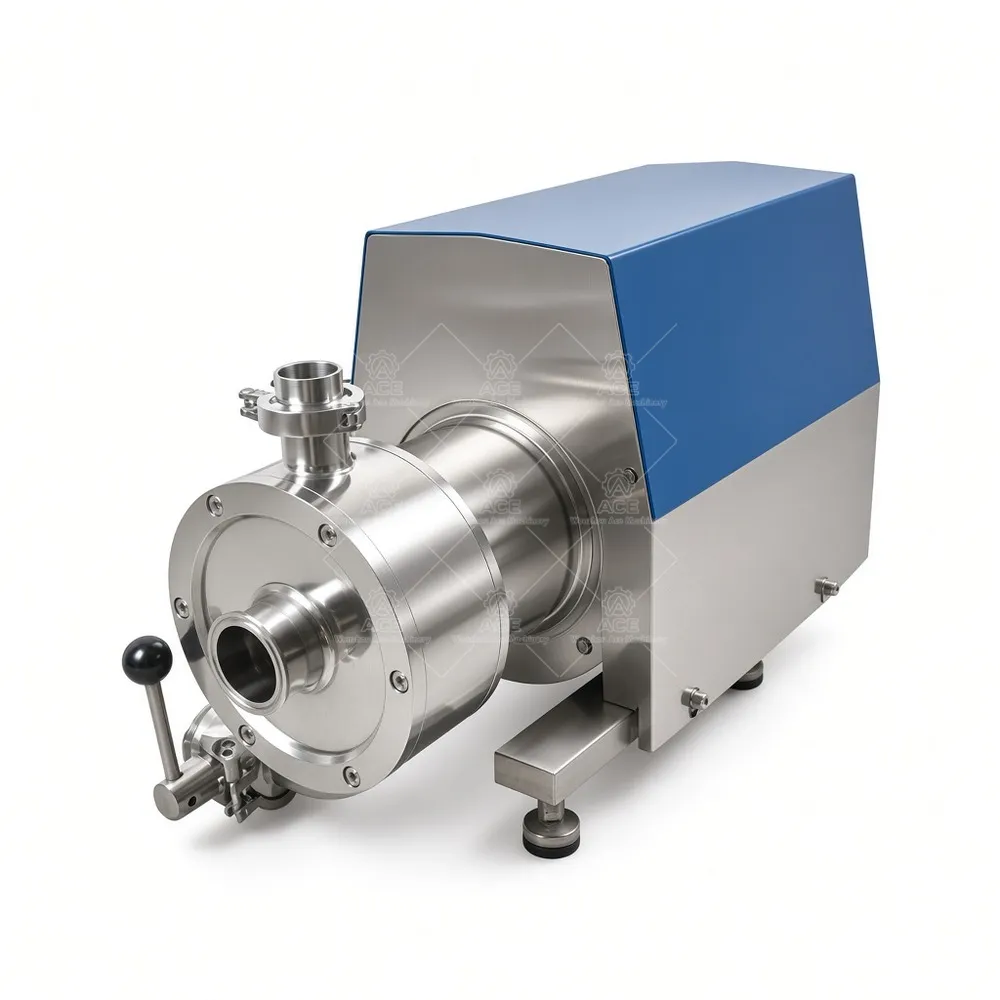

Single Stage High Shear Homogenizing Pump for Juice Emulsifying and Dispersing
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $1,512.03 through $1,588.54
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Our single-stage high shear pump provides inline dispersion, emulsification, and homogenization without a batch tank. The high-speed rotor-stator creates intense shear in a narrow gap, breaking agglomerates and blending phases.
How It Works
Installed in piping or a recirculation loop, the pump pulls product through the rotor-stator and discharges it under pressure. This setup suits continuous processing or tank recirculation until the target dispersion is reached. Compared with batch mixing, inline shear often reduces foam, shortens cycle times, and avoids an extra transfer pump. The single-stage design is simple to maintain. For higher shear or finer particles, we can discuss a multi-stage unit.
Key Features and Benefits
- Inline or recirculation: Fits existing piping, saves floor space, and eliminates extra vessels.
- Rotor-stator mixing: Efficient liquid-liquid emulsification and powder dispersion; helps eliminate lumps.
- Stainless steel build: 304 or 316L wetted parts. We specify seals, O-rings, and finishes for your sanitation needs.
- Optional VFD: Adjust speed to match viscosity or flow changes, giving operators control over shear.
- Custom motor and connections: Built to your voltage, frequency, and port sizes. Motor power, seal type, and inlet/outlet are selected for your product and capacity.
Applications
We size each unit based on viscosity, solids, temperature, and flow. No single configuration fits every product.
- Food and beverage: sauces, dressings, mayonnaise, syrups, flavorings, dairy blends, beverage ingredients; dispersion of starches, gums, stabilizers, and thickeners.
- Cosmetics and personal care: creams, lotions, shampoos, conditioners, liquid detergents, and oil-water emulsions.
- Pharmaceutical: liquid formulations and excipient dispersions where equipment and materials are suitable.
- Chemical: coatings, adhesives, water-based formulations, and emulsions compatible with wetted materials and seals.
FAQ
Is single-stage right for my process? It depends on target droplet size, viscosity, and whether you run continuous or batch. Share details for advice.
Can it handle viscous or high-solids products? Up to a point. We need viscosity and maximum solids loading to select the motor and rotor-stator geometry.
What do you need for a quote? Batch size, flow rate, product characteristics (viscosity, solids, temperature, pH), required motor power, and local electrical specs (voltage, phase, frequency).

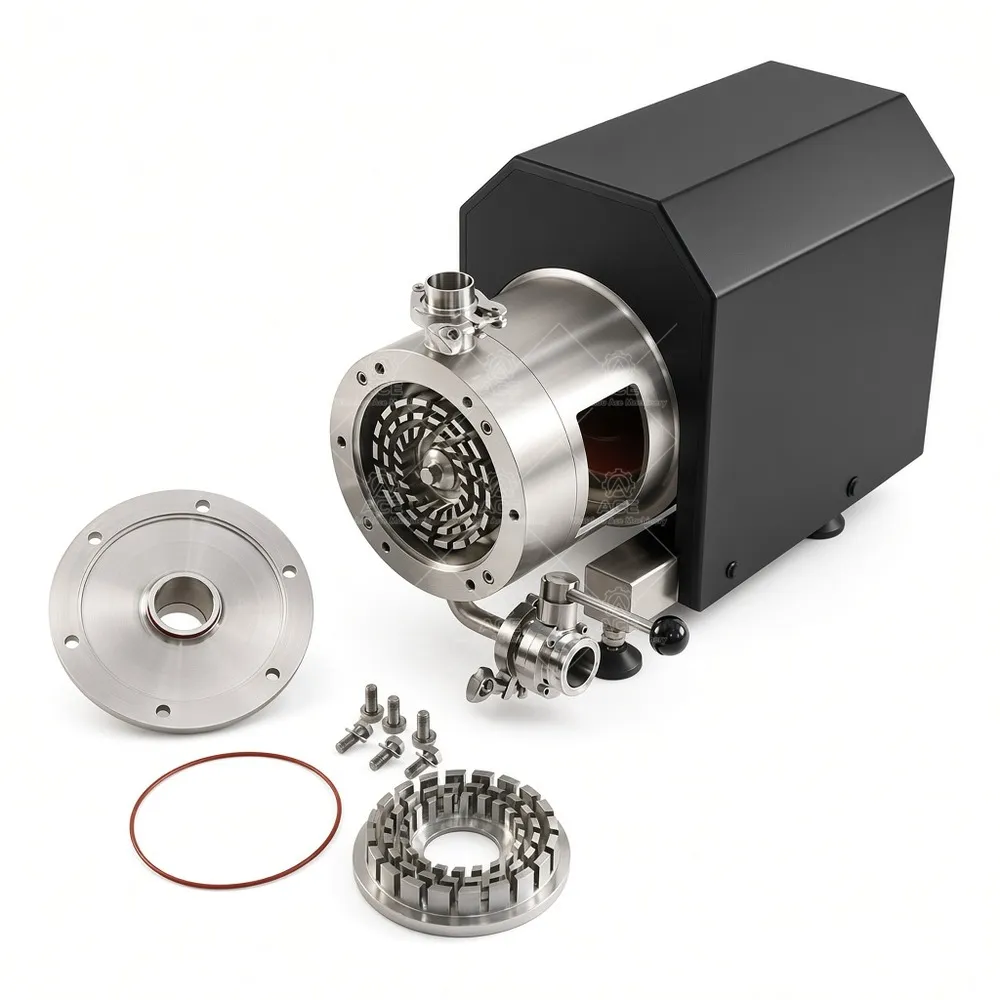

How is maintenance handled? The single-stage design allows quick rotor and stator inspection. Seal life depends on your product; we supply spare kits and guidelines.
Ready to specify? Contact our technical team with batch size, material properties, motor power, and electrical specs for a recommendation and quote.
Ace Mixer\’s single-stage high shear pump delivers inline dispersion, emulsification, and homogenization for juice processing and other liquid products. The high-speed rotor-stator breaks down agglomerates and blends phases without a batch tank. Stainless steel construction, optional VFD, and customizable motor, seals, and connections. Suitable for food, beverage, cosmetic, pharmaceutical, and chemical applications. Contact us with your process details for a tailored quote.

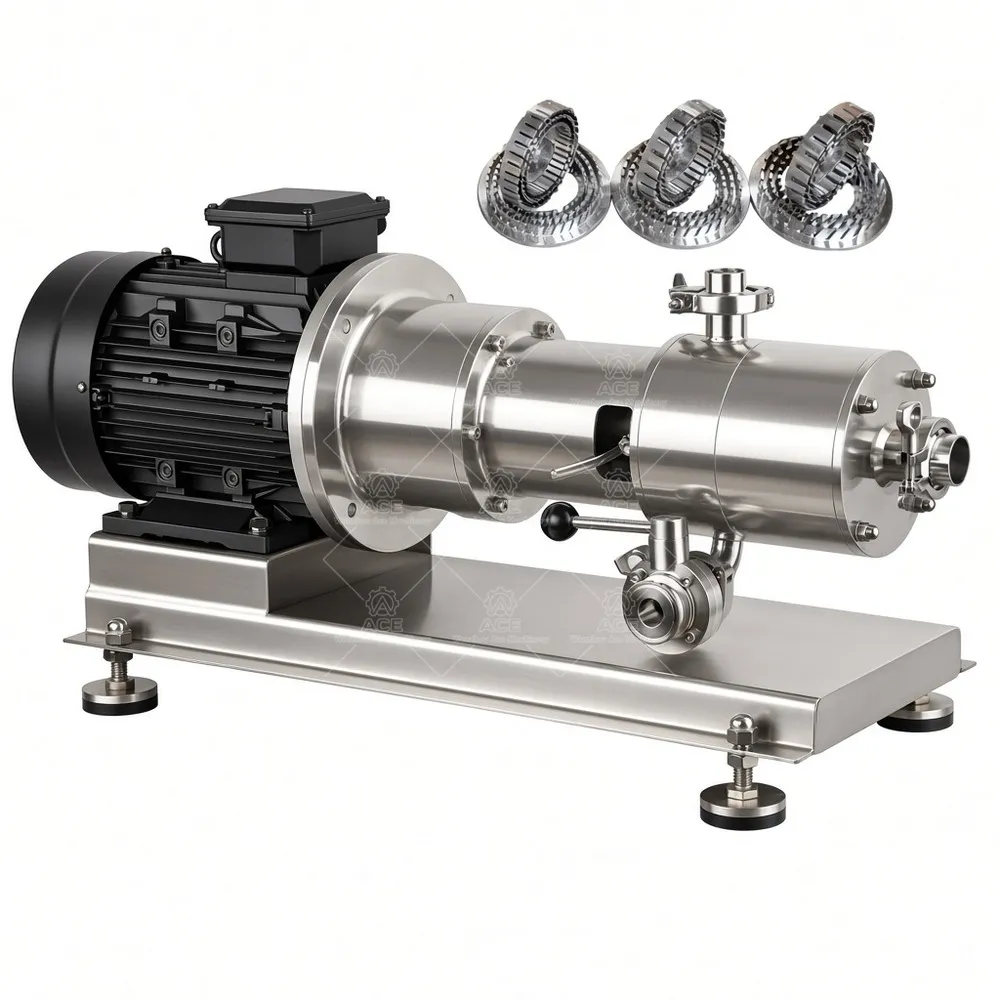

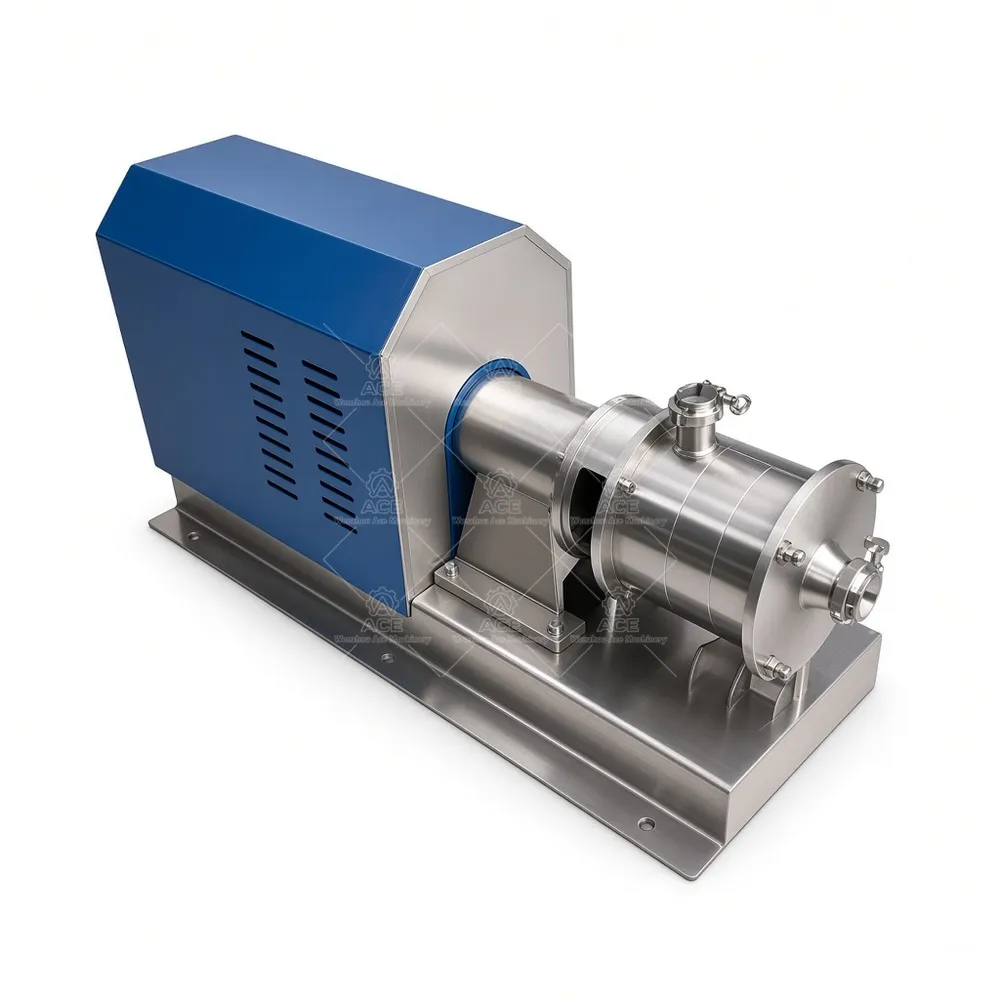

Single-stage in-line mixer

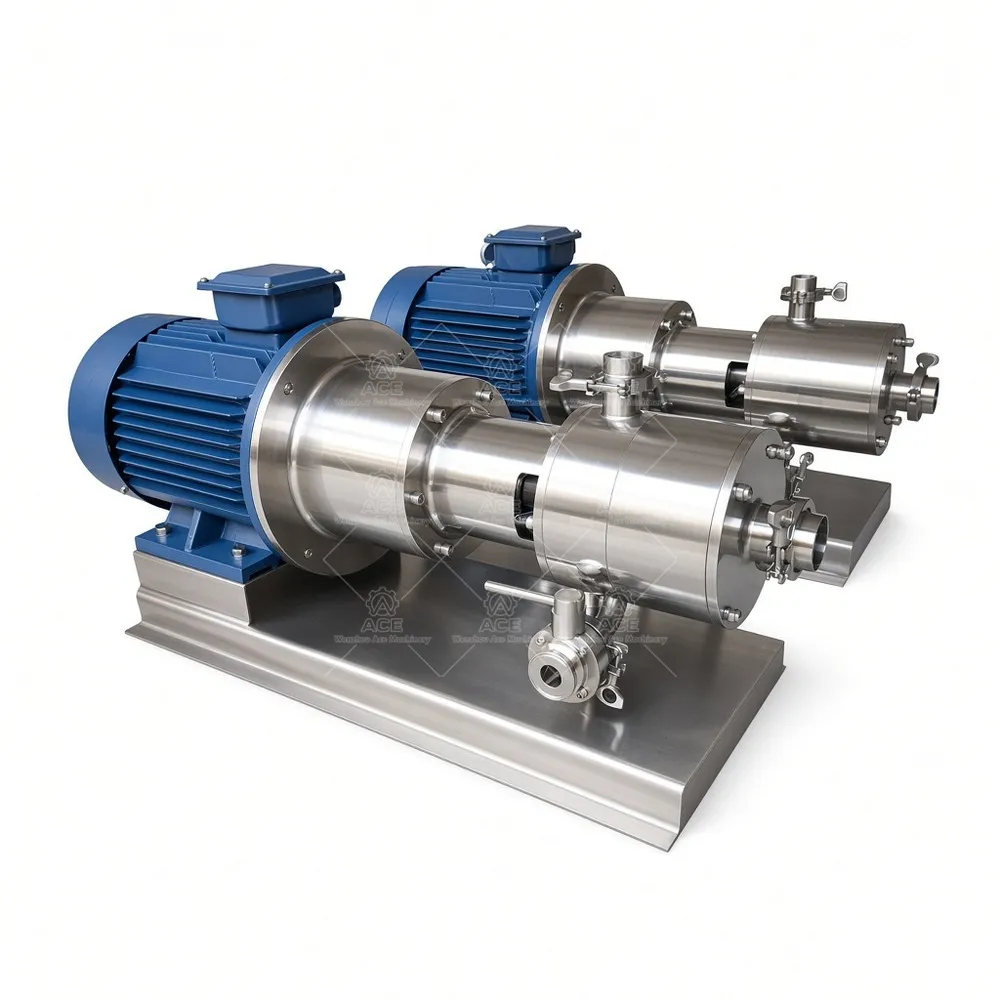

Three-stage in-line mixer
