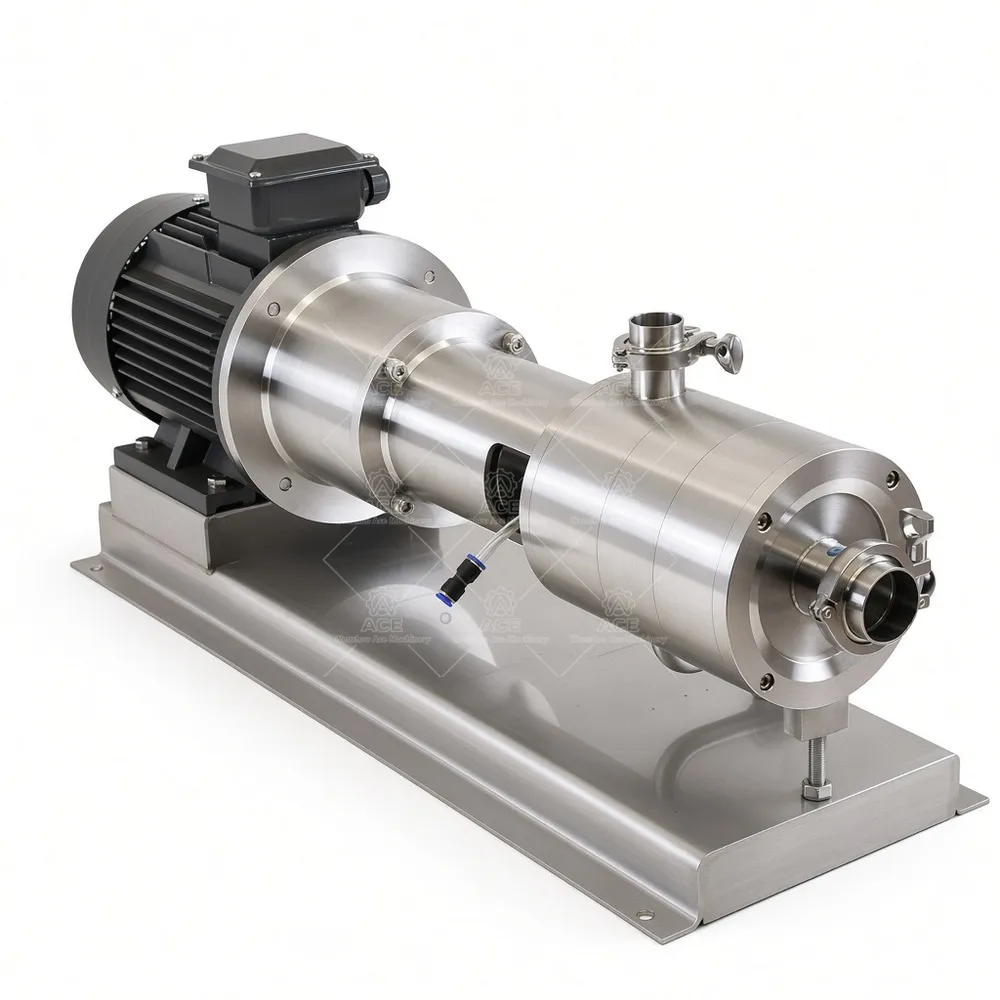

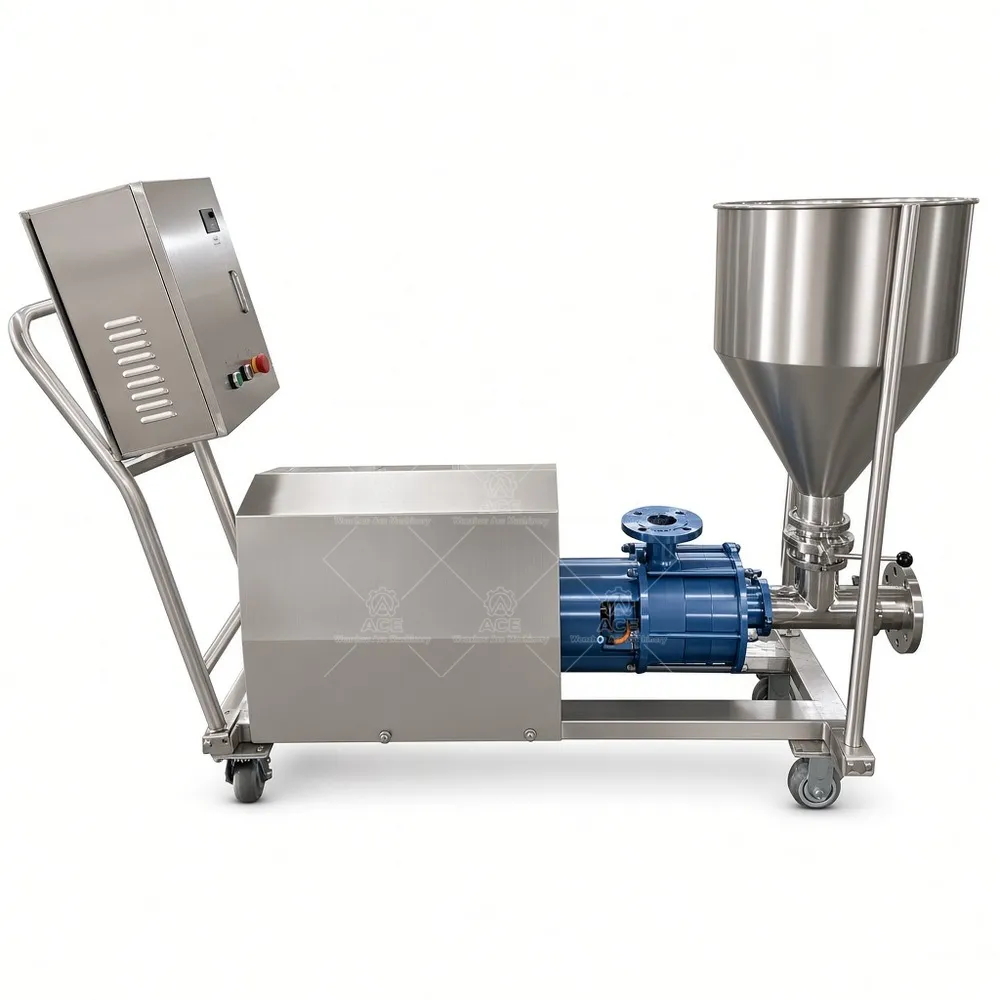

7.5kW 3-Stage Inline High Shear Mixer Emulsion Pump with Hopper for Food & Dairy
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $1,845.73 through $1,989.88
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
When a production line needs to break down agglomerates, create stable emulsions, or incorporate powders without adding a separate mixing tank, an inline high shear mixer often solves the problem. Our 7.5 kW three-stage unit mounts directly into piping or a recirculation loop. The rotor-stator assembly runs at high speed, subjecting the product to intense shear, cavitation, and turbulence in a small volume. The result is a more uniform mixture, shorter processing times, and less manual intervention.
The three-stage design means the product passes through three distinct rotor-stator zones. Each stage increases shear and mixing intensity. For emulsification, this helps reduce droplet size distribution. For powder dispersion, it breaks up lumps that would otherwise clog filters or cause inconsistency. The integrated hopper allows dry ingredients to be fed into the liquid stream, which is useful for stabilizers, thickeners, and dairy powders. We build the wetted parts in 316L stainless steel by default, with other materials available on request. Food-grade seals and a sanitary finish suit dairy and food processing. A VFD is optional for viscosity changes or different formulations.
Where it fits in production
Inline mixing works best when you want continuous or semi-continuous operation. Instead of batch mixing large volumes, you circulate the product through the mixer until the desired consistency is reached. This reduces tank space and cleaning downtime. Common applications include sauces, dressings, mayonnaise, syrups, dairy blends, and beverage concentrates. In cosmetics, it handles creams, lotions, and shampoos. Pharmaceutical and chemical formulations may also be suitable if the materials and seal elastomers are compatible. We always review the recipe and operating conditions before recommending a configuration.
FAQ
Can it handle high-viscosity products? The 7.5 kW motor covers a range of viscosities, but high-viscosity products may require a different impeller or a larger motor. Share your typical viscosity and flow rate.
What about powder incorporation? The hopper is designed for controlled powder addition. For very fine or hygroscopic powders, we may suggest a different feeding method.
Is it sanitary? Standard units use food-grade materials and seals. For pharmaceutical or aggressive chemicals, we offer alternative elastomers and surface finishes.
To recommend the right mixer, we need your batch size, product viscosity, required flow rate, and local power supply. Send those details and we will provide a configuration and quote.
The Ace Mixer 7.5 kW three-stage inline high shear pump combines rotor-stator mixing with a powder hopper for continuous emulsification and dispersion. It suits food, dairy, cosmetics, and chemical processing where consistent particle size and reduced batch time matter. Stainless steel construction, optional VFD, and customizable seals. Contact us with your process details for a tailored quote.
Single-stage in-line mixer
Three-stage in-line mixer

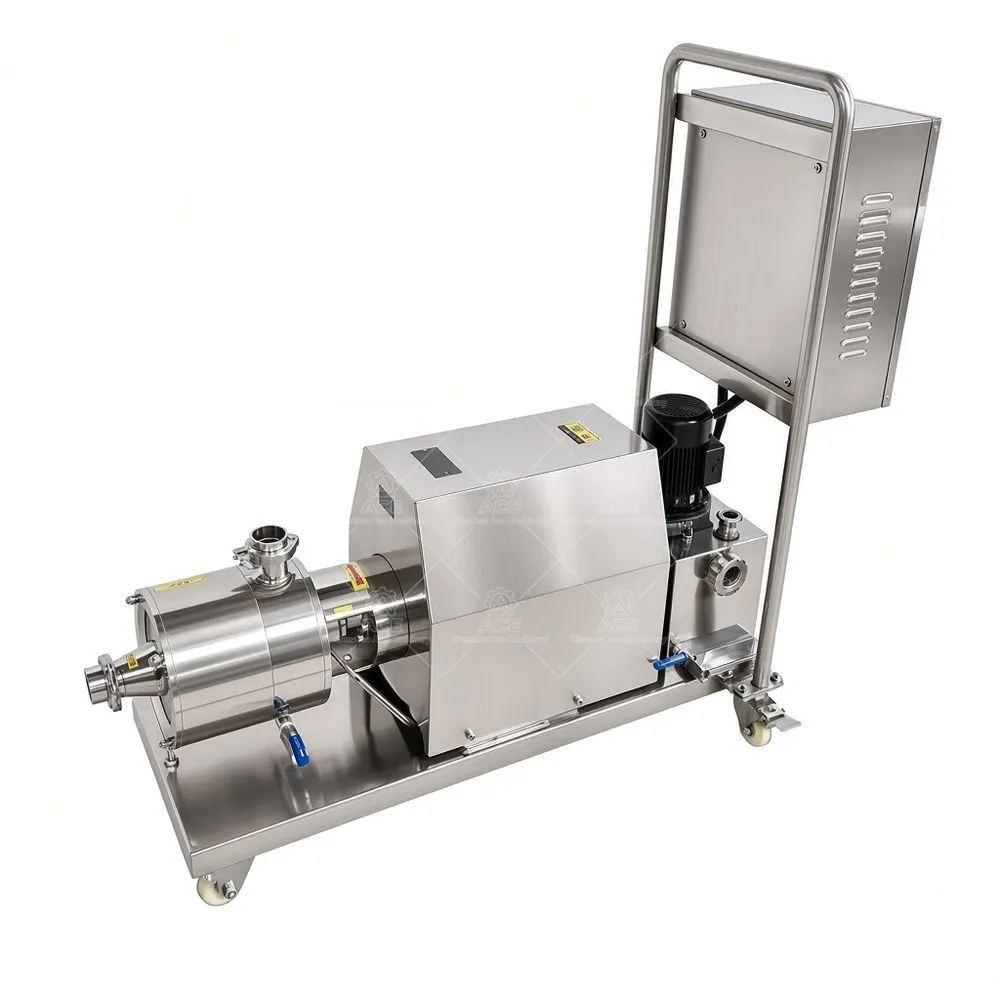

High-Shear Mixer with lift
High shear mixer
