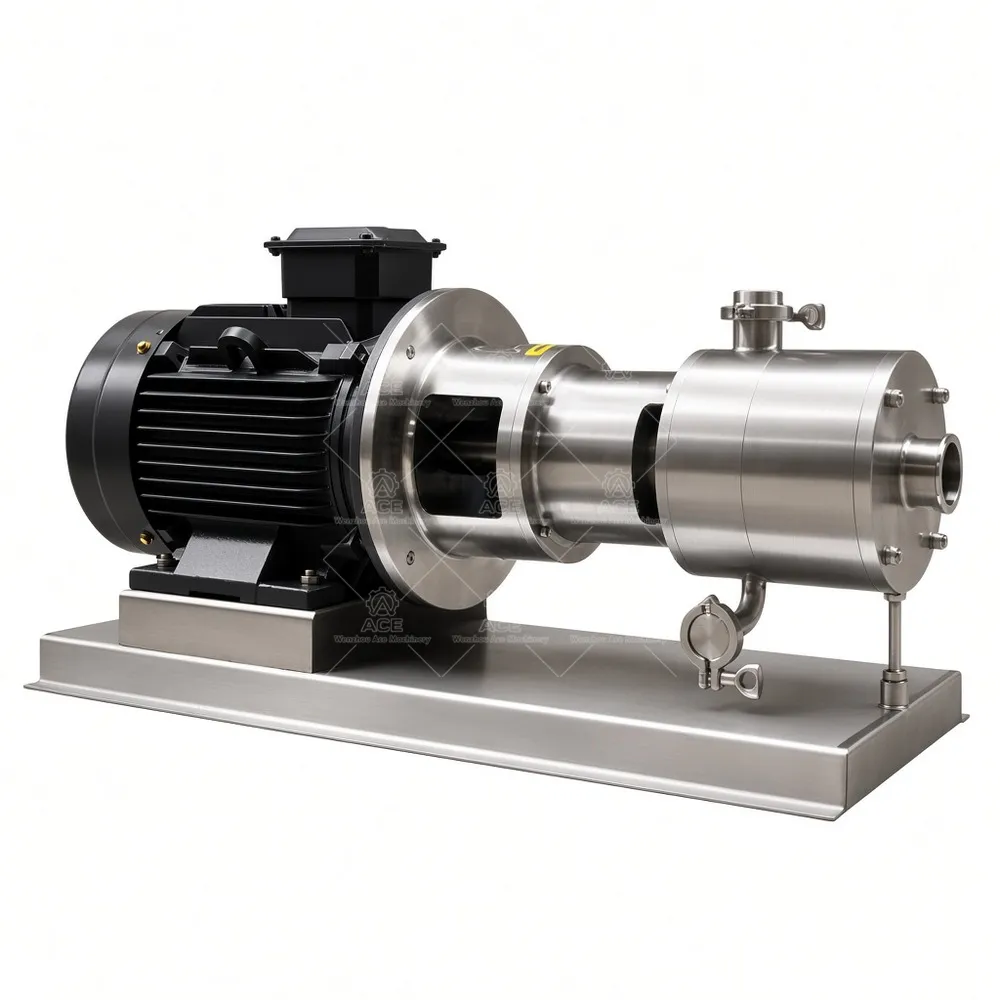

Three-Stage Inline High Shear Emulsifier Homogenizer Pump
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $1,979.28 through $2,101.80
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Built for continuous emulsifying, not batch guesswork

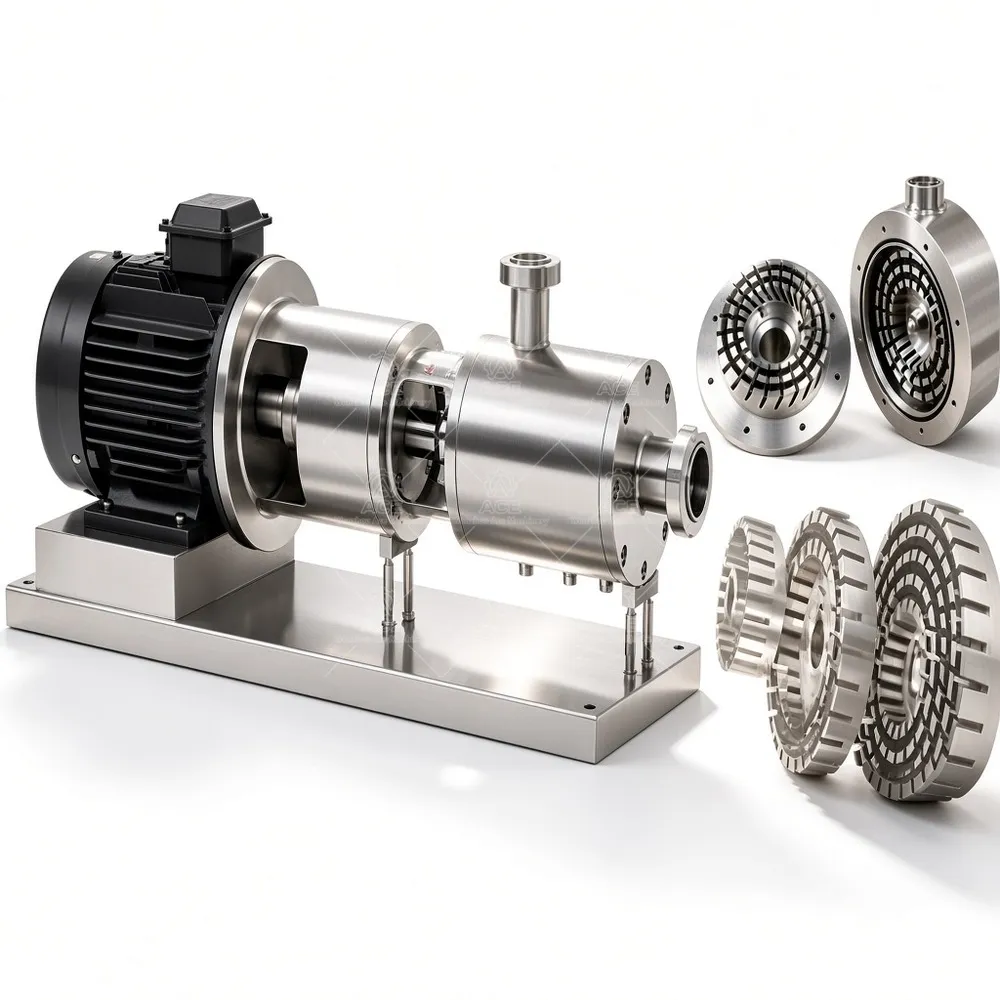

This three-stage inline high shear emulsifier is a rotor-stator pump for processors who need tighter control over droplet size, powder wet-out, and batch repeatability. Product enters the housing and passes through three mixing stages in sequence. Each stage applies shear, acceleration, and hydraulic force as material moves through the slots. The result is a more uniform emulsion or dispersion, with fewer lumps and shorter circulation times in many formulations.
We build the Ace Mixer unit for sanitary service in food, cosmetic, pharmaceutical, and chemical lines. The pump mounts directly in a pipe run or returns to the tank as part of a loop. That layout often suits plants where a traditional batch tank agitator leaves dead zones, long mix times, or foam. For existing tanks, an inline unit can be added without rebuilding the whole room.
Where it fits in production
- Food and beverage: sauces, dressings, syrups, dairy blends, starch and gum dispersions.
- Cosmetics and personal care: creams, lotions, shampoos, conditioners, liquid detergents.
- Pharma: liquid formulations and excipient dispersions where the wetted materials and seals suit the process.
- Chemicals: coatings, adhesives, water-based products, and compatible emulsions.
Not every formulation runs well in the same configuration. High solids, abrasive fillers, temperature limits, and cleaning cycles all affect seal choice, motor size, and stage geometry.
What to confirm before quoting
Send us flow rate, batch size, viscosity range, solids content, discharge pressure, temperature, CIP/SIP expectations, and local voltage. We can review sanitary connections, contact materials, seal arrangement, and optional VFD control. A three-stage head is useful for demanding emulsification, but a different stage count may be more practical for simple dispersion.
FAQ
Can it run on a recirculation loop? Yes, many customers use a tank-to-pump-to-tank loop for controlled batch processing.
Does it replace a batch agitator? Sometimes. It depends on tank geometry, powder addition method, and final viscosity.
Can we customize wetted parts? We review elastomers and stainless grades against your formula and cleaning regime.
For a recommendation, share your batch size, material properties, required motor power, and electrical specifications. Our technical team will match the pump configuration and provide a quote.
Ace Mixer three-stage inline high shear emulsifier and homogenizer pump for sanitary continuous or recirculation processing. It handles emulsifying, dispersion, powder wet-out, and agglomerate reduction in food, cosmetic, pharmaceutical, and chemical production. Configure motor, seals, connections, contact materials, and optional VFD to match your formulation and plant requirements.
