Single Stage 3-Stage Emulsifying Mixing Pump for Dairy and Pharma
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,183.81 through $2,311.78
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Built for inline emulsifying, not just pumping
The Ace Mixer emulsifying pump uses a high-speed rotor-stator head to combine wetting, dispersion, and emulsification in one pass. Single-stage and three-stage configurations are available to match your duty. Product is drawn into the head and forced through close-clearance slots; shear and cavitation break down agglomerates and pull oil and water phases into a tighter blend. The result is faster hydration, fewer lumps, and more repeatable batches—within the limits of your formulation and machine setup.
For continuous or loop processing, the pump mounts in the pipeline or on a recirculation loop. That often removes the need for a separate batch tank and long manual mixing cycles. Cleaning is simpler because product stays in a defined flow path. Stainless-steel contact parts, selectable seals, and optional VFD control let us match the unit to your viscosity, solids loading, and washdown practice. Motor power, flange connections, and elastomer choice are specified per application; we do not recommend one head for every formula.
Where it fits
Dairy and beverage plants use it for stabilizer hydration, syrup blending, and dairy mixes. Food processors run dressings, sauces, and liquid seasonings. Cosmetic and personal-care lines handle creams, lotions, shampoos, and liquid detergents. Pharmaceutical and chemical processors use it for compatible liquid dispersions, emulsions, and aqueous preparations. Confirm material compatibility and cleaning requirements before selection.
FAQ
Can it replace my batch mixer? Sometimes. It depends on batch size, viscosity, and whether you need a holding tank for reaction or heating.
What affects pump selection? Flow rate, product viscosity, solids content, particle size target, temperature, seal flush, and local electrical supply.
Do you offer custom connections? Yes. Motor, seal, flange, and contact-material options are quoted against your process.
Send your batch size, material characteristics, required motor power, and local voltage/phase to our team for a configured recommendation and price.
Ace Mixer\’s inline emulsifying pump combines high-speed rotor-stator shear with flexible single-stage or three-stage configurations for dairy, food, cosmetic, pharmaceutical, and chemical processing. It supports continuous or loop operation, faster powder wet-out, and repeatable emulsions. Tell us your batch size, viscosity, solids, motor power, and electrical supply for a configured quote.

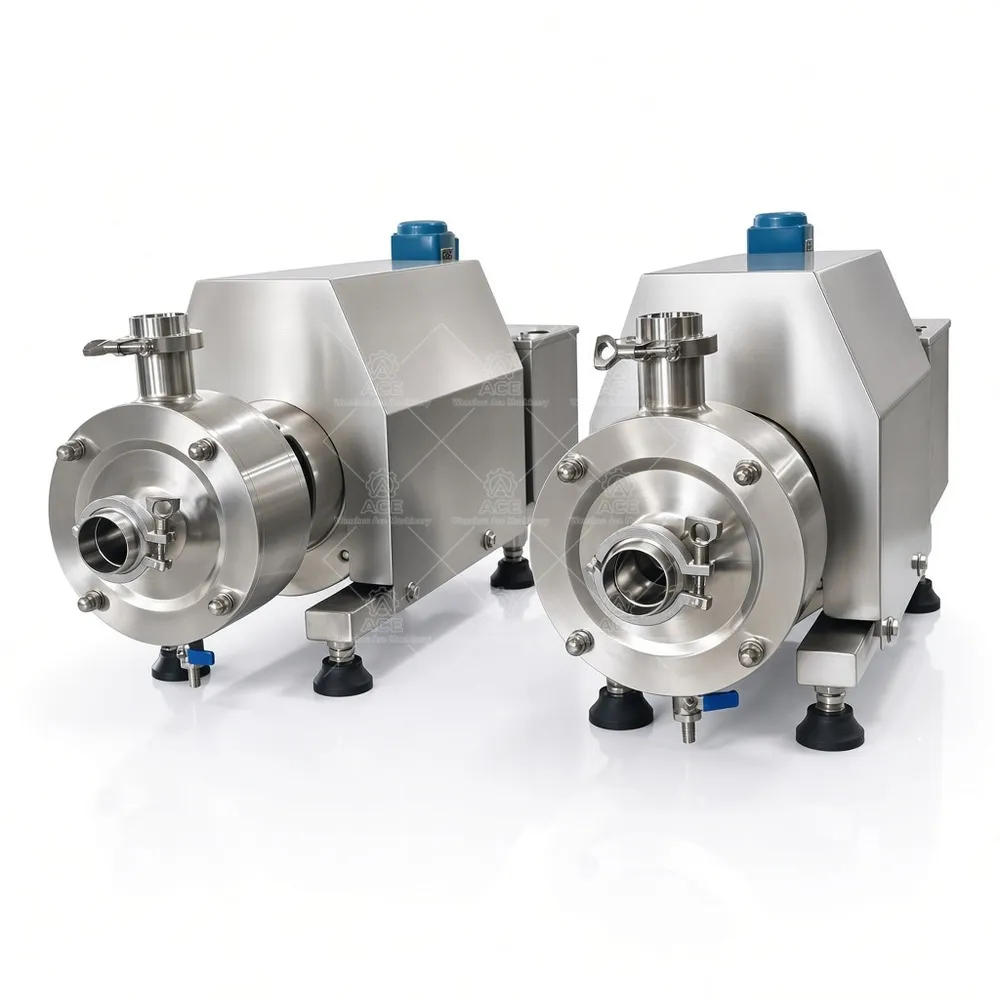

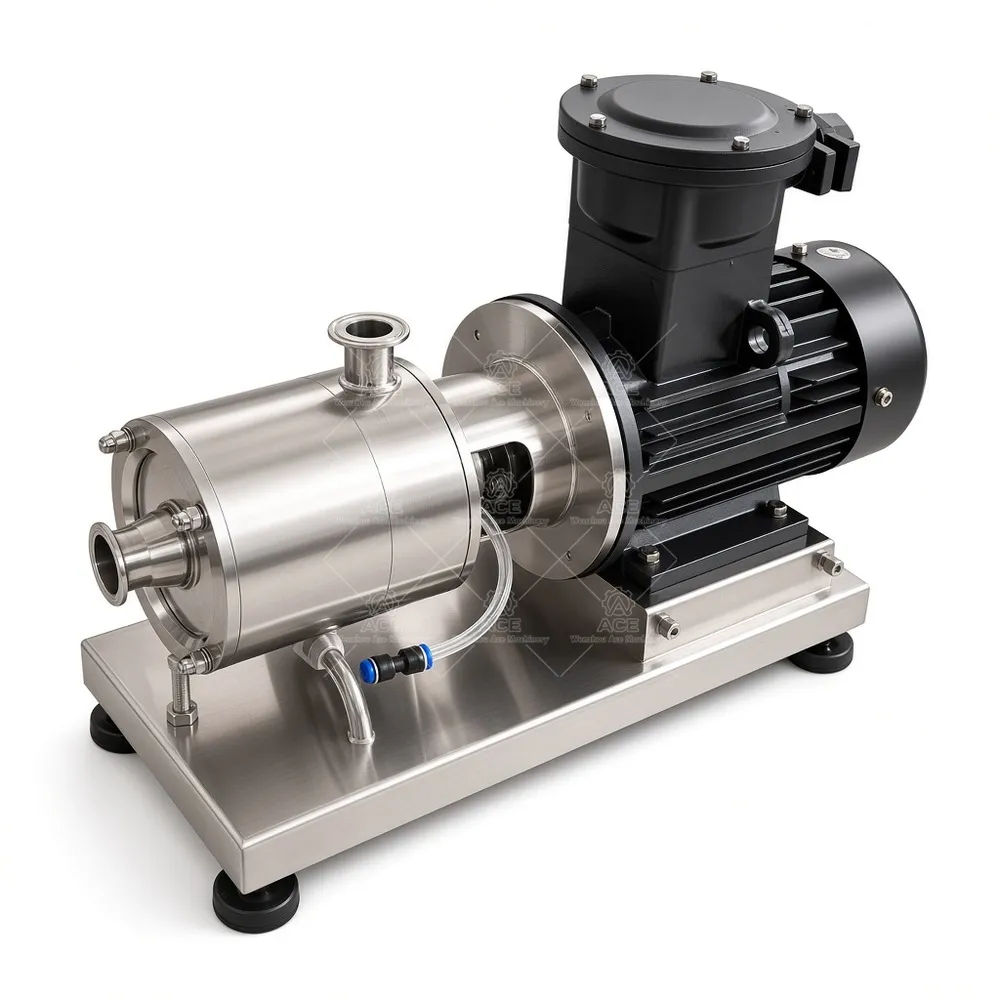

Single-stage in-line mixer

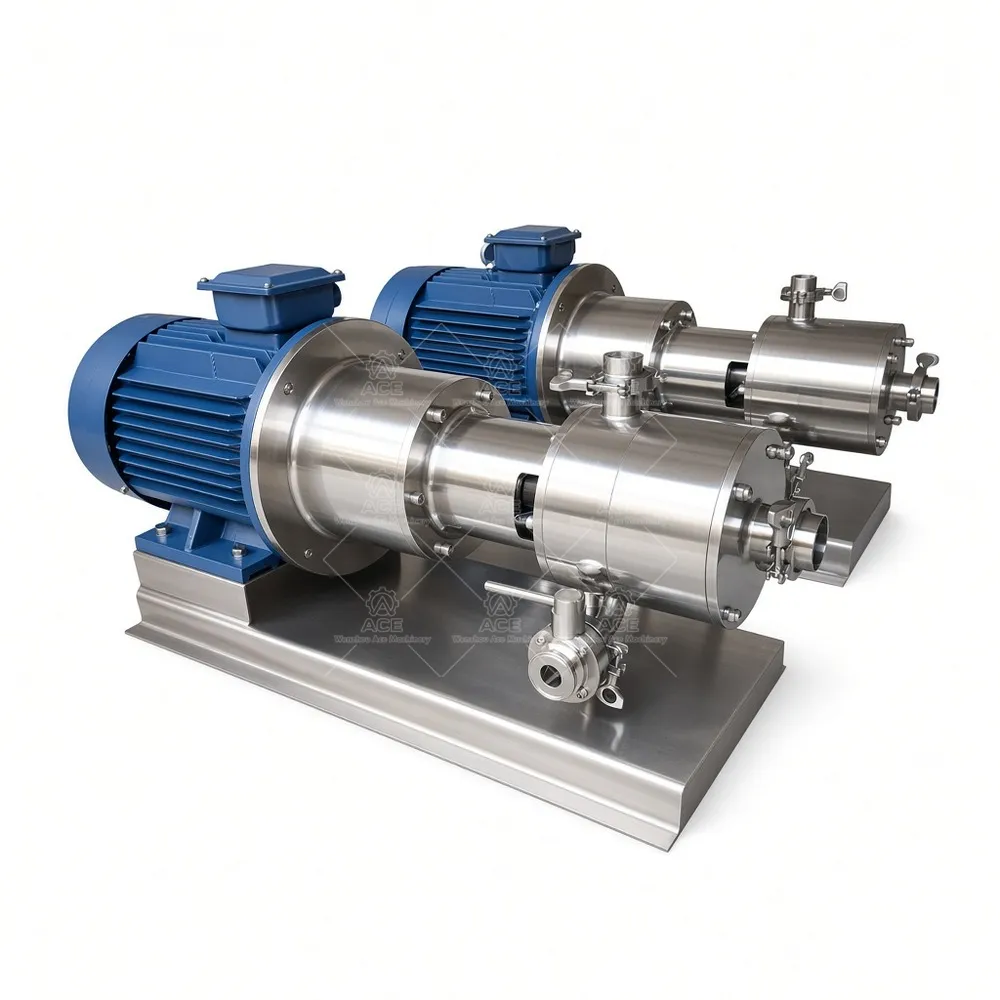

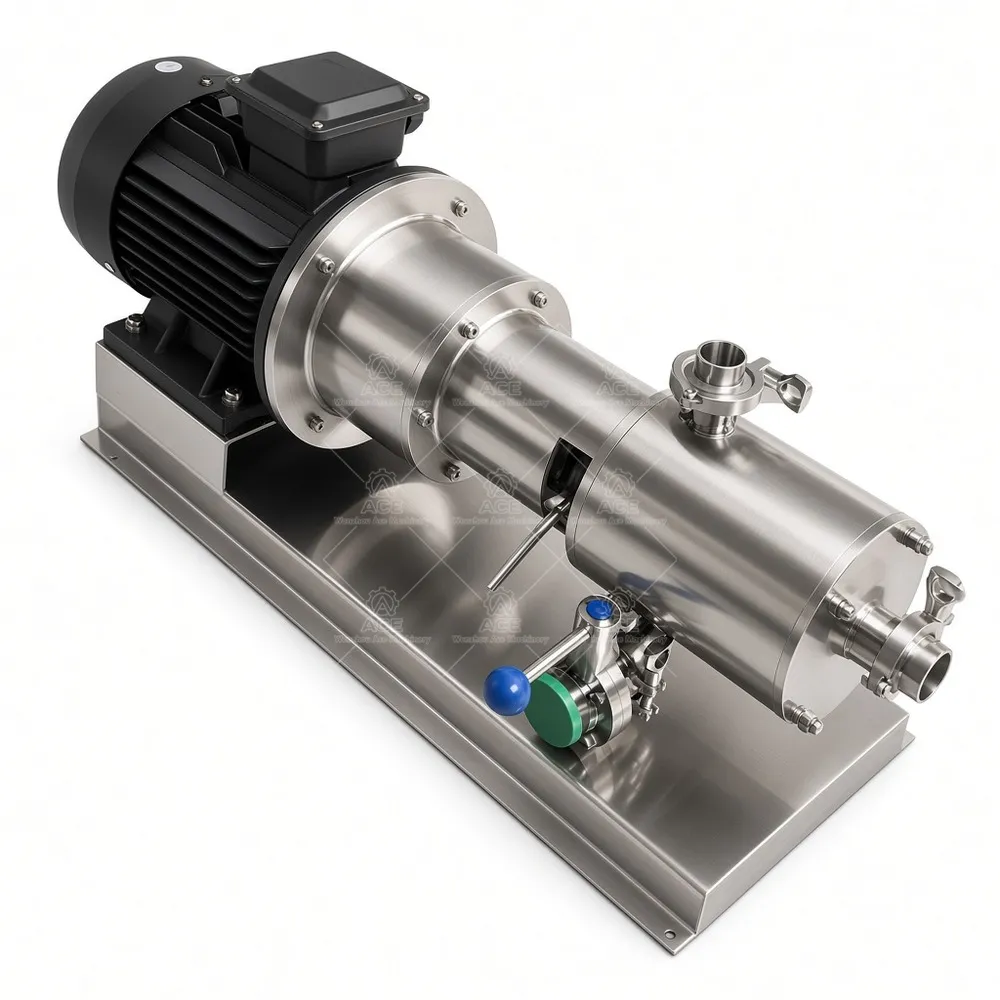

Three-stage in-line mixer
High-Shear Mixer with lift
High shear mixer
