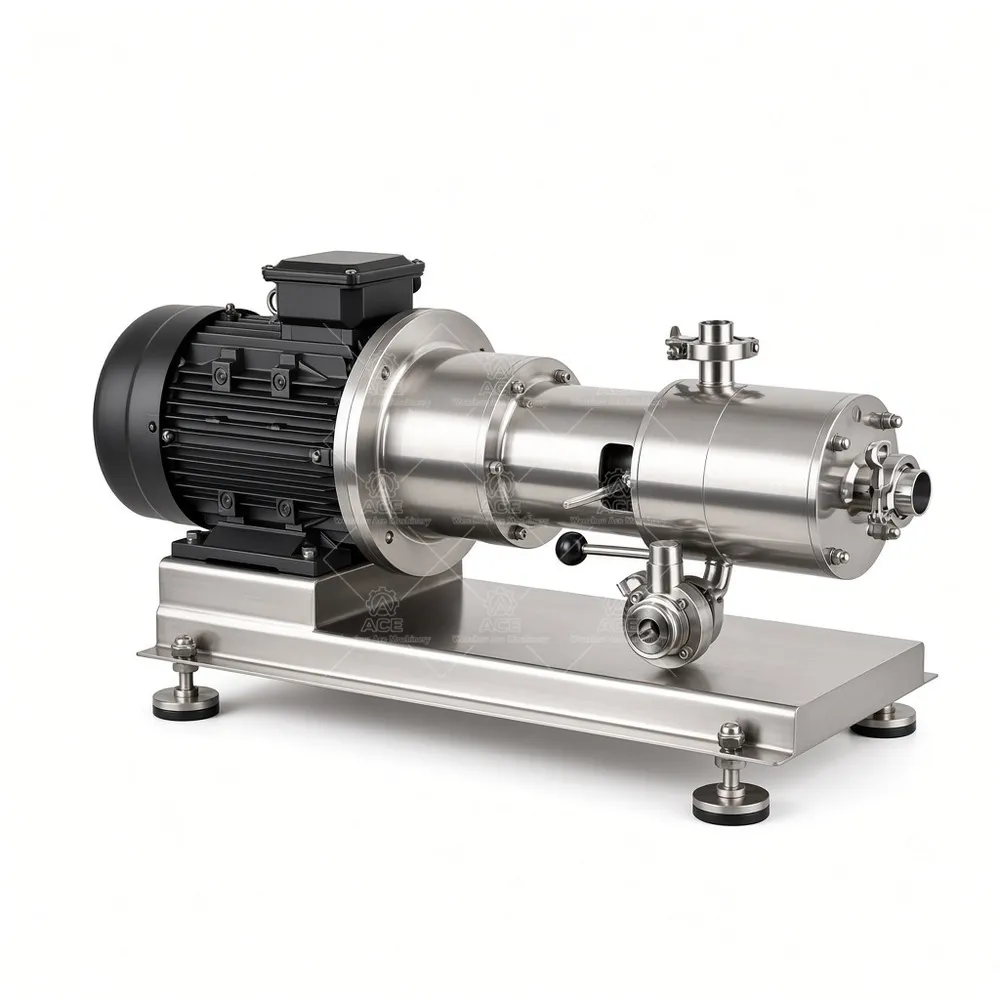

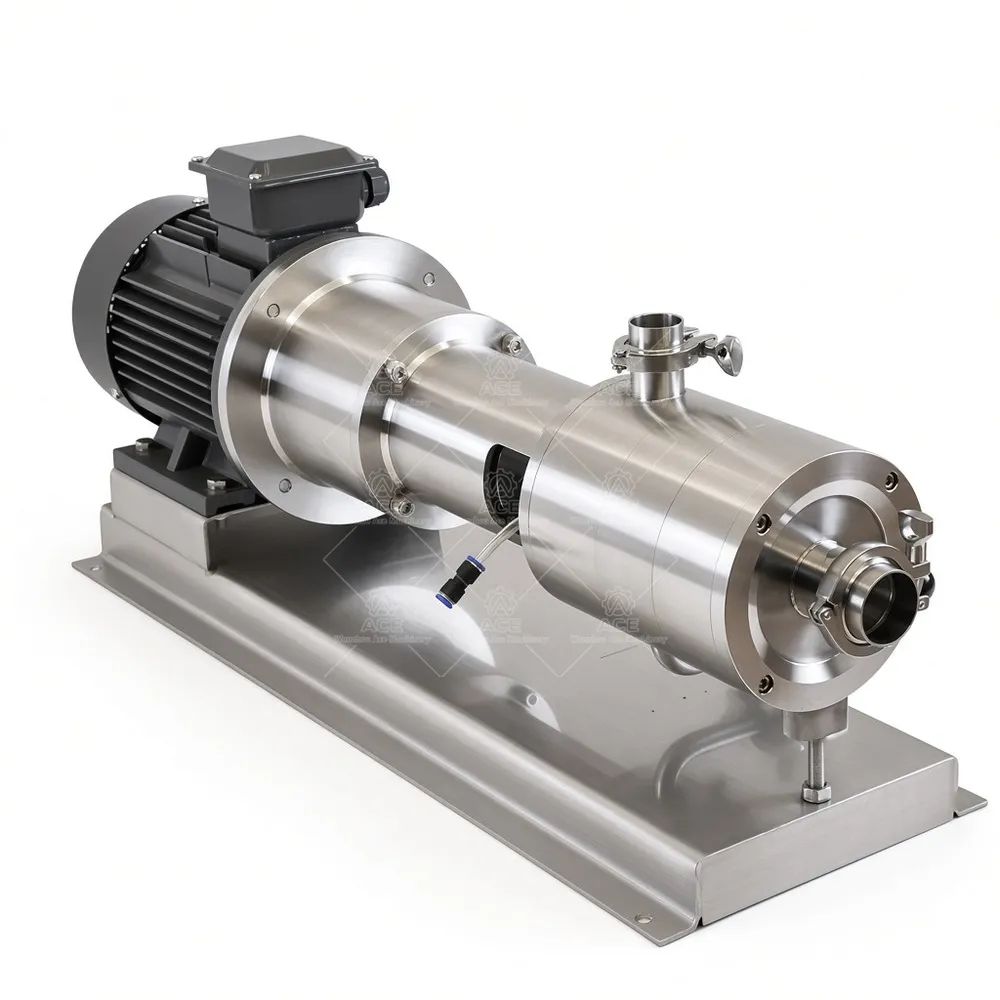

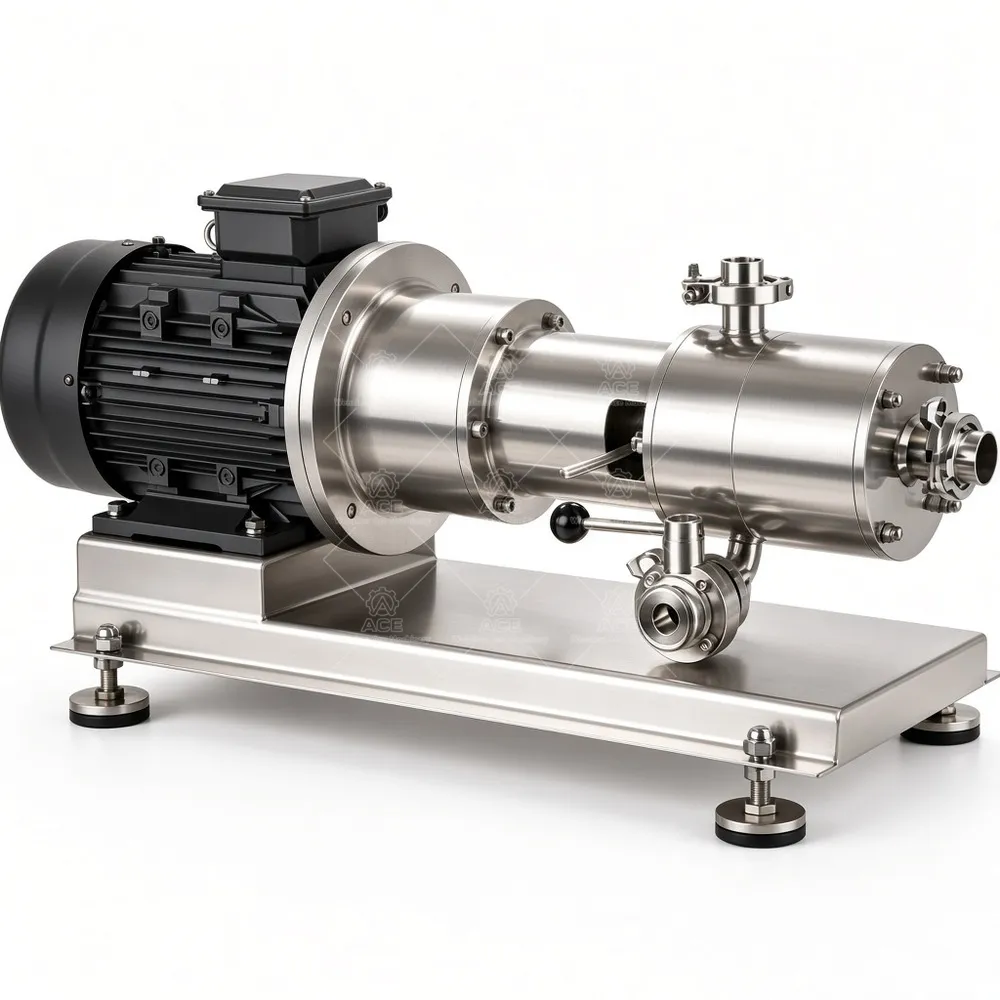

Sanitary Multi-Stage Rotor-Stator Inline Mixing Pump for Mayonnaise
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $1,520.75 through $1,638.91
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Ace Mixer builds this multi-stage rotor-stator inline pump for plants that need tighter control over emulsification and powder wet-out without adding another batch tank. Product enters the housing, passes through staged rotor-stator teeth, and exits as a more uniform stream. Run it once through a line or circulate from a tank; the shear zone is where agglomerates break down and oil-water systems receive consistent mechanical energy.
Where it earns its place
- Inline mounting on pipes, transfer lines, or recirculation loops keeps the footprint small and avoids open-tank transfers.
- High-speed rotor-stator action shortens wet-out and dissolving steps for gums, starches, stabilizers, and thickeners.
- Staged shear supports emulsion formation, dispersion, and particle-size reduction; final results still depend on formula, temperature, flow, and rotor speed.
- Continuous operation can improve batch-to-batch consistency and reduce manual mixing time.
- 316L stainless contact surfaces, selected seals, and sanitary connections support food, cosmetic, and pharmaceutical cleaning practices. VFD, motor enclosure, connections, and wetted materials can be specified.
Applications
Food and beverage plants use these pumps for mayonnaise, sauces, dressings, syrups, dairy blends, beverage concentrates, and stabilizer dispersions. Cosmetic and personal care lines run creams, lotions, shampoos, conditioners, and liquid detergents. Pharmaceutical processors use them for compatible liquid preparations and excipient dispersion. Chemical plants apply them to coatings, adhesives, water-based formulations, and compatible emulsions. Not every formulation suits one pump configuration; abrasives, high solids, and solvent-based products need review.
FAQ
Can it replace batch mixing? In many recirculation or inline setups it can reduce batch time, but high-viscosity or high-solids products may still need a combined approach.
What affects stage count and motor size? Flow rate, viscosity, solids loading, temperature, and target droplet or particle size drive the selection.
What should I send for a quote? Batch size, product viscosity, solids content, temperature, desired flow, motor power, voltage, frequency, connection standard, and cleaning requirements.
Tell us your process conditions and we will recommend a workable rotor-stator configuration and quote.
Ace Mixer\’s sanitary multi-stage rotor-stator inline pump handles emulsifying, dispersing, dissolving, and powder wet-out in continuous or recirculation service. It suits mayonnaise, sauces, dairy blends, cosmetics, liquid detergents, pharmaceutical preparations, and compatible chemical emulsions. Stainless construction, customizable seals, connections, wetted materials, and optional VFD support plant integration.
