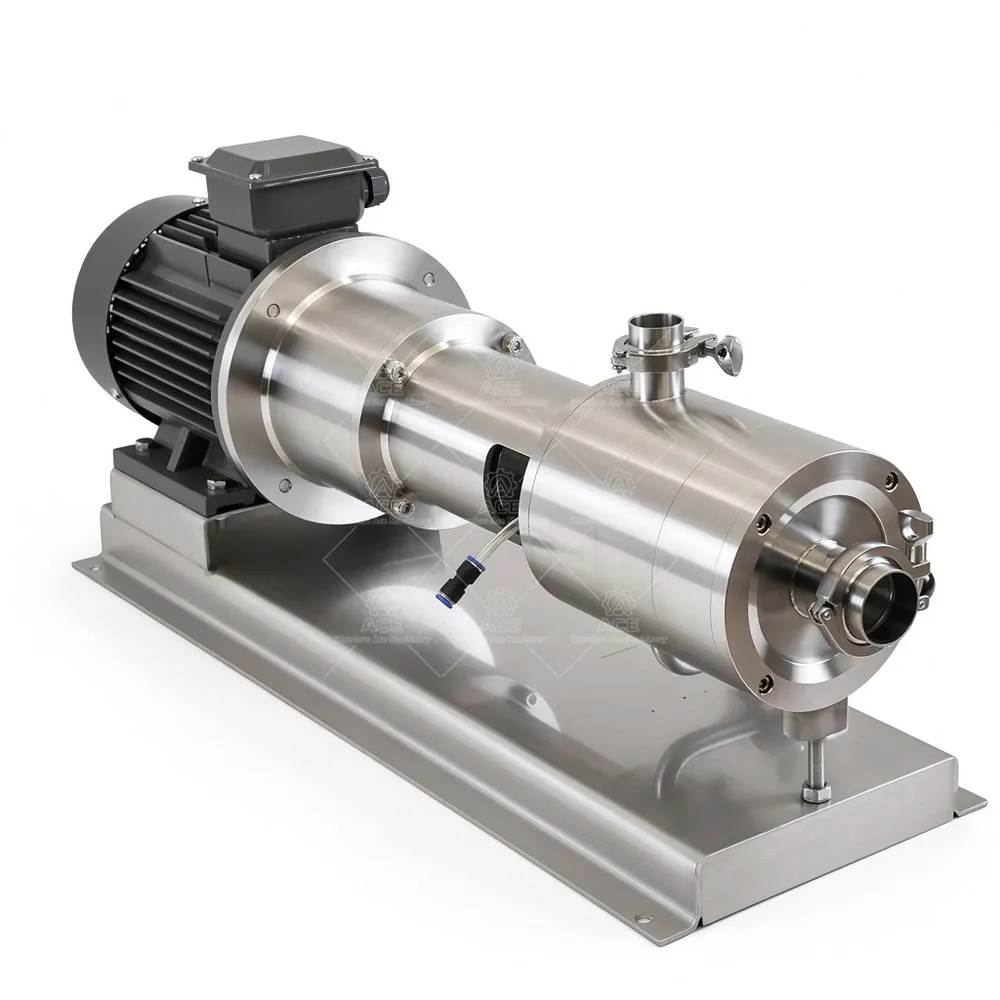

380V 400V Sanitary High Shear Heated Jacketed Emulsifier Homogenizer Mixer
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $1,775.01 through $1,908.67
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
If you\’re running a jacketed tank for cream or mayonnaise and still fighting lumps or long batch times, an inline high-shear unit often solves the problem faster than changing your formula. Our sanitary emulsifier/homogenizer pump mounts in the recirculation loop or directly in the process line. The rotor-stator head pulls product in, accelerates it, and forces it through tight clearance. That mechanical energy breaks down droplets, wets powders, and knocks apart agglomerates before they set up.
We at Ace Mixer build these units with 380V/400V motors as standard for export, but motor, seals, connections, and product-contact materials are selected per application. The jacketed housing allows heating or cooling during processing—useful for cosmetic creams and food emulsions that need controlled temperature. Stainless steel construction handles daily washdown. An optional VFD lets operators trim shear without changing hardware, which matters when you run multiple products through the same line.
- Inline installation in a pipe or recirculation loop—no extra batch tank needed
- High-speed rotor-stator mixing for liquid-liquid emulsification and dispersion
- Powder incorporation and de-agglomeration (gums, stabilizers, starches)
- Shorter mixing cycles and more repeatable batches
- Compact footprint with existing tanks and lines
Compared with a conventional batch mixer, the inline pump gives you more control over shear and residence time. You can recirculate until the product reaches the target texture, then divert to filling. For emulsions, expect tighter droplet distribution. For powders, fewer fish-eyes. Results depend on your formulation, solids loading, and equipment configuration.
Food and beverage: sauces, dressings, mayonnaise, syrups, liquid seasonings, dairy mixes. Cosmetics and personal care: creams, lotions, shampoos, conditioners, liquid detergents, oil-water emulsions. Pharmaceutical: liquid formulations and excipient dispersions where suitable. Chemical: coatings, adhesives, waterborne formulations, compatible chemical dispersions. Not every product runs well on the same pump configuration—viscosity, solids, and temperature drive the final selection.
Can I install it on my existing tank? Yes—most customers tie it into a recirculation loop with isolation valves. We review piping, viscosity, and flow rate before recommending a model. Do I need a VFD? If you run multiple products or need to adjust shear, consider it. It\’s optional. What do you need for a quote? Batch size, viscosity and solids content, target flow rate, motor power, and local electrical supply (380V or 400V, Hz, phase).
Tell Ace Mixer what you\’re mixing and how your line is set up. We\’ll recommend the right rotor-stator configuration, seal type, and connection standards.
Ace Mixer’s sanitary high-shear emulsifier/homogenizer pump is built for 380V/400V operation and jacketed heating. It handles cosmetic creams, mayonnaise, sauces, and chemical emulsions in inline or recirculation mode. Stainless steel construction, optional VFD, and customizable seals and connections support consistent batches and shorter mixing cycles.
Single-stage in-line mixer

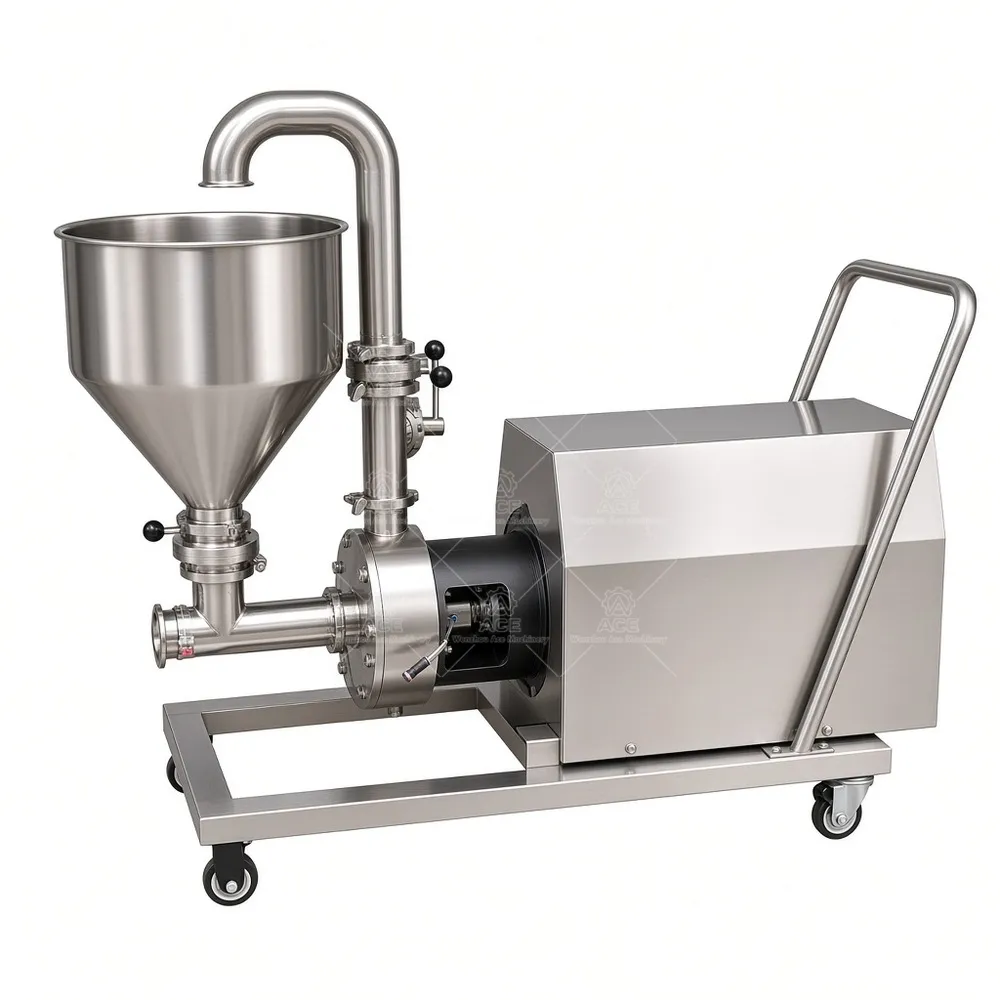

Three-stage in-line mixer
