Movable Palm Oil Inline High Shear Emulsion Pump with Hopper, 2.2–7.5kW
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,181.94 through $2,339.26
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM

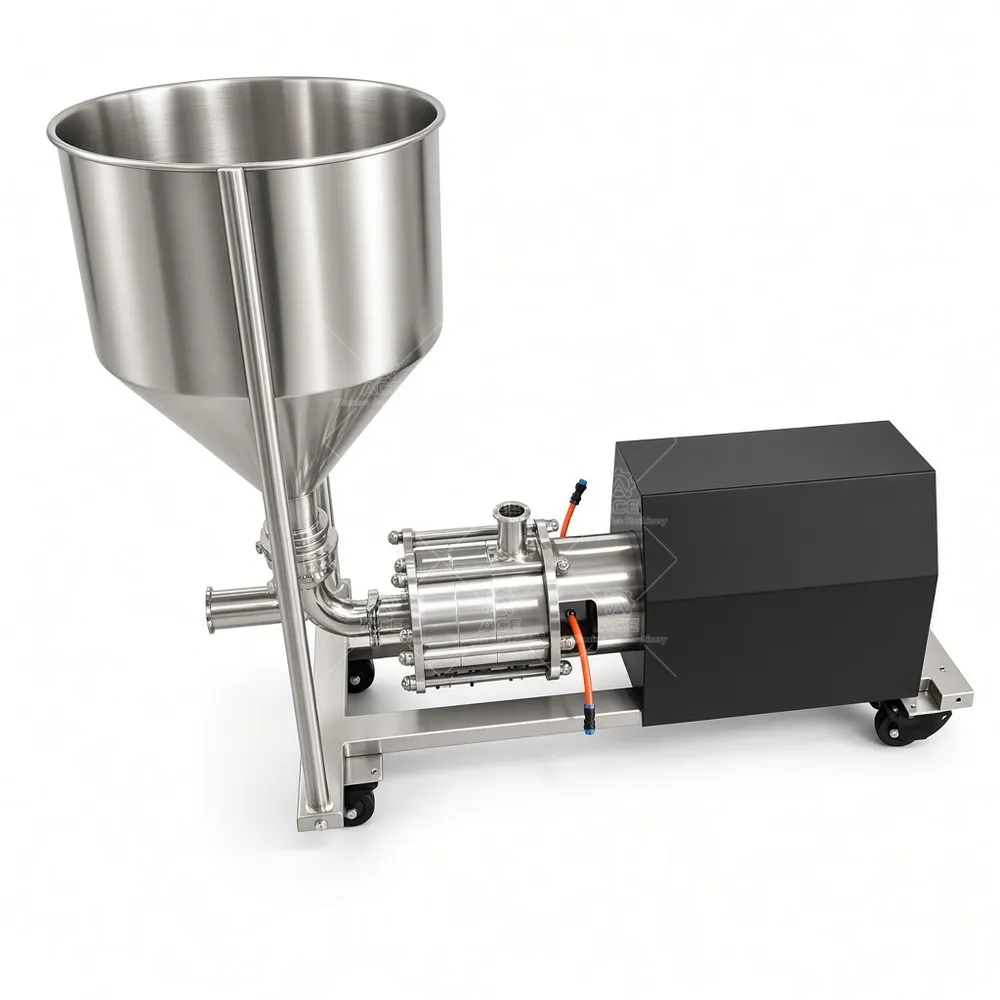

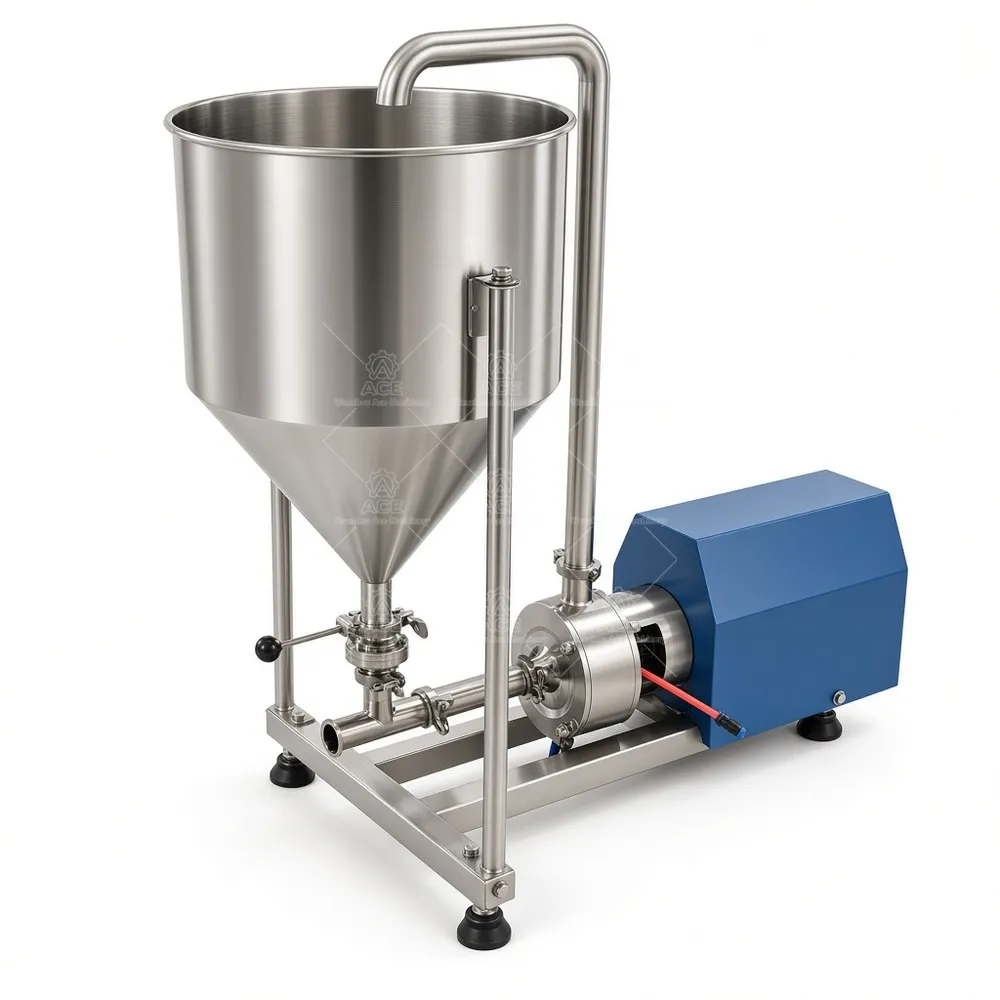

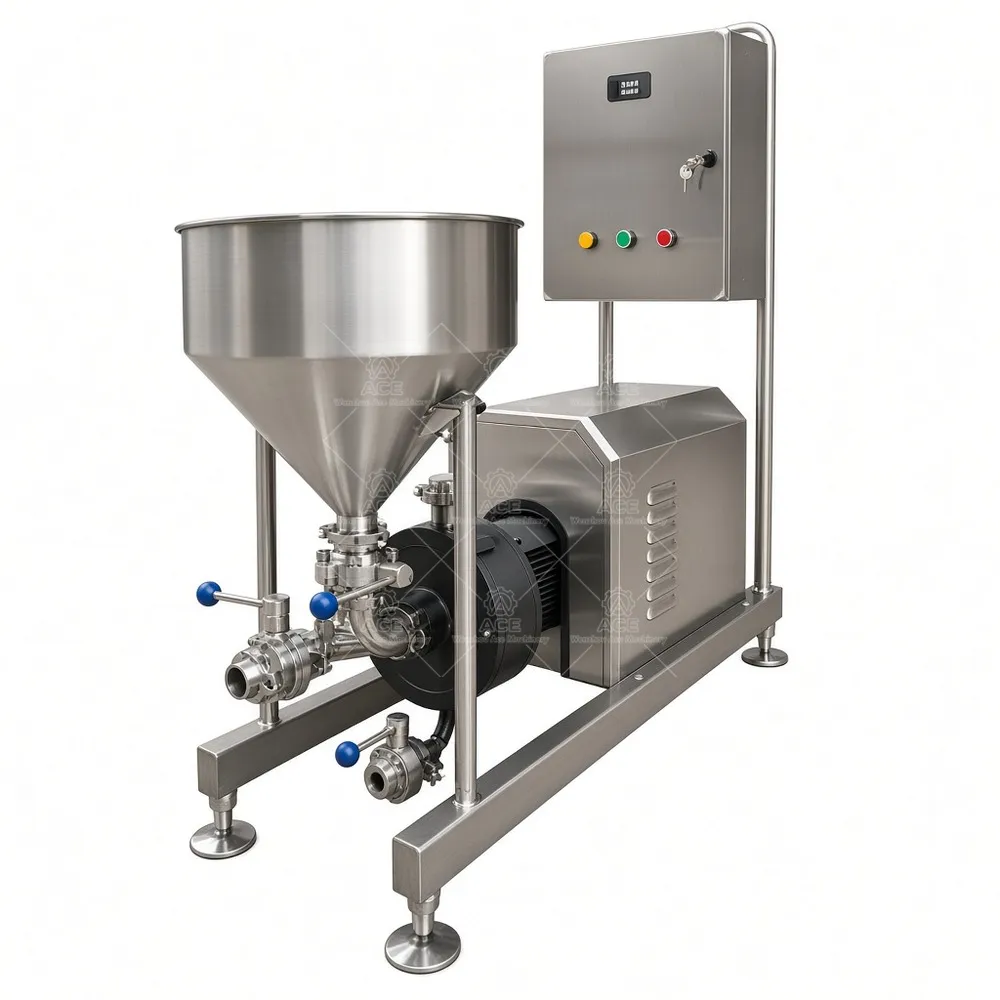

Ace Mixer builds this movable single-stage inline high shear emulsion pump for plants that need to pull powder into a liquid stream and break down lumps without adding a separate batch mixer. Motor options of 2.2 kW, 4.0 kW, 5.5 kW, and 7.5 kW cover pilot runs, small batches, and higher-output circulation duties. The hopper feeds powders or minor ingredients into the rotor-stator zone, and the movable frame lets operators move the unit between tanks or skids.
The pump works as an inline mixer: product enters the single-stage rotor-stator head, sees high shear in the gap, and discharges as a more uniform stream. In recirculation, tank contents pass through the head repeatedly. That approach often fits better than adding a separate batch mixer when you already have a tank, piping, and a transfer pump. It can support liquid-liquid emulsification, powder wet-out, agglomerate reduction, and ingredient dispersion. Results depend on formulation, solids loading, viscosity, temperature, and head choice.
Main features and production benefits
- Hopper-fed powder addition reduces manual dumping and dusting at the tank.
- Single-stage high shear head handles emulsification and dispersion in continuous or loop operation.
- Movable frame simplifies changeover between vessels and pilot areas.
- Stainless steel construction suits food, cosmetic, and chemical processing when wetted parts match the product.
- Optional VFD, seals, connections, motor variants, and wetted materials are available after review.
Applications
Food and beverage lines use it for sauces, dressings, syrups, dairy blends, starch, gum, and stabilizer dispersion. Cosmetic production includes creams, lotions, shampoos, conditioners, and liquid detergents. Pharmaceutical teams may evaluate liquid formulations and excipient dispersion where equipment and cleaning method fit. Chemical uses include coatings, adhesives, water-based preparations, and compatible emulsions. Fit varies with solids size, abrasiveness, viscosity, and seal compatibility.
FAQ
Can it run inline or in a tank loop? Yes, it can be installed in piping or used for recirculation when layout and net positive suction head are correct.
How do I choose motor size? Review batch volume, viscosity, solids content, cycle time, and pipe size. A 2.2 kW unit may suit light pilot work; higher power follows process review.
What about palm oil? The pump can handle palm oil and similar oils after temperature, viscosity, and sealing review; the hopper aids powder addition.
Send your batch size, material behavior, target motor power, and local electrical specifications to Ace Mixer for a recommended configuration and quote.
Ace Mixer\’s movable single-stage inline high shear emulsion pump combines a hopper, rotor-stator mixing, and 2.2–7.5 kW motor options for palm oil and other liquid processing. It supports emulsification, powder dispersion, and consistent circulation in food, cosmetic, pharmaceutical, and chemical lines. Share your batch size, material behavior, and electrical requirements for configuration and quote.
