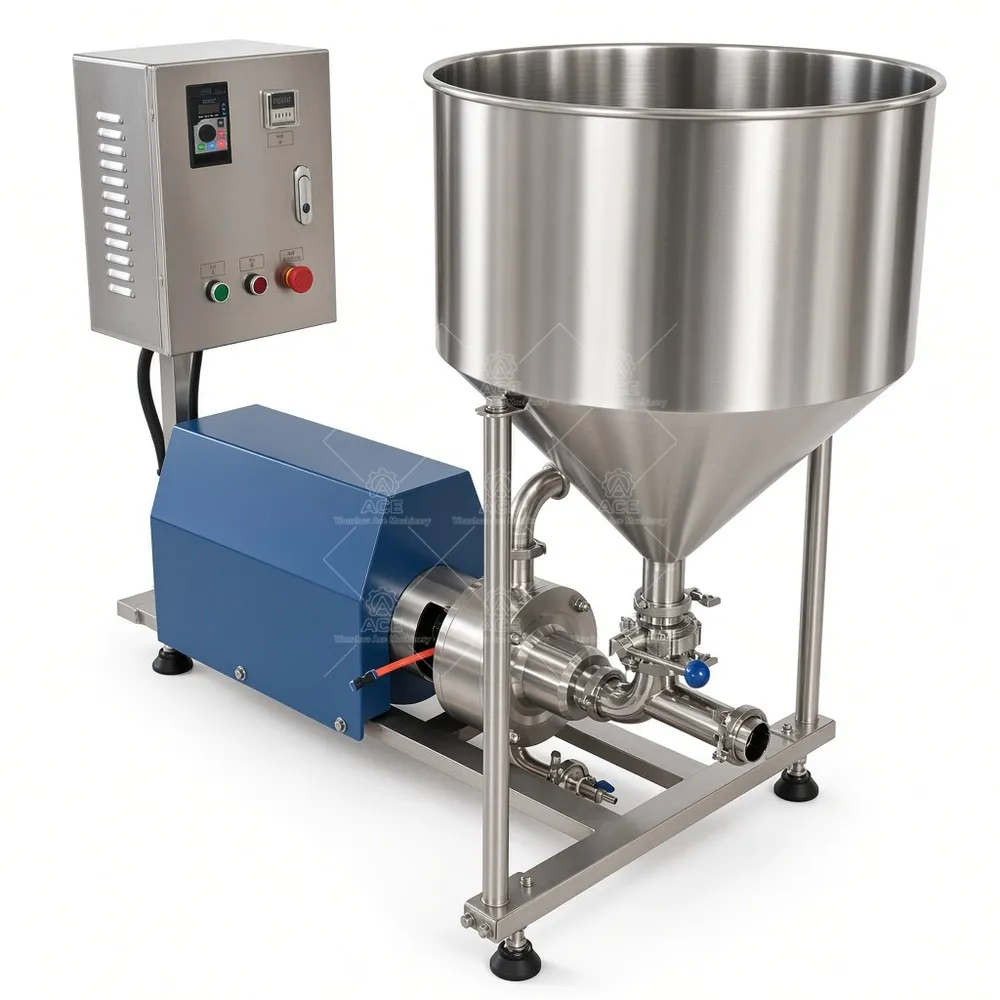

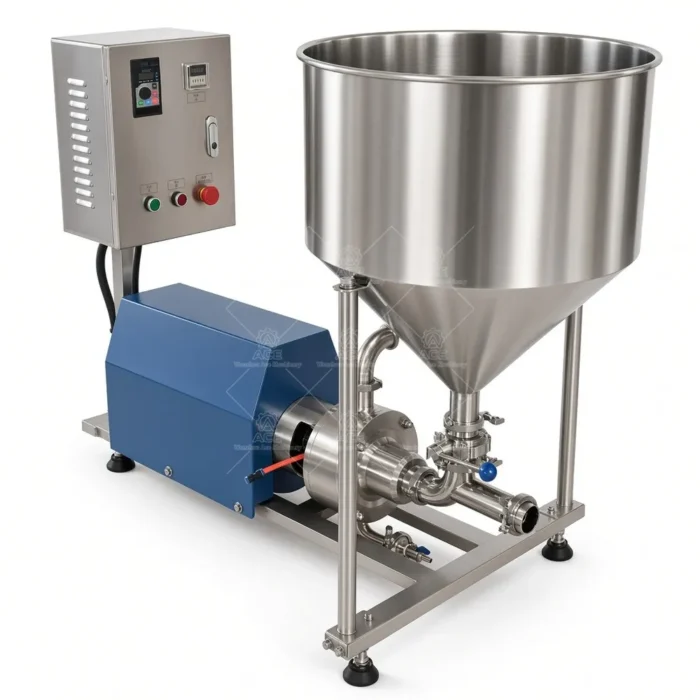

Aseptic Inline High Shear Emulsifying Pump with 50L Hopper & VFD Cabinet
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $1,598.40 through $1,755.04
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Built for inline dispersion, not just transfer

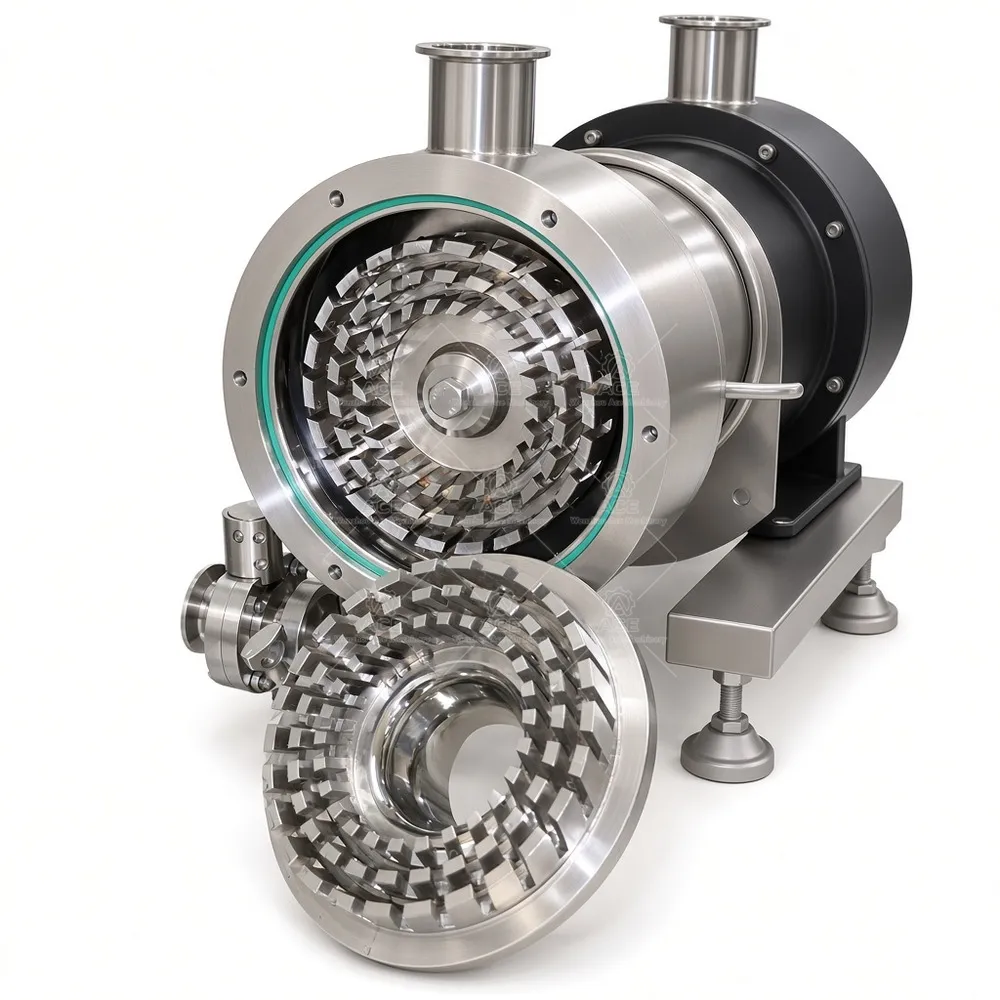

This 50L hopper and VFD control cabinet package is aimed at plants that need to wet powders into a liquid stream, break down agglomerates, and move toward a stable emulsion without adding another batch tank. The high-speed rotor-stator head creates intense shear in a narrow working zone. Product enters the pump, passes through the head, and exits to the next stage or back to the tank. For recirculation, that repeated pass often shortens the time operators spend chasing lumps with a paddle or portable mixer.
We build the pump in stainless steel for washdown and production environments. Contact materials, shaft seals, flange or clamp connections, and motor enclosure can be specified around your fluid. Aseptic and sterile duty usually means closer attention to seal choice, surface finish, drainability, and clean-in-place or steam-in-place connections. Tell us what cleaning regime the line follows; that detail changes the quote more than the pump curve alone.
Where it earns its place
- Food and beverage: sauces, dressings, syrups, dairy blends, starch and gum dispersions.
- Cosmetics and personal care: creams, lotions, shampoos, conditioners, liquid detergents, oil-water emulsions.
- Pharmaceutical: liquid formulations and excipient dispersions where the wetted materials and cleaning method fit the process.
- Chemical: coatings, adhesives, waterborne products, and compatible emulsions or dispersions.
Inline installation suits continuous lines and loop systems where floor space is tight. Compared with a batch mixer, it can reduce open-tank handling and make addition points easier to control. It will not fix every formulation. High solids, abrasive fillers, shear-sensitive ingredients, and very high viscosity fluids need review before sizing.
FAQ
Can it run continuously? Yes, when the duty point, seal flush, and motor are selected for that service.
What hopper size do I need? The 50L hopper is a starting point. Feed rate, bulk density, and powder addition method determine whether it fits.
Is the VFD necessary? A VFD control cabinet helps tune tip speed as viscosity or flow changes. It is optional where fixed speed suits the line.
What should I send for a quote? Batch size, flow rate, viscosity, solids load, temperature, cleaning method, motor power, voltage, and required connections. Send those details to our engineering team and we will recommend the rotor-stator, seal, and cabinet arrangement that fits.
Ace Mixer’s aseptic inline high shear pump pairs a 50L hopper with a VFD control cabinet for dispersing, emulsifying, and powder wet-in on production lines. It supports continuous or recirculation duty, stainless construction, and configurable seals, connections, and contact materials. Share your batch size, viscosity, solids, and electrical supply for a matched quote.
Single-stage in-line mixer

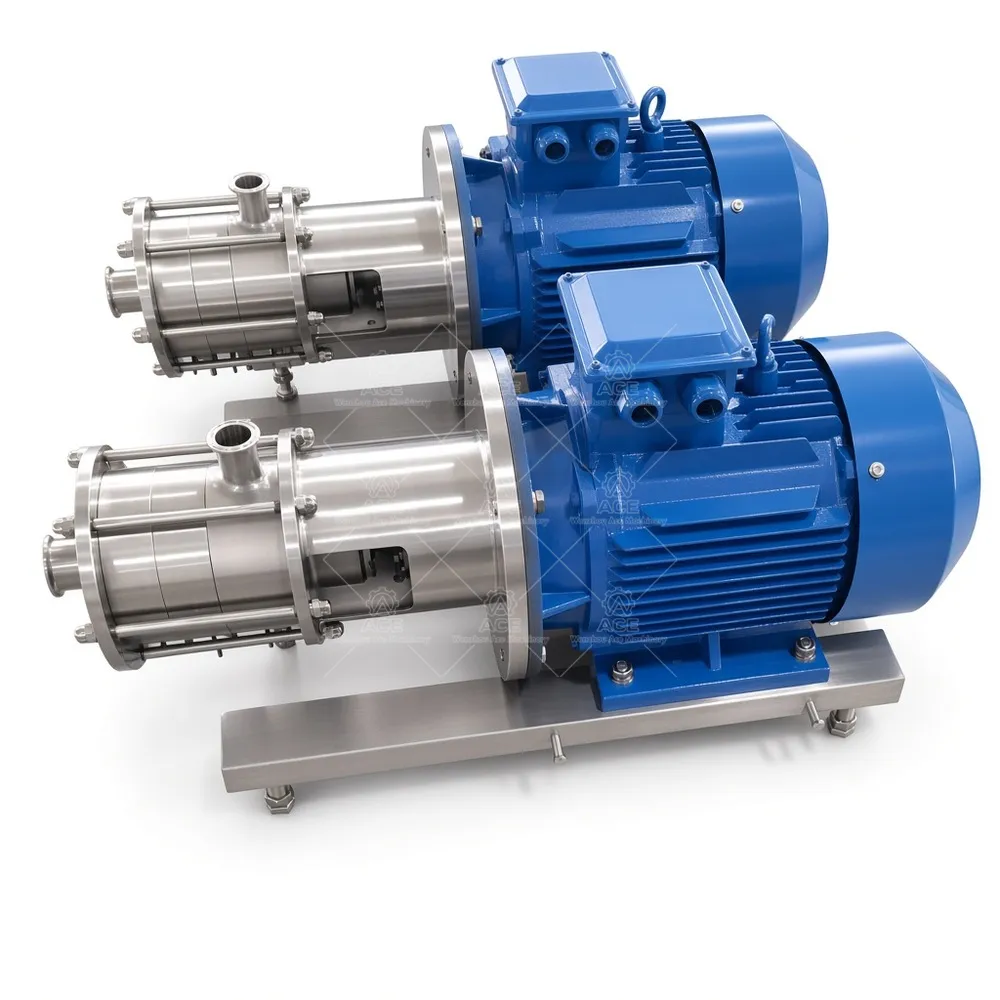

Three-stage in-line mixer
