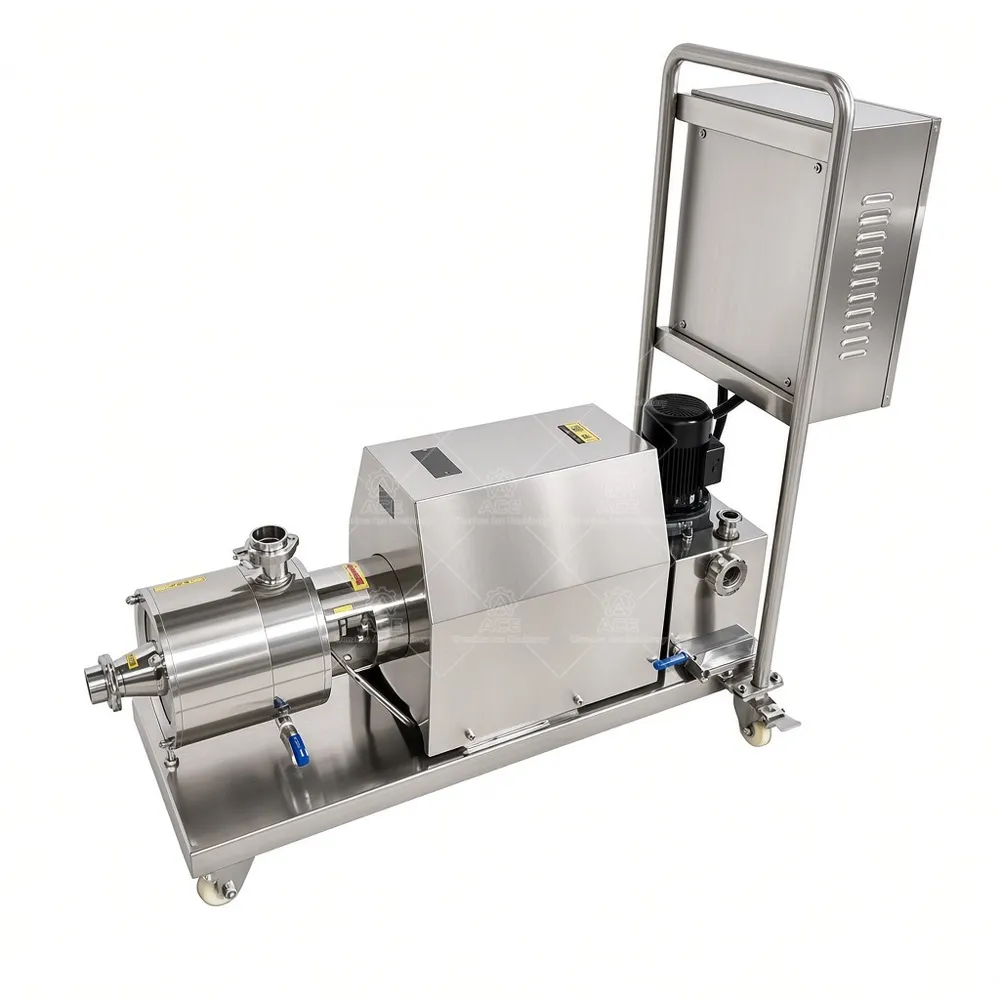

Mobile Three-Stage Inline High Shear Emulsifying Homogenizer for Food
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $1,795.11 through $1,971.57
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Built for inline shear, not batch guesswork
Ace Mixer builds this mobile three-stage inline emulsifying pump for plants that need faster wet-out, tighter emulsions, and less manual work. Product enters the rotor-stator stack and passes through three shear zones. Each stage adds energy and mixing intensity. In continuous operation, the pump feeds a line directly; in recirculation, it pulls from the tank and returns the batch until the desired texture or dispersion is reached.
The mobile frame keeps the unit close to the tank, kettle, or transfer line. That matters when floor space is tight or when one skid supports several products. The pump can mount in a pipe run or a loop. Stainless construction suits washdown and food contact areas. We match motor power, seals, flange or clamp connections, and contact materials to your product and cleaning routine. VFD control is available when you need to tune tip speed instead of running one fixed speed.
Where it earns its place
- Food and beverage: sauces, dressings, mayonnaise, syrups, liquid seasonings, dairy blends, starch, gum, and stabilizer dispersion.
- Cosmetics and personal care: creams, lotions, shampoos, conditioners, liquid detergents, and oil-water emulsions.
- Pharma and chemical: liquid formulations, excipient dispersion, coatings, adhesives, water-based products, and compatible chemical dispersions.
Results depend on formulation, solids loading, viscosity, temperature, and pump configuration. We do not force one rotor-stator setup across every product.
FAQ
Can it replace my batch mixer? Sometimes. If your process can run as a loop or continuous line, inline shear often cuts cycle time and avoids adding powder into a slow-moving tank. High-solids or very viscous batches may still need a tank agitator.
What affects the quote? Motor kW, stage geometry, seal type, connections, contact material, VFD, and mobile frame details. Send batch size, target viscosity, solids content, flow rate, cleaning method, and local voltage/phase.
How do I choose the model? Start with the process, not the model number. Tell us what goes in, what comes out, and how fast you need it.
Send your batch size, material characteristics, required motor power, and local electrical specs. Our technical team will recommend the right Ace Mixer configuration and return a quote.
Ace Mixer\’s mobile three-stage inline emulsifying pump combines high-shear rotor-stator mixing with a compact frame for food processing. It supports continuous or recirculation duties for emulsification, dispersion, and powder wet-out. Share batch size, viscosity, solids, motor power, and electrical requirements for a configured recommendation and quote.

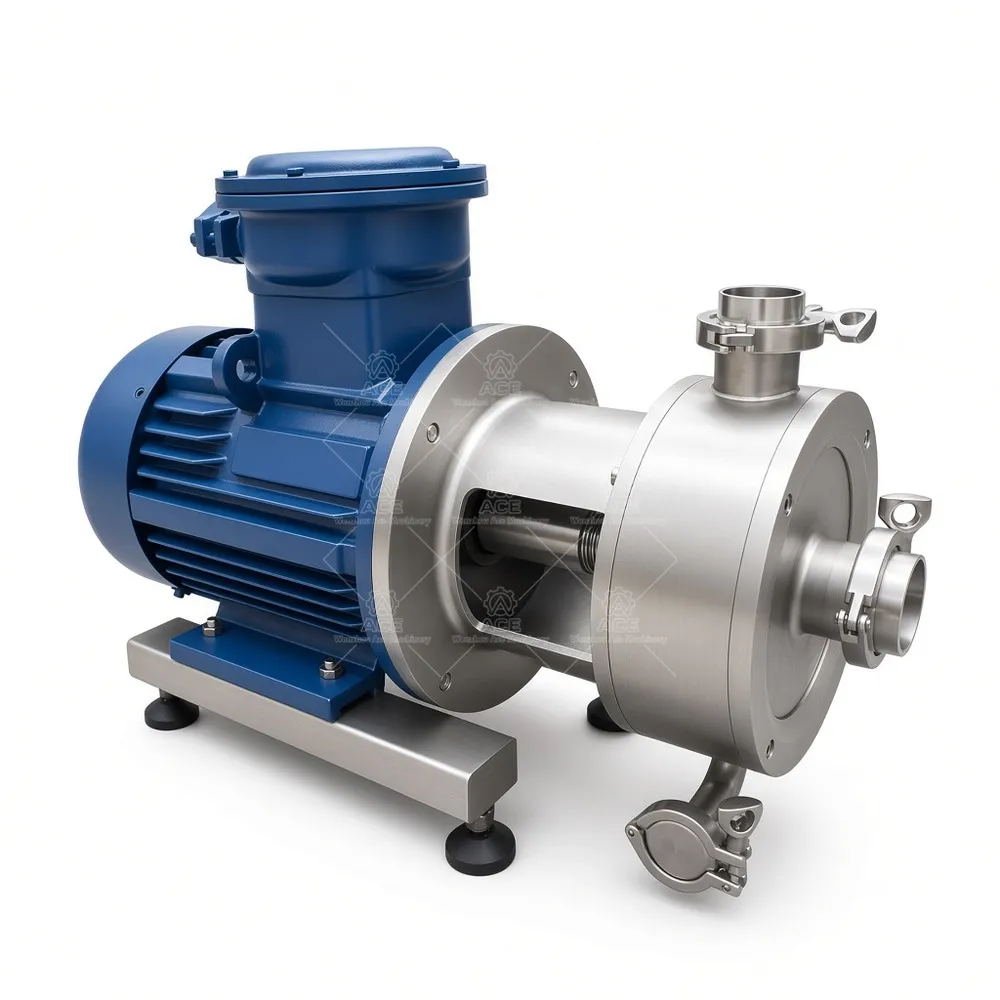

Single-stage in-line mixer

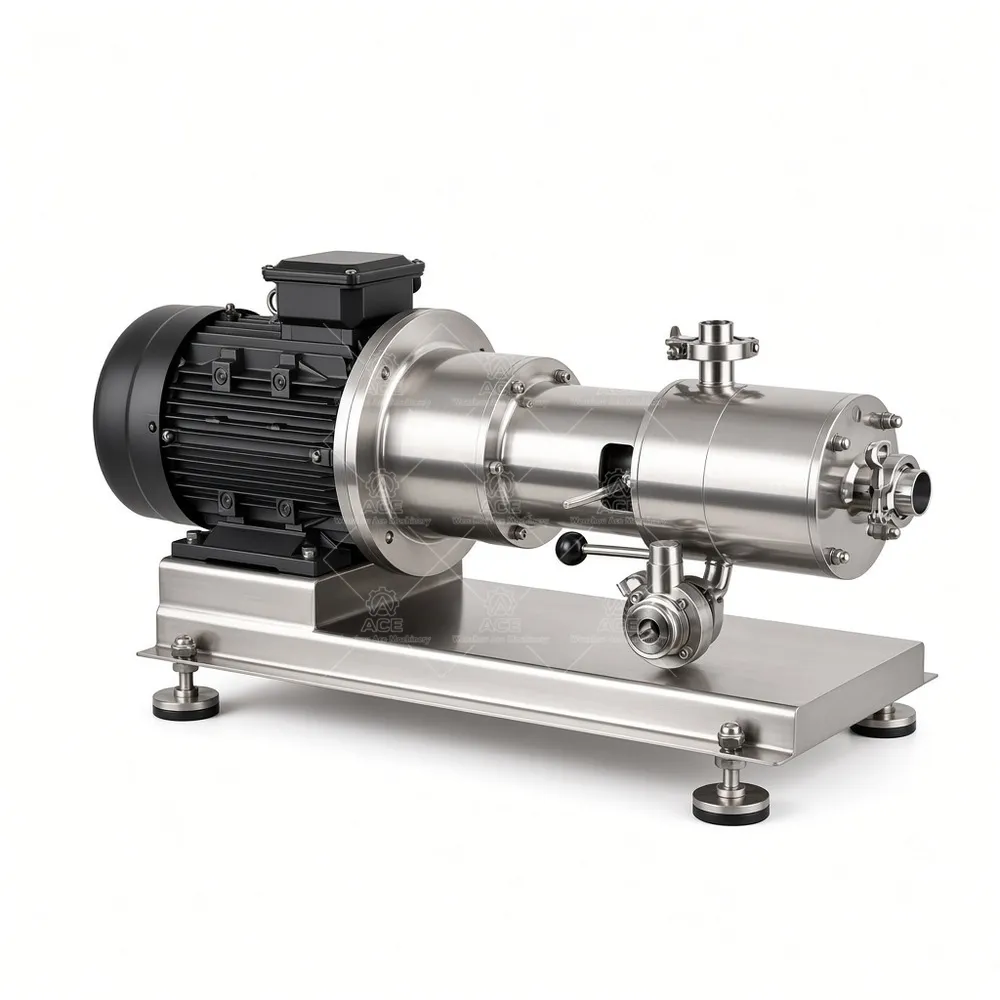

Three-stage in-line mixer
