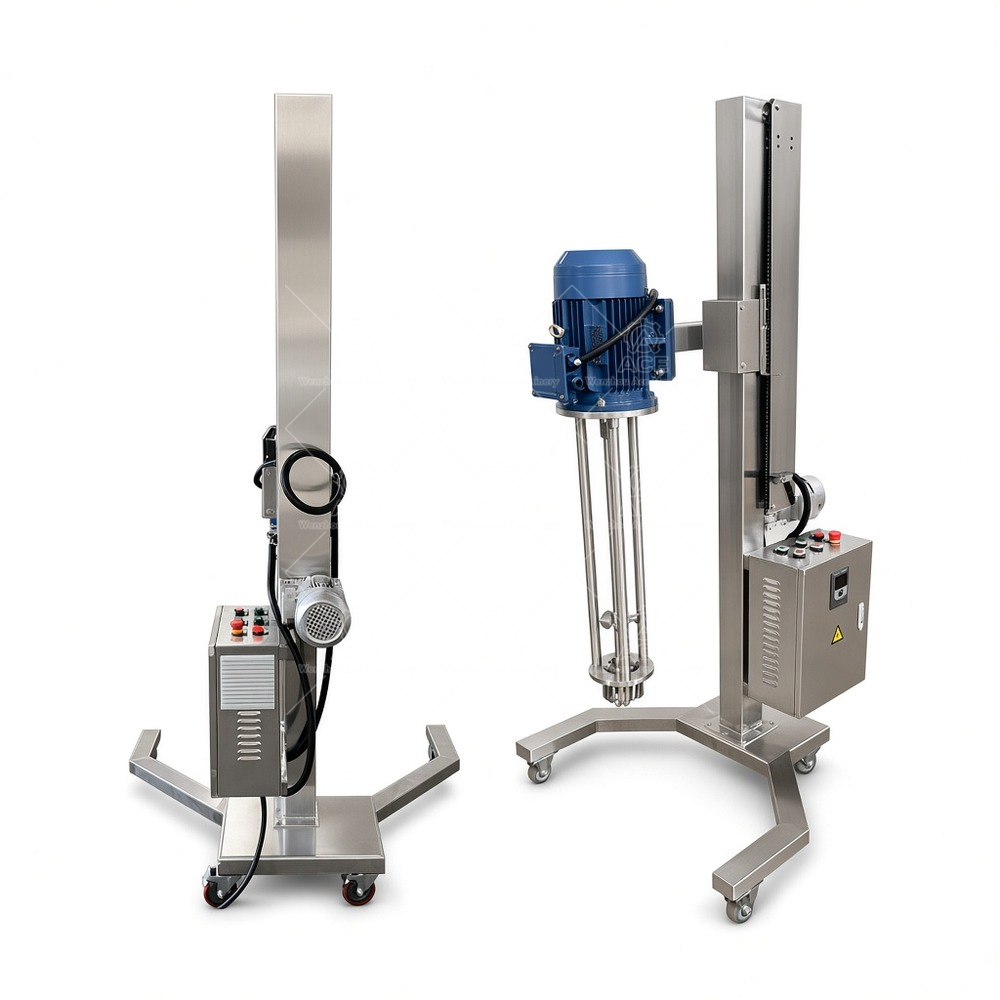

Sanitary Mobile Batch High Shear Emulsifier Mixer
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,380.06 through $3,500.24
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
When a syrup line shows fish eyes, or a sauce batch separates after holding, the formula may be fine. The issue is often how powders were wetted in and how much shear reached the tank before viscosity climbed. Our sanitary batch high shear mixer is built for that stage: adding gums, stabilizers, starches, and emulsifiers into liquid without creating lumps that downstream equipment must fix.

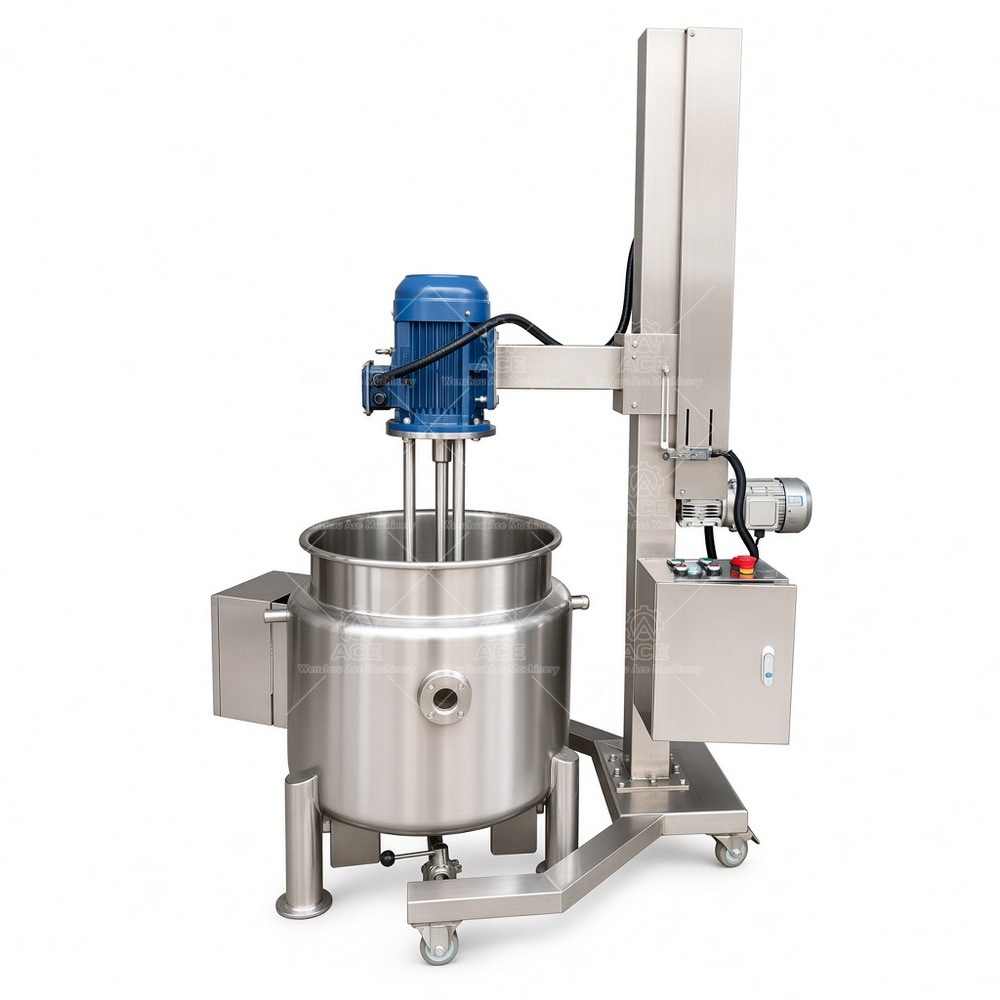

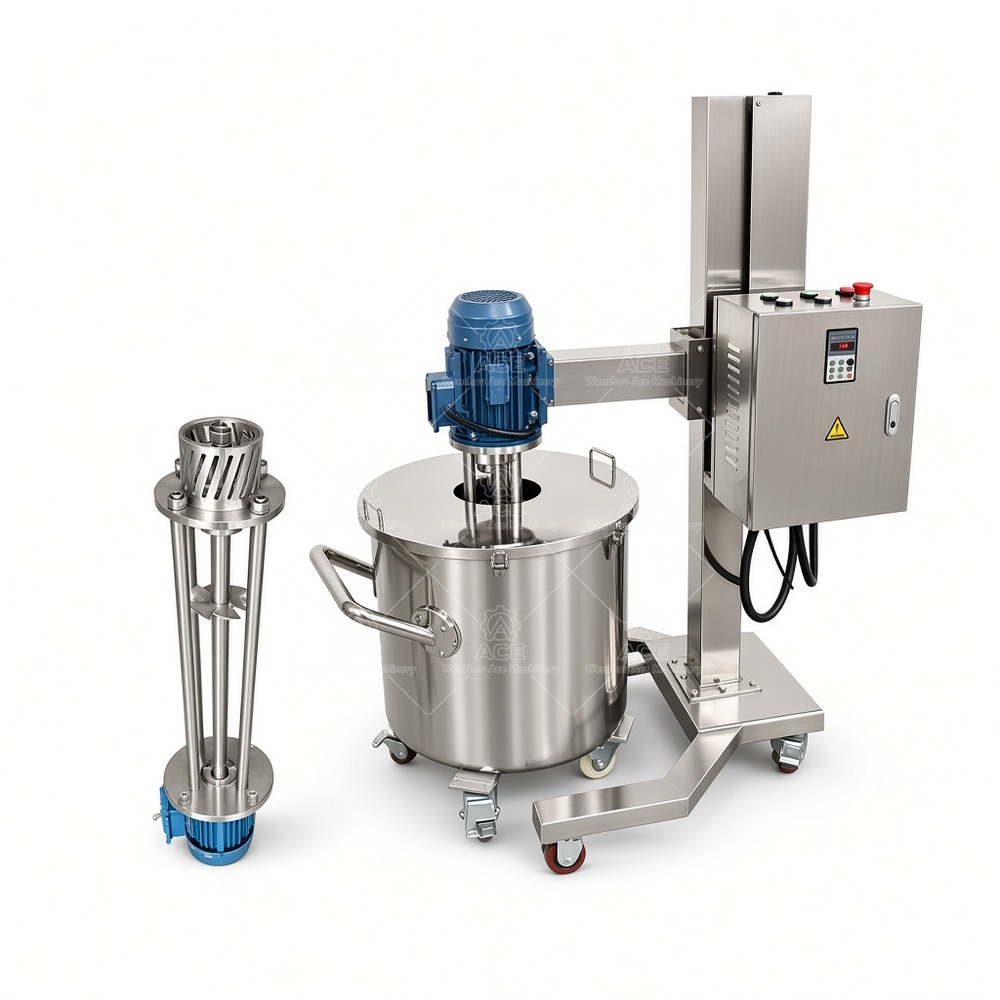

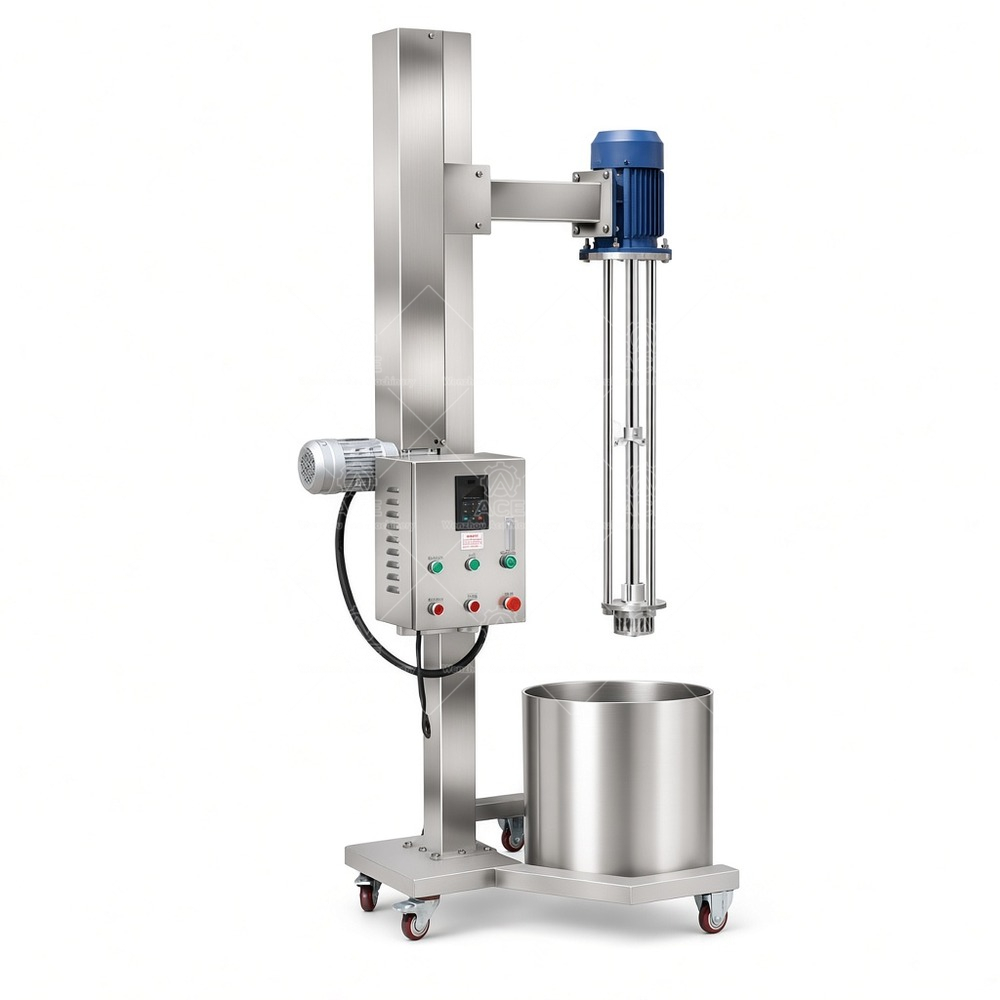

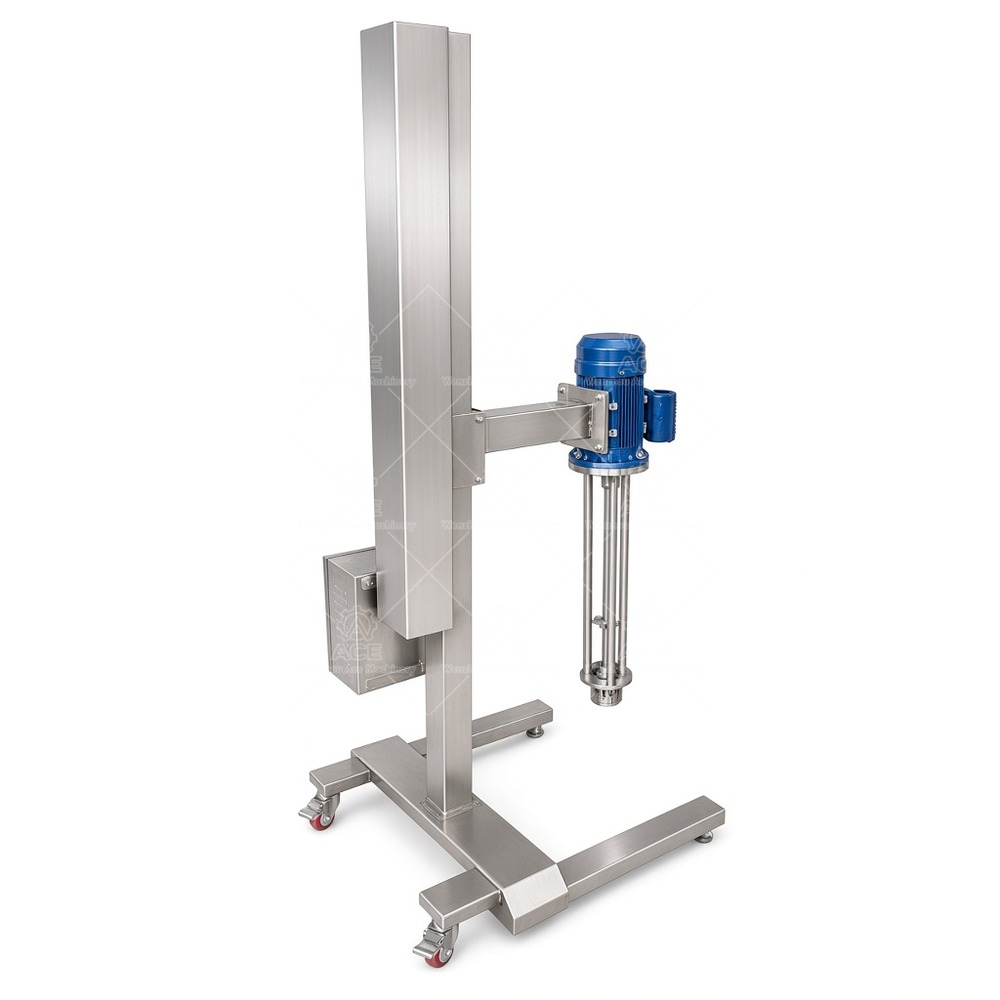

The unit combines high-speed shear, dispersion, emulsification, and powder incorporation in one batch vessel. A manual hydraulic lift raises and lowers the mixing head for container changes and cleaning between products. Mobile casters let the mixer move between processing areas where layout allows. Motors run from 1.5 kW to 11 kW, with voltage from 220V to 480V confirmed to your local supply, including frequency and phase. An optional VFD provides adjustable speed up to 3,000 rpm depending on motor and configuration. Wetted parts can be specified in stainless steel and other contact materials. Head design, shaft length, and controls are selected around the application, not sold as a one-size unit.
What to confirm before selecting a batch high shear mixer
- Batch size and container dimensions, including working height and clearance for the hydraulic lift.
- Product viscosity, solids content, and whether the powder tends to float, sink, or form lumps.
- Target mixing speed and motor power for the heaviest expected batch, not just the first product.
- Voltage, frequency, and phase at the plant; export power supplies vary more than buyers expect.
- Mixer head style and wetted materials, especially for acidic sauces, syrups, or abrasive pigments.
- Mobile or fixed mounting: casters help in multi-use rooms, but only if floor space and transfers are practical.
These units serve food and beverage processing, cosmetics and personal care, pharmaceutical and healthcare preparations, chemical processing, and compatible paints, coatings, and industrial formulations. They handle powder dispersion and liquid-liquid emulsification. As industrial high shear mixing equipment, the mixer can be supplied as a variable speed high shear mixer with VFD, a stainless steel high shear mixer, or a mobile high shear mixer for powder dispersion. The right head, material, and operating parameters still depend on viscosity, ingredients, and process requirements; a unit that works well for thin syrup may not suit a thick paste.
FAQ
Can the mixer run in a mobile configuration? Yes, casters can be specified, but confirm aisle width, floor condition, and whether the vessel stays in one area.
Do we need a VFD? A VFD helps when formulations need different shear levels. It is optional and depends on the motor and controls selected.
What information is needed for a quote? Send batch size, product viscosity and ingredients, target rpm, required motor power, and local voltage, frequency, and phase.
Tell us your batch size, material behavior, target speed, motor power, and electrical specifications. Ace Mixer will recommend a suitable batch high shear mixer configuration and quote accordingly.
Ace Mixer builds sanitary batch high shear mixers with manual hydraulic lift, mobile casters, optional VFD speed control, and 1.5 to 11 kW motors. Configured for syrups, sauces, emulsions, and powder dispersion, each unit is matched to batch size, viscosity, contact materials, and local voltage. Send process details for a tailored recommendation and quote.
