Electric Lift High Shear Homogenizer Mixer for Cream Shampoo Shower Gel
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,315.60 through $3,530.77
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM

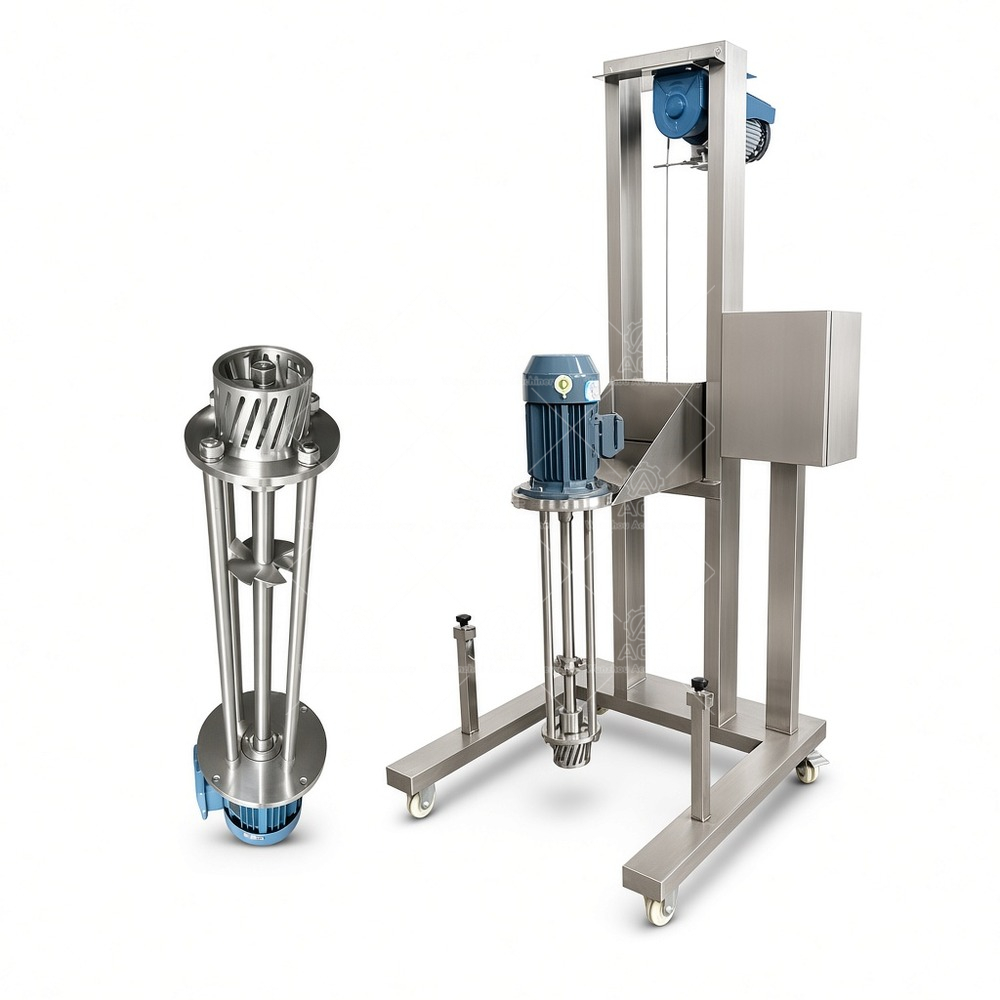

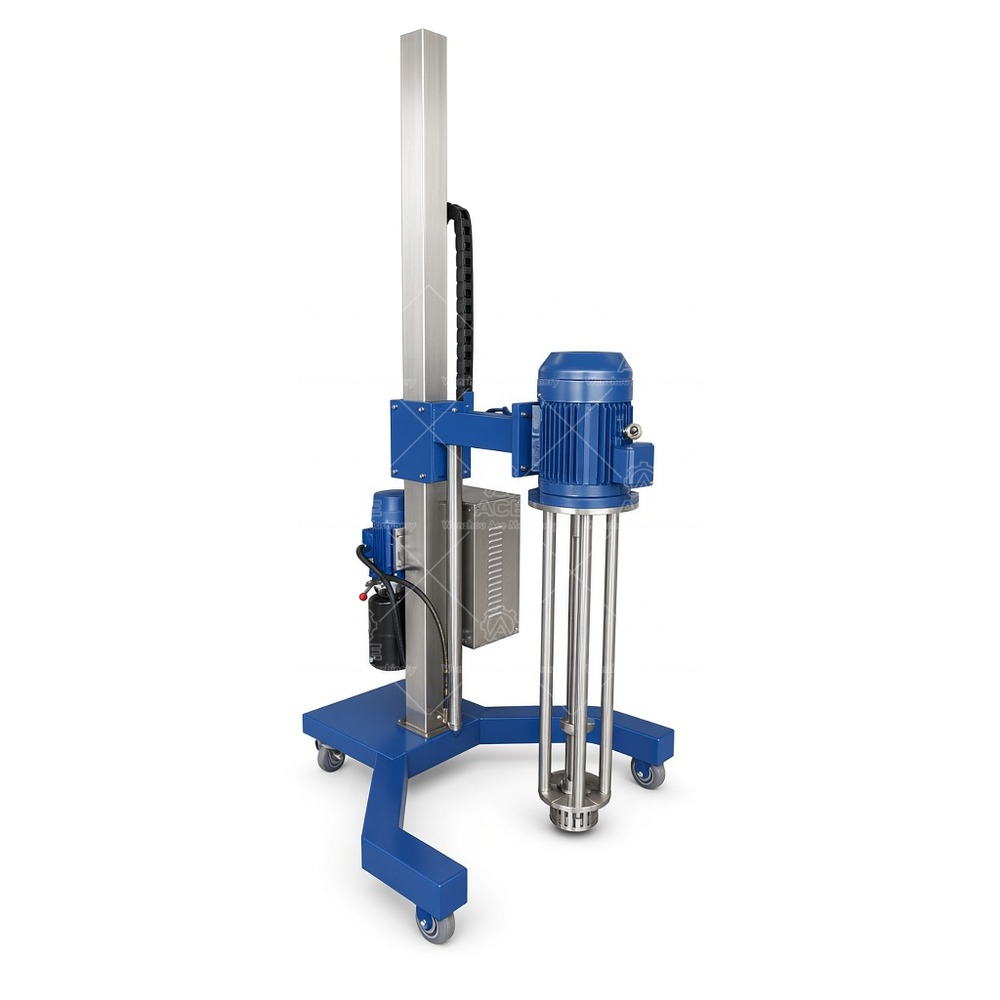

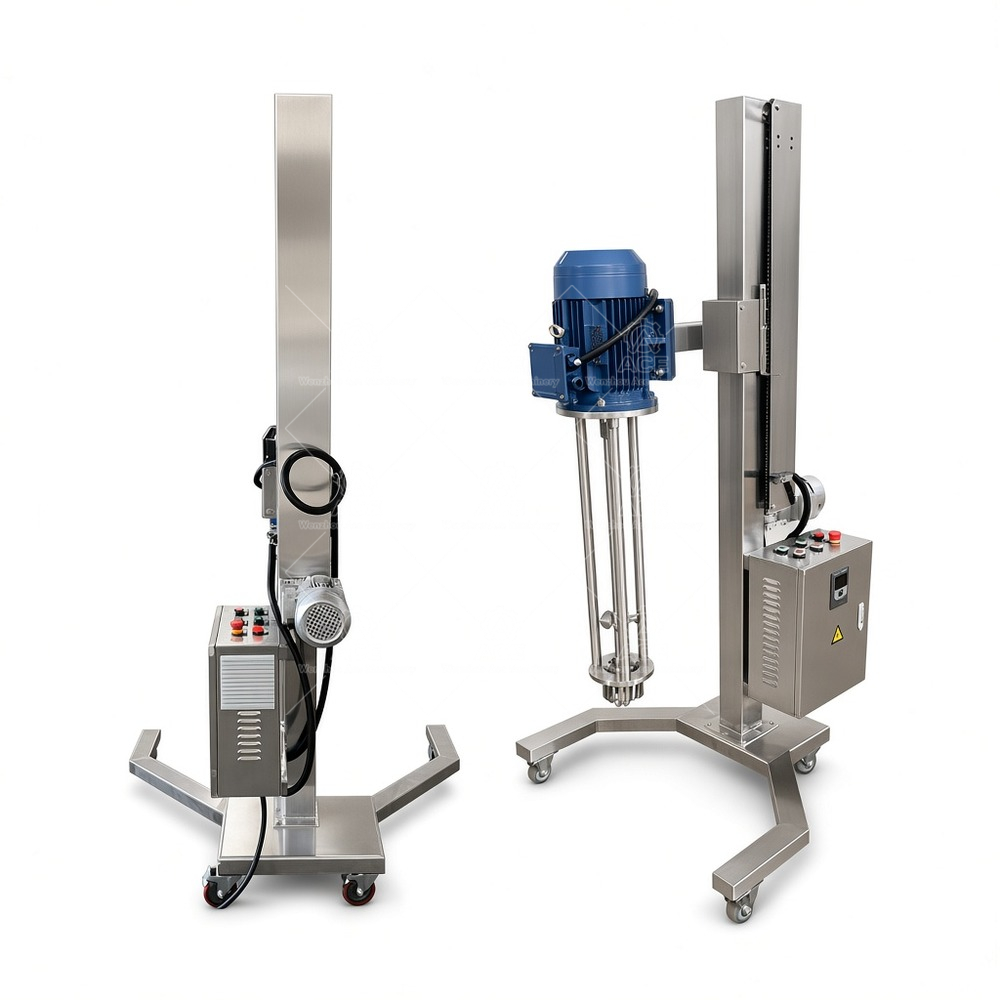

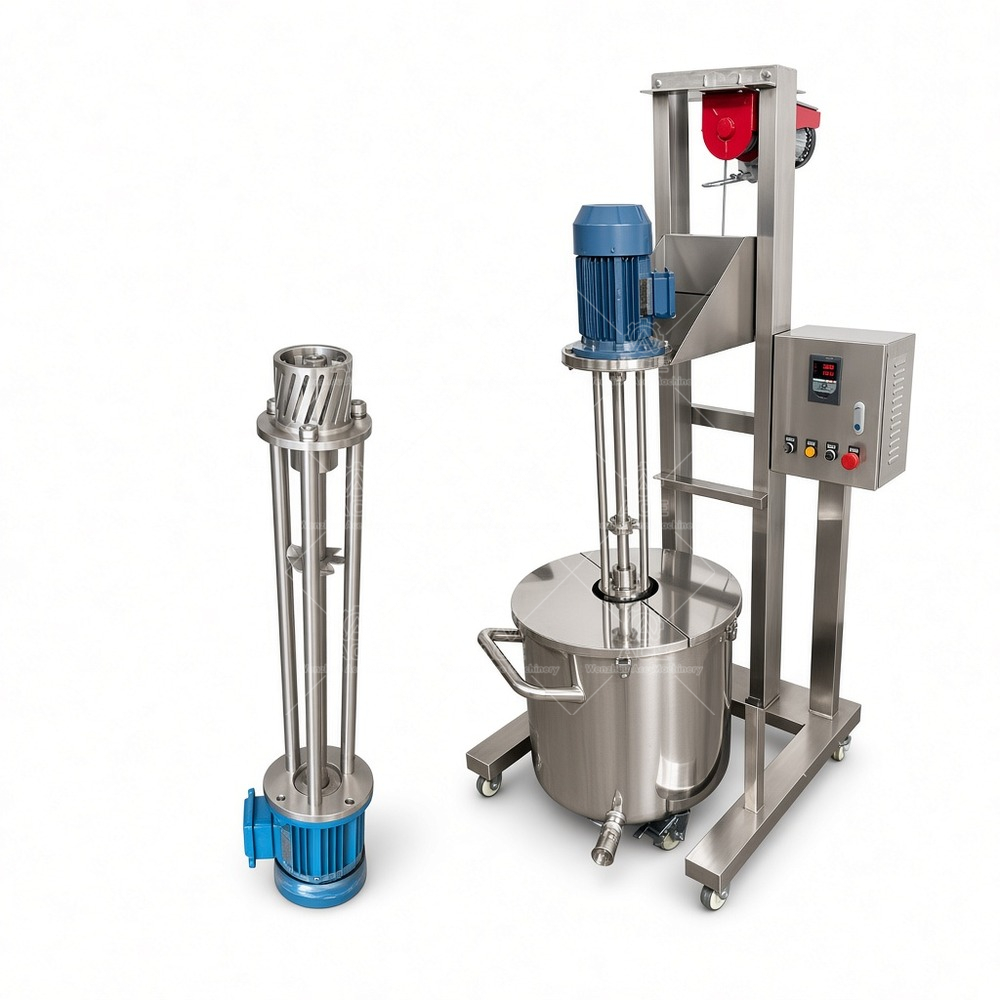

Batch High Shear Mixer with Electric Lift
This electric lift high shear homogenizer mixer is built for manufacturers who need a practical way to shear, disperse, and emulsify cosmetics cream, shampoo, shower gel, and similar personal care products. The lift column lets operators raise or lower the mixing head for vessel changes without improvising with blocks or hoists. Because the unit can be mounted on casters, a mobile high shear mixer layout can move between tanks where floor space and workflow allow.
Ace Mixer supplies this model as configurable industrial high shear mixing equipment, not a fixed catalog package. Motor power ranges from 1.5 kW to 11 kW. Voltage can be set from 220V to 480V, with frequency and phase confirmed for the destination market. A VFD gives variable speed control from 0 to 3000 rpm depending on the selected motor and configuration. We confirm the electrical package before build, especially for export projects.
Typical process duties
Production teams use batch high shear mixers for cream and lotion emulsification, shampoo and shower gel homogenization, and powder dispersion into liquid bases. The same high shear mixing equipment may suit pharmaceutical and healthcare preparations, chemical products, and compatible paints or coatings. Material selection matters: viscosity, solids loading, solvent presence, and cleaning routine determine the right stainless steel high shear mixer specification and contact parts. We do not quote shear gap, particle size, or batch capacity without reviewing your product and vessel.
Specifications
- Electric lift column for raising and lowering the homogenizing head
- Caster-mounted mobile design where plant layout permits
- Motor power: 1.5 kW to 11 kW, selected by process demand
- Voltage: 220V to 480V; frequency and phase confirmed per market
- Variable speed high shear mixer with VFD option, 0 to 3000 rpm based on motor and configuration
- Functions: high shear, dispersion, emulsification, and powder incorporation into liquids
- Wetted stainless steel parts and contact materials specified to product requirements
Choosing the configuration
Start with batch size and vessel dimensions, then check viscosity, ingredients, and target mixing speed. A high shear mixer for powder dispersion may need a different head than a liquid-liquid emulsifier. Confirm voltage, frequency, and phase early. If you plan to move the unit between stations, verify aisle width, floor condition, and vessel height before choosing a mobile high shear mixer over a fixed frame.
FAQs
Can one unit handle cream, shampoo, and shower gel? Often yes, but the head, motor power, speed range, and contact materials must match the viscosity and formula.
Do you provide variable speed control? Yes. A high shear mixer with VFD is available, with range confirmed against the selected motor.
What information is needed for a quote? Send batch size, material characteristics, target rpm, required motor power, and local electrical specifications. Ace Mixer will review the duty and recommend a practical configuration.
Ace Mixer\’s electric lift high shear homogenizer mixer is configurable for cosmetics cream, shampoo, shower gel, and similar batch production. Choose motor power from 1.5 kW to 11 kW, voltage from 220V to 480V, VFD speed control, mobile or fixed mounting, and product-contact stainless steel parts. Share batch size, viscosity, target rpm, and local electrical specs for a practical recommendation.
