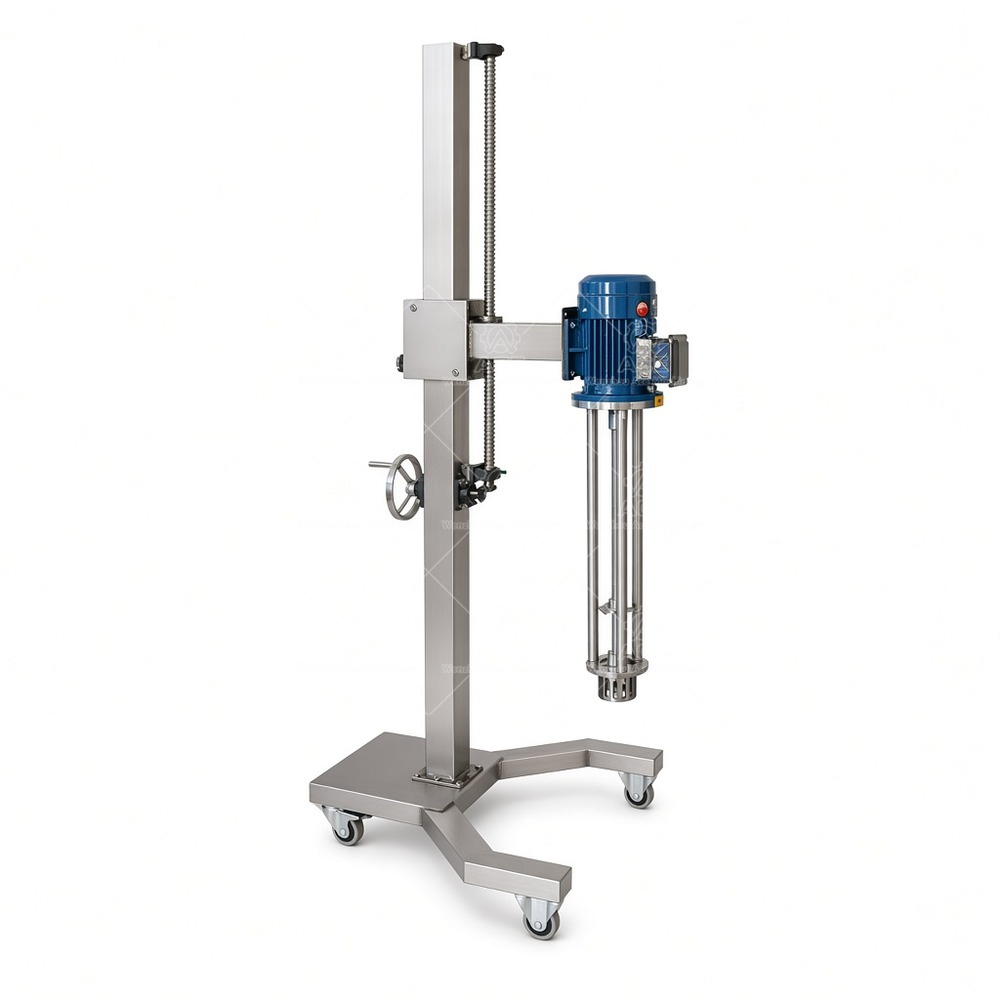

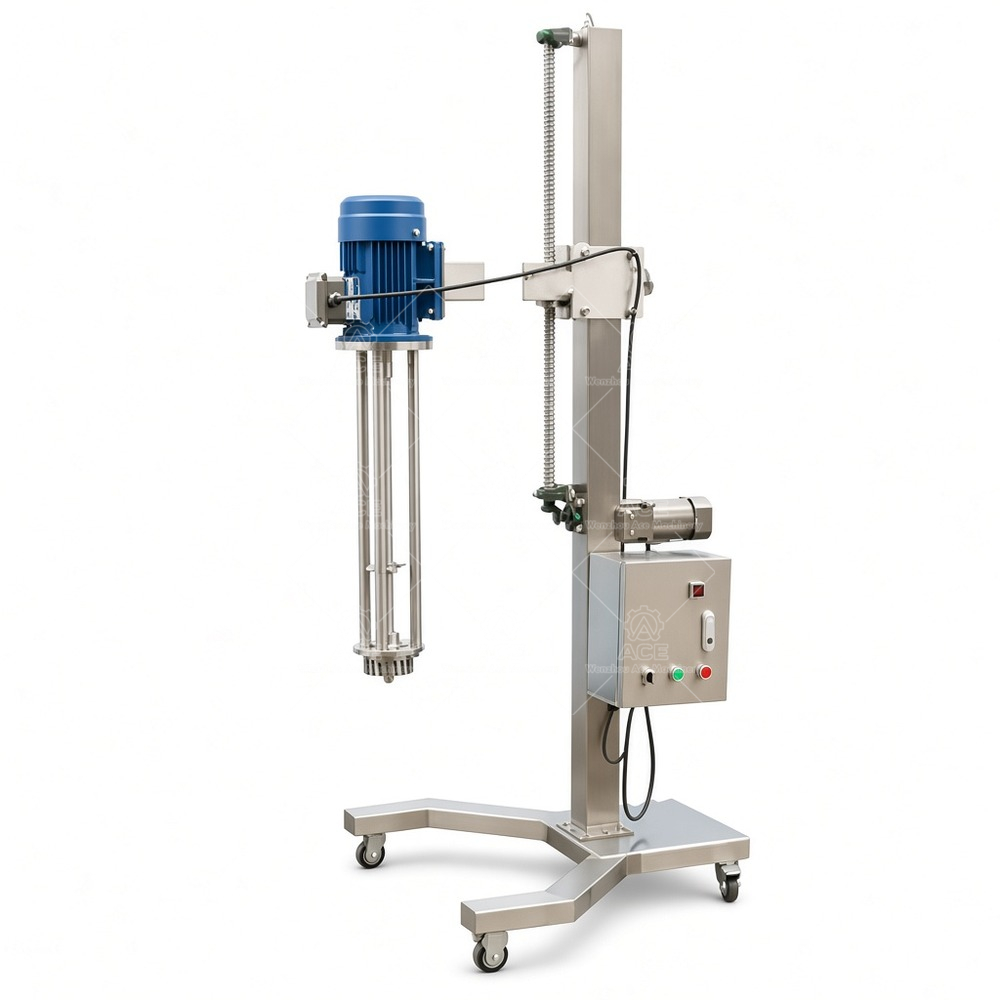

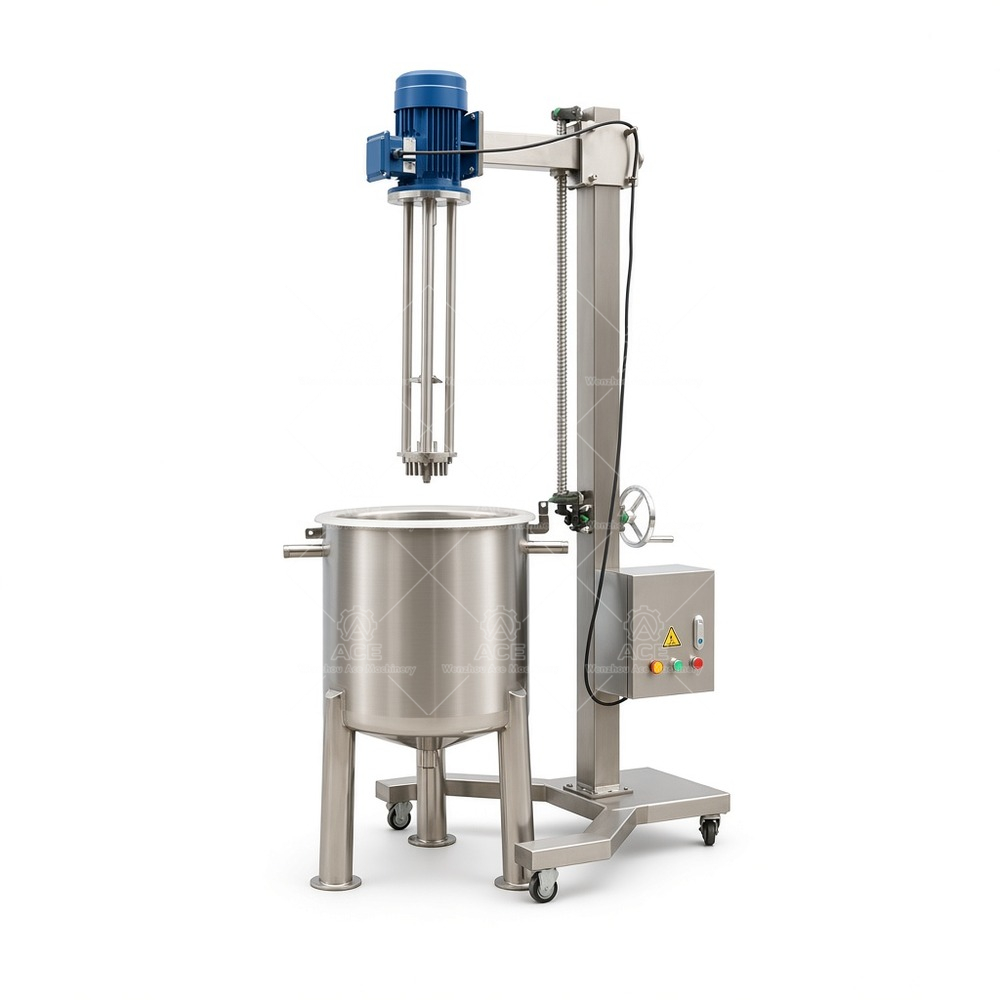

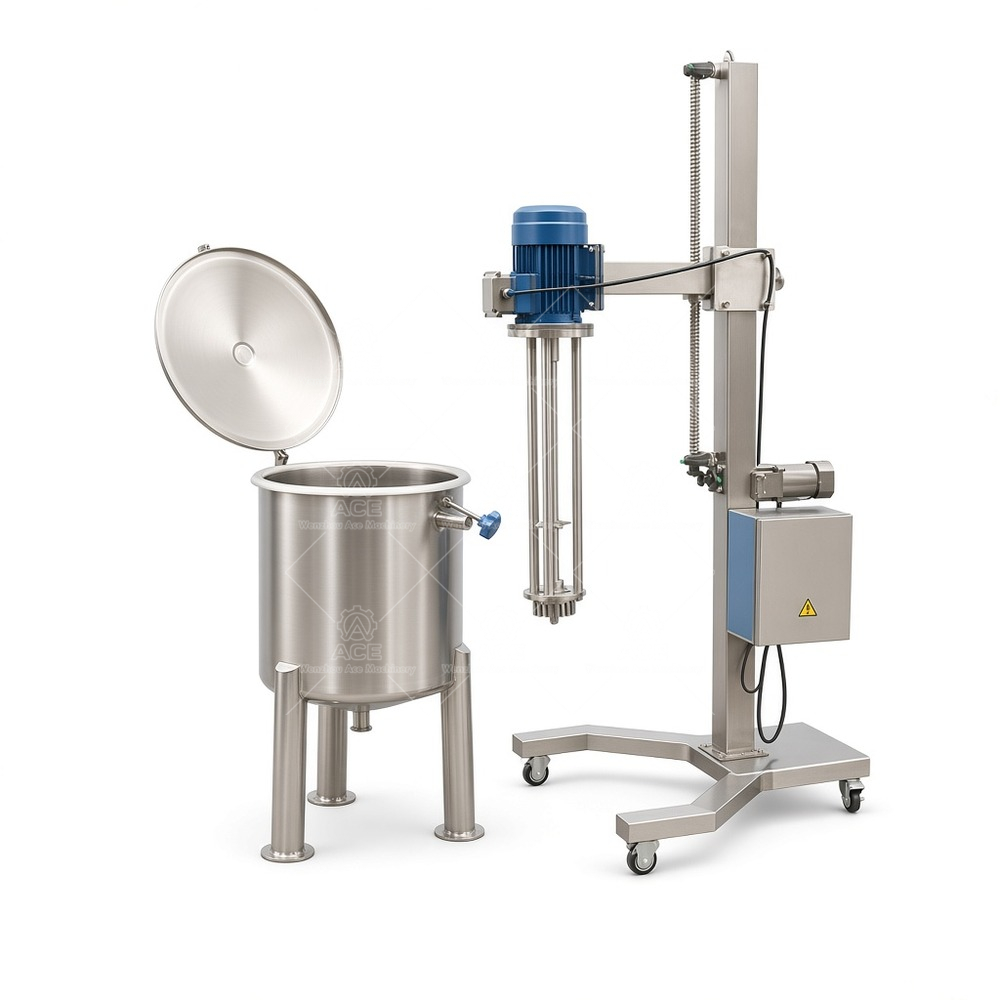

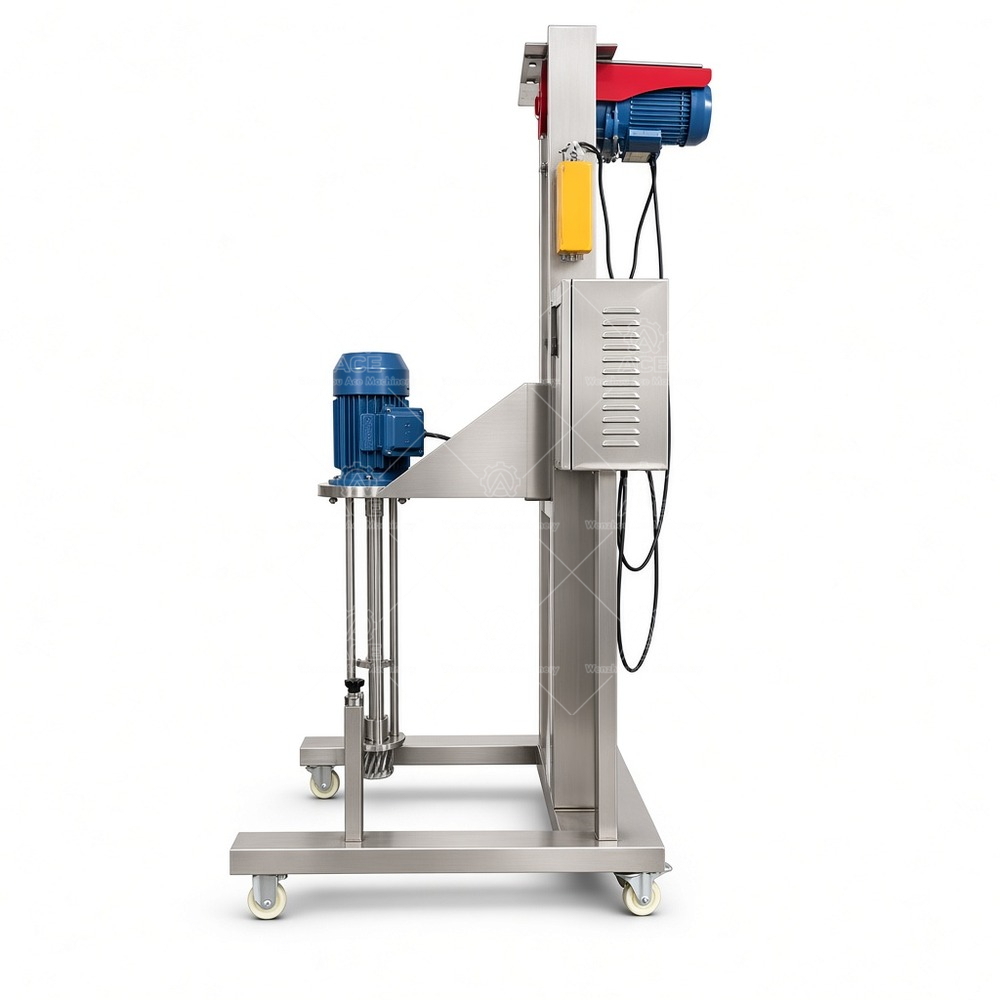

Portable Shampoo Cream High Shear Homogenizer Mixer with Hydraulic Lift
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,033.75 through $3,245.04
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Portable high shear mixing for batch production
We build this portable high shear homogenizer mixer for plants that need one unit to handle several batch vessels without tying up a fixed drive. Casters let operators move it between mixing areas where layout and services allow. The hydraulic lift raises or lowers the head for different container heights. Shampoo cream and similar emulsions can be dispersed, emulsified, and blended with powders, but the right head and operating parameters depend on viscosity, solids, and batch size.
The drive is available from 1.5 kW to 11 kW. Voltage is confirmed for your market from 220 V to 480 V, including frequency and phase. A VFD can provide variable speed control up to 3000 rpm depending on motor and configuration. This makes the unit useful as a variable speed high shear mixer for formulators who run more than one product. We configure the control panel, shaft length, mixing head, and wetted stainless steel parts to the application. Please do not treat catalog numbers as a final selection until the product and vessel are reviewed.
Where it fits
Food and beverage plants use batch high shear mixing equipment for sauces, syrups, and powder dispersion. Cosmetic and personal care lines use it for creams, lotions, and shampoos. Pharmaceutical and healthcare preparations may require a stainless steel high shear mixer with documented contact materials. Chemical processing, paints, coatings, and compatible industrial formulations use the same platform when the motor, head, and materials suit the duty. When specifying a high shear mixer for powder dispersion or liquid-liquid emulsification, send the target solids loading and viscosity range. A portable high shear mixer can be practical for smaller campaigns and multi-vessel rooms; fixed mounting may suit dedicated high-volume lines.
Selection points
- Batch size and vessel diameter, including minimum and maximum working levels.
- Product viscosity, density, solids, and whether powders must be incorporated without lumping.
- Required mixing speed and motor power for the duty, not just the largest motor available.
- Voltage, frequency, phase, and control preferences for the destination plant.
- Mixing head style and wetted parts for cleaning and product contact.
- Hydraulic lift travel and mobility needs, including aisle width and floor condition.
FAQ
Can one unit handle different batch sizes? Often yes within a defined range, but the head and shaft length must be checked against each vessel. Too much or too little immersion affects mixing.
Is the speed fixed? No. A VFD is available for adjustable speed. Confirm the motor, inverter, and load before setting the operating window.
What materials are available? We specify stainless steel and product-contact materials based on the application. Cleaning method and product chemistry should be discussed early.
Request a configuration
To recommend the right industrial high shear mixer, send your batch size, product viscosity and ingredients, target rpm, required motor power, vessel details, and local voltage and phase. We will review the portable high shear mixer configuration, hydraulic lift, controls, and high shear mixer with VFD options against your process before quoting.
This portable high shear homogenizer mixer combines a hydraulic lift, casters, and optional VFD speed control for batch emulsifying, dispersing, and powder incorporation. Motor power spans 1.5 kW to 11 kW, with voltage confirmed from 220 V to 480 V. We configure the mixing head, stainless steel contact parts, controls, and electrical package around your vessel, viscosity, and production requirements.
