Batch High Shear Mixer | Shampoo Cream Emulsifier | Mobile VFD
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,346.87 through $3,708.17
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Batch High Shear Mixing for Emulsification and Powder Dispersion
Ace Mixer, an industrial mixing equipment manufacturer, builds this batch high shear mixer for plants that need one unit to handle shampoo, cosmetic cream, and similar emulsions without tying up a fixed tank line. The mobile frame with casters lets operators move the mixer between vessels or processing stations where the layout permits. For batch work, that keeps changeovers practical.
The mixing head combines high shear, dispersing, and emulsifying action, and helps incorporate powders into liquids. We configure the head, shaft, and wetted parts around the product. Stainless steel contact components are available; confirm grade and finish against your formulation and cleaning routine.
Specifications and Configuration
- Motor power: 1.5 kW to 11 kW, selected by process demand and model.
- Speed control: optional VFD for 0 to 3000 rpm, depending on motor and configuration.
- Voltage: 220V to 480V; we confirm frequency, phase, and electrical arrangement for the destination market.
- Mixing functions: high shear, dispersion, emulsification, and powder incorporation.
- Structure: mobile frame with casters; stainless steel wetted parts and contact materials specified by application.
- Customization: motor power, voltage, control system, mixing head, and other details matched to the process.
Selecting the Right Unit
Start with batch size and vessel dimensions, not just motor rating. Viscosity and ingredient order change how the head loads and how much turbulence reaches the batch. Required speed and motor power follow from that. Confirm voltage, frequency, and phase before quotation; a 3-phase 480V plant and a 220V single-phase site are different builds. Mixing head design and contact parts must suit the product. Mobile versus fixed installation depends on vessel access and floor space. For powder dispersion, feeding method matters as much as shear intensity.
Applications
These units are used in food and beverage processing, cosmetics and personal care, pharmaceutical and healthcare preparations, chemical processing, and compatible paints and coatings. They handle powder dispersion and liquid-liquid emulsification. Suitable head style, materials, and operating parameters depend on viscosity, ingredients, and process requirements; we do not quote a single setting for every formulation.
FAQ
Can one mixer handle different batch sizes? Often, but vessel diameter and fill level affect performance. Send both the smallest and largest batch.
Do you provide sanitary or explosion-proof models? We confirm configuration against your requirements; certifications are not assumed. Provide the target market and process environment.
What information speeds up a quote? Batch size, viscosity, ingredient list, target rpm, required motor power, vessel drawing, and local voltage/frequency/phase.
Send these details for a recommended batch high shear mixer configuration and quote.
Ace Mixer builds mobile batch high shear mixers for emulsifying, dispersing, and powder incorporation in cosmetics, food, pharma, and chemical production. Configure motor power, VFD speed control, voltage, mixing head, and stainless contact parts around your batch size, viscosity, and vessel layout. Send process details for a matched quote.

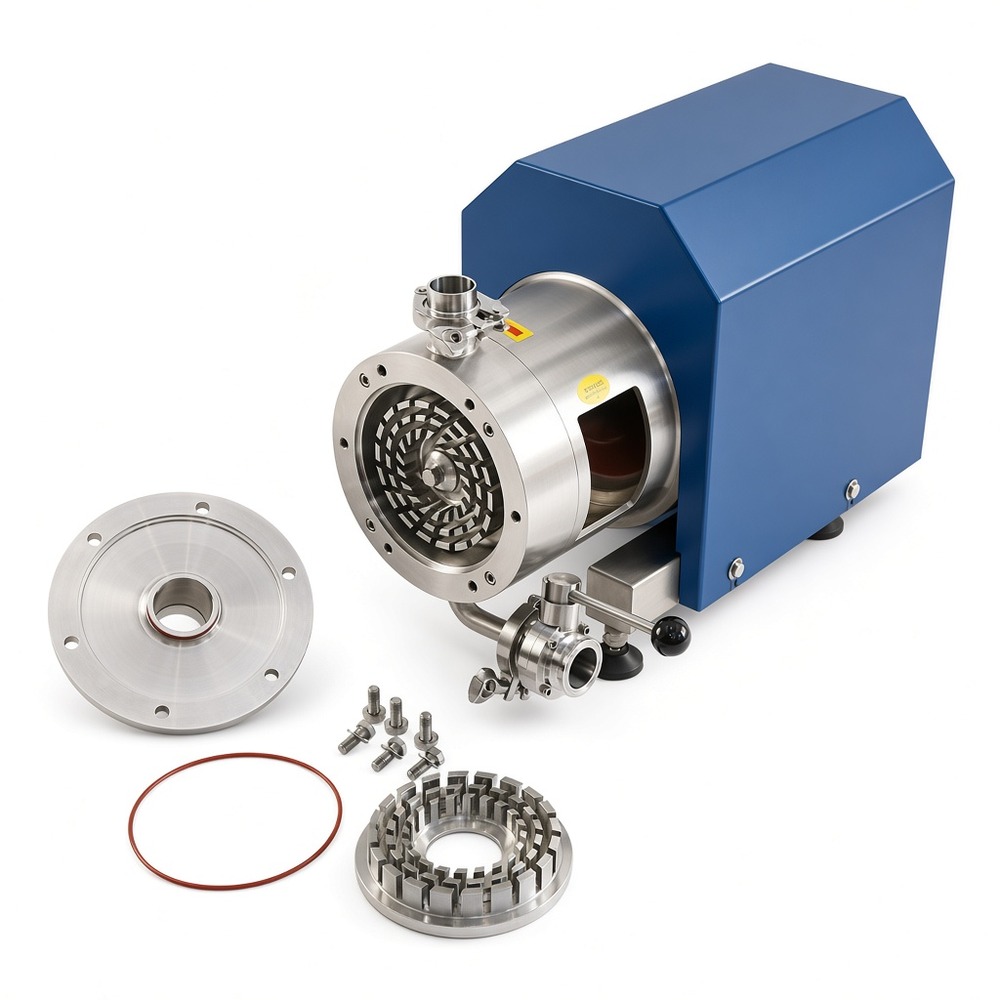

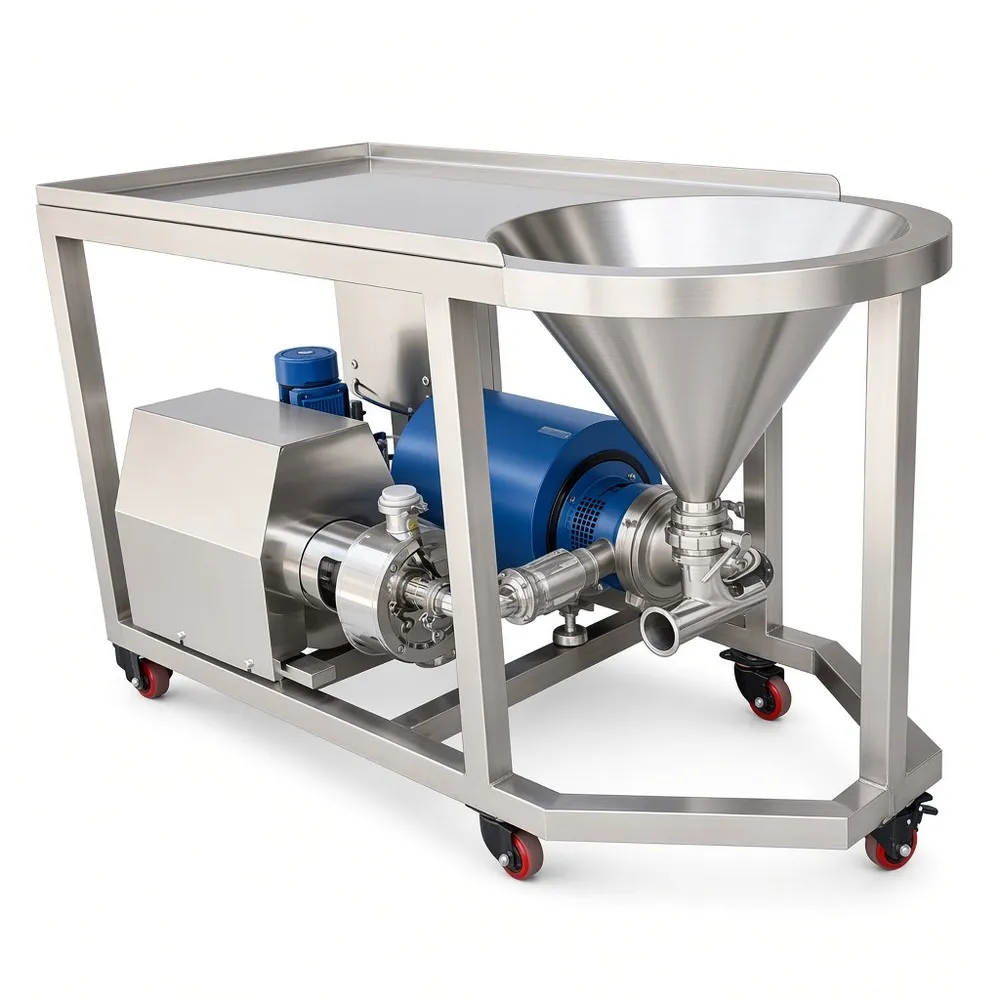

Single-stage in-line mixer
Three-stage in-line mixer

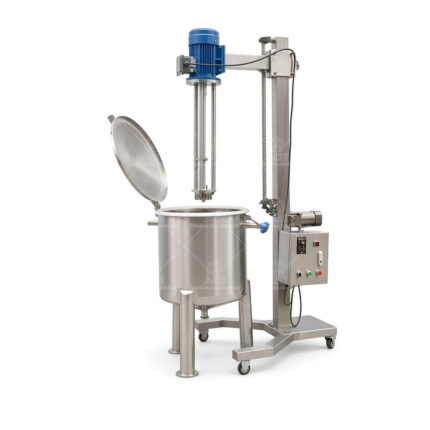

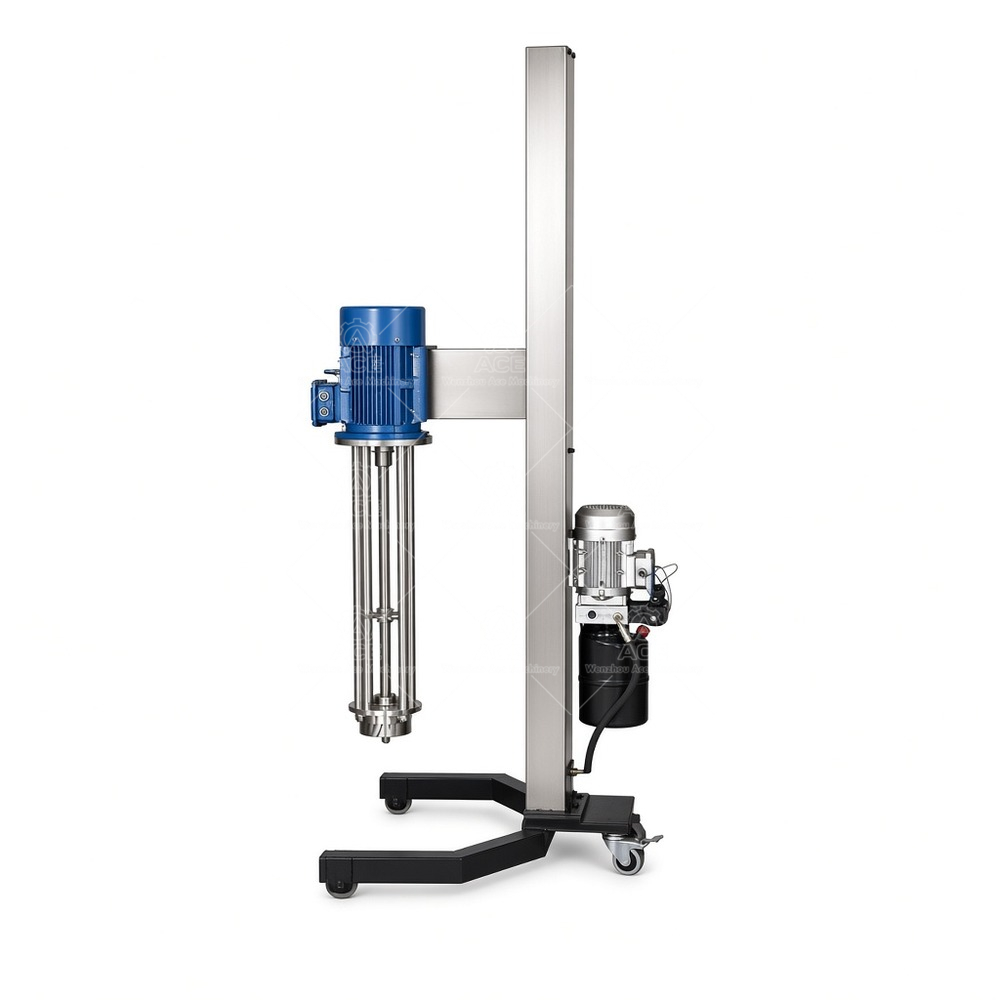

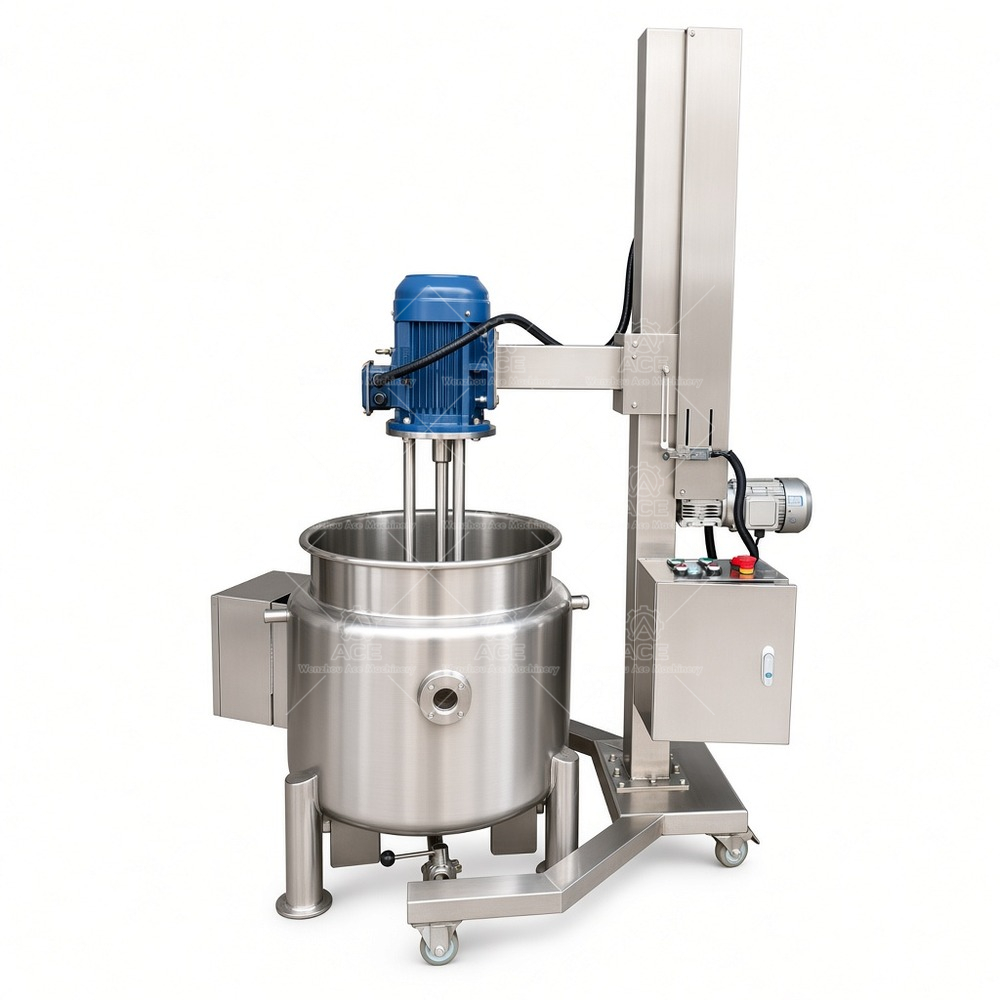

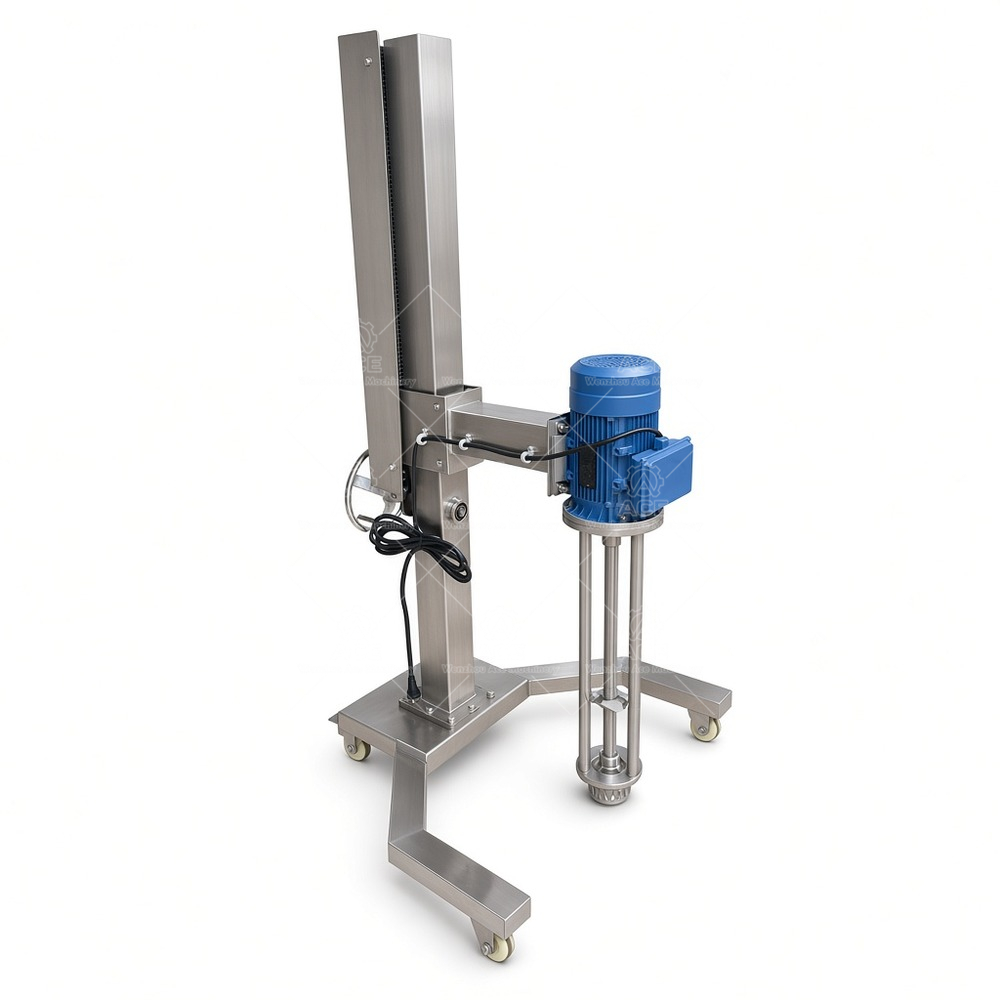

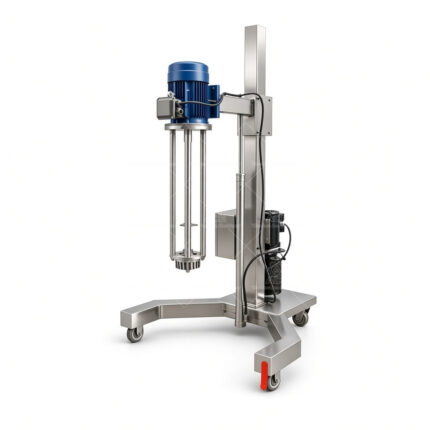

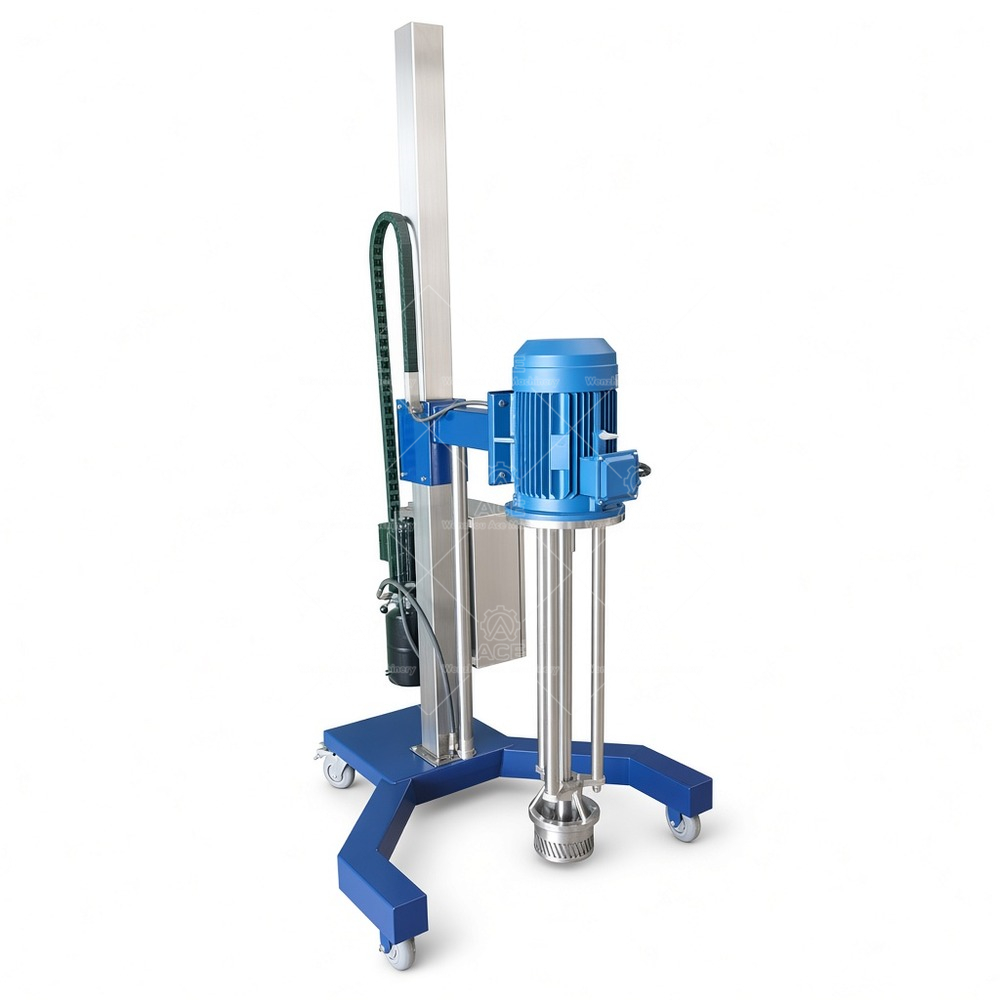

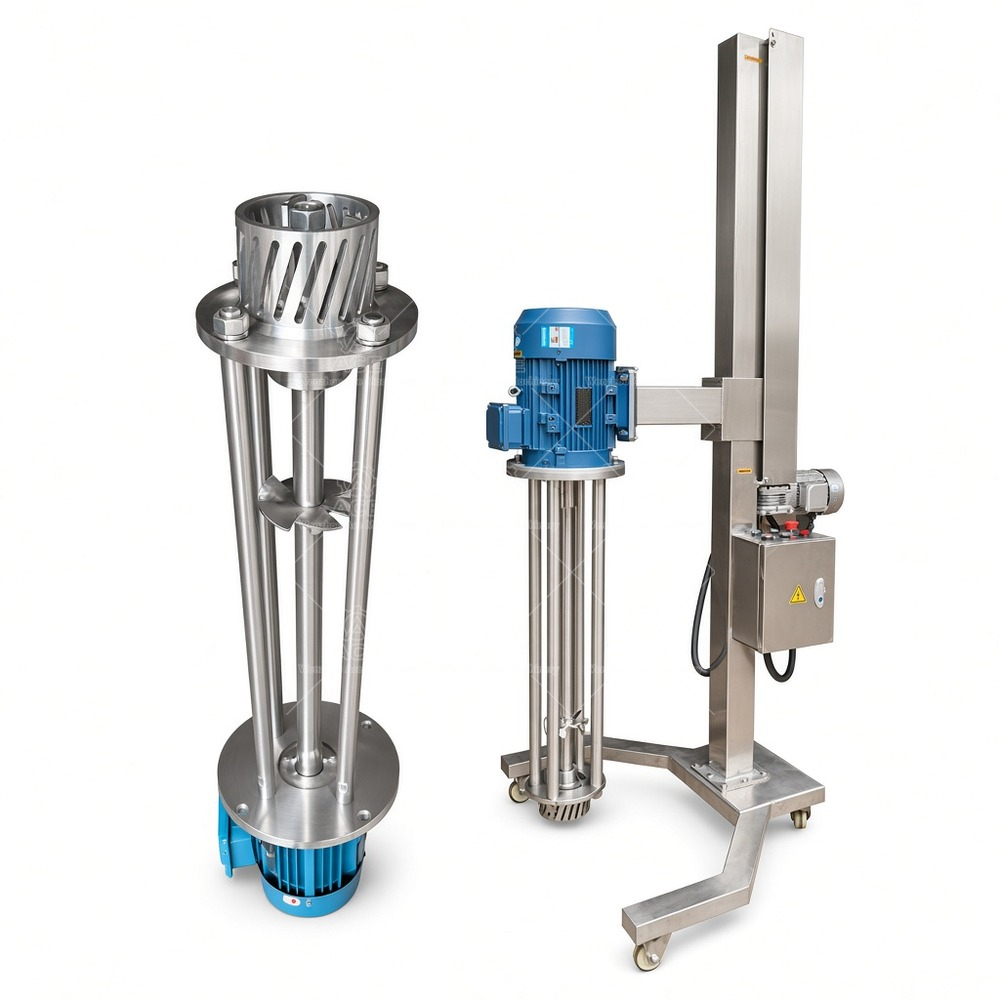

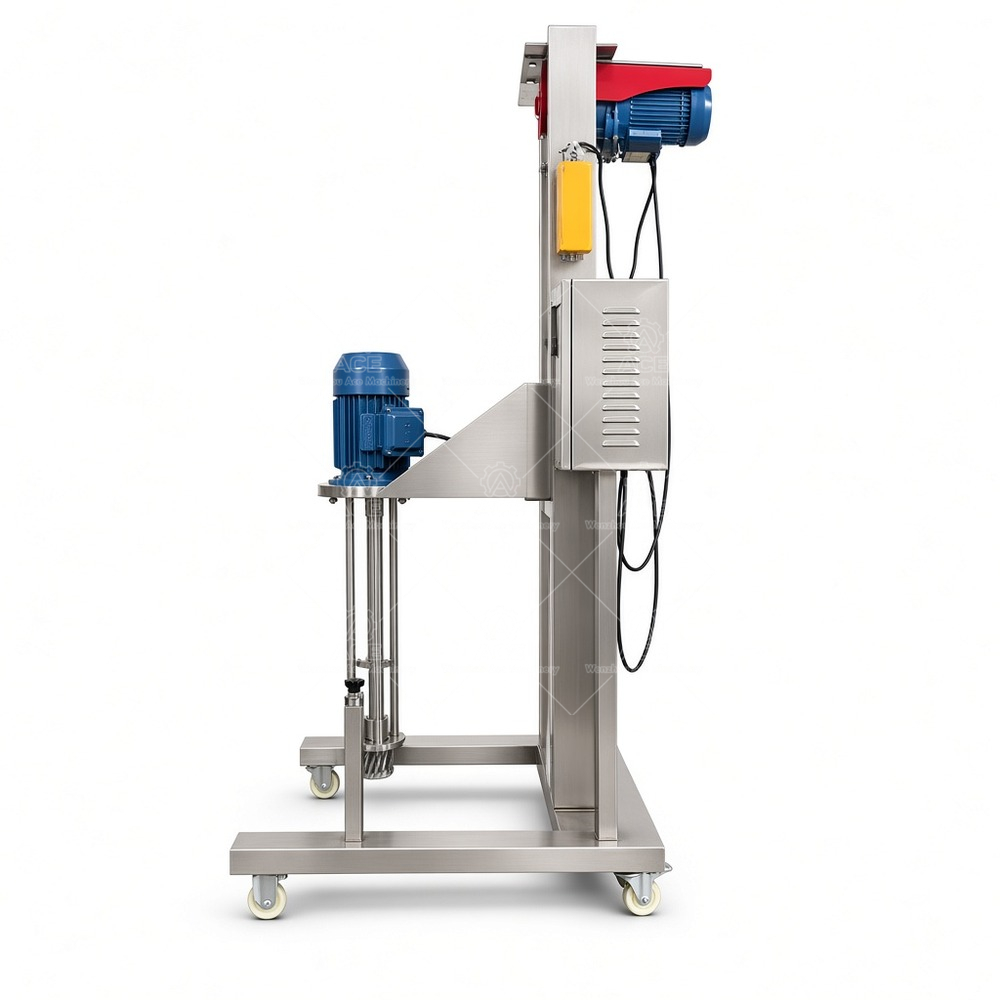

High-Shear Mixer with lift

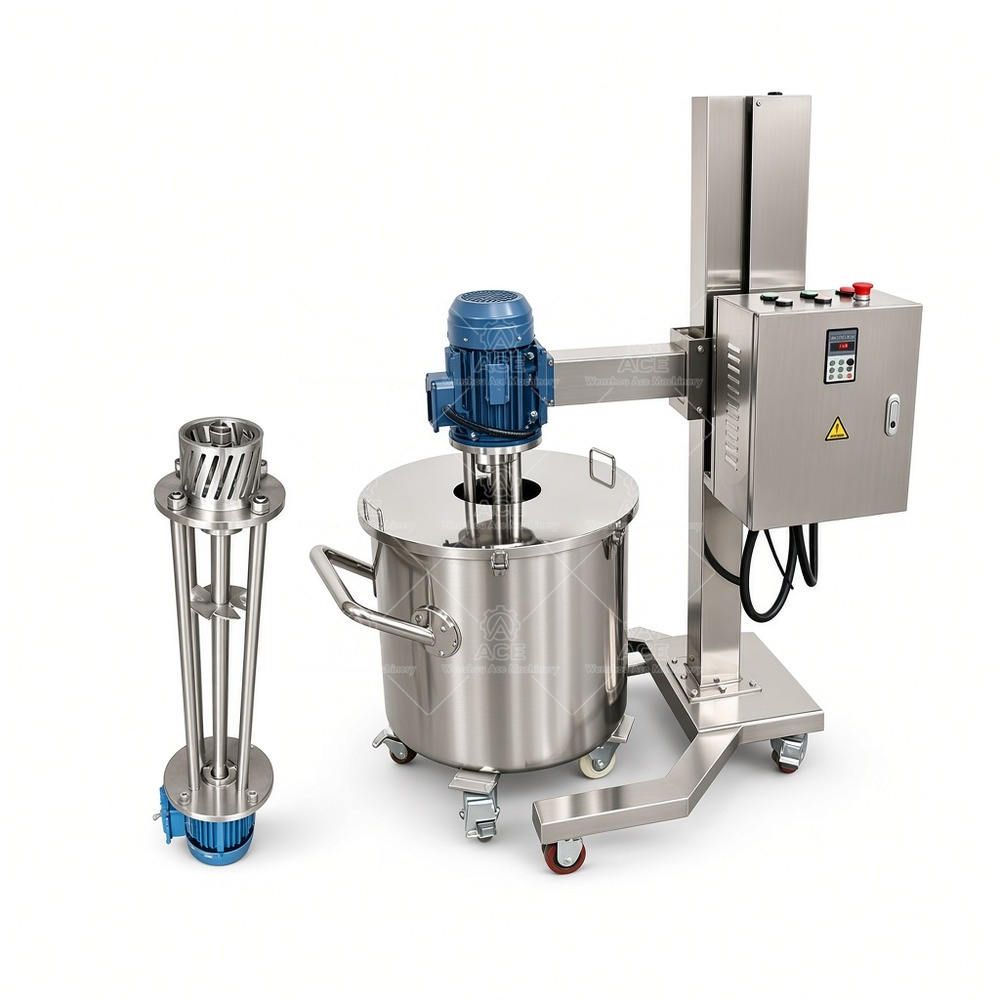

High shear mixer
