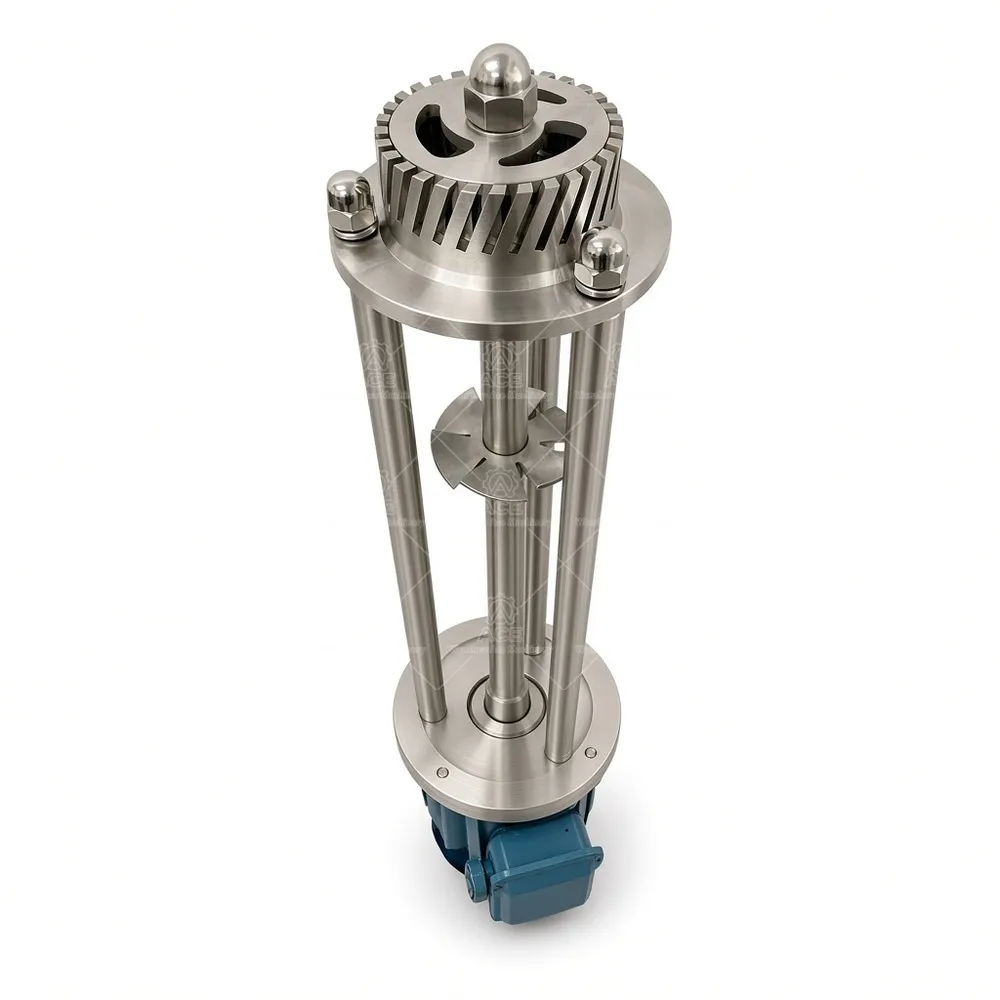

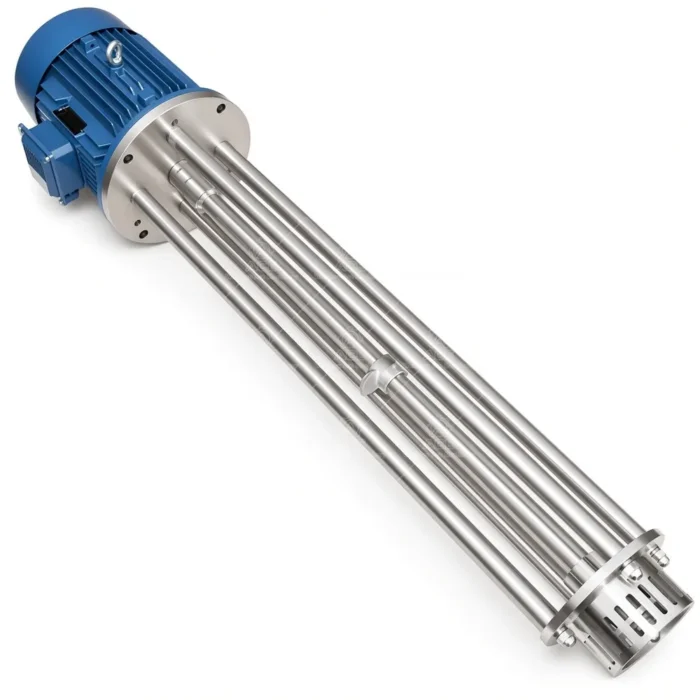

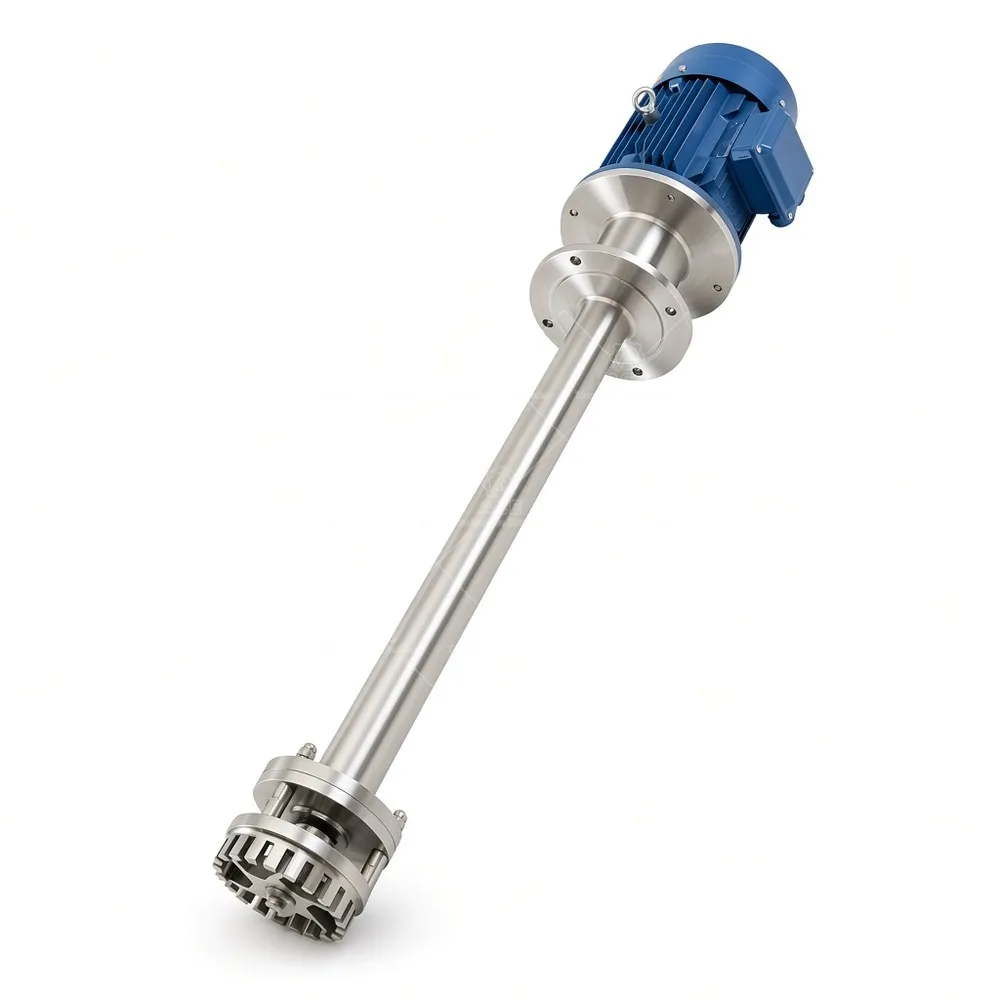

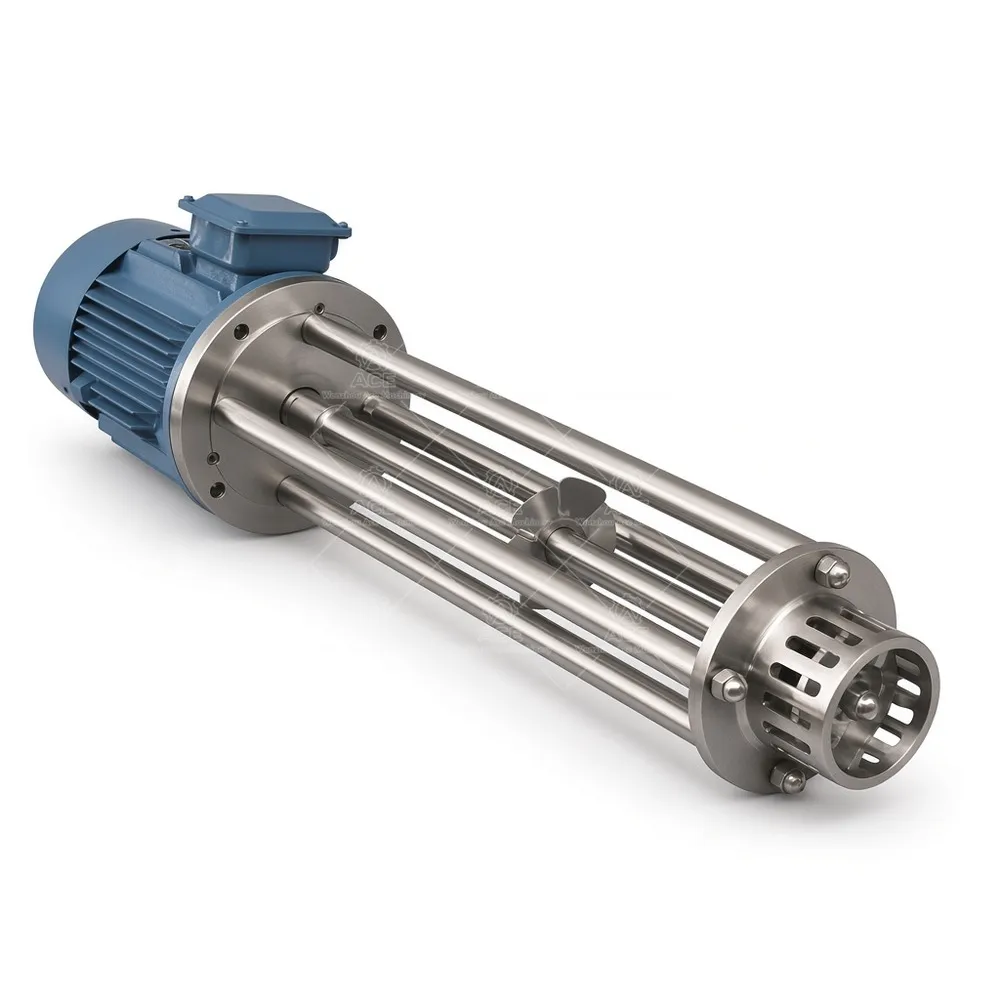

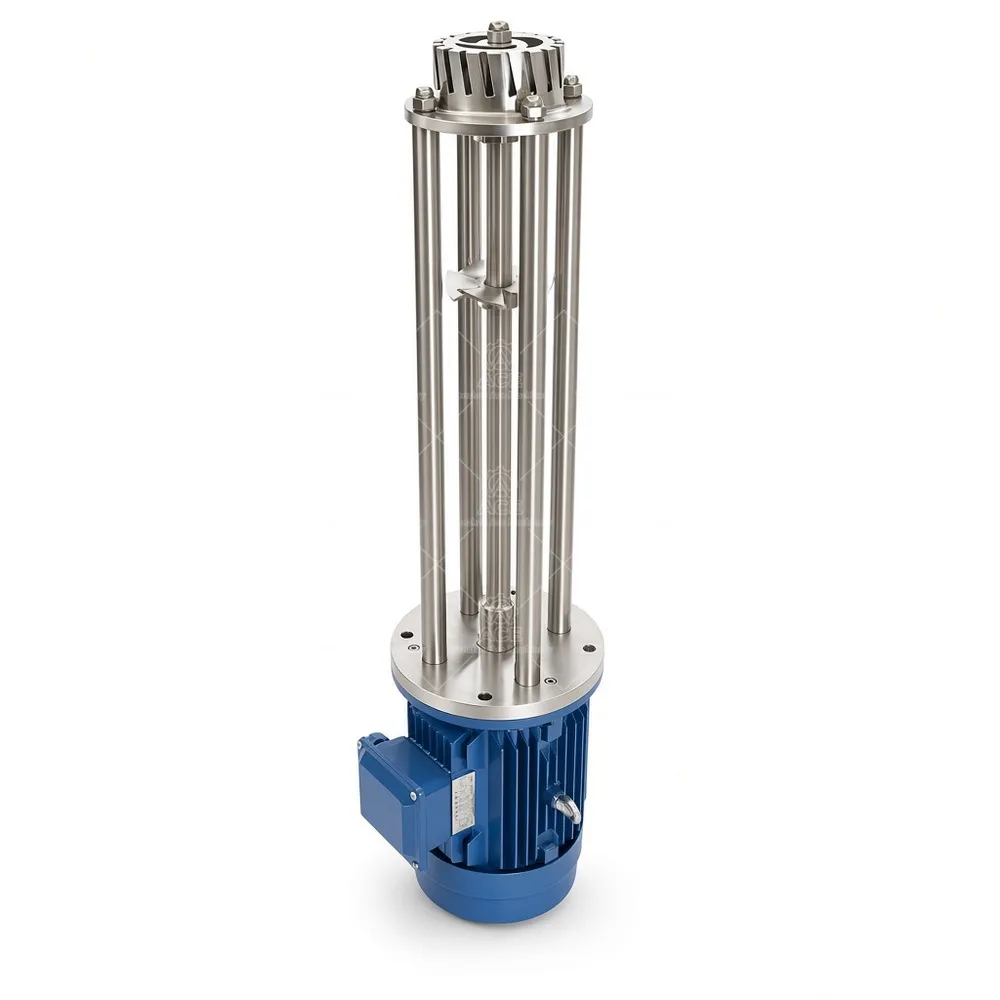

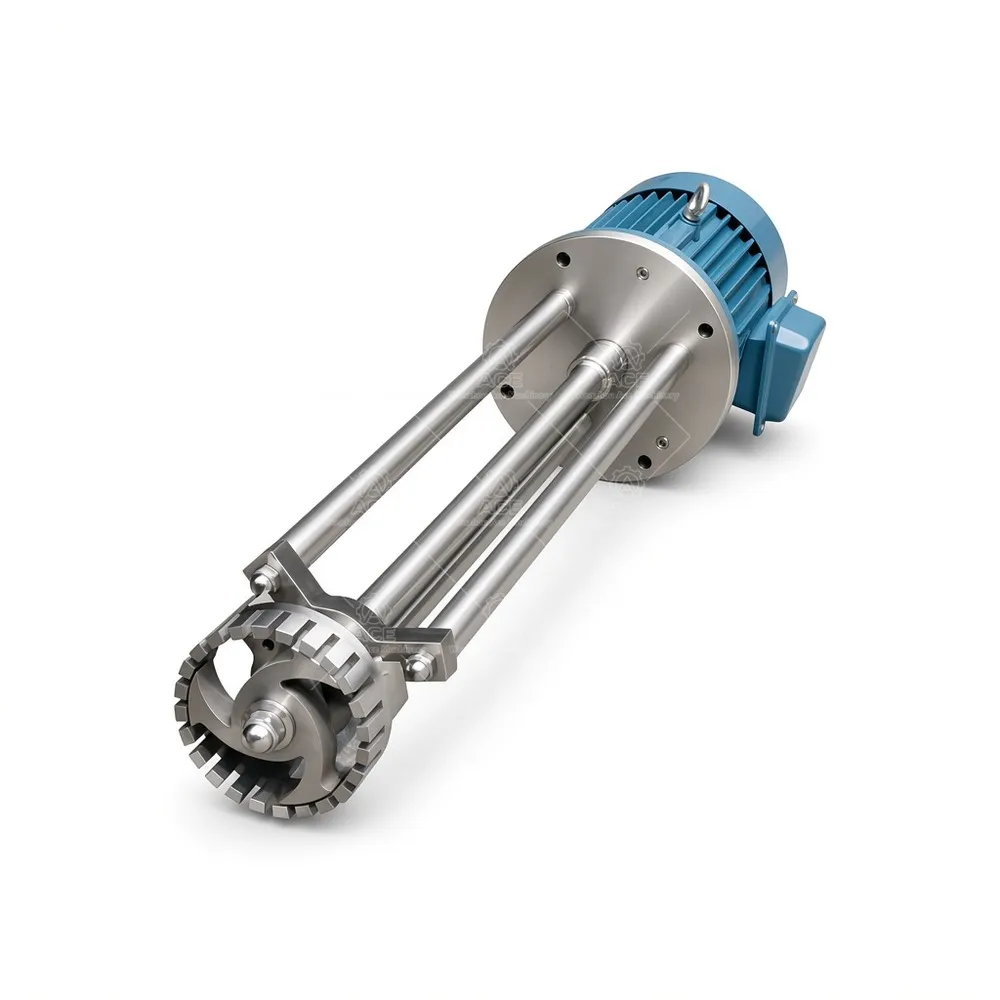

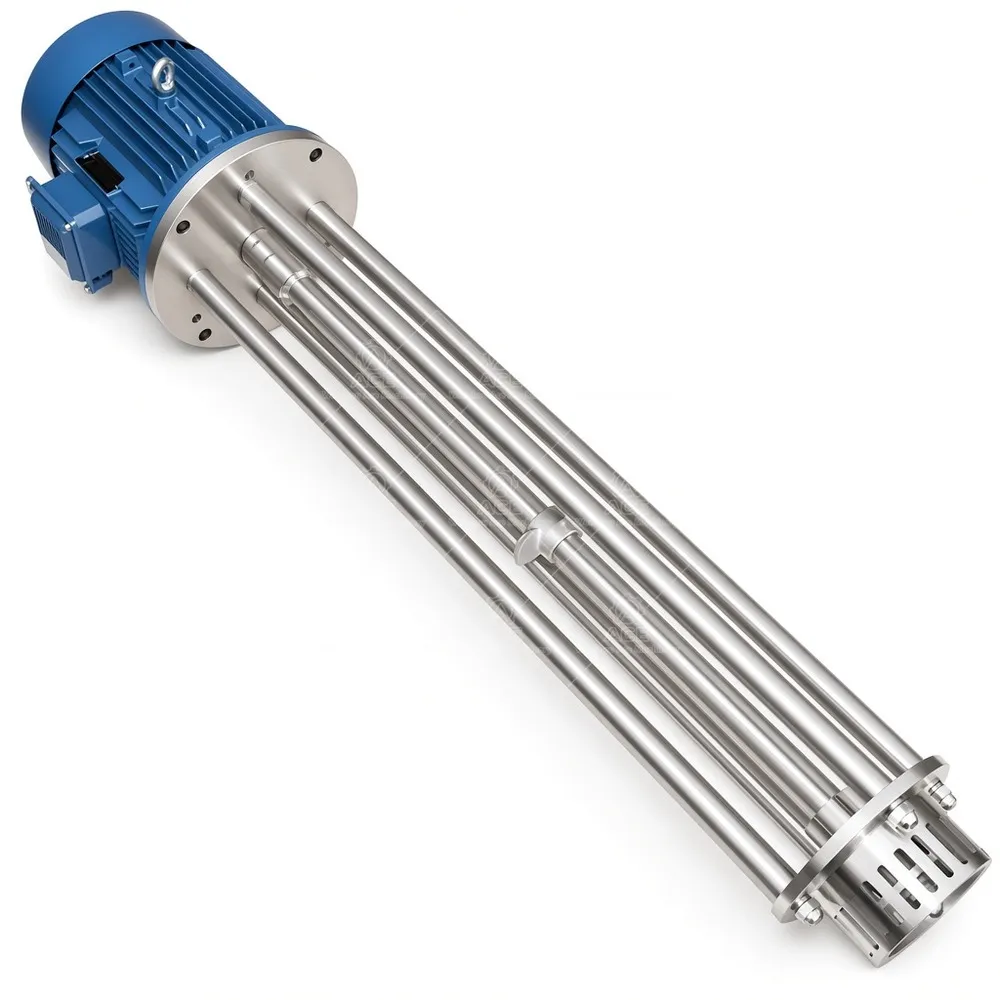

Lab Scale 100L High Shear Emulsifying Mixer for Pilot Cream Batches
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $641.57 through $701.43
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Pilot 100 L High Shear Mixer for Cream and Emulsion Batches
We build this lab-scale 100 L batch high shear mixer for teams moving from bench trials to pilot production. It combines high-speed shear, dispersion, and emulsification in one vessel, and the homogenizer head also helps incorporate powders into liquids. Motor power, speed control, wetted materials, and mounting are selected around the formulation and plant conditions, not fixed to one template.
An optional VFD provides 0–3000 rpm control depending on the selected motor and configuration. Voltage is confirmed from 220 V to 480 V, including frequency, phase, and electrical arrangement for the target market. Wetted stainless steel parts are available in 304 or 316L. Motor power ranges from 1.5 kW to 55 kW according to viscosity, batch size, and required shear intensity.
Where it fits
This industrial high shear mixer suits food and beverage processing, cosmetics and personal care, pharmaceutical and healthcare formulations, chemical processing, and compatible paints and coatings. It handles powder dispersion and liquid-liquid emulsification. The right mixing head, material, and operating parameters depend on product viscosity, ingredients, and process requirements. A portable high shear mixer may fit multi-tank pilot rooms; a fixed unit suits a dedicated line.
Selection points
- Batch and vessel: confirm nominal 100 L working volume against your vessel drawing and fill level.
- Viscosity and solids: these drive motor power and head choice more than a single rpm figure.
- Speed and power: specify target rpm and motor range for a variable speed high shear mixer.
- Electrical: provide voltage, frequency, and phase; a high shear mixer with VFD must match the plant supply.
- Contact parts: choose 304 or 316L stainless steel and any specified wetted components.
- Mounting: portable or fixed, with controls and mixing head customized to the application.
FAQ
How do I choose a batch high shear mixer? Start with batch size, vessel geometry, viscosity, and whether the duty is powder dispersion or emulsification. Then size motor power and speed control.
Can I use this for scale-up? It is a pilot unit. We confirm usable volume and mixing head against your formula before quoting.
What details do you need? Send batch size, material properties, target rpm, required motor power, local electrical specs, and contact material preference.
Share those details and we will recommend a stainless steel high shear mixer configuration for your pilot line. Include your vessel drawing and powder addition method so head and motor selection are reviewed together.
This lab-scale 100 L high shear emulsifying mixer supports pilot cream and emulsion batches. It combines shear, dispersion, and powder incorporation with optional VFD speed control, 220–480 V electrical options, 1.5–55 kW motor range, and 304 or 316L wetted stainless steel. Configurable mixing head and mounting suit food, cosmetic, pharmaceutical, and chemical pilot lines.
