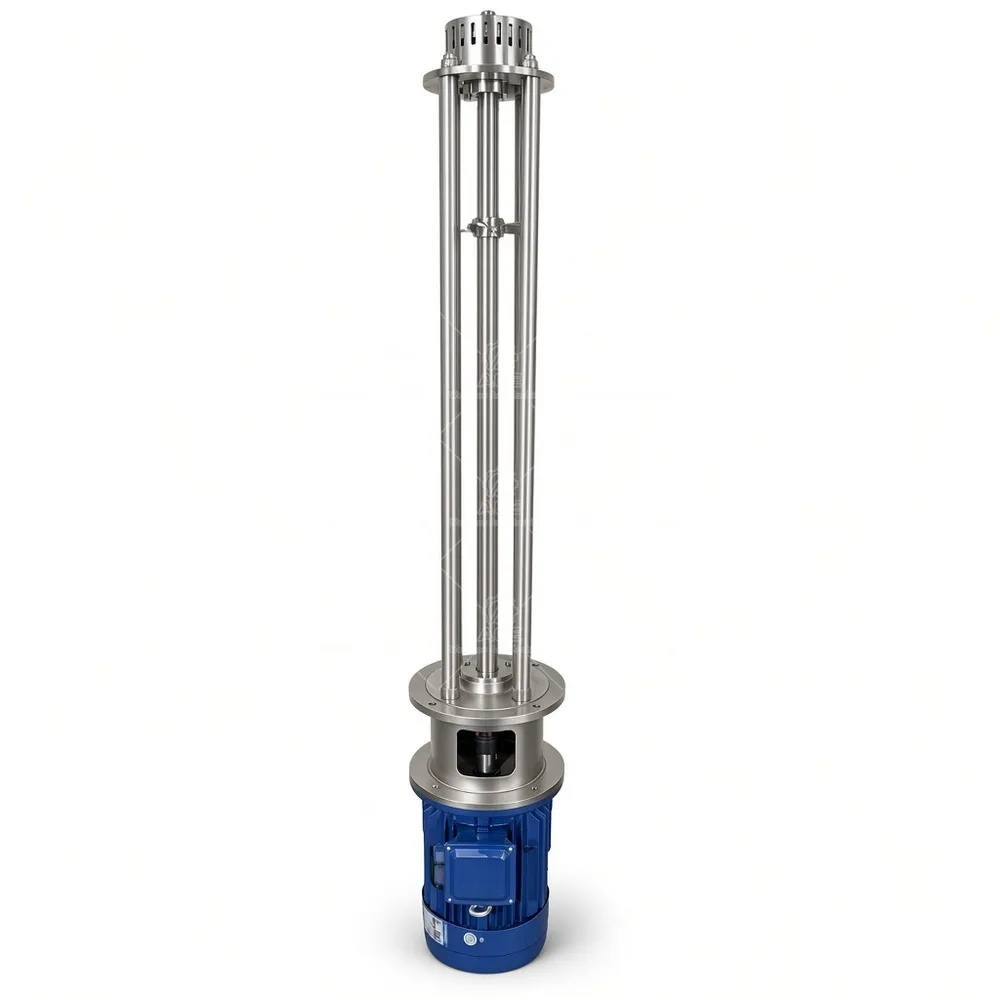

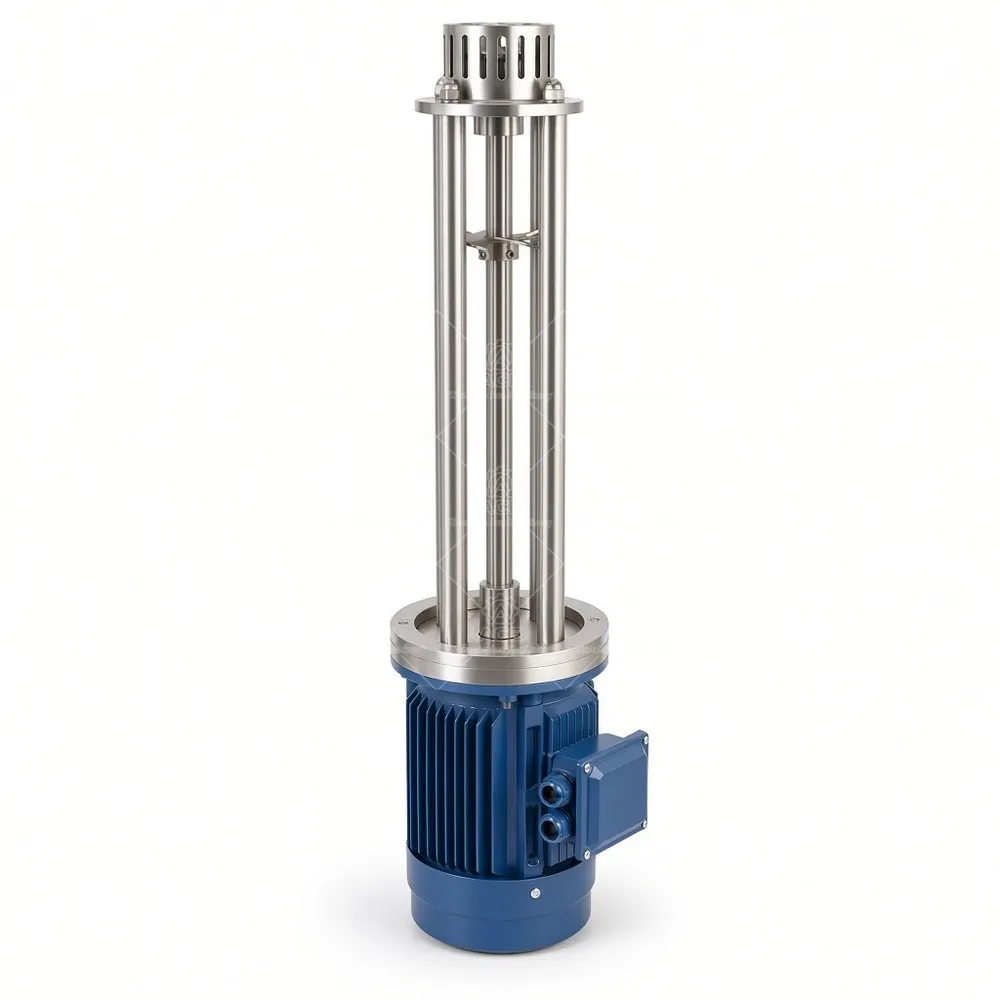

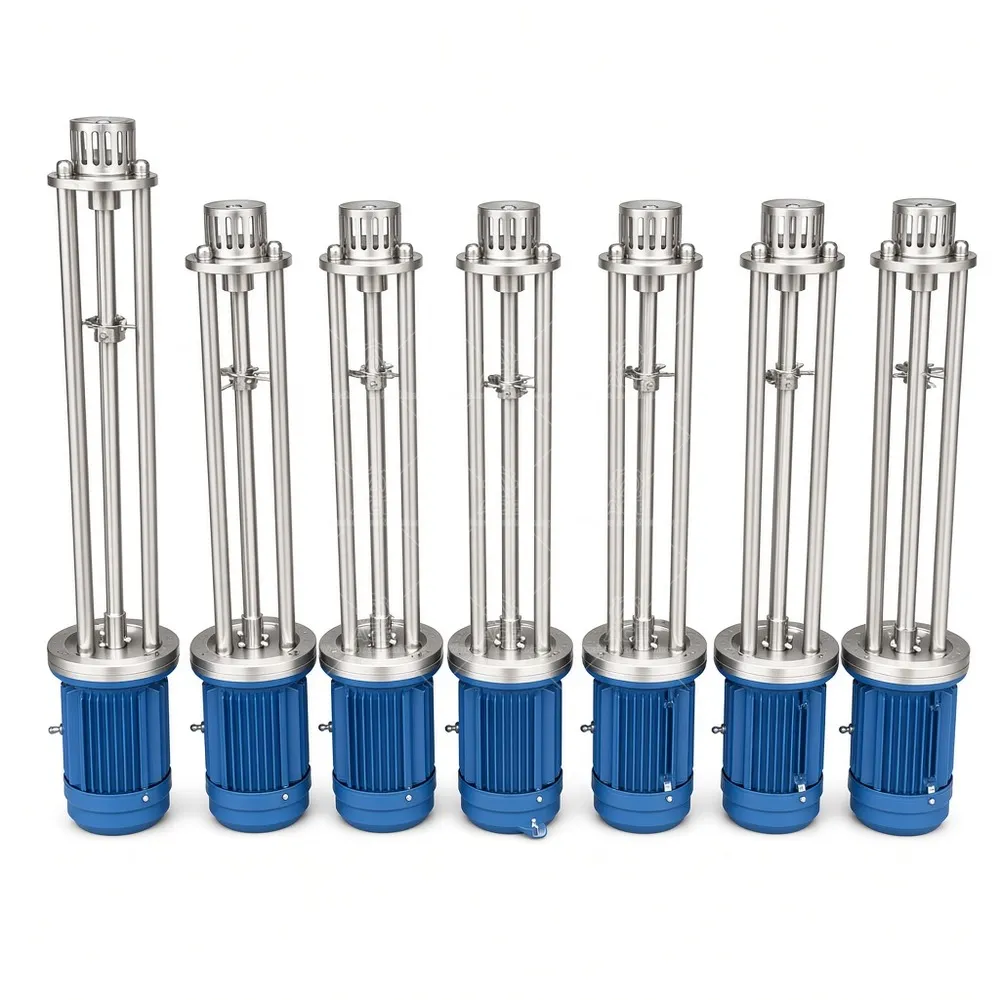

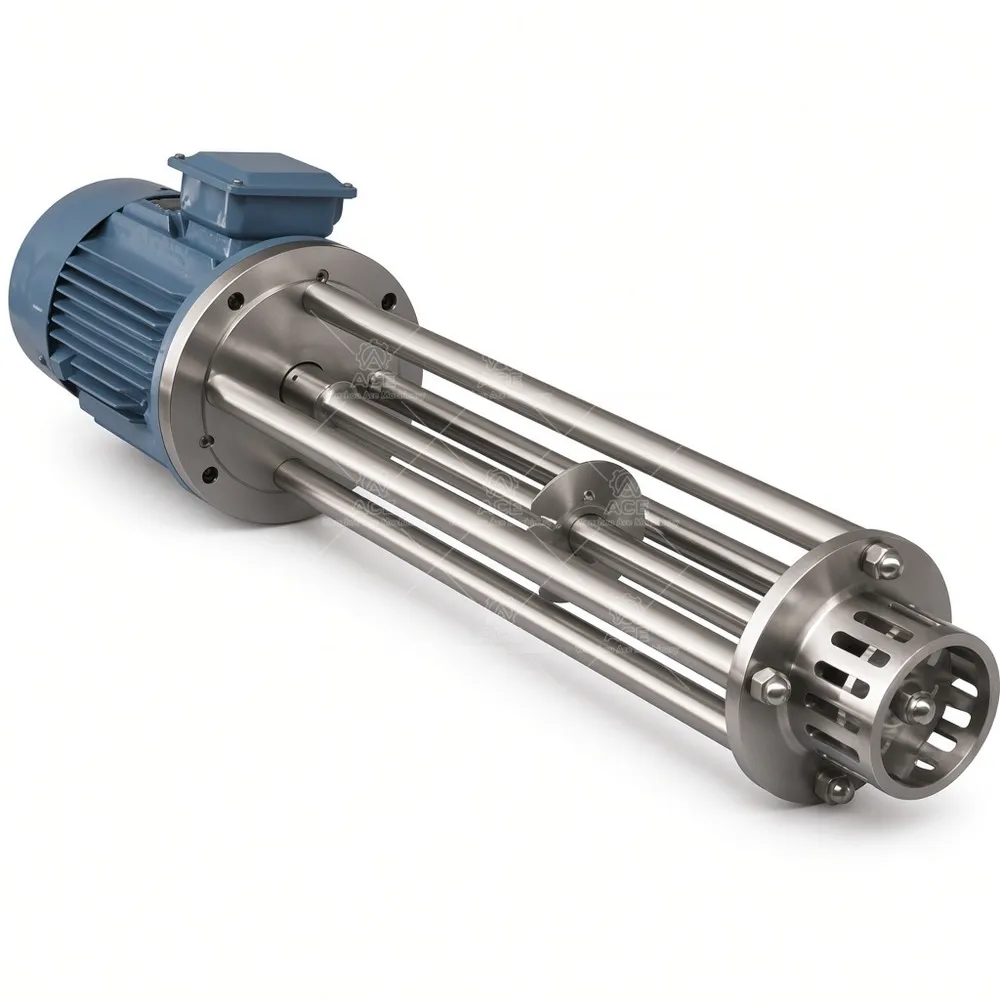

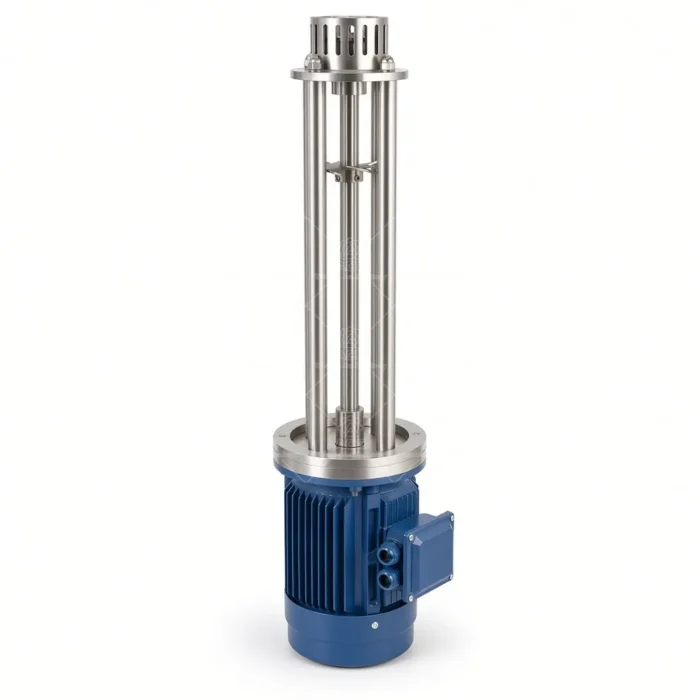

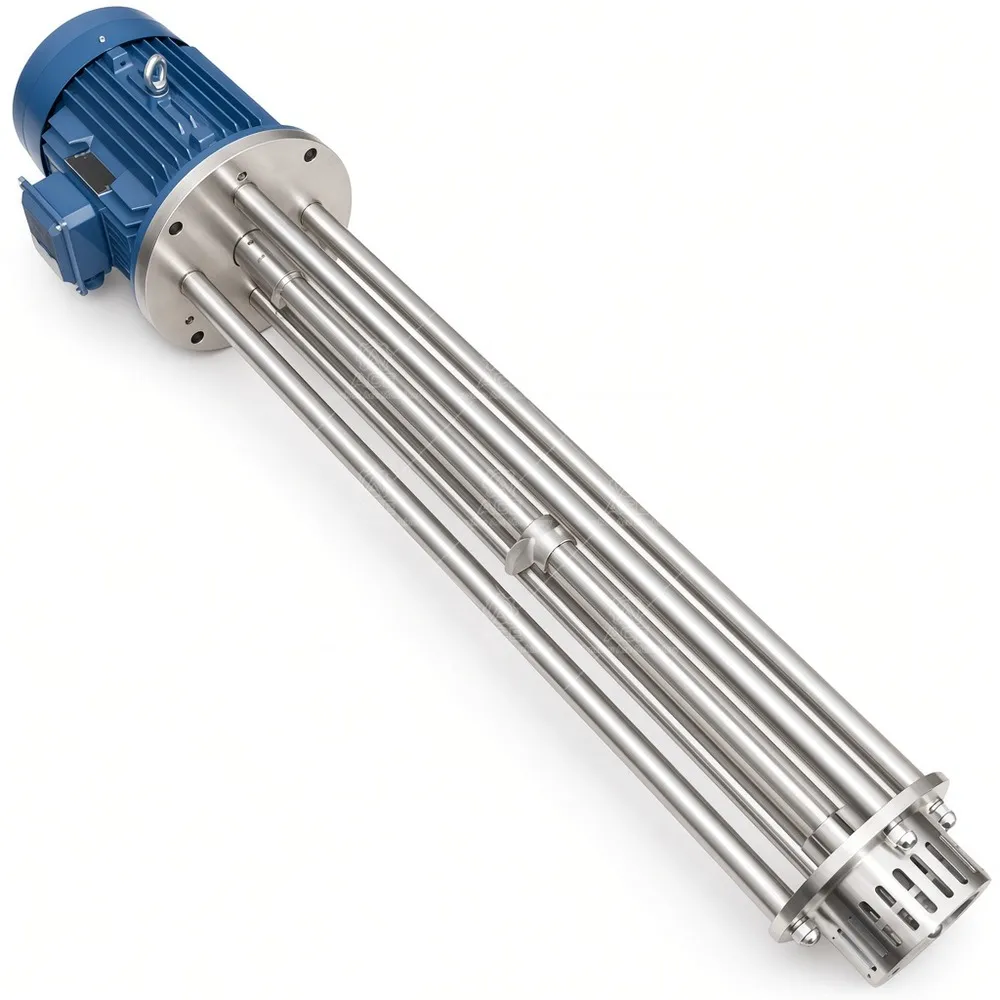

Versatile High Shear Mixer Homogenizer Disperser for Cosmetics Shampoo Shower Gel
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $897.58 through $971.90
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
When a cosmetics line switches from shampoo to a thick shower gel, the batch high shear mixer has to handle viscosity swings without dead zones or aeration. We build the Multi-Use unit around that reality.
Specs:
- Speed control: VFD, 0–3000 rpm
- Motor: 1.5–55 kW
- Voltage: 220–480V (we confirm frequency, phase, wiring)
- Functions: high-shear homogenizing, dispersing, emulsifying, powder incorporation

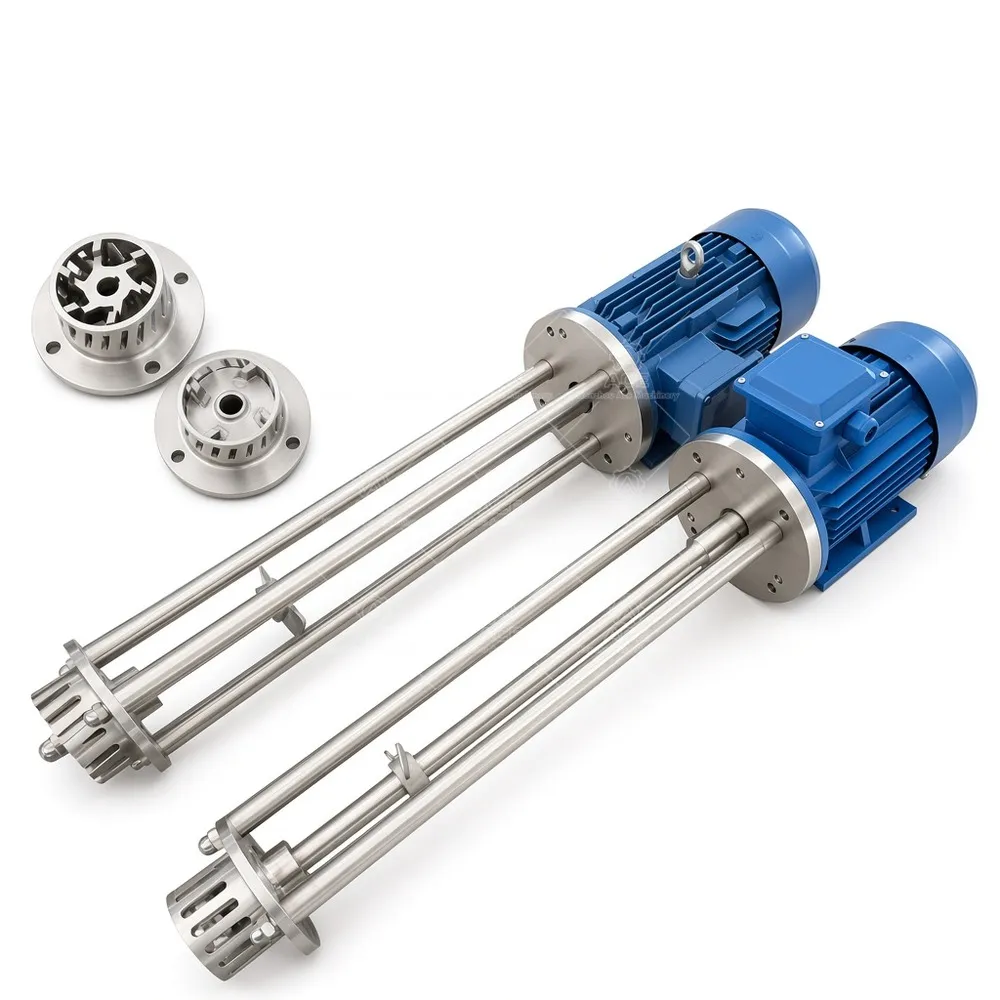

- Wetted parts: 304 or 316L stainless steel, customizable head design
- Mounting: fixed frame or mobile high shear mixer configuration
This is a batch high shear mixer, not an inline unit. It fits open vessels or closed tanks with a mounting flange. For tight production areas or multi-tank changeovers, a mobile high shear mixer makes sense. Fixed installations get a frame matched to your vessel dimensions.
Applications: food and beverage (sauces, syrups, dairy bases), cosmetics and personal care (shampoo, shower gel, lotions), pharmaceutical and healthcare (creams, gels, suspensions), chemical processing (polymer dispersions, cleaning concentrates), and compatible paints and coatings. Powder dispersion and liquid-liquid emulsification are routine. The right mixing head, materials, and operating parameters depend on your product’s viscosity, ingredients, and process requirements.
How to choose an industrial high shear mixer: start with batch size and vessel dimensions. Then list viscosity and any abrasive or corrosive ingredients. Required speed and motor power follow. Check voltage, frequency, and phase before ordering—380V/50Hz/3-phase is not the same as 460V/60Hz. Decide mobile or fixed. Specify head design and wetted materials; 316L suits aggressive formulas, 304 handles most cosmetic emulsions.
FAQ
Q: Can I use one mixer for both emulsifying and powder dispersion?
A: Often yes, but the head design matters. Powder incorporation may need a different rotor-stator than fine emulsification. Tell us both tasks.
Q: What information do you need for a quote?
A: Batch size, material characteristics, target rpm, required motor power, and local electrical specs. We’ll recommend the right configuration.
Common mistakes: oversizing the motor then running at 20% speed (wastes energy, stalls the VFD); undersizing the head for viscosity (long batch times); forgetting powder incorporation needs a different head. Tell us your batch size, material characteristics, target rpm, required motor power, and local electrical specs—we’ll send a quote for the right configuration.
Ace Mixer\’s Multi-Use batch high shear mixer homogenizer disperser handles cosmetics, shampoo, and shower gel production. VFD speed control 0–3000 rpm, motor 1.5–55 kW, 220–480V options, and 304 or 316L stainless steel wetted parts. Customizable head and mounting for batch size, viscosity, and powder dispersion. Request a quote with your process details.
