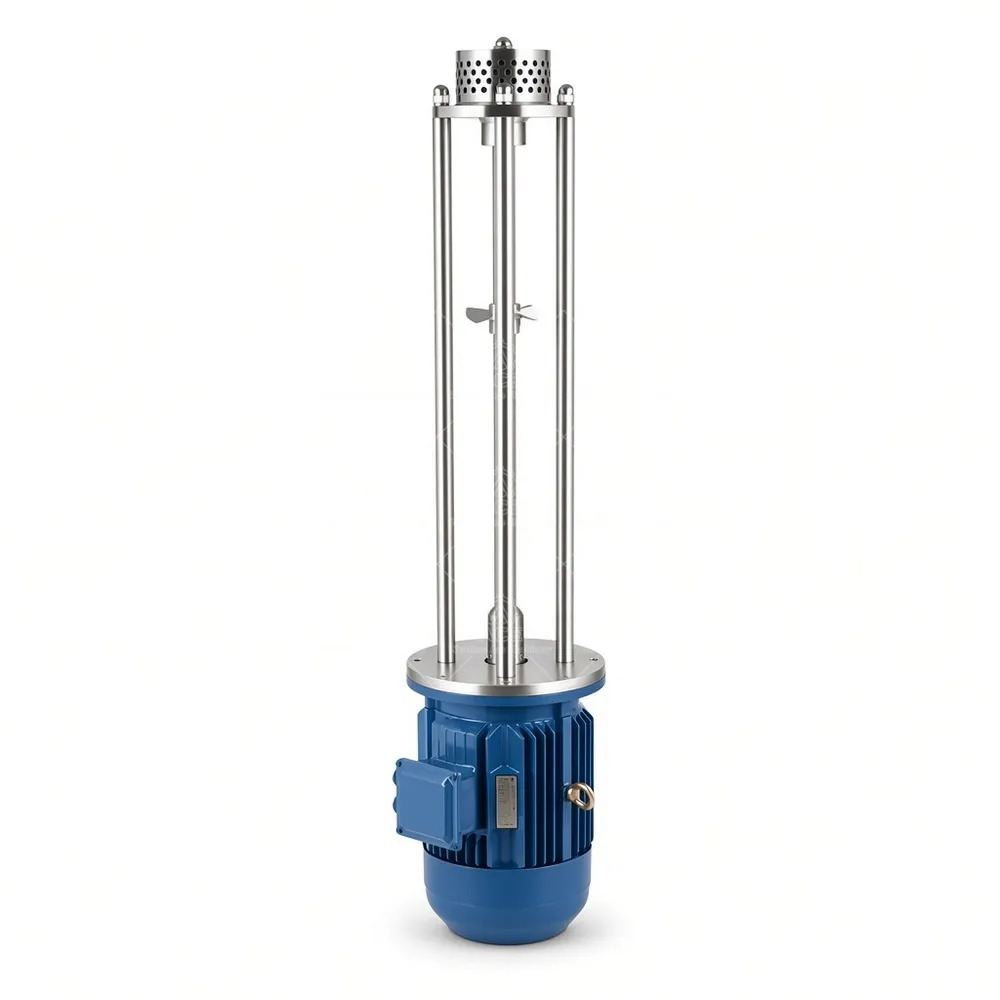

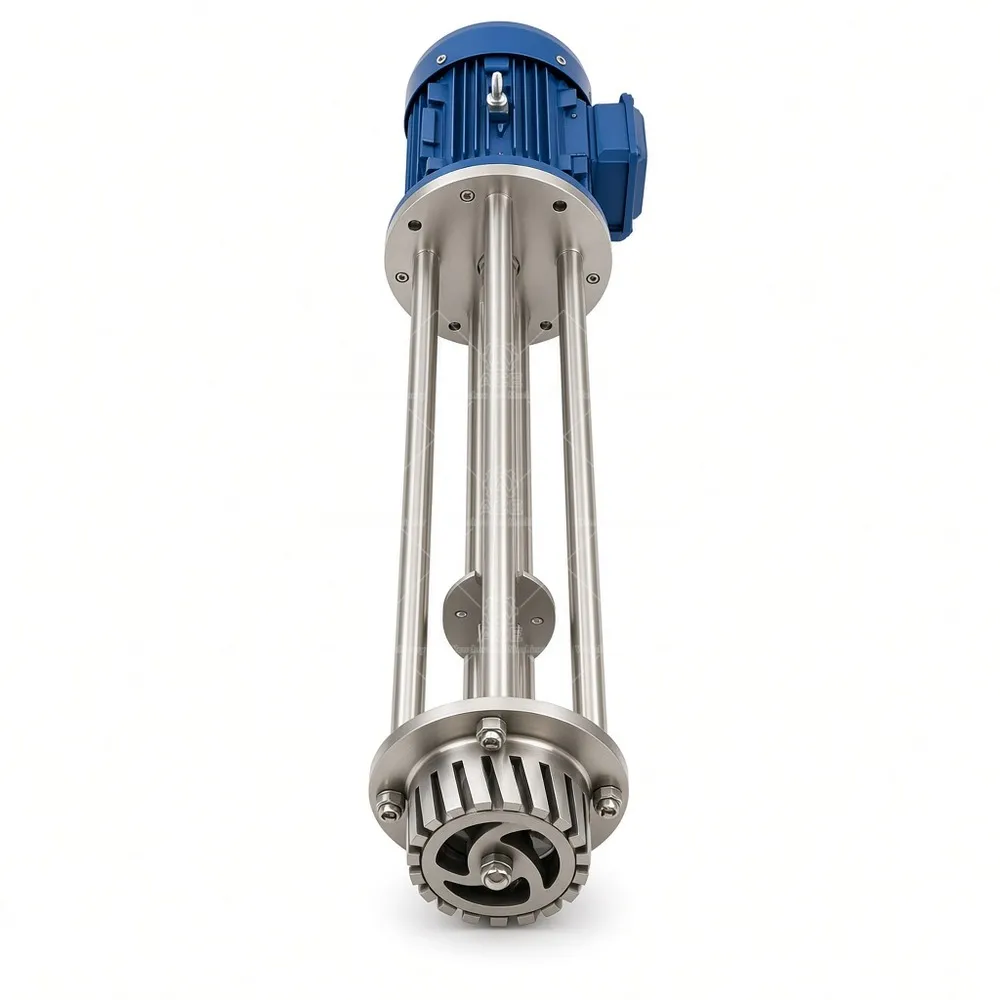

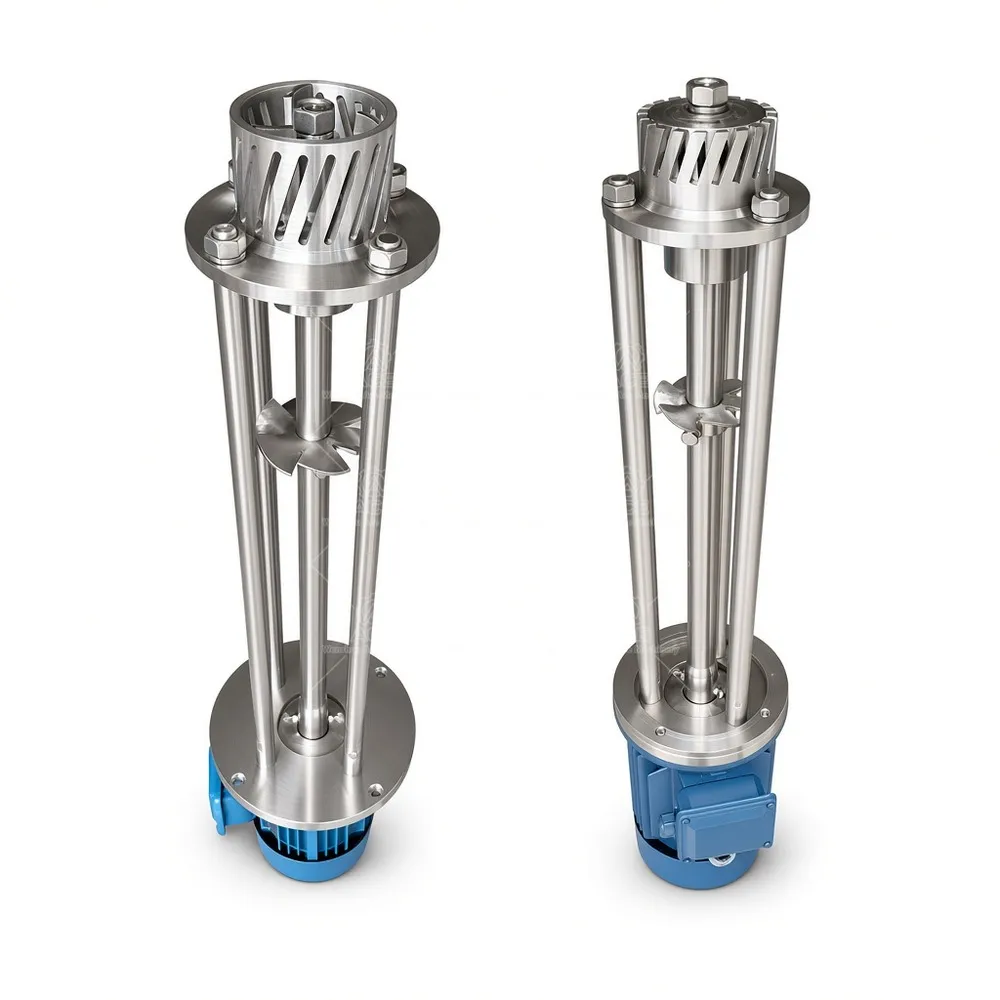

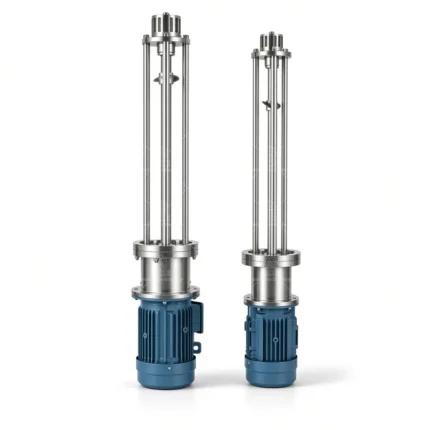

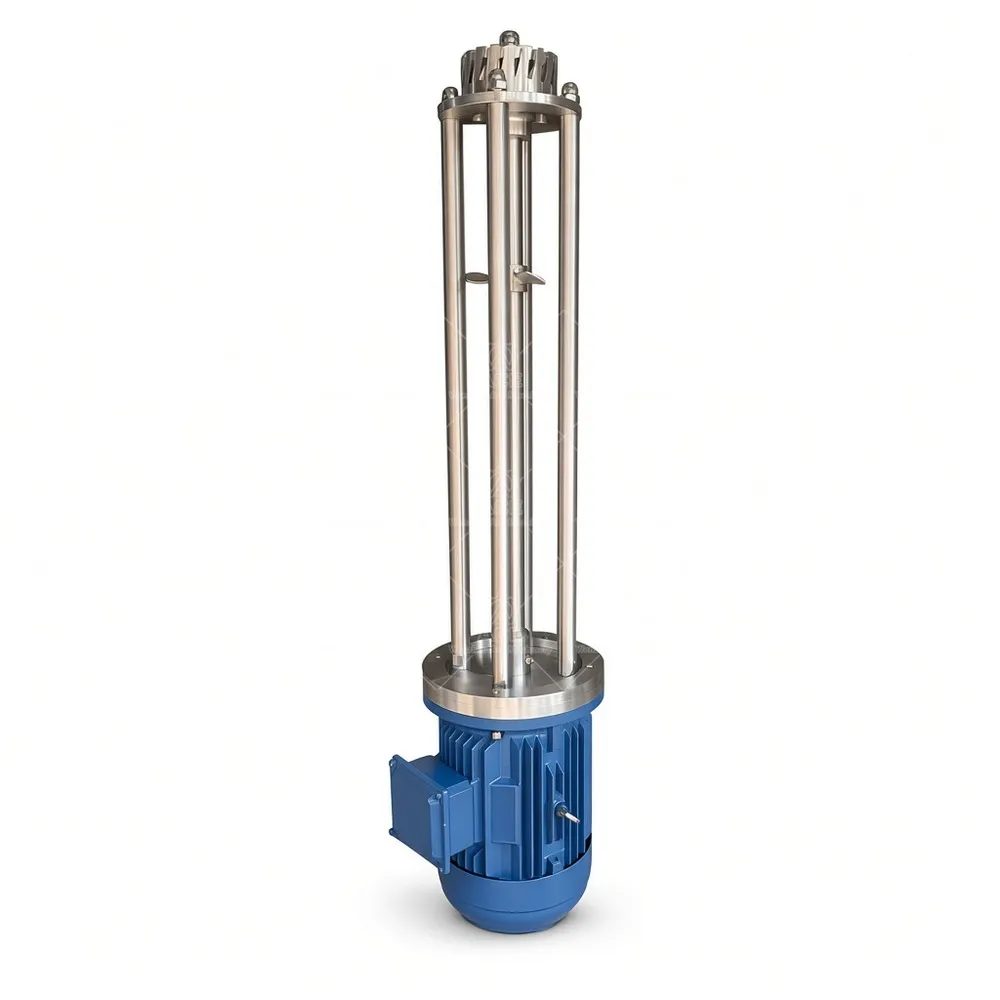

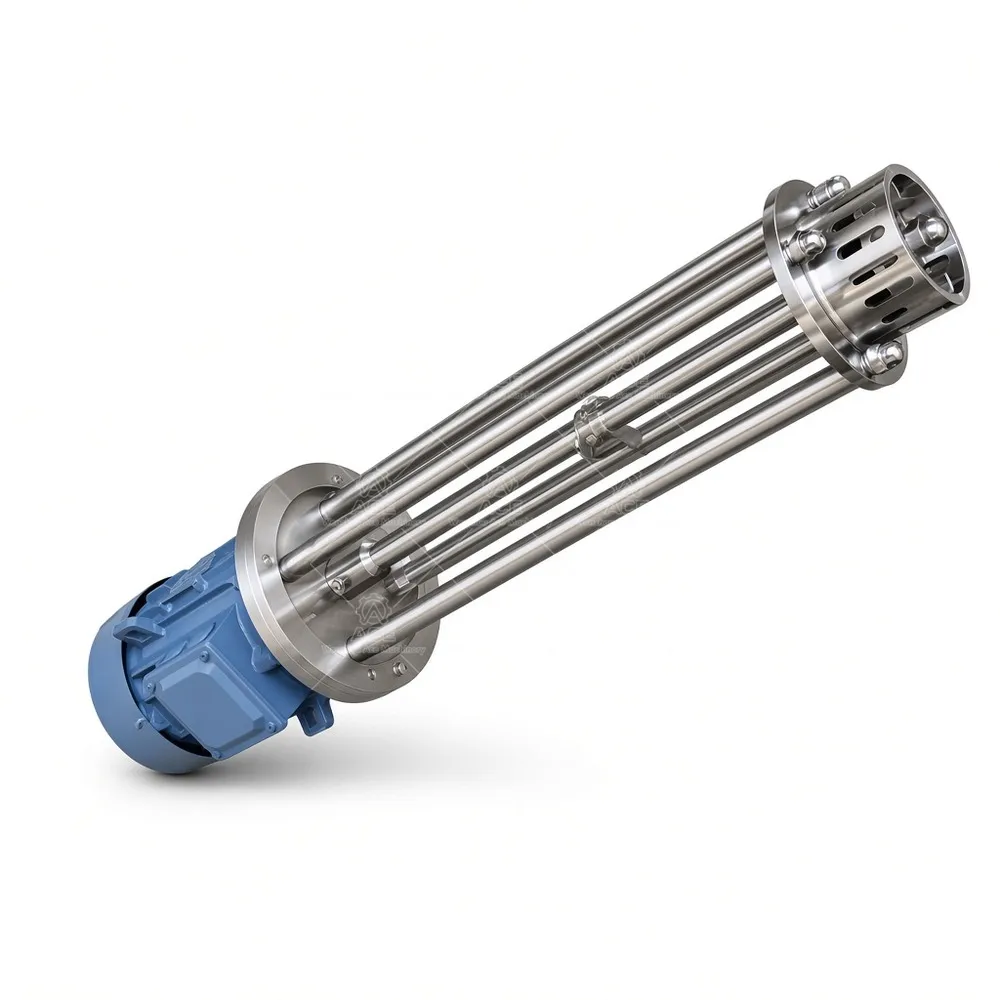

Sanitary Batch High Shear Emulsifier Mixer for Cosmetics and Shampoo
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $973.00 through $1,048.99
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
One assembly, not three separate guesses
Most batches that go wrong don\’t fail at the mixing head. They fail because the head, the vessel, and the motor were picked by different people at different times. We build this batch high shear mixer as a matched assembly, so shaft length, head diameter, and motor torque suit the tank you already own or plan to order.
The unit performs high-speed shearing, dispersion, and emulsification, and it draws powders down into liquid instead of letting them raft on the surface. Food, cosmetic, and pharmaceutical duty all reduce to the same three decisions: contact material, surface finish, and how the head behaves at your product\’s viscosity.
Configuration range
- Motor: 1.5 kW to 55 kW, sized against batch volume and viscosity
- Speed control: optional VFD for 0–3000 rpm, depending on motor and configuration
- Electrical: 220V to 480V, with voltage, frequency, and phase confirmed for your destination market
- Wetted parts: 304 or 316L stainless steel
- Mounting: fixed tank mount or a portable high shear mixer frame on casters

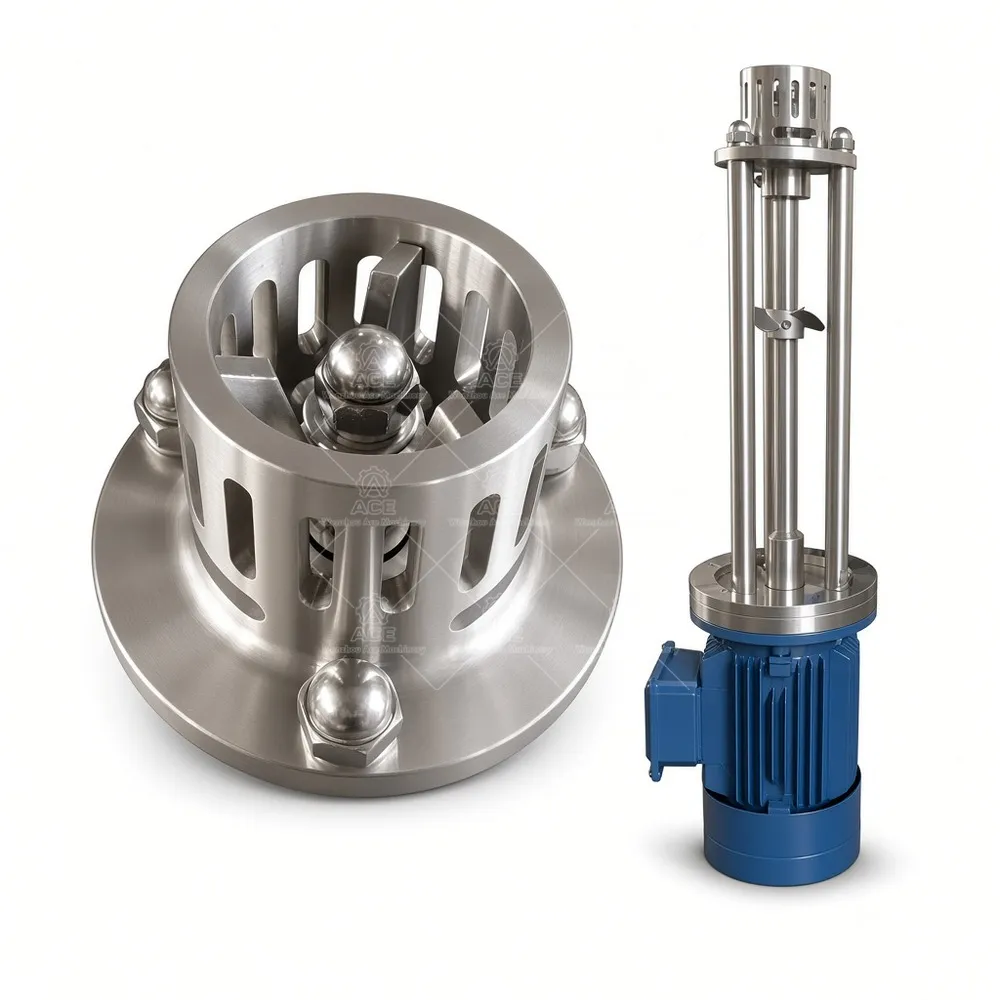

- Mixing head: open, slotted, or rotor-stator emulsifying design, chosen per application
Where these units run
Sauces, dressings, and beverage concentrates. Shampoo, lotion, and gel bases. Ointments and oral preparations. Resins, coatings, and pigment dispersions. Liquid-liquid emulsification and powder dispersion into a carrying fluid. The correct head, contact material, and operating parameters depend on viscosity, ingredient chemistry, and the process step, so we set those with you rather than from a catalog page.
Narrowing the configuration
Start with the batch size and the vessel\’s internal dimensions, since shaft length follows from them. Then describe the product: viscosity at mixing temperature, solids content, whether powders go in dry or as a slurry. Speed and motor power follow those numbers, not the other way around. Confirm your plant\’s actual electrical supply before the quote stage — a 60 Hz motor on a 50 Hz supply changes the impeller speed you actually get. Also decide early whether mobility matters; a portable frame helps when several small tanks share one machine, while a fixed mount keeps alignment stable on a dedicated vessel.
Questions we get asked
Will one head handle shampoo and a thick cream? Occasionally, but rarely well. Send the viscosity range and we will say whether a single head covers it.
Is the VFD necessary? Useful when you change speed between powder incorporation and emulsification. On a single product at a single speed, a fixed-speed motor costs less to own.
What about cleaning? Wetted parts in 304 or 316L with accessible head designs make changeovers faster; tell us your cleaning regime and we will factor it into the build.
Getting a real recommendation
Send your batch size, product viscosity and composition, target rpm, required motor power, and local electrical specifications. With those five details we can propose a configuration and quote it accurately instead of guessing.
A configurable sanitary batch high shear emulsifier for shampoos, cosmetics, foods, and pharmaceutical preparations. Choose motor power from 1.5 to 55 kW, optional VFD speed control, 304 or 316L wetted parts, and fixed or portable mounting. Built by Ace Mixer to match your vessel, viscosity, and electrical supply.
