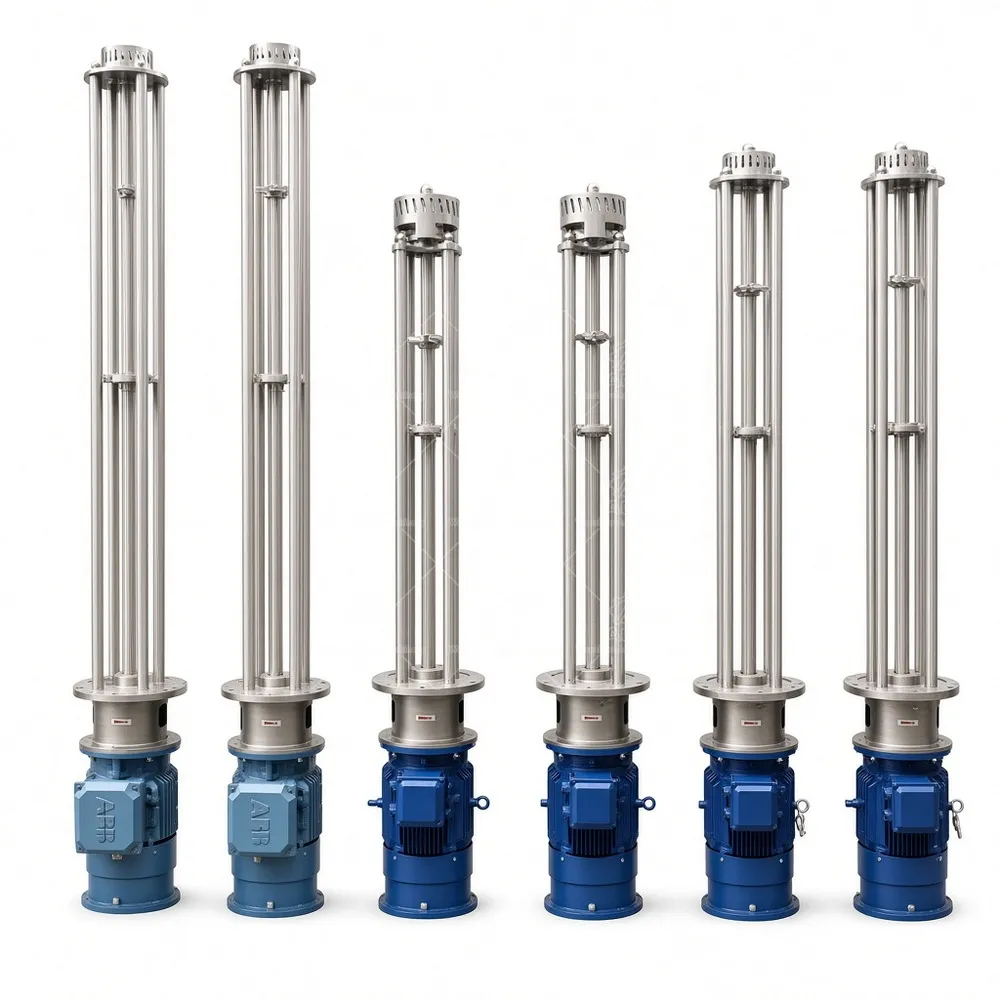

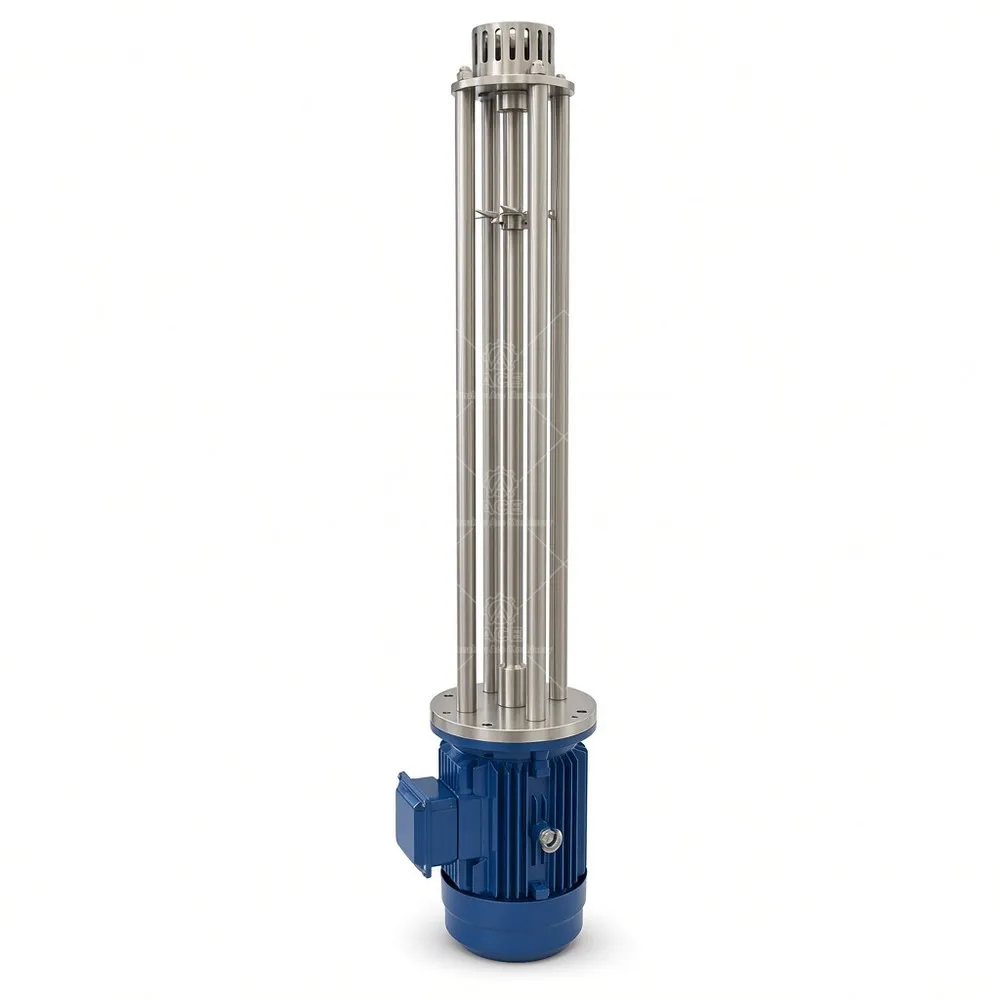

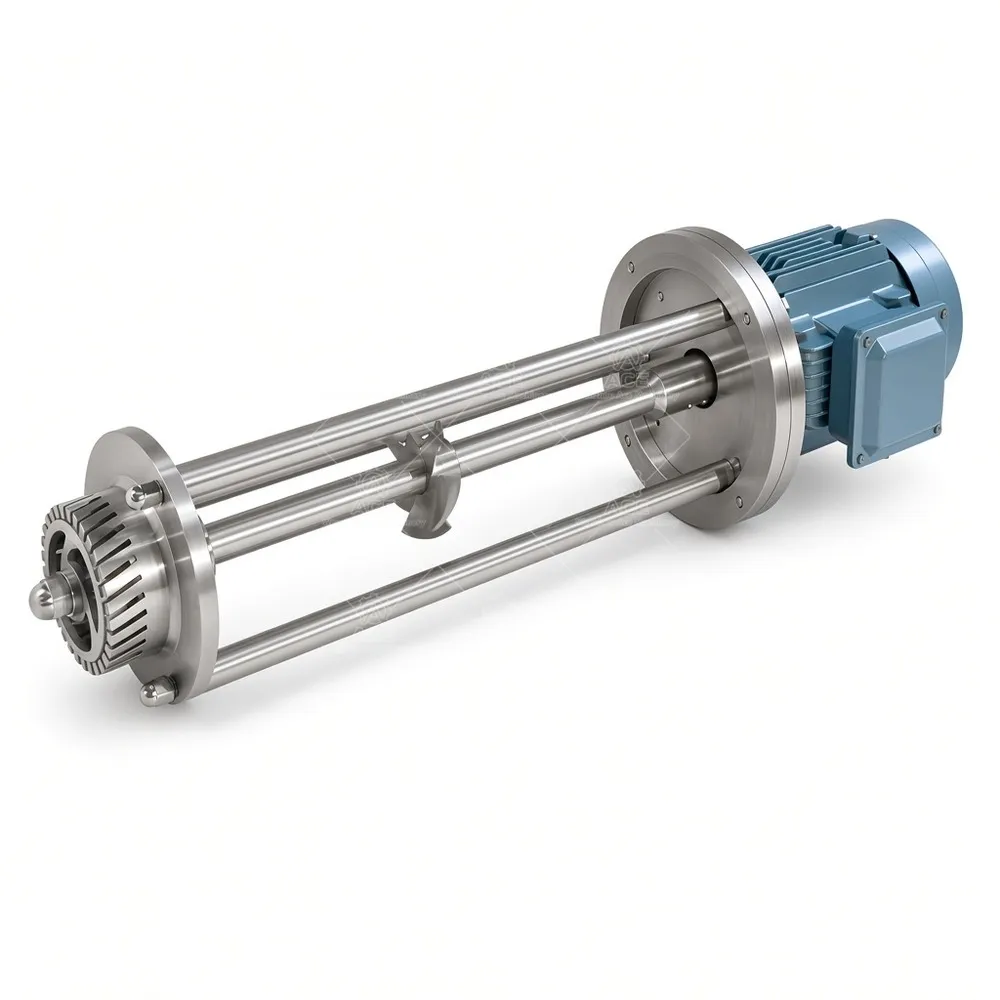

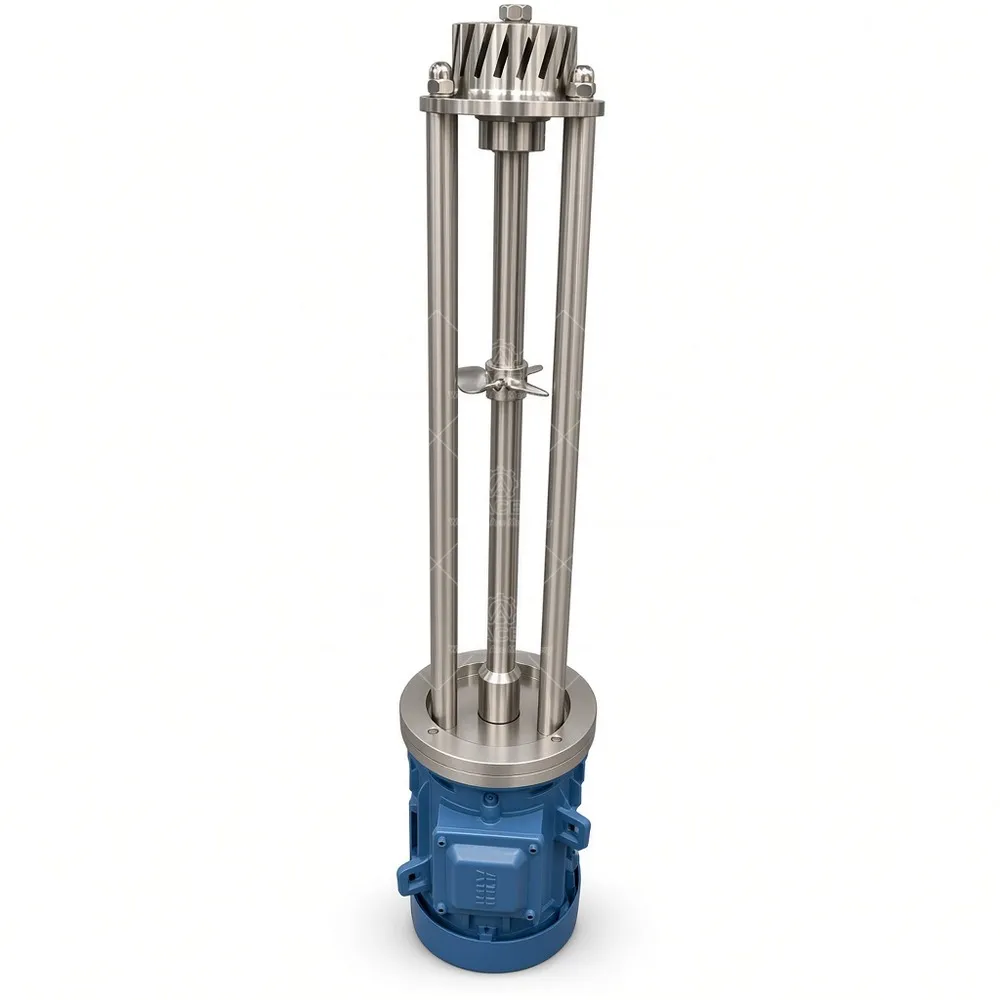

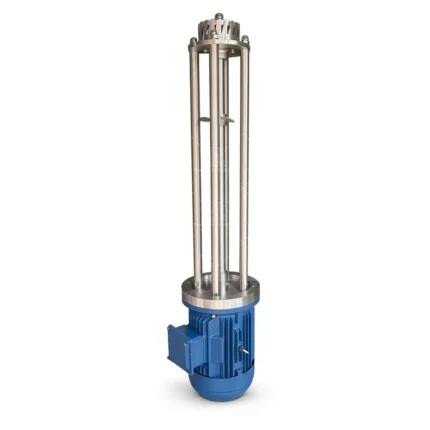

Custom High Shear Emulsifier Mixer for Cosmetics Shampoo and Xanthan Gum
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $1,448.81 through $1,532.12
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Fish eyes in shampoo, uneven color in a gel, or xanthan gum lumps that take too long to hydrate usually point to the mixing step. A batch high shear mixer gives you a concentrated shear zone for emulsifying, dispersing, and powder wet-out without turning the whole tank into a high-speed blender. Ace Mixer configures these units around the product and the vessel.

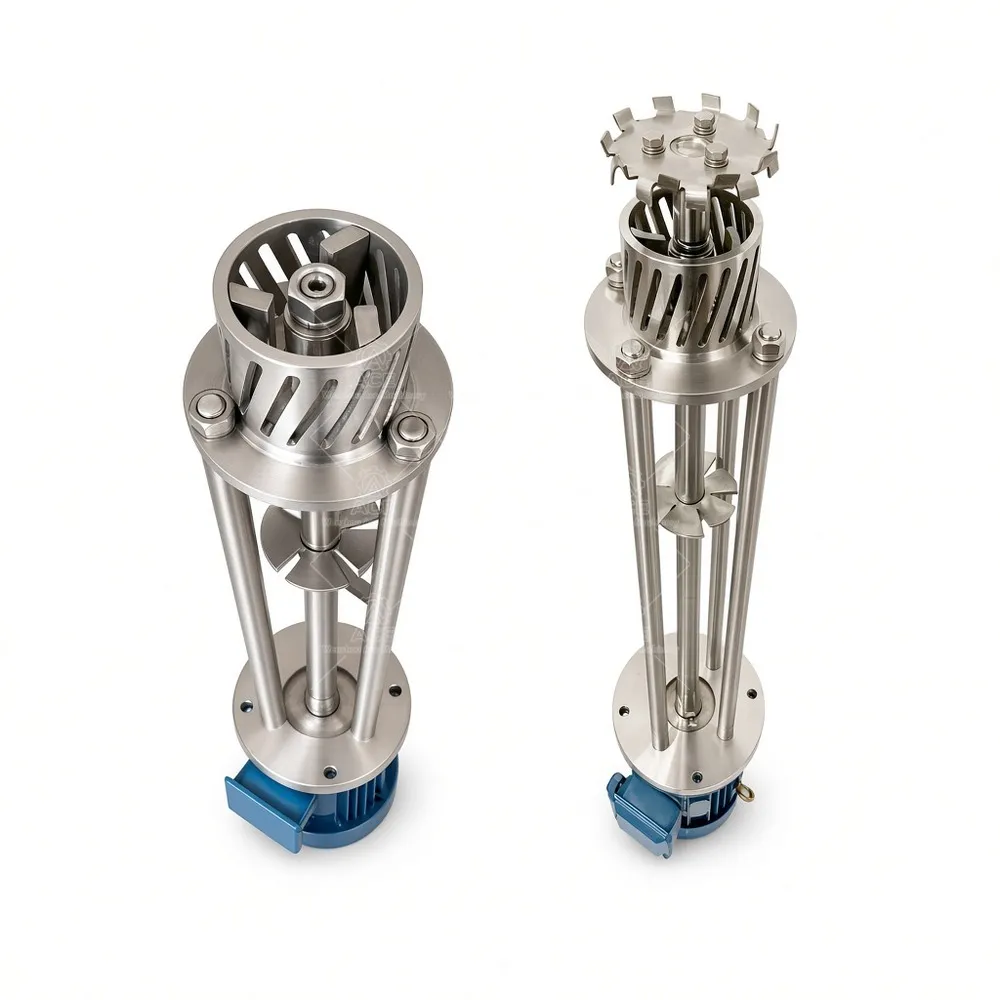

Our customizable high shear emulsifier mixer homogenizer handles cosmetics, shampoo, shower gel, and xanthan gum dispersion, plus many food, pharmaceutical, chemical, and coating formulations. The mixing head can be specified for high shear, dispersion, emulsification, and powder incorporation into liquids. Wetted parts are available in 304 or 316L stainless steel. Motor power ranges from 1.5 kW to 55 kW, with optional VFD control for 0 to 3,000 rpm depending on the selected motor and configuration. Voltage is confirmed from 220 V to 480 V for your market, including frequency and phase.
Start with batch size and vessel geometry. Viscosity and solids loading then drive head design, shaft length, and motor selection. A variable speed high shear mixer with VFD lets operators tune shear without changing hardware. For multi-tank rooms, a mobile high shear mixer is often more practical; fixed mounting suits dedicated lines. Send product details, target rpm, and local electrical supply before you compare quotations. A low-power unit can look attractive until it stalls on a viscous gel. An oversized head can add heat you did not plan for.
We also supply industrial high shear mixing equipment for liquid-liquid emulsification and high shear mixer for powder dispersion duties. Contact materials and configuration details follow the application. Suitable heads, materials, and operating parameters depend on viscosity, ingredients, and process requirements.
FAQ
Can one mixer handle shampoo and xanthan gum dispersion? Often yes, but head design and motor power must match viscosity and batch size. What should I prepare for a quote? Batch volume, material characteristics, target speed range, motor power, and voltage, frequency, and phase.
To get a practical recommendation, send batch volume, formulation notes, desired rpm, motor power, and local electrical specs to Ace Mixer. We will review the duty and propose a stainless steel high shear mixer configuration for your line.
Ace Mixer builds customizable batch high shear mixers for cosmetics, shampoo, shower gel, and xanthan gum dispersion. Choose 304 or 316L stainless steel, 1.5–55 kW motor power, optional VFD speed control up to 3,000 rpm, and 220–480 V electrical configuration. Share batch size, viscosity, and process goals for a practical equipment recommendation.
