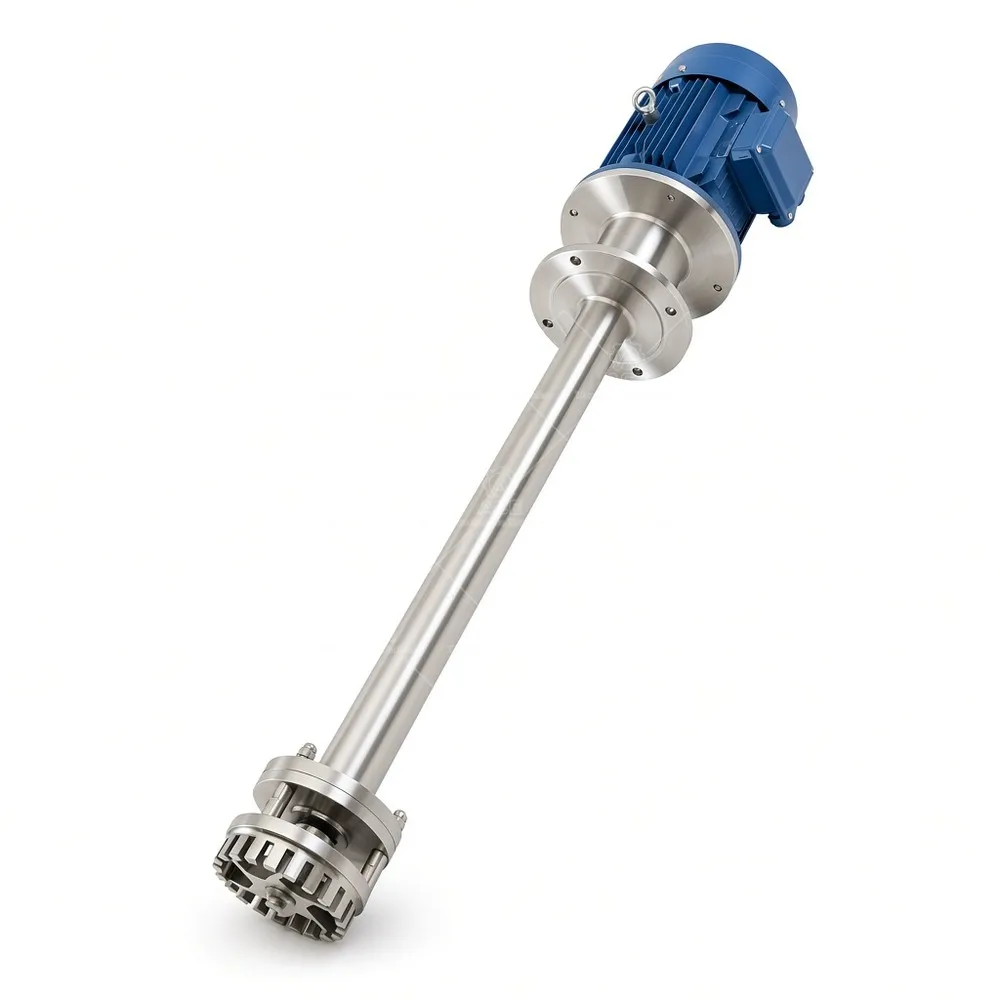

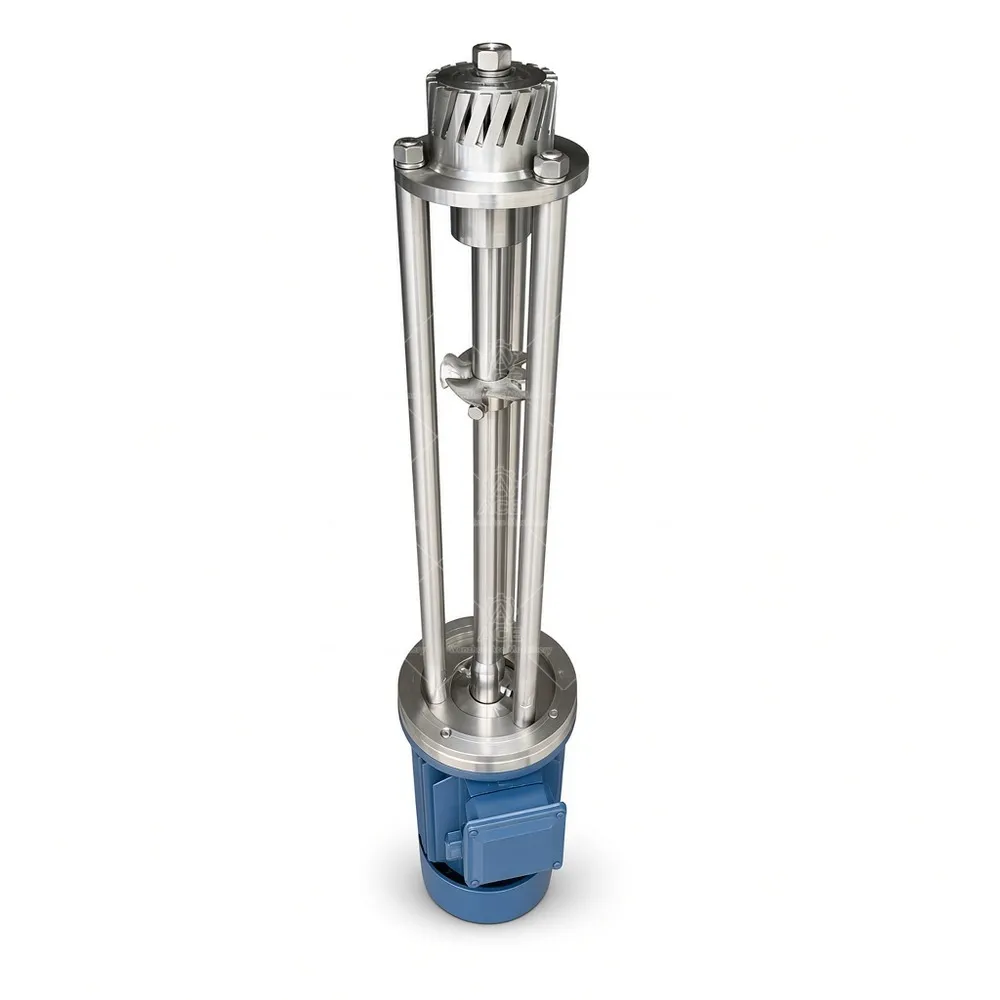

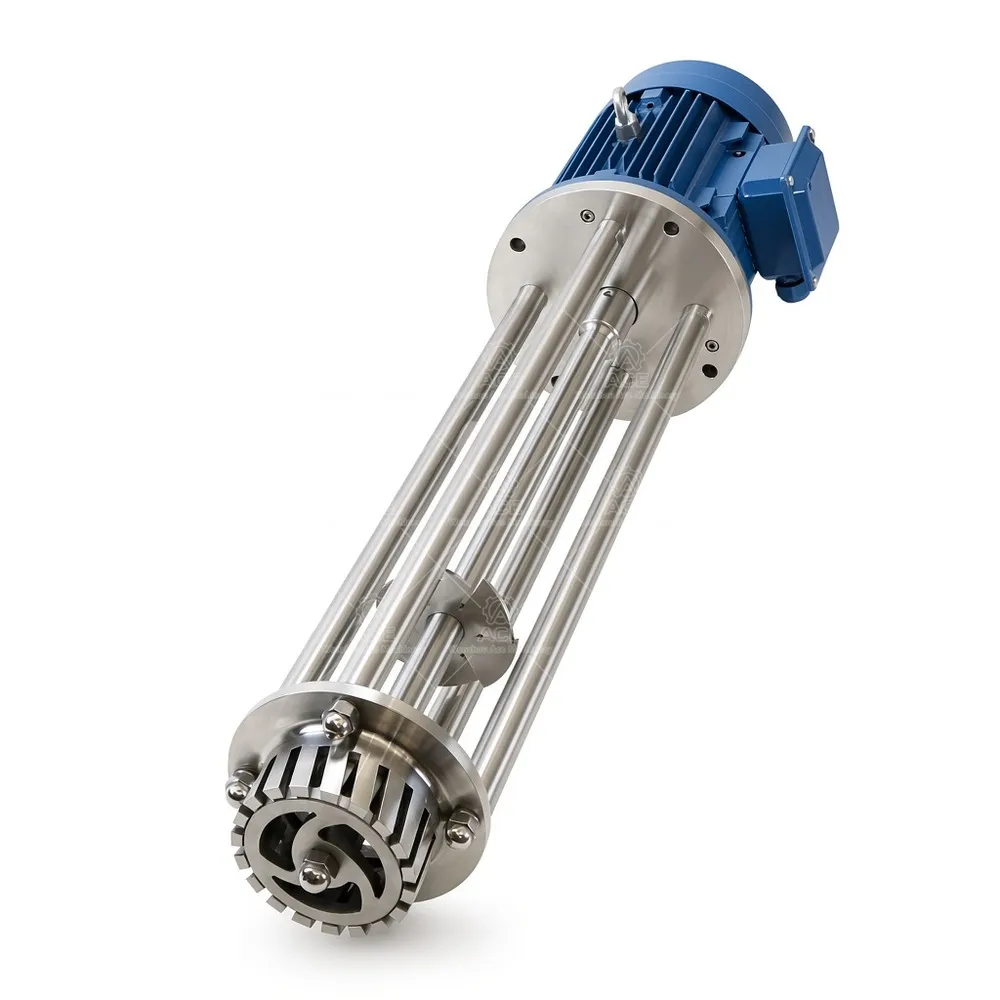

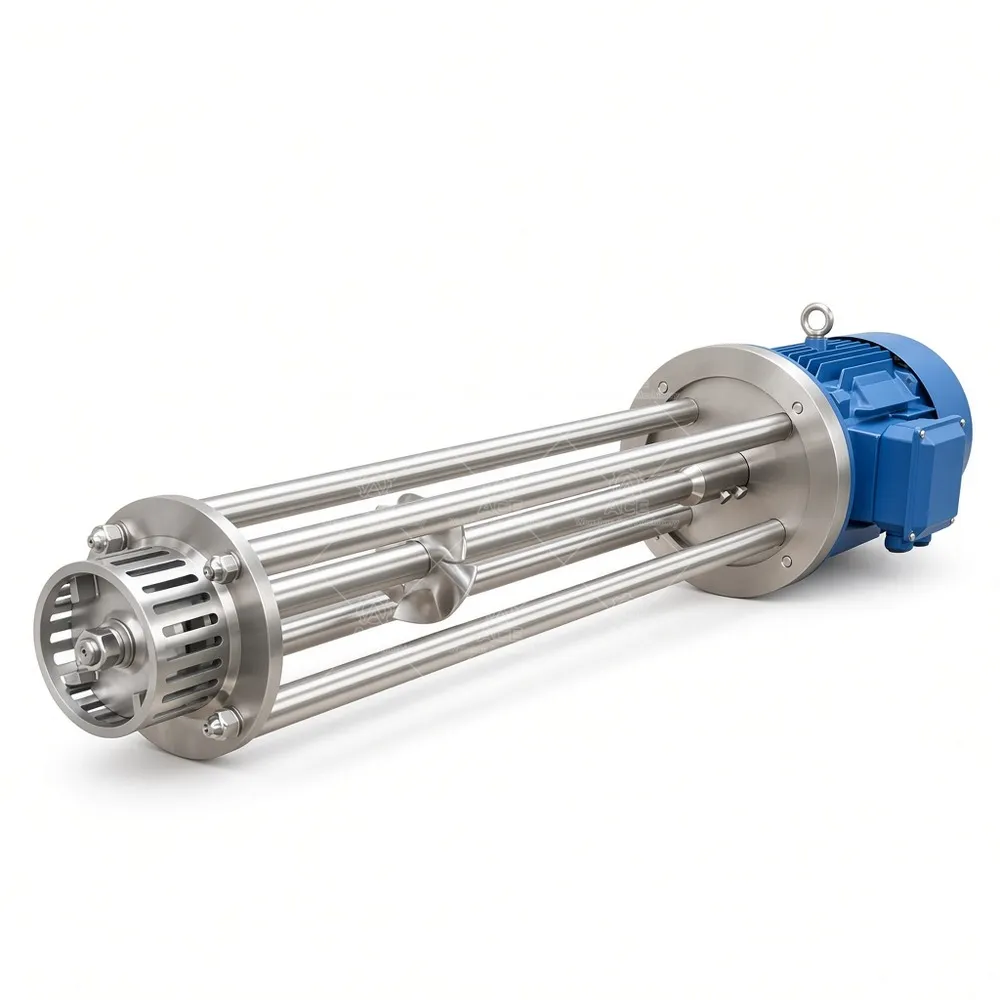

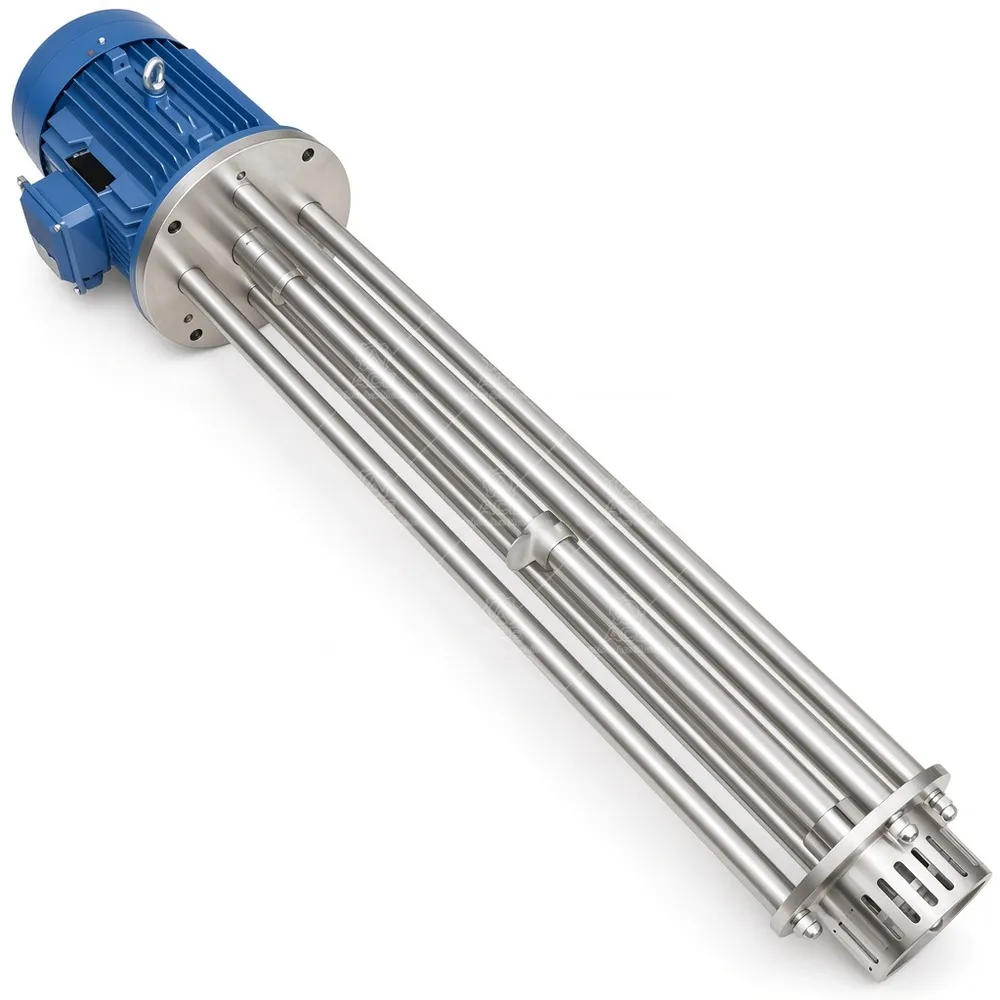

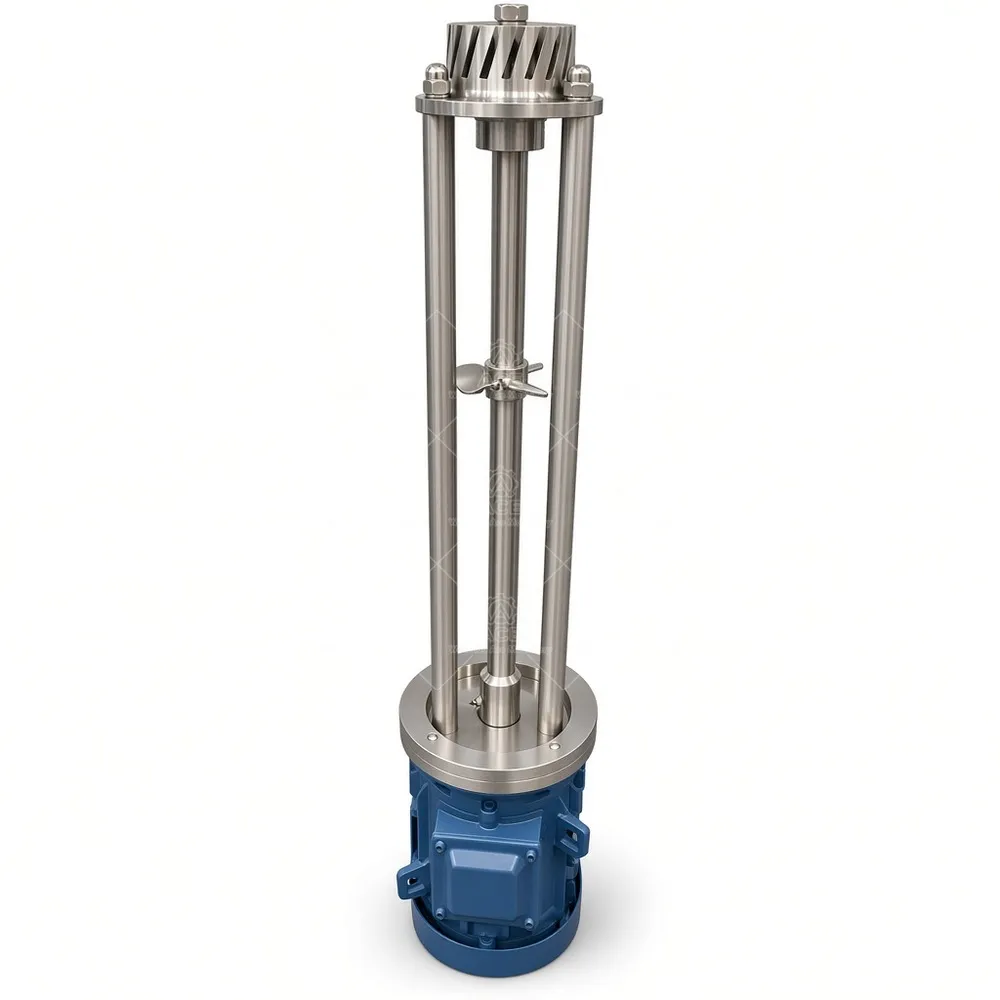

Laboratory High Shear Emulsifying Mixer, Variable Speed, Small Batch
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $947.82 through $1,029.52
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
When production engineers search for a laboratory high shear mixer, they usually need to verify a formulation before scaling up. Small batch trials expose dispersion problems, emulsion stability, and powder wet-out behavior without committing full-scale equipment. Our laboratory scale high shear mixing emulsifying unit is built for that work: a variable speed high shear mixer with VFD control, configurable motor, and wetted parts in 304 or 316L stainless steel.
Configuration and specifications
- Speed control: optional VFD, 0 to 3000 rpm depending on motor and configuration.
- Voltage: 220V to 480V; voltage, frequency, phase, and electrical configuration confirmed for the destination market.
- Motor power: 1.5 kW to 55 kW, selected by process demand and model.
- Mixing functions: high shear, dispersion, emulsification, and powder incorporation into liquids.
- Materials: 304 or 316L stainless steel; wetted and contact materials specified per product.
- Customization: motor power, voltage, control system, mixing head, and other details.
Ace Mixer builds industrial high shear mixing equipment for configurable processes. This batch high shear mixer can be supplied as a mobile high shear mixer or fixed installation, depending on vessel layout and workflow.
What to confirm before selecting a batch high shear mixer
Start with batch size and vessel dimensions. Product viscosity and ingredient characteristics determine whether a high shear mixer for powder dispersion or a liquid-liquid emulsifying head is appropriate. Required mixing speed and motor power follow from that. Confirm voltage, frequency, and phase for your site. Mixing head design and wetted parts must match the product and cleaning routine. Decide whether a mobile high shear mixer or fixed frame suits your production room.
Typical applications
Our batch high shear mixing equipment is used in food and beverage processing, cosmetics and personal care, pharmaceutical and healthcare formulations, chemical processing, paints and coatings, and compatible industrial preparations. Powder dispersion and liquid-liquid emulsification are common duties. The right mixing head, materials, and operating parameters depend on product viscosity, ingredients, and process requirements; we confirm these details before quoting.
FAQ
Can the mixer handle both emulsifying and powder dispersion? Yes, with the correct mixing head and operating procedure. We review your ingredients and target consistency.
Is a VFD required? A variable speed high shear mixer with VFD gives adjustable shear input. Some processes run at fixed speed, but trials often benefit from variable control.
How do I specify voltage? Provide local voltage, frequency, and phase. We configure the electrical package for your market.
What about materials? 304 stainless steel suits many chemical and food duties; 316L may be specified for more corrosive or pharmaceutical contact parts.
For a suitable recommendation and quote, send your batch size, material properties, target rpm, required motor power, and local electrical specifications. We will confirm the laboratory high shear mixer configuration, mixing head, and wetted materials for your process.
Laboratory scale high shear mixer with VFD variable speed control for small batch emulsifying, dispersion, and powder incorporation. Configurable 1.5 to 55 kW motor, 220 to 480V, 304 or 316L stainless steel wetted parts. Ace Mixer builds batch high shear mixing equipment for food, cosmetic, pharmaceutical, chemical, and coatings trials.
Single-stage in-line mixer
Three-stage in-line mixer

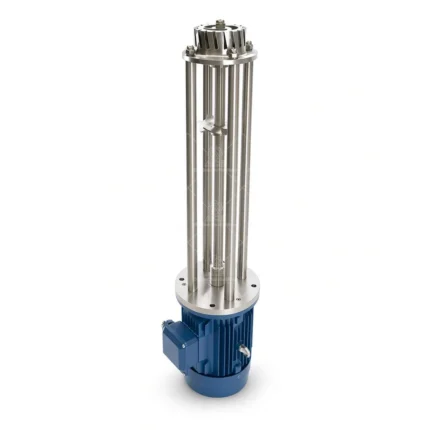

High-Shear Mixer with lift
