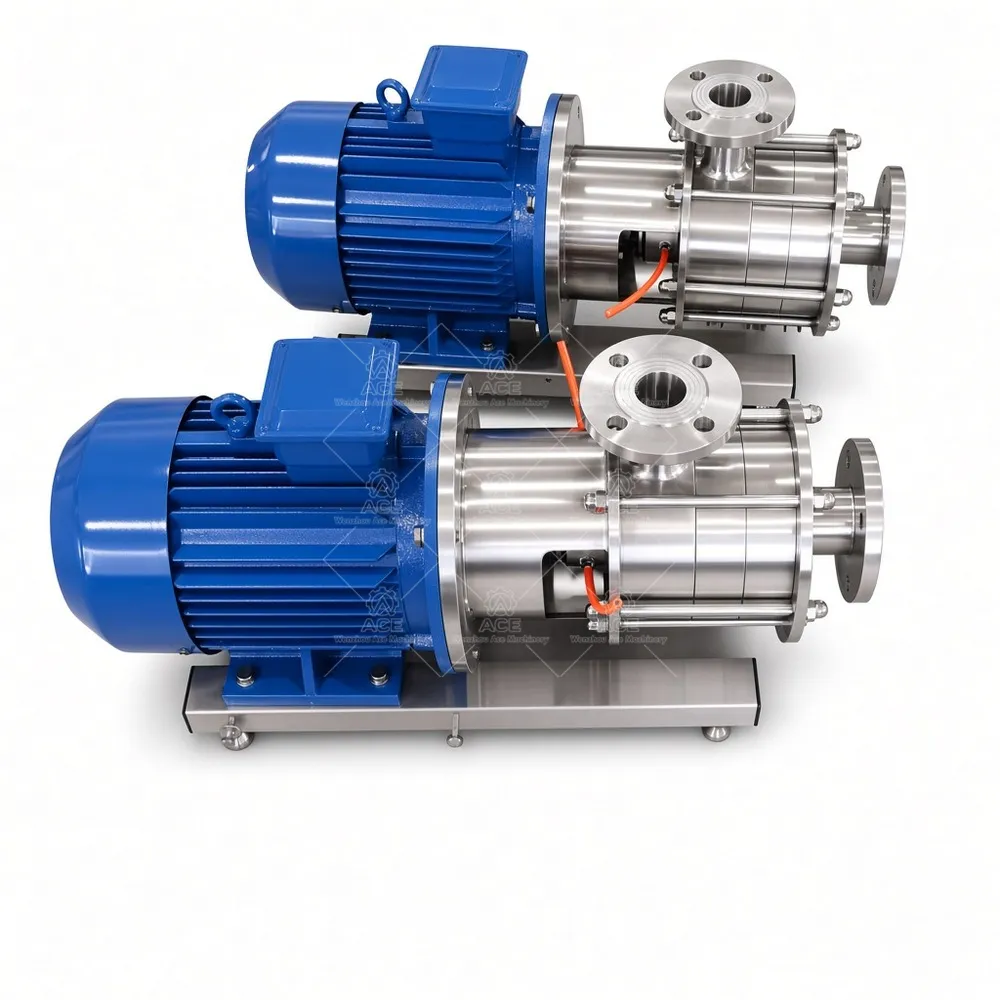

Pipeline High Shear Dispersing Emulsifying Pump 1.5T/H 2HP
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,187.67 through $2,387.19
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Ace Mixer Pipeline High Shear Pump for Inline Emulsifying and Dispersion
This pipeline unit is built for plants that need to break down agglomerates and create stable emulsions without adding another batch tank. The 1.5 kW / 2 HP motor drives a high-speed rotor-stator at 1450 rpm on 380 V, 50 Hz, 3-phase power. The clamp-end body and double mechanical seal suit continuous duty where fast strip-down and reliable sealing matter. We use stainless steel for wetted parts; we confirm elastomers and seal faces against your formula before release.
Engineers typically call us when a batch mixer is slow, powder is lumping, or a recirculation loop needs more shear. Installed inline, the pump works on the full flow instead of a portion of the tank. That gives tighter batch-to-batch consistency and less manual pre-mixing. You can run it in a once-through line or a tank recirculation setup, depending on turnover and required residence time. A VFD is available when shear level and flow need adjustment across products.
Where It Fits
Food and beverage: sauces, dressings, syrups, dairy blends, starch and gum dispersion. Cosmetics and personal care: creams, lotions, shampoos and liquid detergents. Pharmaceutical: liquid formulations and excipient dispersion where the wetted materials and seal arrangement are suitable. Chemical: water-based coatings, adhesives and compatible emulsions. Not every formula suits one rotor-stator or seal package, so we review viscosity, solids, temperature and cleaning cycle before quoting.
Practical Purchase Notes
Do not size an inline shear pump by motor kW alone. Flow rate, discharge pressure, solids level, air entrainment and cleanability decide whether a single pass or recirculation loop works. Tell us batch size, target flow, product viscosity, particle or droplet goals, available line size, and local voltage. We will recommend the rotor-stator, seal faces, O-rings, connections and motor option for your process, then quote a configured unit.
FAQ
Can it run continuously? Yes, with correct seal flush and product conditions. We confirm the seal environment.
Is a VFD needed? Not always. It helps when products change and shear must be tuned.
Can we trial before purchase? We can discuss lab or rental options based on your location and formulation.
Send your batch size, material properties, required motor power and electrical spec to Ace Mixer for a recommended configuration and quote.
Ace Mixer pipeline high shear pump delivers inline emulsifying and dispersion for food, cosmetic, pharmaceutical and chemical processes. The 1.5 kW / 2 HP unit runs at 1450 rpm on 380 V, 50 Hz, 3-phase power and uses a clamp-end double mechanical seal. Tell us your flow, viscosity and batch details for a configured quote.

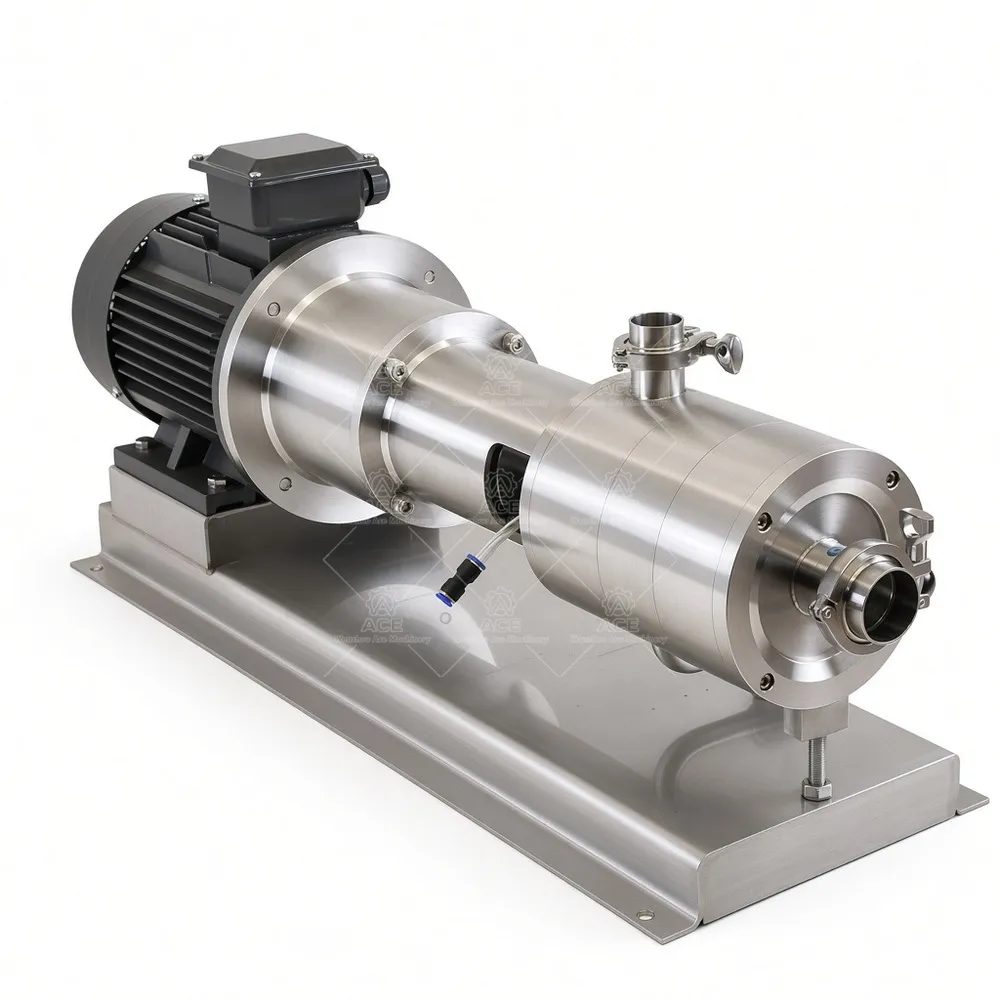

Single-stage in-line mixer
