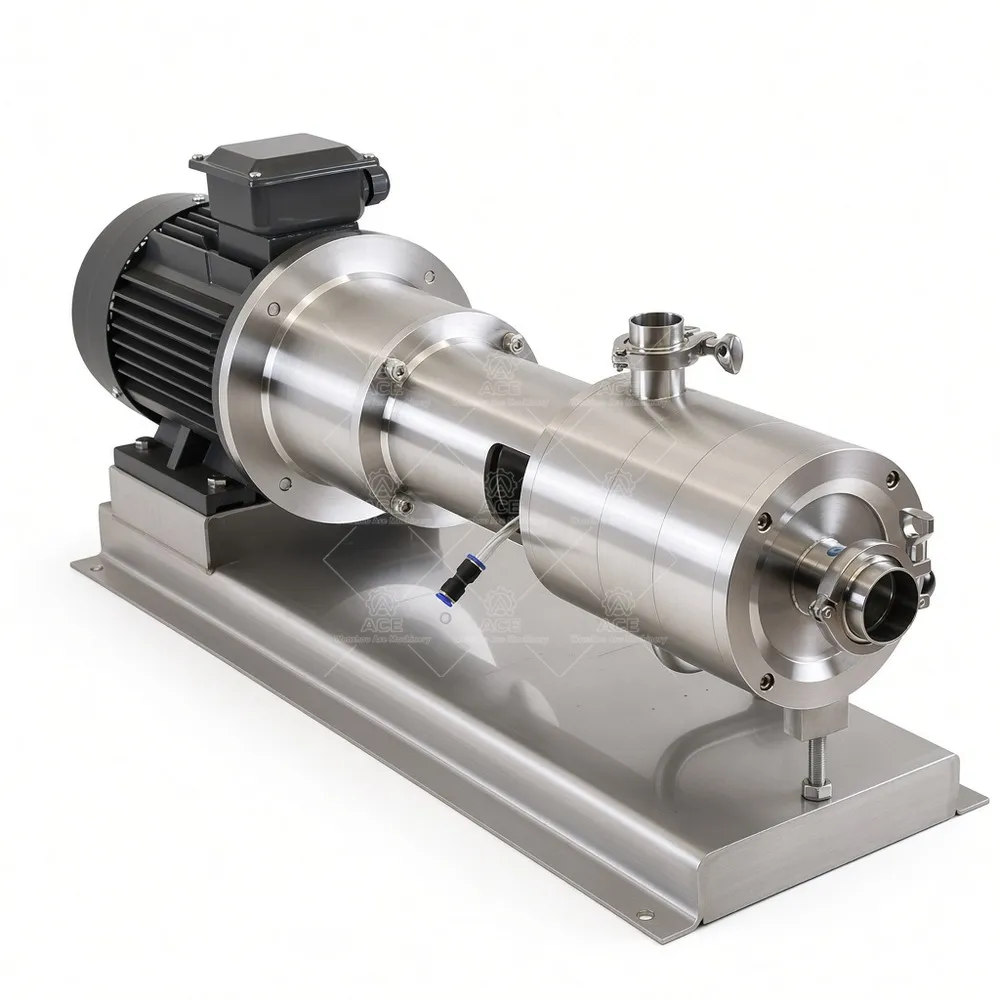

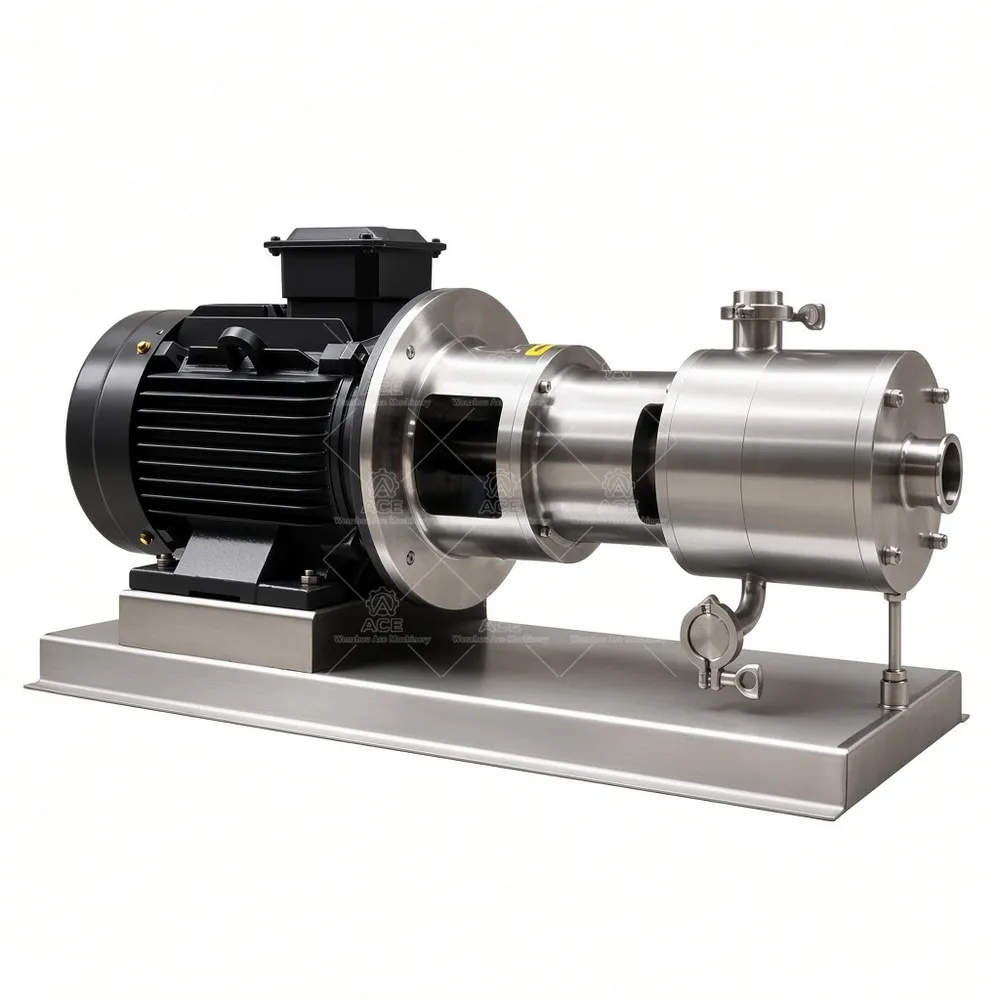

Sanitary 3 Stage 11KW High Shear Homogenizer Pump for Cream Emulsifying
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $1,779.46 through $1,947.80
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Inline Three-Stage Shear for Creams, Lotions, and Emulsions
This 11 kW sanitary homogenizer pump is built for producers who are tired of chasing lumps and inconsistent droplet size in a batch tank. Product enters a three-stage rotor-stator stack, is sheared in sequence, and exits as a more uniform stream back into the tank or forward to filling. A heating jacket is available for products that need to stay flowable during recirculation.
What the pump does on a real line
Single-stage mixers often need long recirculation times to break down powders or bring oil and water together. Three stages add shear passes without extra pumps or tanks. The usual result is shorter cycle times, fewer visible agglomerates, and less batch-to-batch variation, though final performance still depends on your formula, solids loading, and temperature.
- Inline mounting in a pipe or recirculation loop, with a compact footprint beside existing tanks
- Stainless steel wetted parts for sanitary service
- Optional VFD for viscosity-sensitive products
- Custom motor, seal, and connection options to match local electrical supply
Common applications
Cosmetic and personal care manufacturers use it for creams, lotions, shampoos, and liquid soaps, especially where oils, waxes, and thickeners must be dispersed. Food plants run sauces, dressings, syrups, and dairy blends through similar units. Pharmaceutical and chemical producers use it for compatible liquid formulations and dispersions. A single configuration will not suit every recipe, so we confirm material compatibility before quoting.
Purchasing questions we hear
Can it run continuously? Yes, in a properly piped recirculation loop, but seal and motor selection depend on duty cycle and product viscosity.
Will it remove all lumps? It reduces agglomerates; some powders still need pre-dispersion or a different screen.
What information do you need? Batch size, viscosity, solids content, target temperature, flow rate, and available power supply.
Send those details to Ace Mixer and we will recommend a stage count, motor size, seal arrangement, and jacket option for your process. Include your local voltage and frequency so the quote matches your electrical service.
Sanitary 11 kW three-stage high shear homogenizer pump for creams, lotions, and emulsions. The inline rotor-stator design shortens recirculation time, disperses powders, and improves batch consistency. Optional heating jacket and VFD; stainless steel construction. Ace Mixer configures motor, seals, and connections to match your batch size, viscosity, and electrical supply.

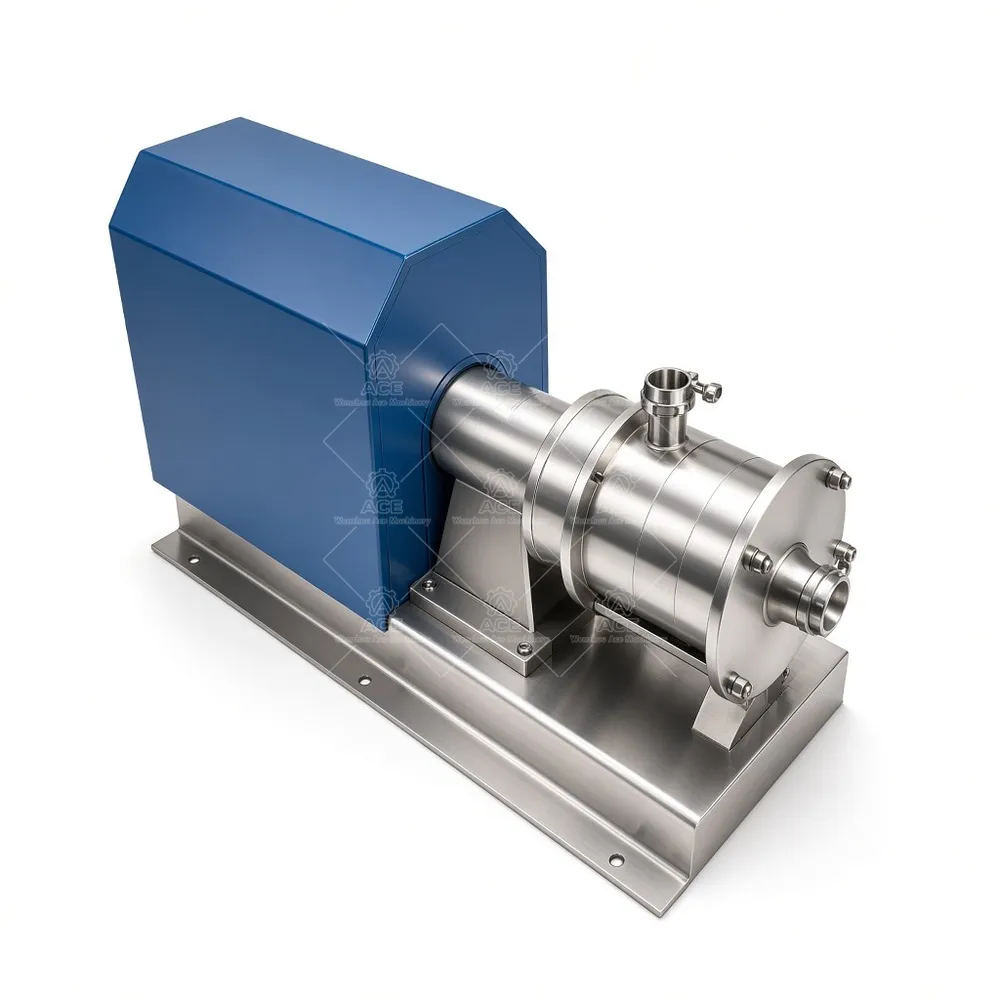

Single-stage in-line mixer
Three-stage in-line mixer

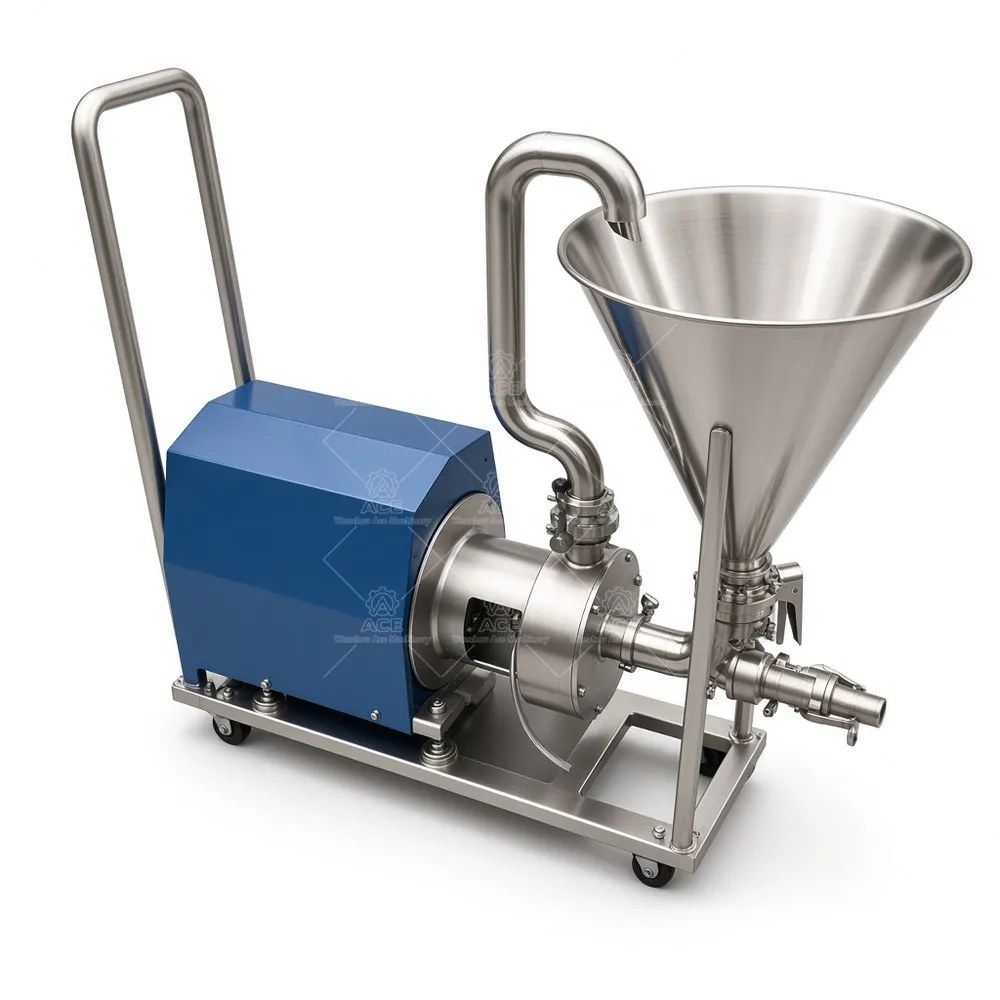

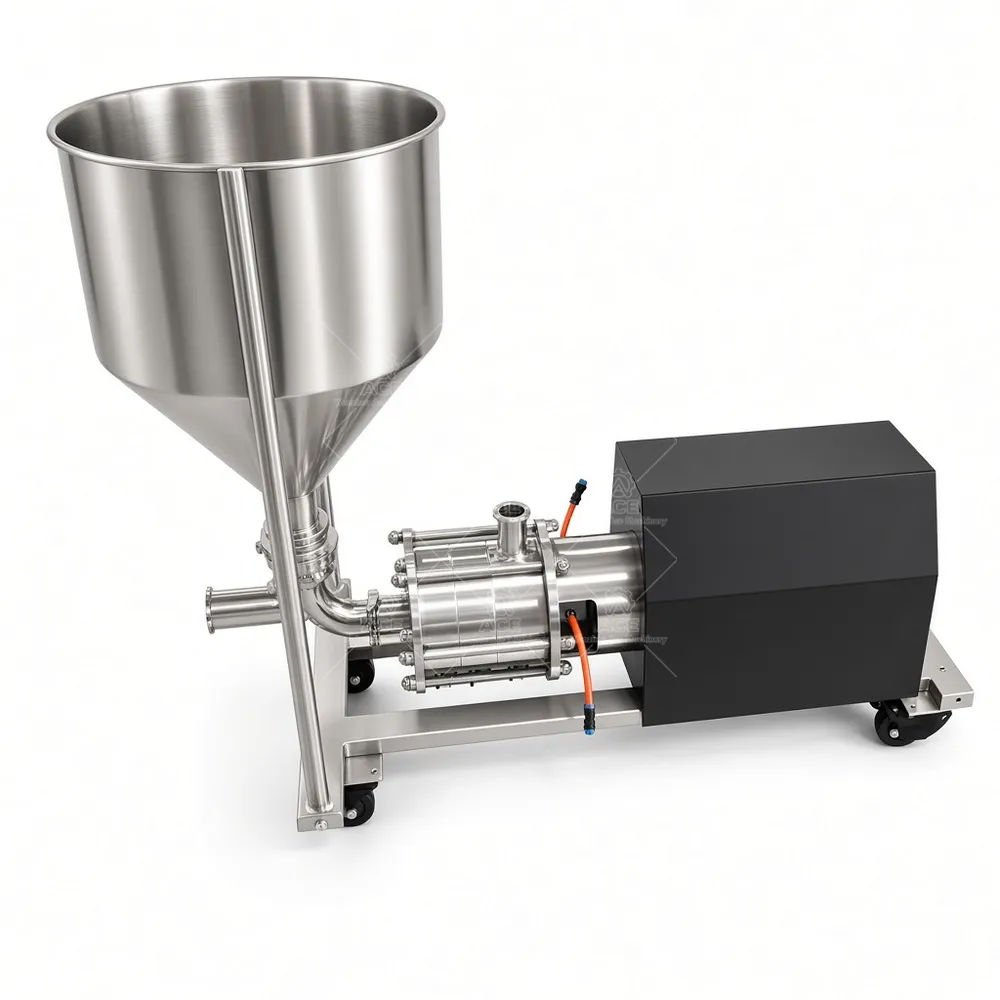

High-Shear Mixer with lift
High shear mixer
