In-Line High Shear Mixer | Batch Homogenizer & Emulsifying Pump
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $1,527.26 through $1,666.55
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
A lot of the mixing complaints that reach us — lumpy gum solutions, dressing that splits after two days on the shelf, a batch that reads fine at the top of the tank and coarse at the bottom — trace back to where the powder or oil went in, not to how long the agitator ran.

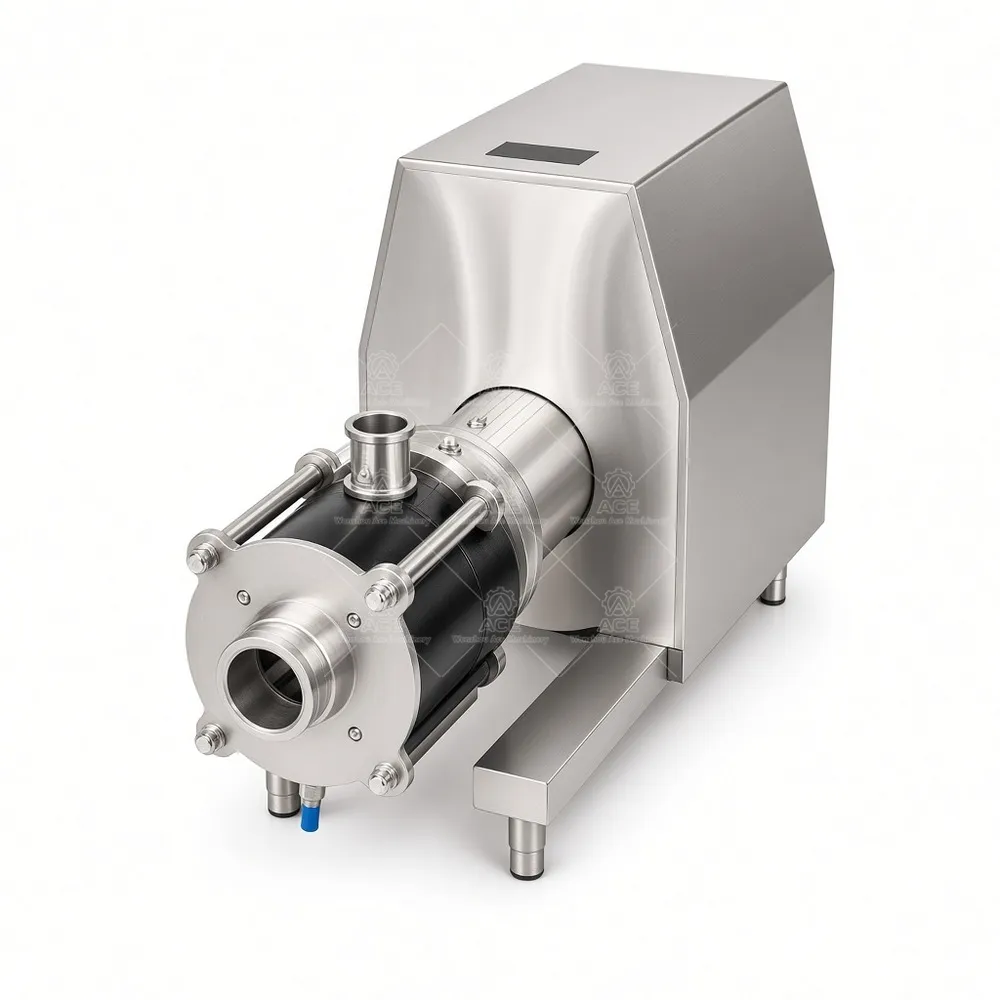

The Ace Mixer in-line high shear mixer places a single-stage rotor–stator head inside a pump housing. Product enters the center of the head, is accelerated through the slot geometry, and leaves the outlet already dispersed. Mounted in the transfer pipe or on a recirculation loop, it does the shear work in one pass while your existing tank agitator handles bulk turnover.
What it changes on the floor

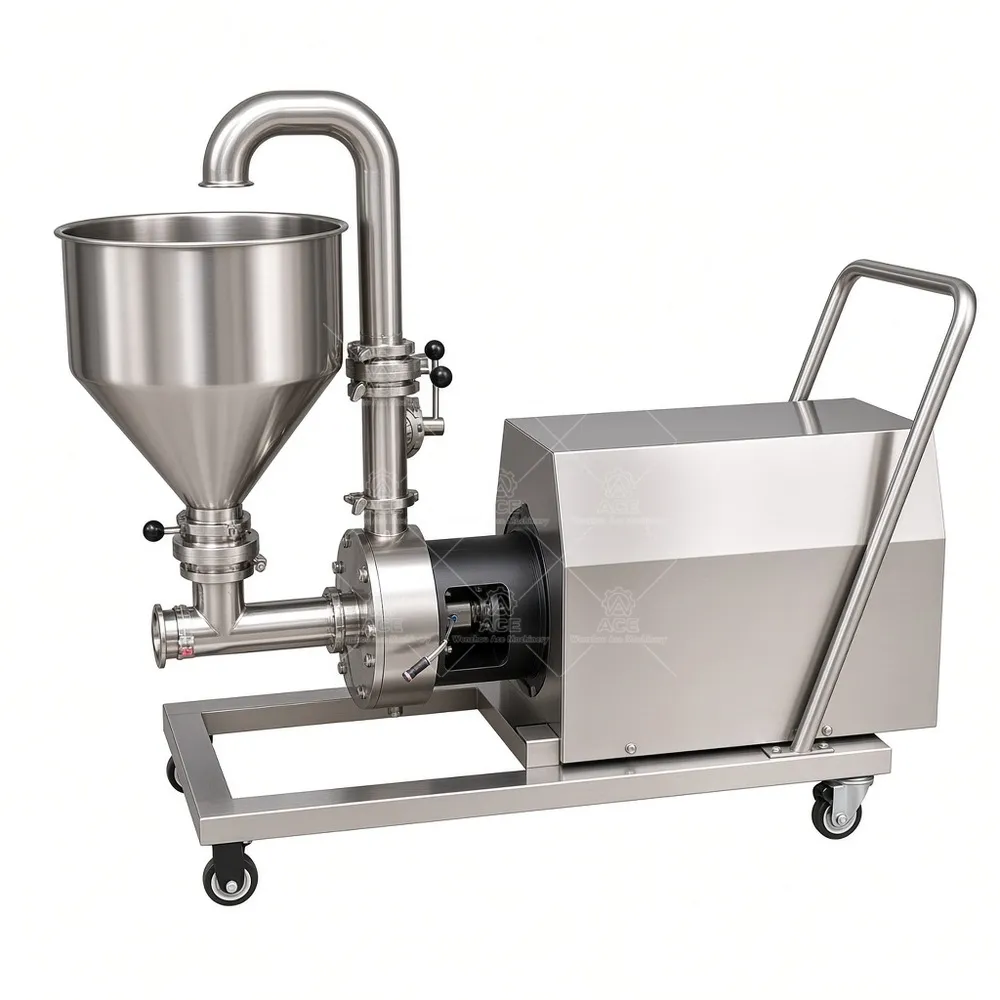

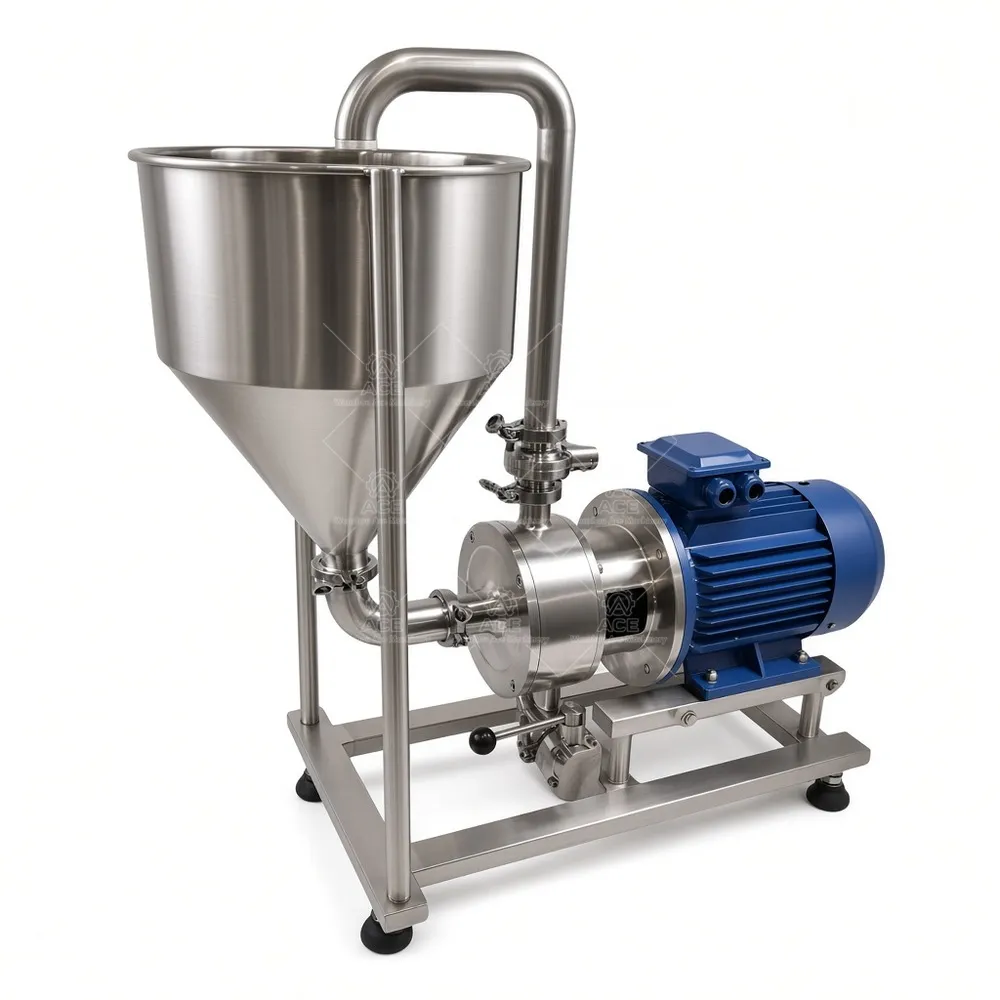

- Powder goes into the stream, not onto the surface. Feeding starch, gum, or thickener into the recirculation line wets particles individually and cuts the fisheyes that form when powder is dumped on top of a vortex.

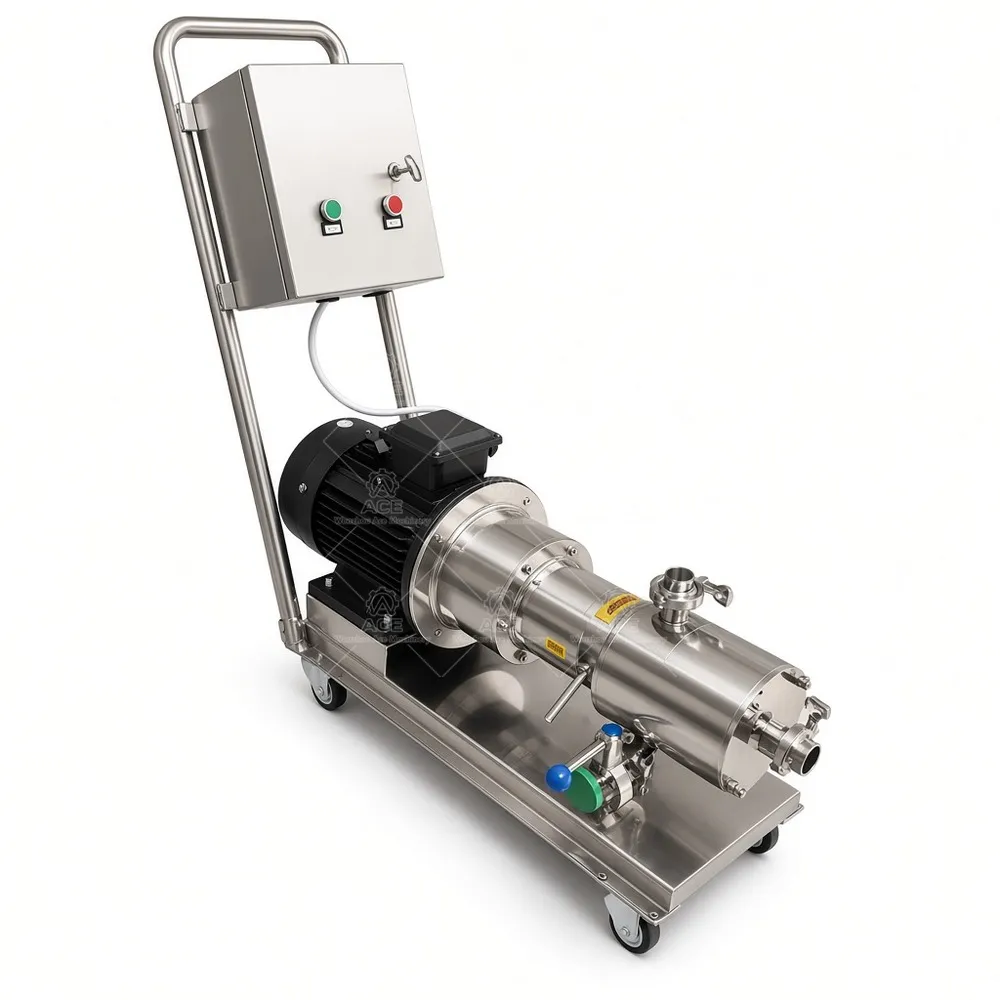

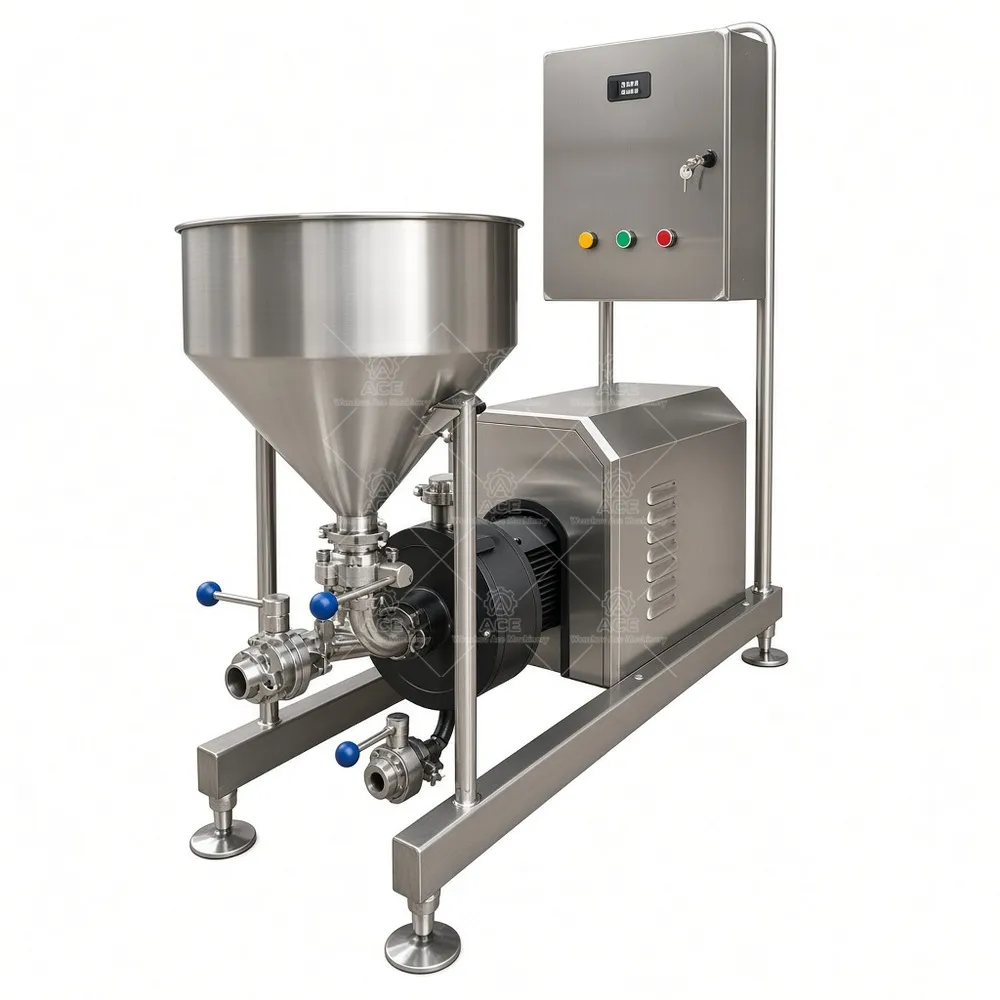

- No second vessel. The unit tees into pipework you already have; skid-mount and cart-mount options keep it movable between lines.
- Repeatable batches. Same rotor geometry, same tip speed, same result at the end of every run — shorter cycle times and less rework.
- Built for washdown and CIP. 316L contact parts, tri-clamp, DIN, or SMS connections, single or double mechanical seal with flush option.
- Configurable. Motor horsepower, VFD, elastomer choice (EPDM, FKM, PTFE), seal arrangement, and connection standard are matched to your product, not pulled off a shelf.
Where these units run
Food and beverage: sauces, dressings, mayonnaise, syrups, liquid flavor concentrates, dairy blends, and dispersion of starch, gum, and stabilizer. Cosmetics and personal care: creams, lotions, shampoos, conditioners, liquid detergent, and oil-in-water emulsions. Pharmaceutical: liquid formulations and excipient dispersion where the wetted materials and seal design suit the process. Chemical: coatings, adhesives, water-based formulations, and emulsions compatible with the selected elastomers.
Not every formulation belongs in the same configuration. High-viscosity products, abrasive slurries, and solvent-based systems each push motor and seal selection in a different direction.
Common questions
Do I still need my tank agitator? Yes. The pump circulates and shears; it is not a substitute for bulk turnover in a large vessel.
Can it run continuously? Yes, as a single-pass unit in a transfer line, or in a loop for a defined number of turnovers.
What drives the price? Motor power, seal type, contact materials, connection standard, and whether you want a VFD or a skid.
Send us your batch size, viscosity and solids content, target motor power, and local voltage and frequency, and we will come back with a configuration that fits the line rather than the other way around.
In-line high shear mixer for batch and continuous processing. A single-stage rotor–stator head disperses powders, emulsifies oils, and breaks down agglomerates inside your existing pipework or recirculation loop. 316L construction, tri-clamp connections, seal and VFD options configured to your product.
Single-stage in-line mixer
Three-stage in-line mixer
High-Shear Mixer with lift
High shear mixer
