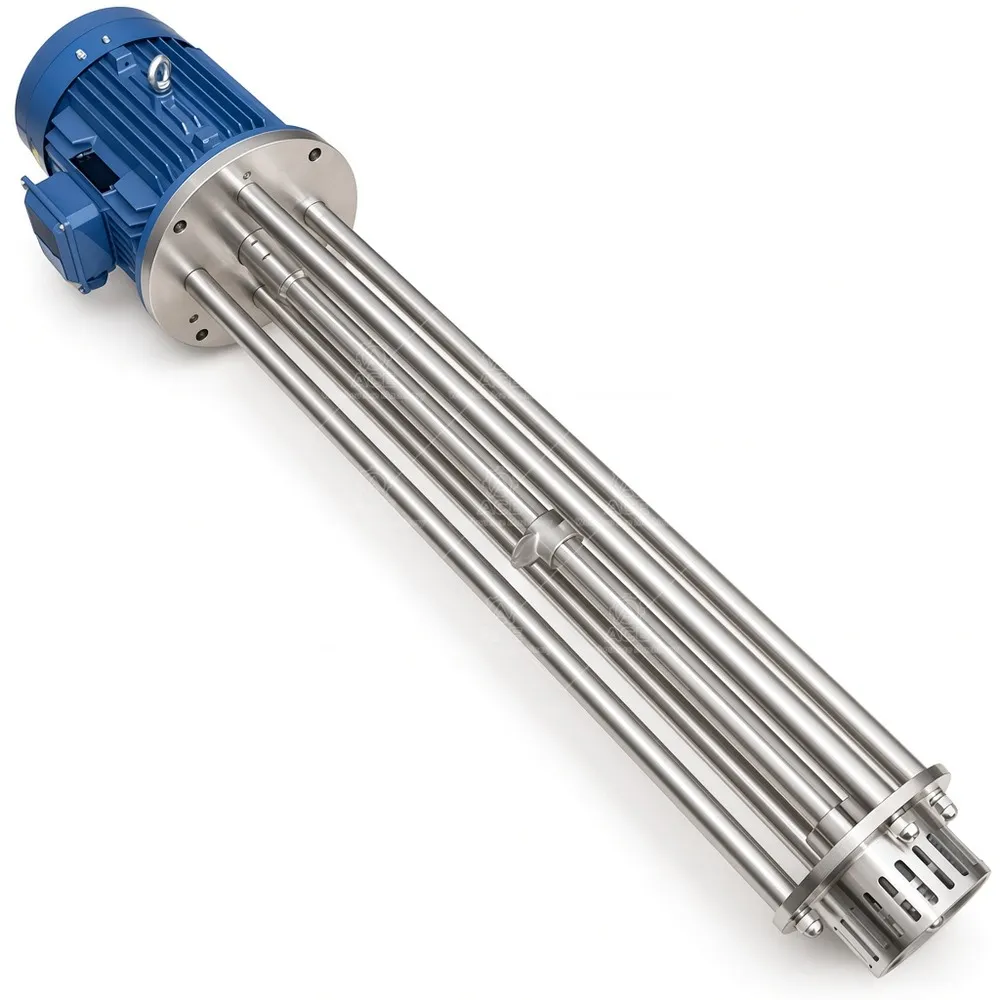

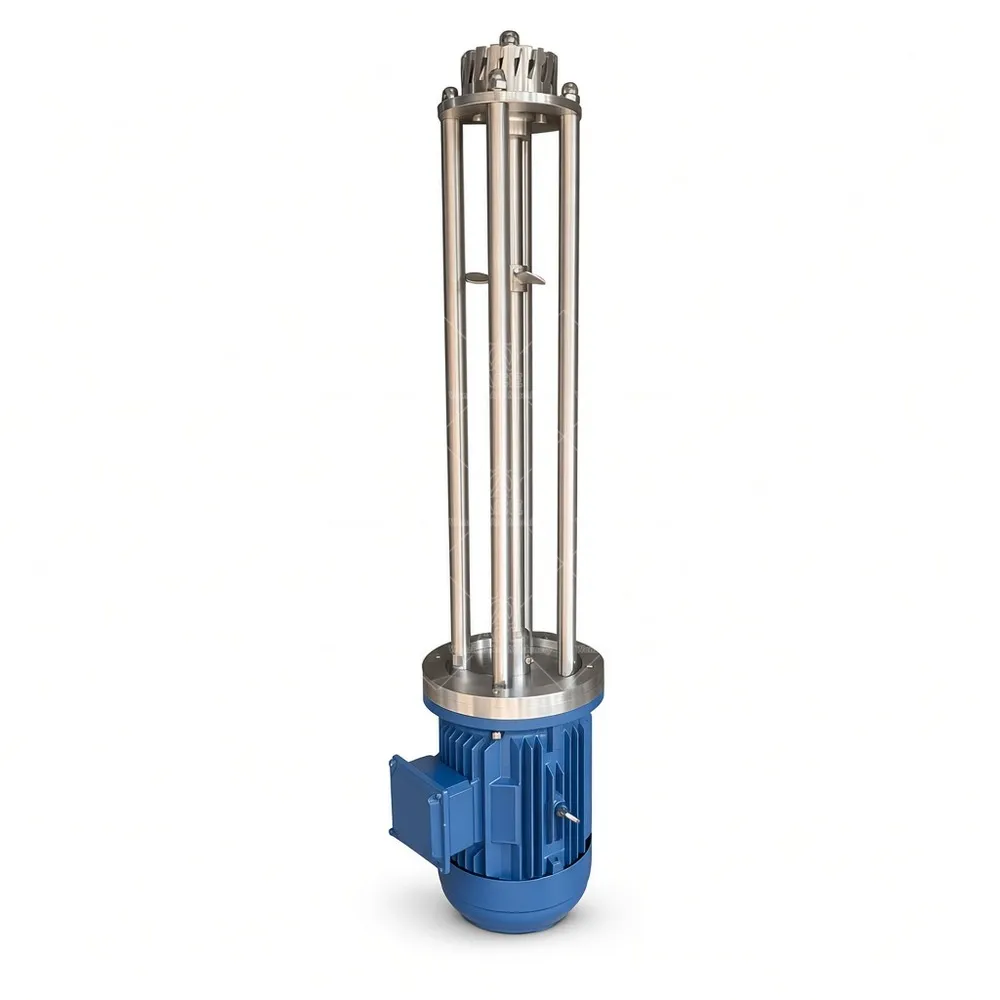

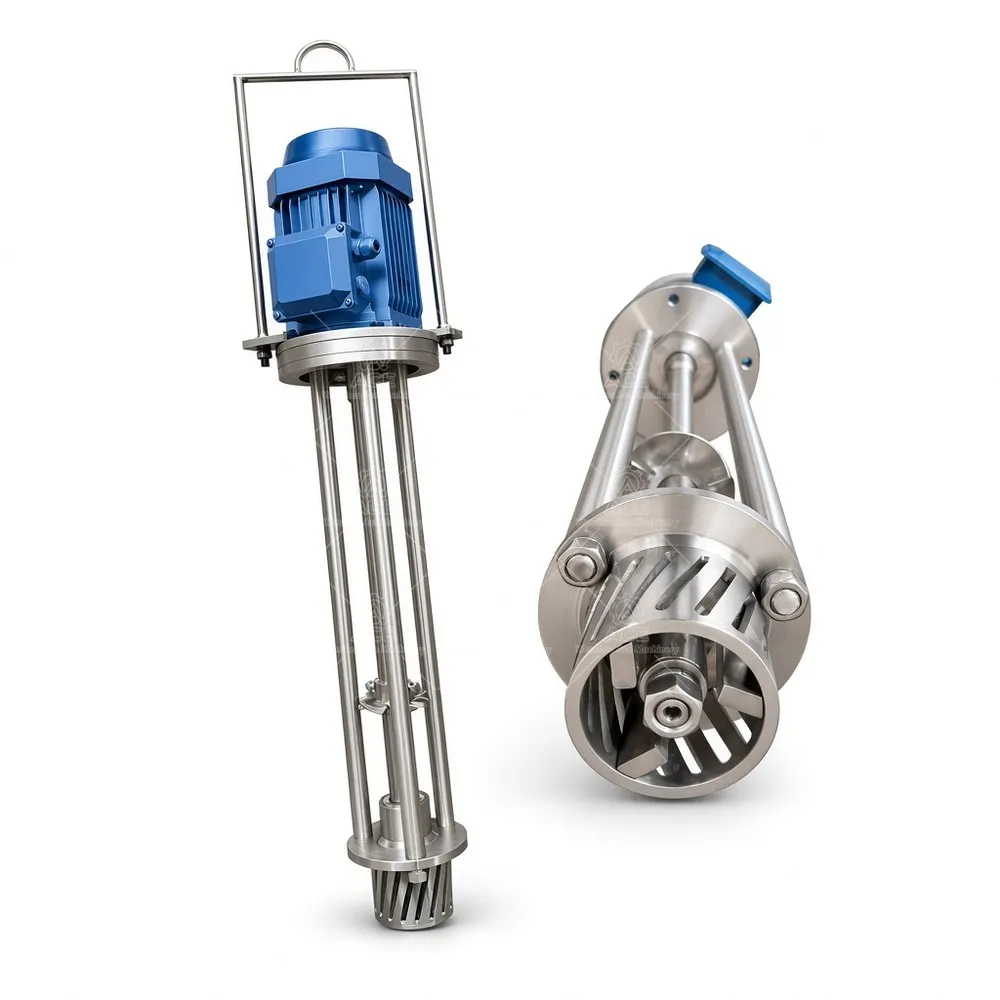

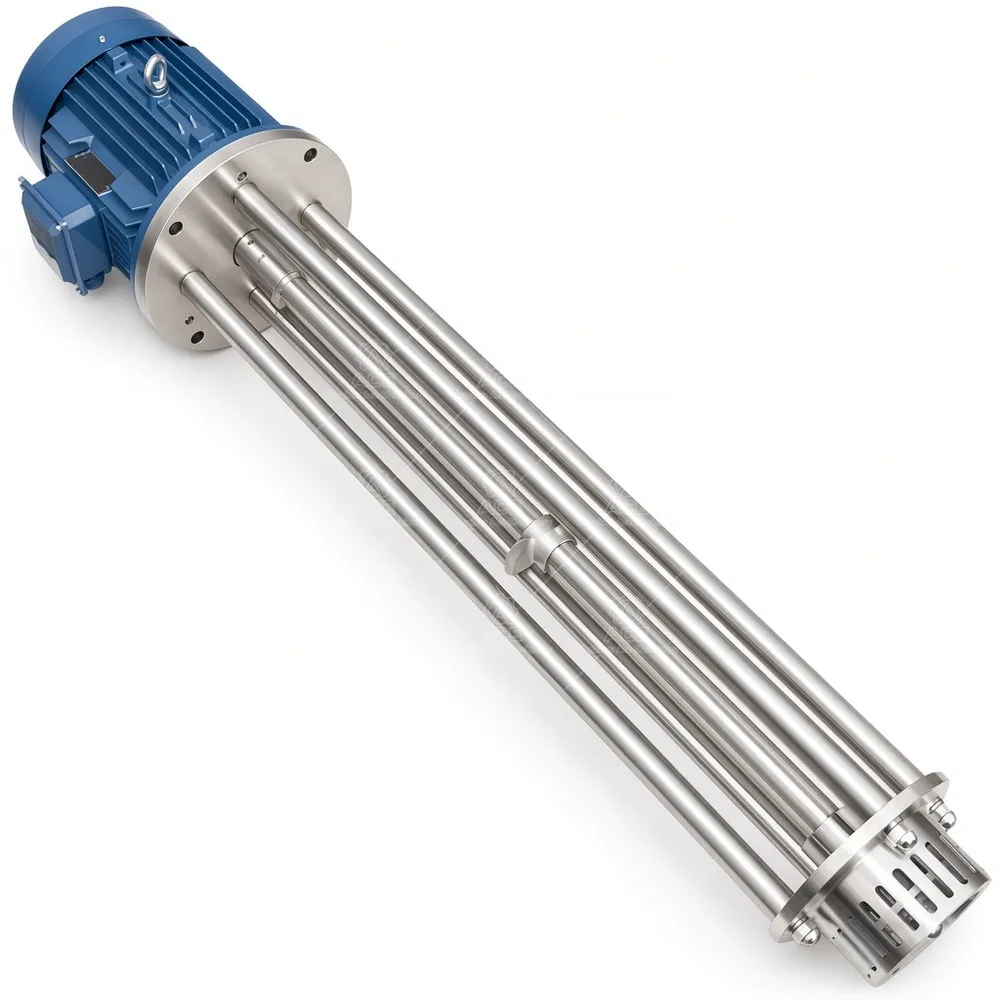

Batch High Shear Homogenizer Mixer for Cream, Xanthan & Shampoo
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $692.77 through $733.44
Guaranteed Safe Checkout

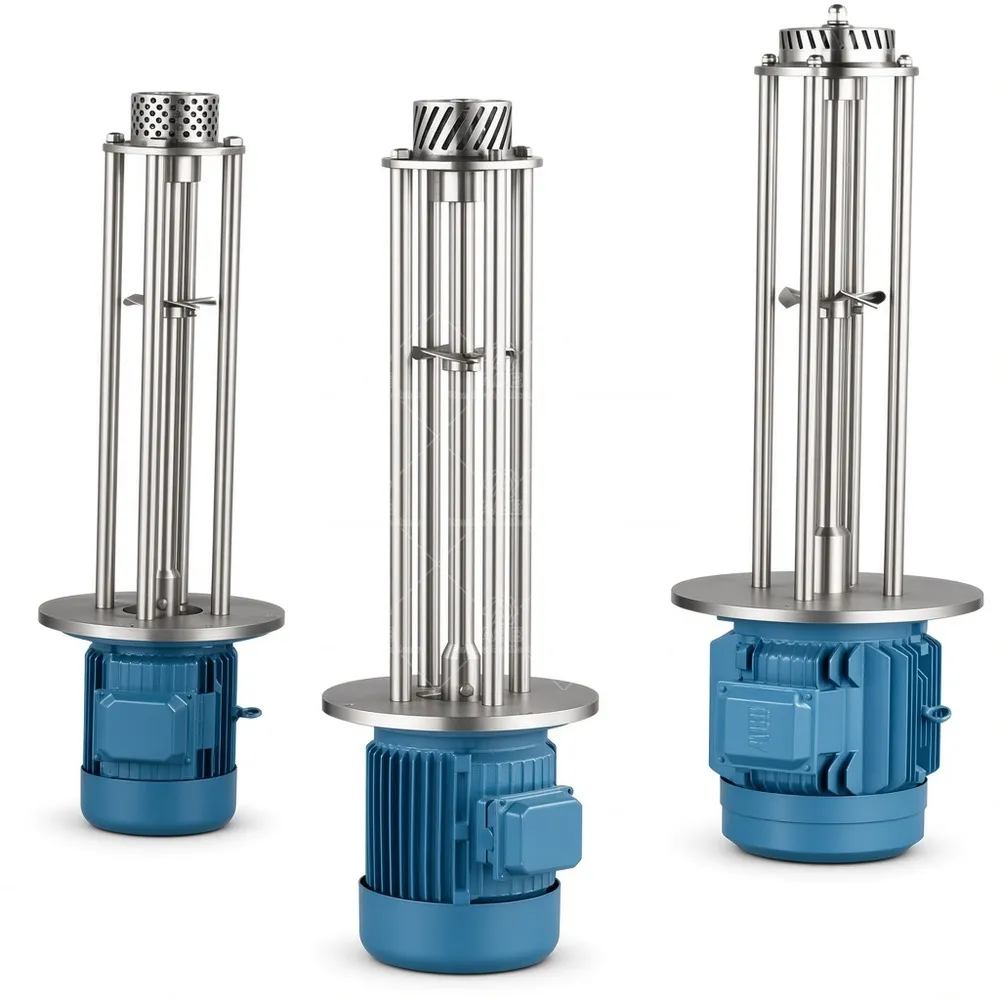

We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Built for Batch Mixing
Face cream, shampoo, and cosmetic gels often fail at the same point: xanthan gum clumps before it hydrates, silicone oil separates, and the batch never reaches a stable emulsion. A batch high shear mixer delivers controlled mechanical energy where the product needs it. Our high shear homogenizer emulsifier mixer is configured around your vessel, batch size, viscosity, and electrical supply.

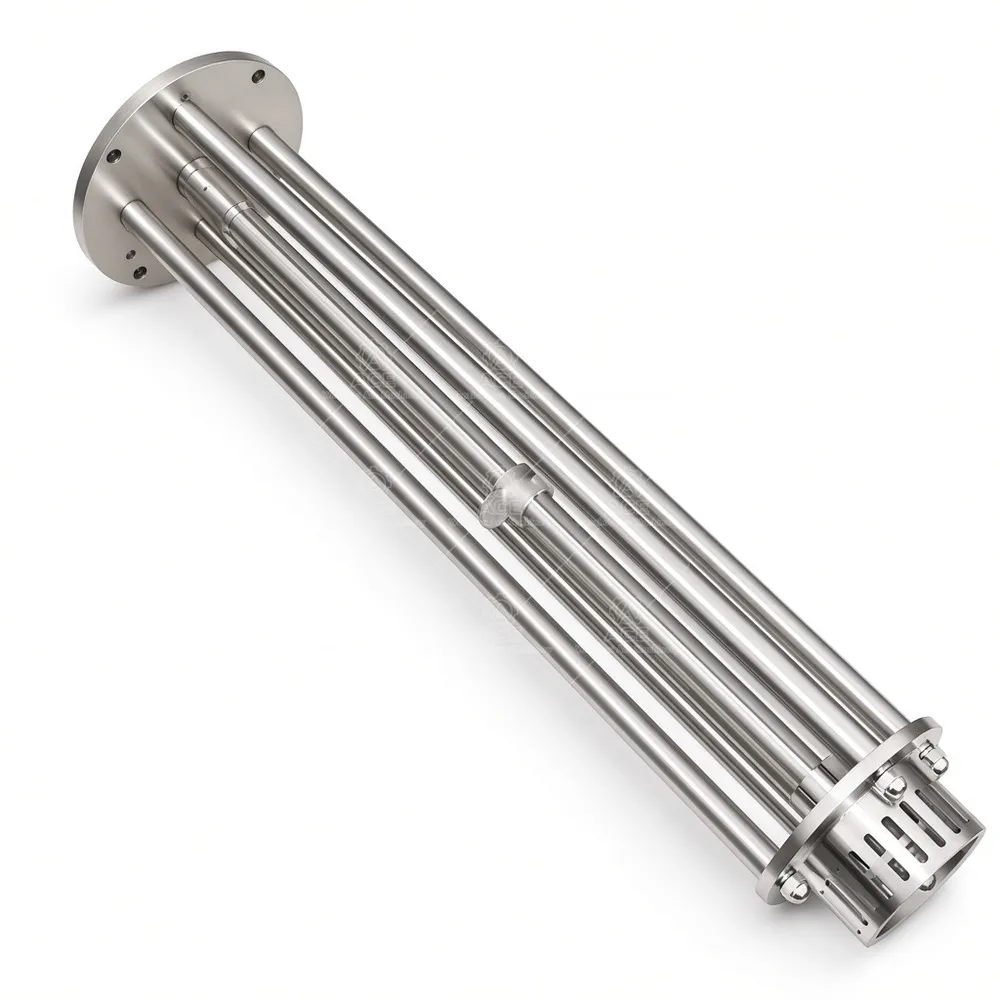

The high shear mixing head can disperse, emulsify, and help incorporate powders into liquid. For xanthan gum and similar thickeners, addition method matters as much as rpm. We review your mixing sequence, solids loading, and target viscosity before recommending a head style. For silicone oil and cosmetic emulsions, head and shaft geometry must suit the oil phase and finished viscosity. Wetted parts are 304 or 316L stainless steel.
Configuration
Speed control uses an optional VFD, adjustable from 0 to 3000 rpm according to motor and configuration. Motor power ranges from 1.5 kW to 55 kW. Voltage is confirmed from 220V to 480V, including frequency and phase. Mobile or fixed mounting is a practical decision: mobile units help with multiple vessels and pilot areas; fixed industrial high shear mixers suit dedicated lines and larger tanks. Share batch volume, viscosity, ingredients, required speed, motor power, and local electrical data so engineering can match a variable speed high shear mixer to the duty.
Applications
Food and beverage processing, cosmetics and personal care, pharmaceutical and healthcare preparations, chemical processing, and compatible paints and coatings use batch high shear mixing equipment for powder dispersion and liquid-liquid emulsification. Head, wetted material, and operating parameters depend on product viscosity, ingredients, and process requirements.
FAQ
Can one mixer handle cream and shampoo? Often, but head design, tank size, and viscosity range still need review. A unit sized for water-thin shampoo may struggle with a thick cream.
Do you provide mobile high shear mixers? Yes, when production layout calls for movement between vessels. Frames are configured to the vessel and floor conditions.
What is needed for a quote? Batch size, vessel dimensions, viscosity, solids content, target rpm, motor power, voltage/frequency/phase, and cleaning requirements.
Send your batch scale, material properties, target speed, motor power, and local electrical specifications. Ace Mixer will review the application and recommend a suitable batch high shear homogenizer configuration and quotation.
Ace Mixer builds batch high shear homogenizer emulsifier mixers for face cream, shampoo, xanthan gum dispersion, and silicone oil emulsions. Configure motor power from 1.5 to 55 kW, optional VFD speed control to 3000 rpm, 220-480V electrics, and 304 or 316L stainless steel wetted parts. Share batch size, viscosity, and electrical specs for a suitable recommendation.
Single-stage in-line mixer
Three-stage in-line mixer
High-Shear Mixer with lift
High shear mixer
