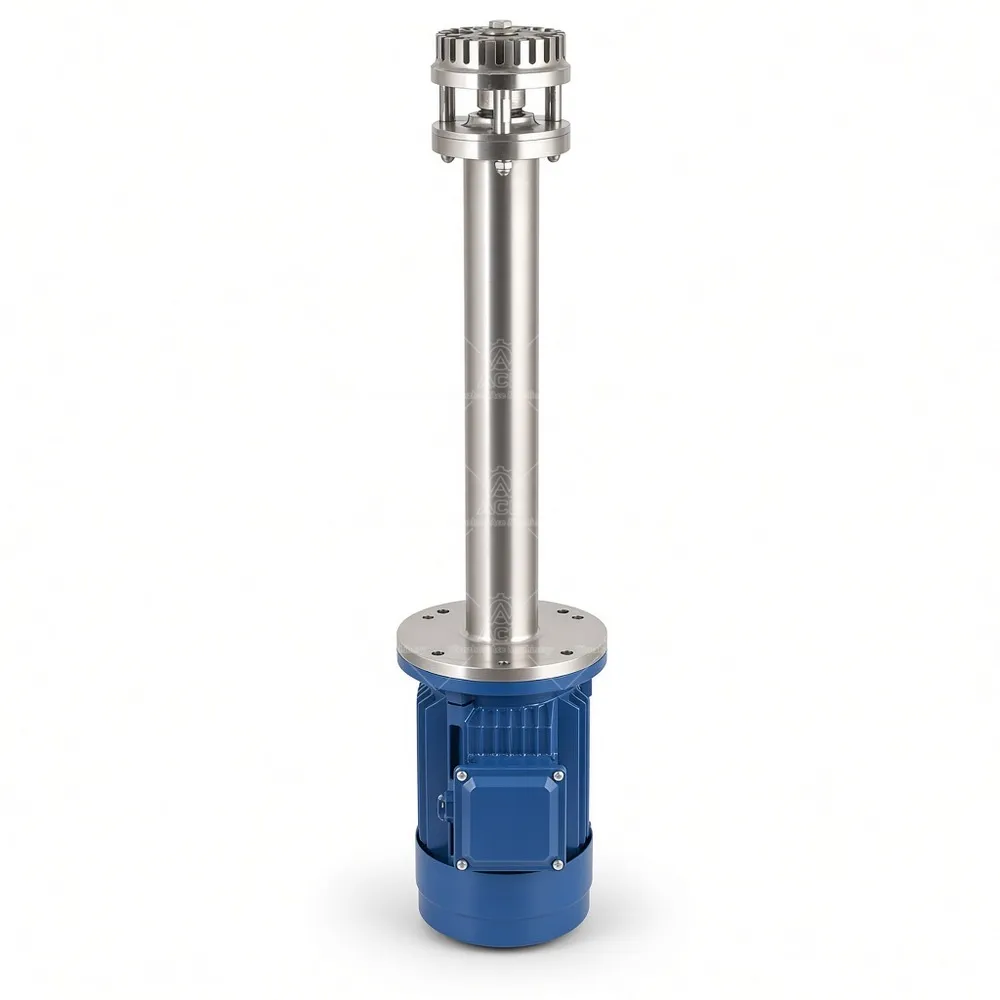

Batch High Shear Emulsifier Mixer Homogenizer for Shampoo Gel Cream
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $1,122.66 through $1,181.15
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Batch High Shear Mixing, Configured Around Your Process
We build the High Shear Emulsifier Mixer Homogenizer for plants that need repeatable emulsifying, dispersing, and powder wet-out in shampoo, shower gel, xanthan gum cream, and comparable formulations. This is a batch high shear mixer platform, not a one-size skid. The working head, motor, electrical package, and mounting arrangement are selected against your vessel, batch size, and material behavior.
For powder dispersion, the head design matters as much as rpm. Xanthan gum and similar thickeners can fish-eye if added too fast or sheared in the wrong zone. We review how you charge solids, expected viscosity, and whether the batch is atmospheric or enclosed before recommending a head and tank interface. Liquid-liquid emulsification follows the same rule: oil phase, surfactant system, and target droplet size drive the rotor-stator choice.
Specifications and Options
- Speed control: optional VFD, adjustable from 0 to 3,000 rpm depending on motor and configuration.
- Motor power: 1.5 kW to 55 kW, sized to batch and viscosity.
- Voltage: 220V to 480V; voltage, frequency, phase, and electrical configuration confirmed for the destination market.
- Materials: 304 or 316L stainless steel for wetted parts; contact materials specified to product requirements.
- Functions: high-speed shear, dispersion, emulsification, and powder incorporation into liquids.
- Mounting: fixed or mobile high shear mixer arrangements available.
Customization covers motor power, voltage, control system, mixing head, and structural details. We do not publish flow rates, shear gaps, or batch limits without a defined product and vessel, because those numbers would mislead.
Where This Equipment Fits
Food and beverage processing, cosmetics and personal care, pharmaceutical and healthcare preparations, chemical processing, and compatible paints and coatings all use industrial high shear mixing equipment. A stainless steel high shear mixer with VFD may suit one line; a mobile high shear mixer may suit another where vessels are shared. The correct head, material, and operating parameters depend on viscosity, ingredients, and process requirements.
Procurement FAQ
How do I choose a batch high shear mixer? Start with batch size and vessel dimensions, then viscosity and solids loading. Those set motor power and head type. Confirm voltage, frequency, and phase before quotation. Decide whether a fixed or mobile unit fits your room layout and cleaning routine.
Can one unit handle shampoo and xanthan gum cream? Often yes, but not with the same head and procedure. Thickener addition and viscosity build require different control than a low-viscosity surfactant blend.
What information do we need for a recommendation? Send batch size, vessel drawing, material viscosity, solids and oil phases, target rpm range, required motor power, and local electrical specifications. Ace Mixer will confirm the configuration and quote accordingly.
Ace Mixer builds batch high shear emulsifier mixers for shampoo, shower gel, xanthan gum cream, and similar formulations. VFD speed control, 1.5–55 kW motors, 220–480V options, and 304/316L wetted parts are configured to your vessel, viscosity, and batch size. Share process details for a practical recommendation.
