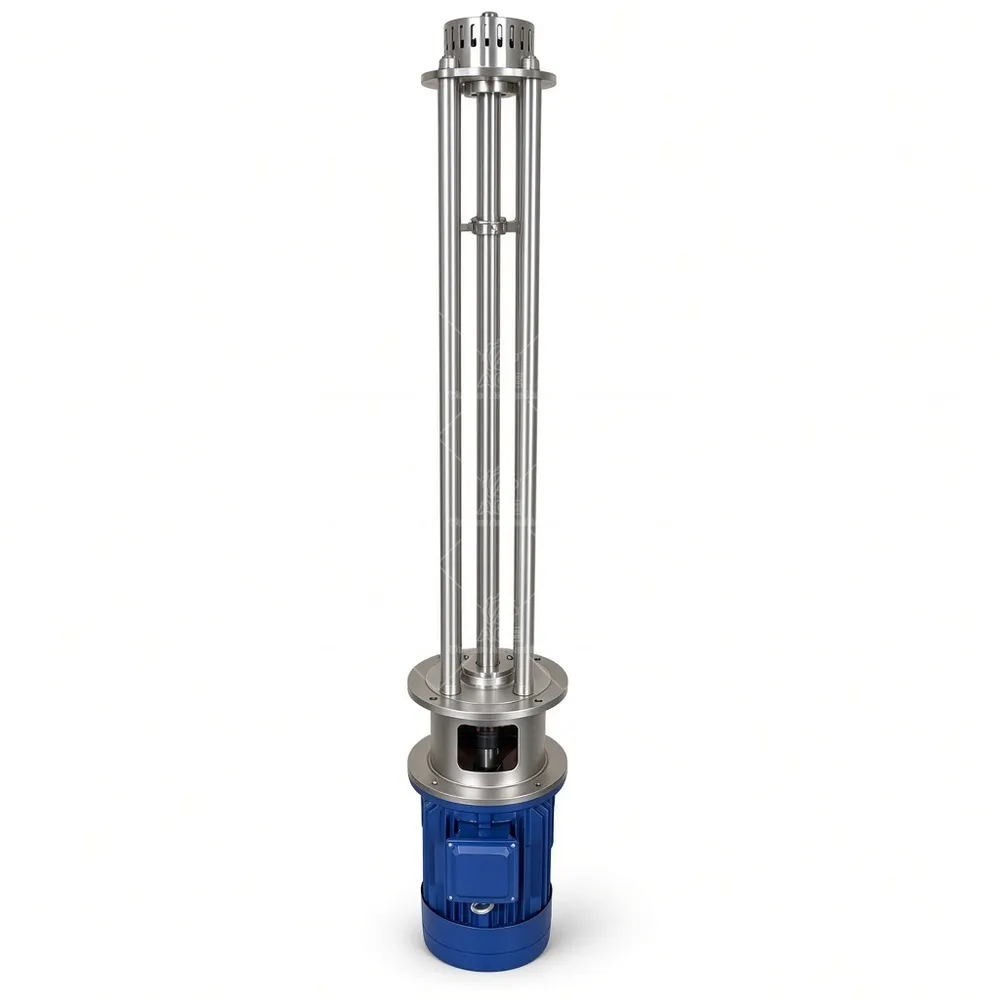

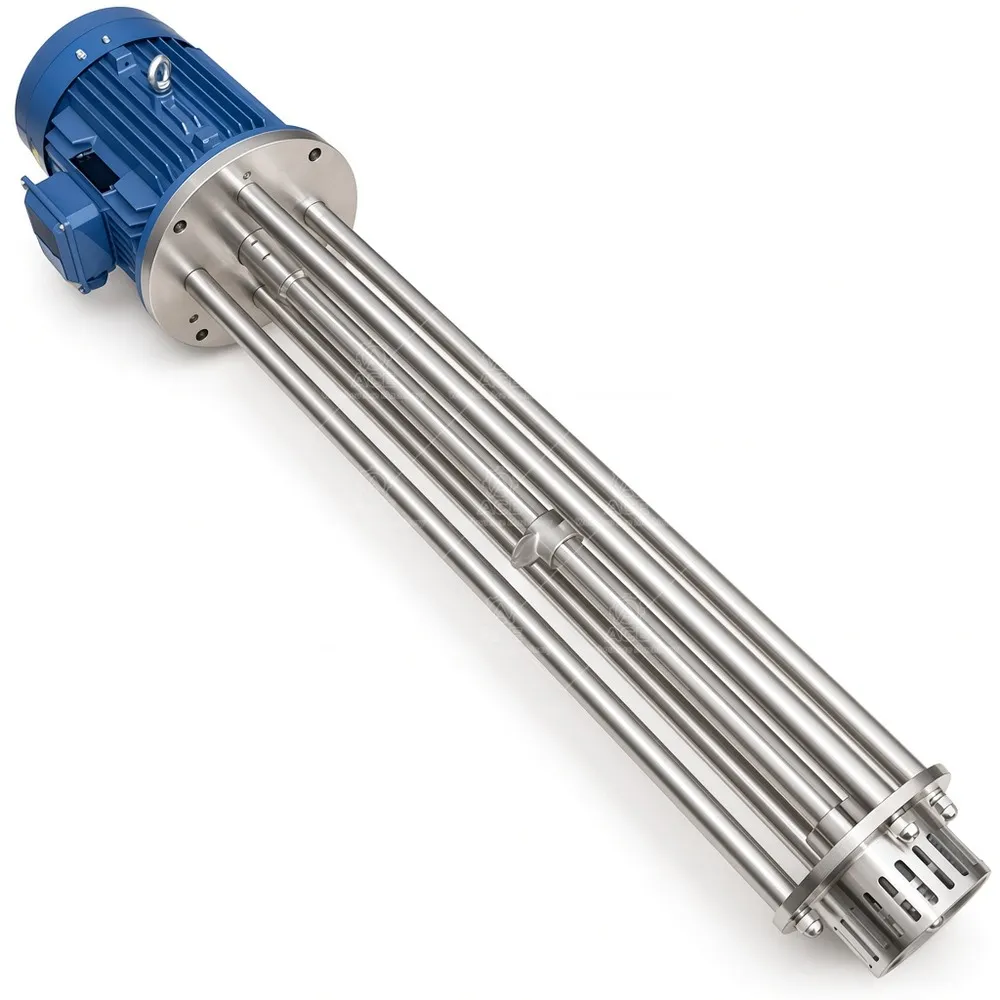

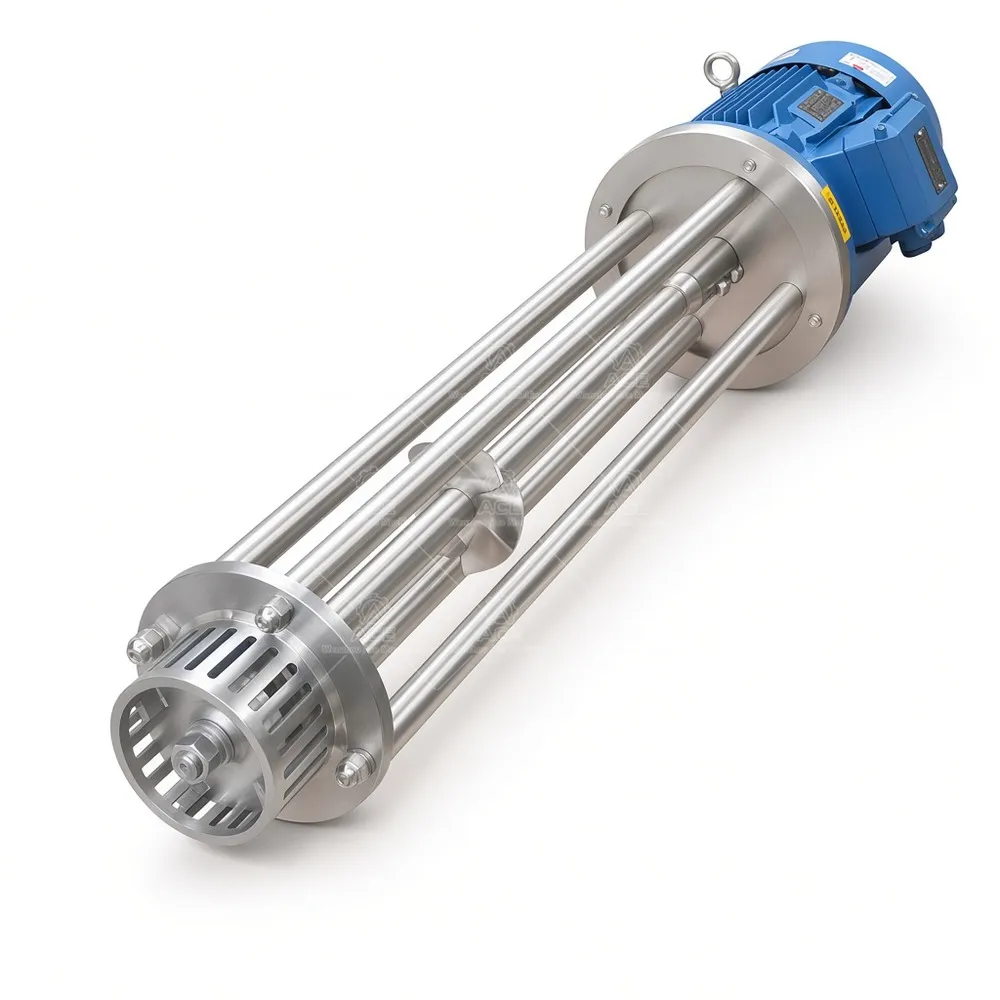

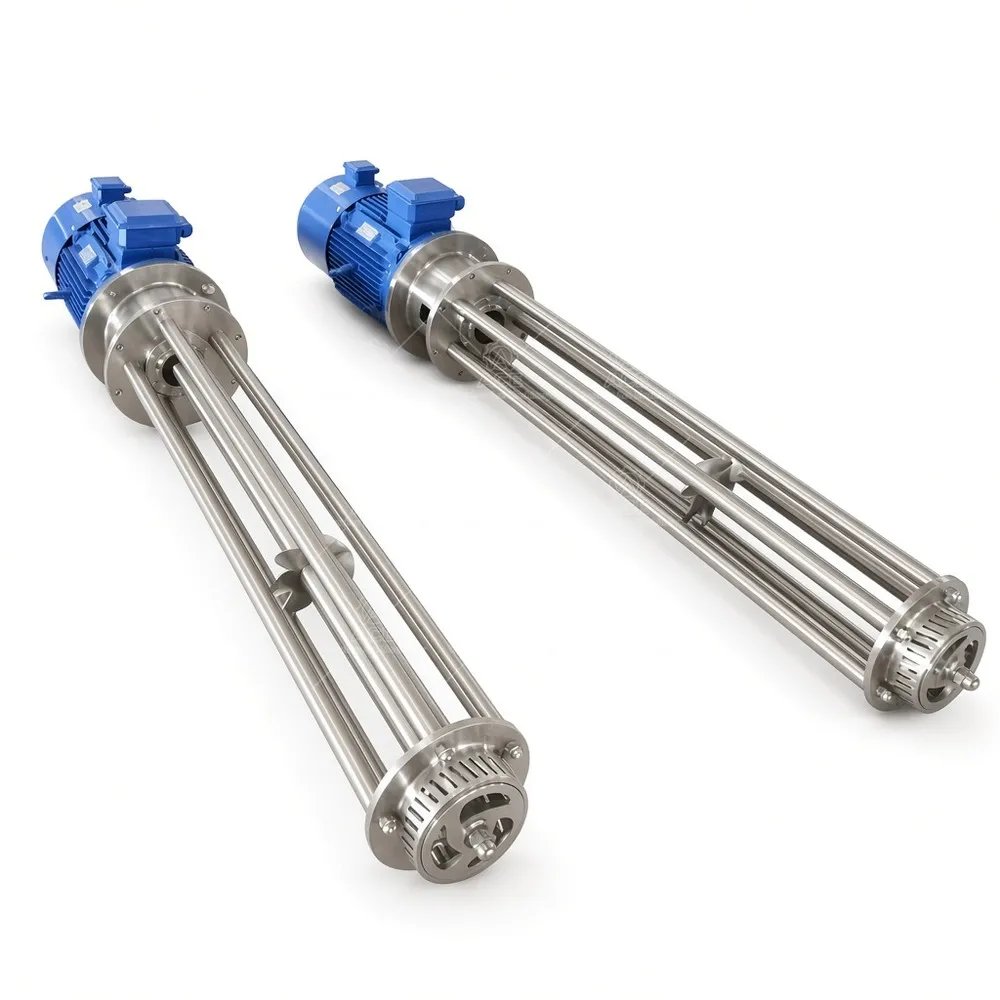

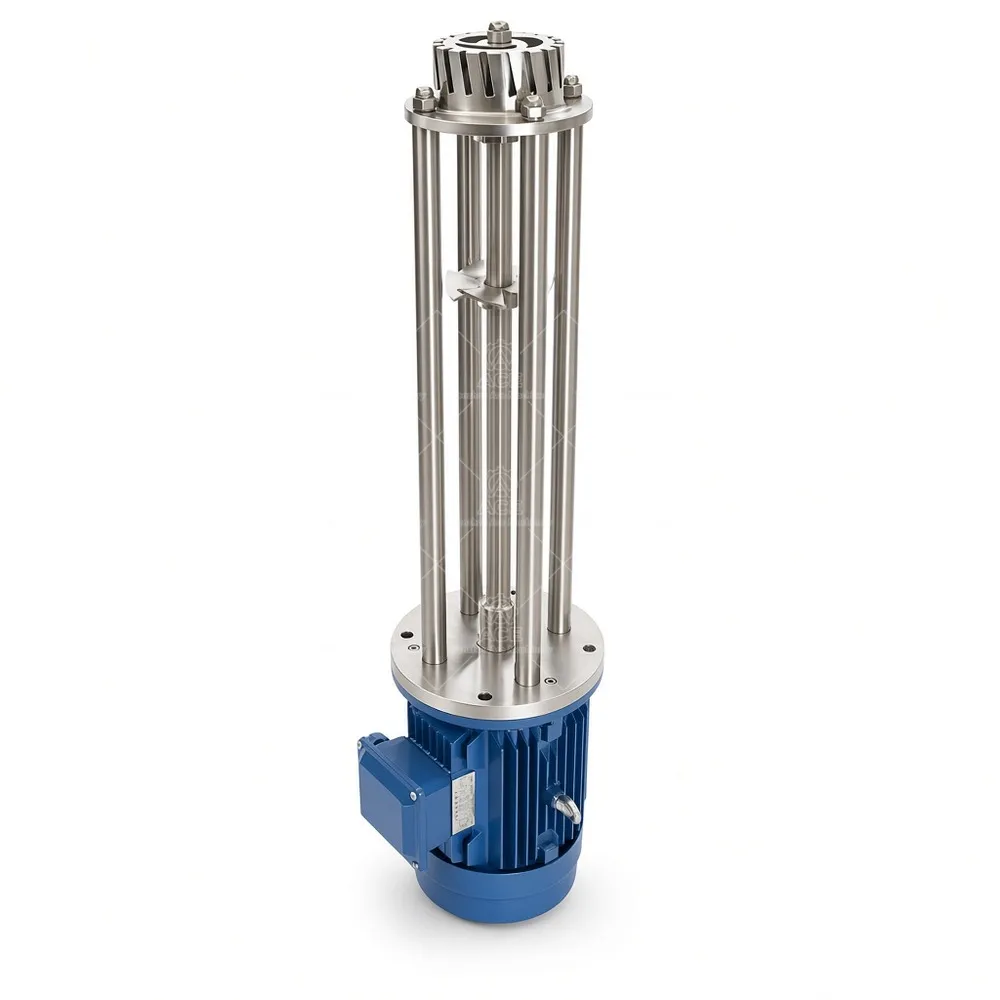

Bulk High Shear Emulsifier Mixer Homogenizer for Shampoo, Shower Gel, Xanthan
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $781.61 through $836.87
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Batch high shear mixing for gels, creams, and xanthan systems
This batch high shear mixer suits shampoo, shower gel, cosmetic creams, and xanthan-thickened products where powders must wet out without lumps. The rotor-stator head combines high-speed shear, dispersion, and emulsification in one tank. A VFD gives adjustable speed from 0 to 3000 rpm depending on motor and configuration. We size the unit around batch volume, viscosity, and vessel design.
Motor power runs 1.5 kW to 55 kW. Voltage is confirmed for the plant: 220V to 480V, with frequency, phase, and electrical configuration set before build. Wetted parts can be 304 or 316L stainless steel. Shaft length, head style, tank mounting, and controls are specified against the product and vessel.
Configuration details
- Speed control: VFD, 0–3000 rpm depending on motor and configuration
- Motor power: 1.5–55 kW
- Voltage: 220–480V, with local frequency and phase confirmed
- Contact material: 304 or 316L stainless steel
- Functions: high shear, dispersion, emulsification, powder incorporation
- Mounting: fixed or mobile high shear mixer arrangement
For a batch high shear mixer, tank data comes first. Send working volume, batch size, vessel diameter, and whether the head mounts top-entry, bottom-entry, or on a mobile stand. Viscosity and solids loading drive motor size and head choice. Powder addition rate matters for xanthan and other hydrocolloids that fish-eye if added too fast.
Applications
Food, cosmetic, pharmaceutical, chemical, and coatings plants use this industrial high shear mixer for compatible emulsions, dispersions, and powder wet-out. Confirm 316L and surface requirements early for pharmaceutical and healthcare work. A variable speed high shear mixer with VFD helps during scale-up because shear can be adjusted without changing hardware. Head design and contact material depend on viscosity, ingredients, and process target.
FAQ
Can one unit handle shampoo and xanthan gum? Often, yes, but the head and motor are selected around the highest viscosity and powder addition method. Do not size only on finished viscosity.
What should we send for a quote? Batch size, tank dimensions, viscosity range, solids and powder load, target rpm, motor kW preference, voltage, frequency, phase, and contact material. Ace Mixer can then recommend a suitable configuration. Send those details to request a recommendation and quote.
A configurable batch high shear emulsifier mixer for cosmetics, shampoo, shower gel, and xanthan dispersions. Choose 304 or 316L contact parts, 1.5–55 kW motor, VFD speed control, and 220–480 V electrical configuration. Ace Mixer builds units to match batch size, viscosity, powder addition, and plant layout. Send process details for a recommendation.
Single-stage in-line mixer
Three-stage in-line mixer
High-Shear Mixer with lift
High shear mixer
