Electric Lift High Shear Agitator Emulsifying Mixer Dispersing Machine
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,413.29 through $3,595.31
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM

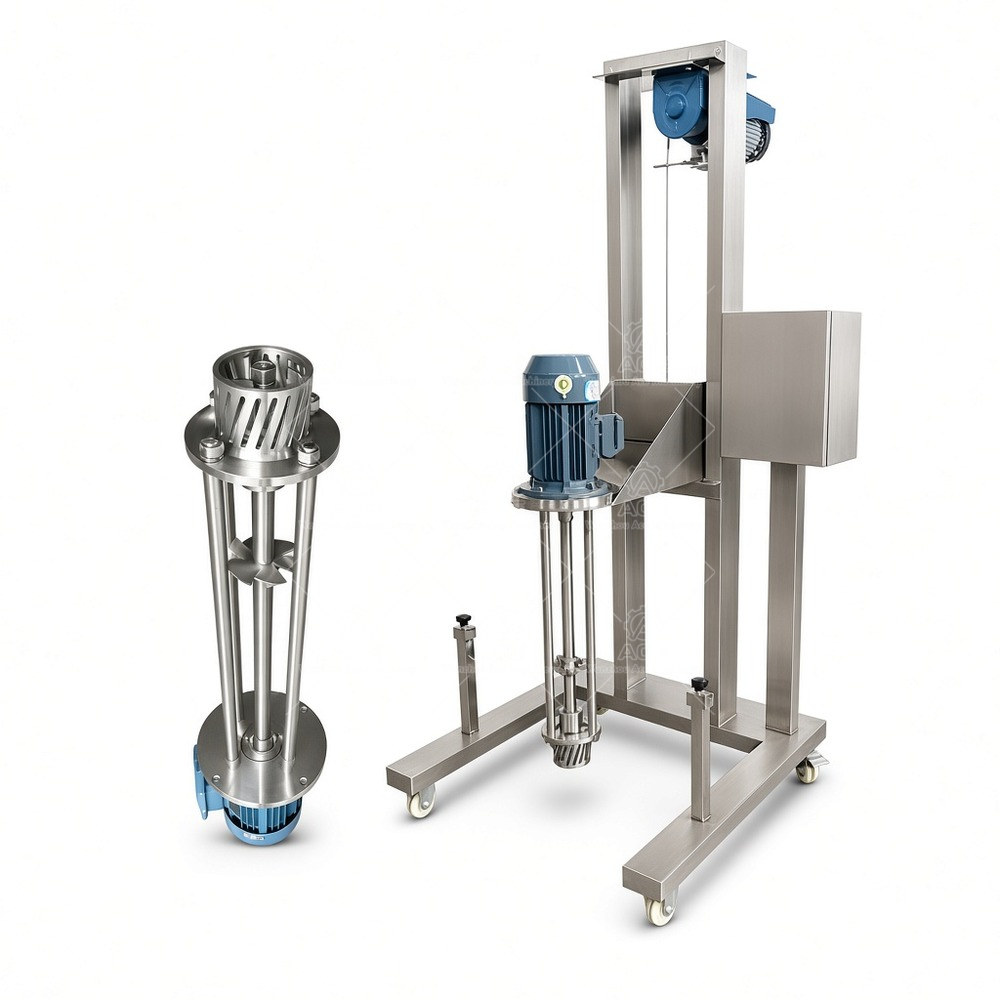

We build the electric lift high shear agitator for plants that need to move between vessels without dedicated floor space. The unit rolls on casters, so you can position it at a mixing tank, a portable container, or a processing station as your batch schedule changes. That mobility matters when you run multiple products and don\’t want a fixed mixer sitting idle.
Speed control comes from an optional VFD, giving you 0 to 3000 rpm depending on the motor and configuration. You can match shear rate to the product instead of running a fixed-speed motor. Motor power ranges from 1.5 kW to 11 kW, and we confirm voltage, frequency, and phase for your market—220V to 480V are common. The mixing head handles high shear, dispersing, emulsifying, and powder incorporation into liquids. For stainless steel high shear mixer requirements, we specify contact parts in stainless steel or other materials based on your product.
Customization is normal, not an exception. Motor power, voltage, control system, mixing head style, and other details are selected around your process. We don\’t publish batch capacity or shear gap numbers because they depend on your viscosity and solids loading. Instead, we ask for the batch size, vessel dimensions, product viscosity, and ingredient characteristics before recommending a configuration. That approach avoids oversizing the motor or undersizing the shaft.
For a batch high shear mixer, consider how the unit will be used. A mobile high shear mixer suits plants with changing vessel locations, while a fixed unit may be better for a dedicated line. The mixing head design and contact parts need to match your product\’s corrosiveness and cleaning requirements. Electrical service—voltage, frequency, phase—must be confirmed before shipment. We also discuss whether you need a VFD or a simpler control.
Applications include food and beverage processing, cosmetics and personal care, pharmaceutical and healthcare preparations, chemical processing, and paints or coatings. Powder dispersion and liquid-liquid emulsification are common tasks. The right mixing head, materials, and operating parameters depend on product viscosity, ingredients, and process requirements.
FAQ
Can you customize the voltage and motor power? Yes. We build to your local electrical specifications and process power needs.
What information do you need for a recommendation? Batch size, material properties, target speed, required motor power, and your local voltage/frequency/phase.
Send us those details—batch size, material characteristics, target rpm, motor power, and electrical specs—and we\’ll recommend the right configuration for your plant. Ace Mixer manufactures industrial high shear mixing equipment with configurable options.
The electric lift high shear agitator from Ace Mixer is a mobile batch mixer with VFD speed control, 1.5–11 kW motor options, and customizable contact parts. It handles emulsifying, dispersing, and powder incorporation for food, cosmetics, pharma, and chemical processing. Tell us your batch size, viscosity, and electrical specs for a tailored recommendation.
