Movable High Shear Homogenizer Mixer for Cosmetic Cream Emulsifier
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $2,026.93 through $3,138.00
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM

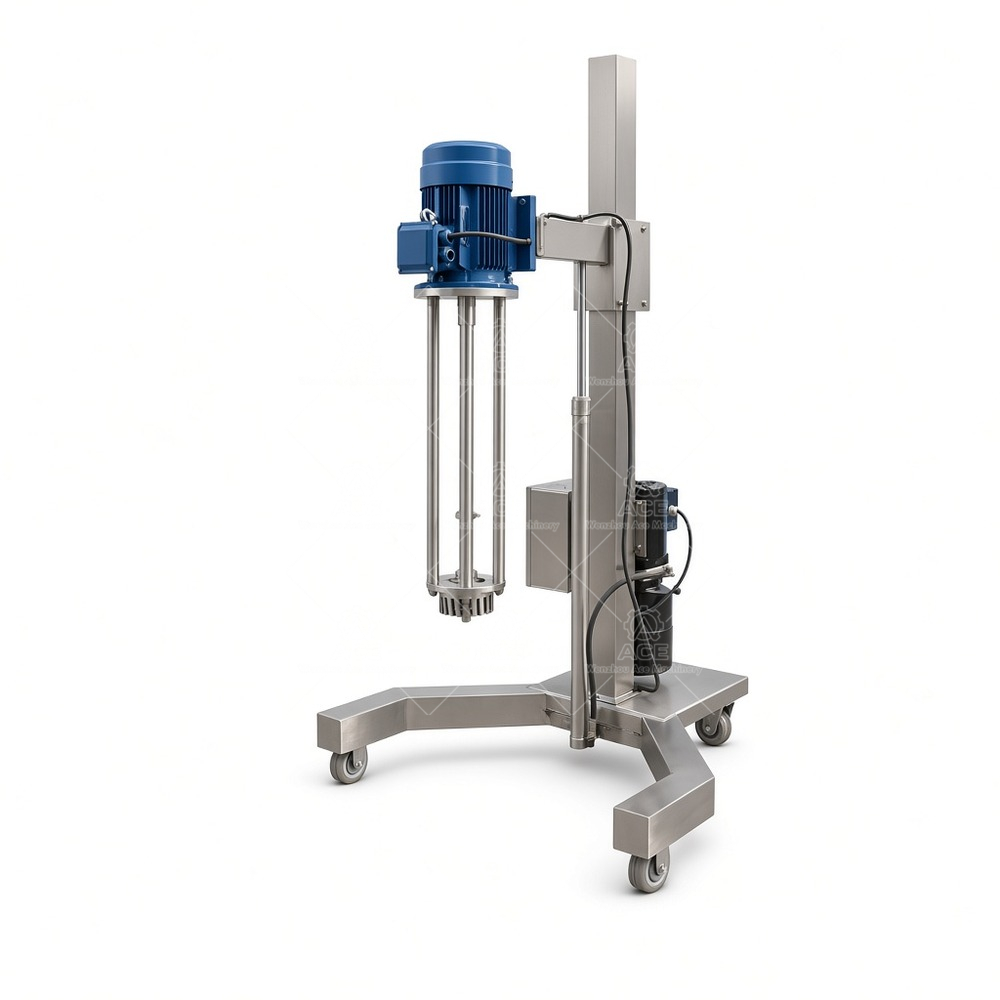

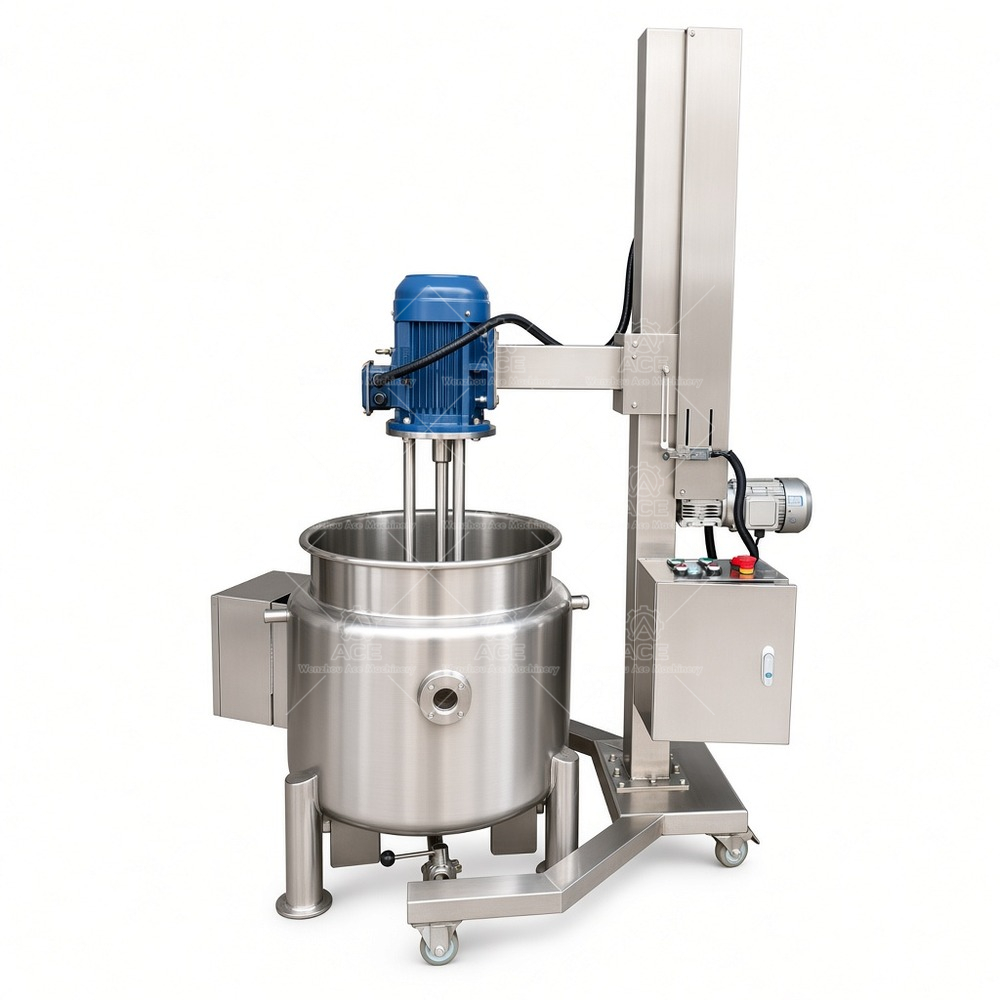

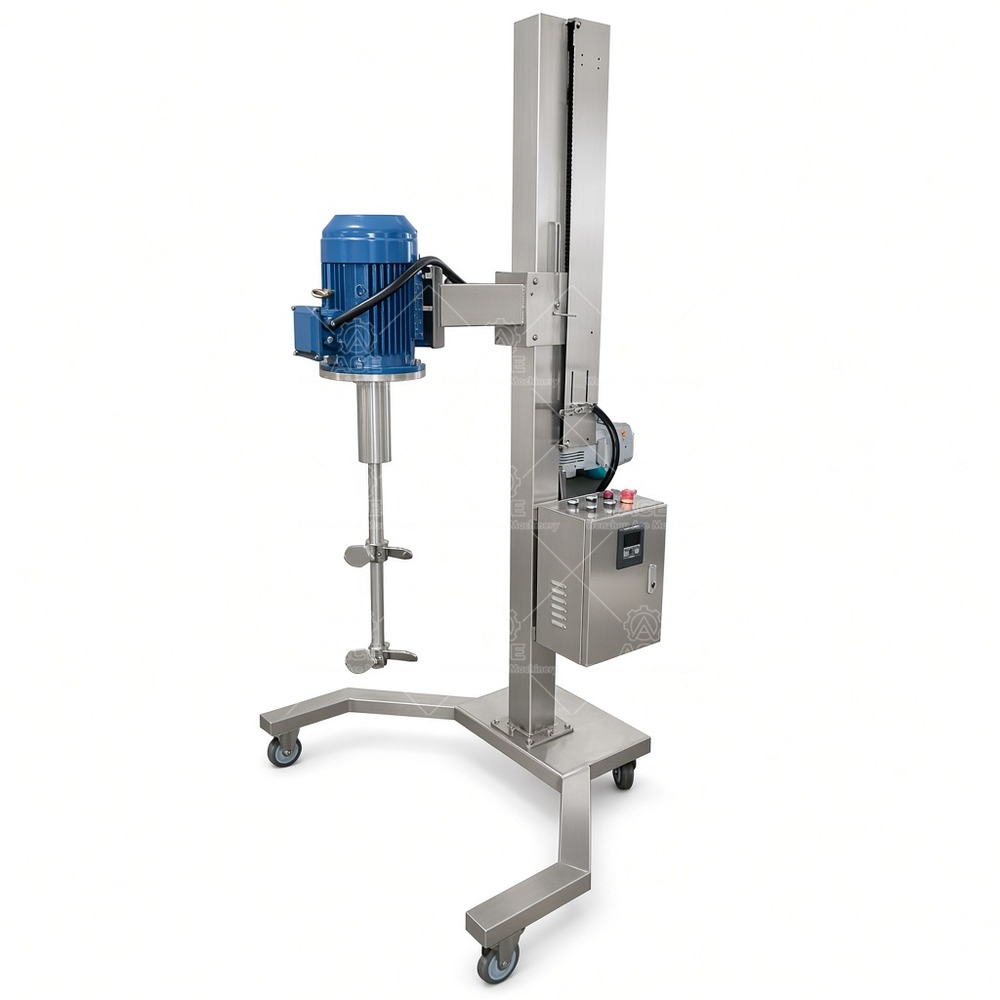

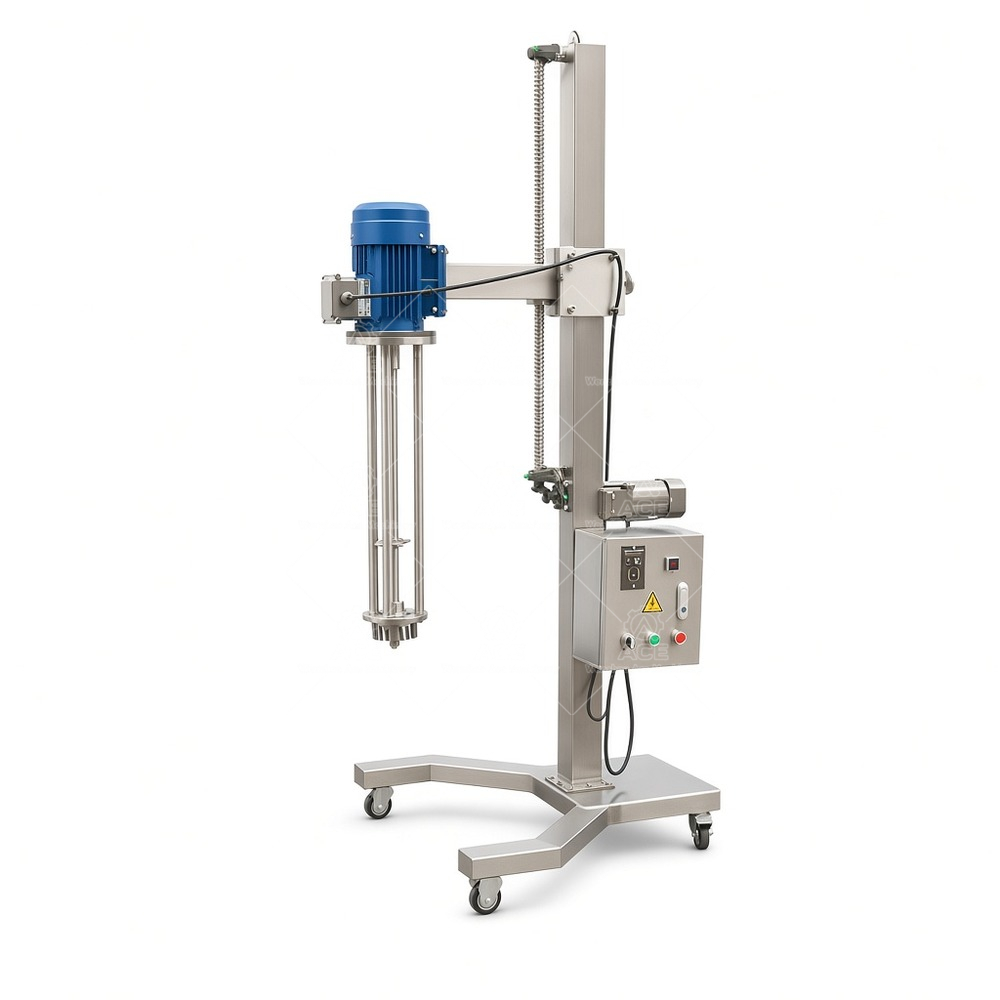

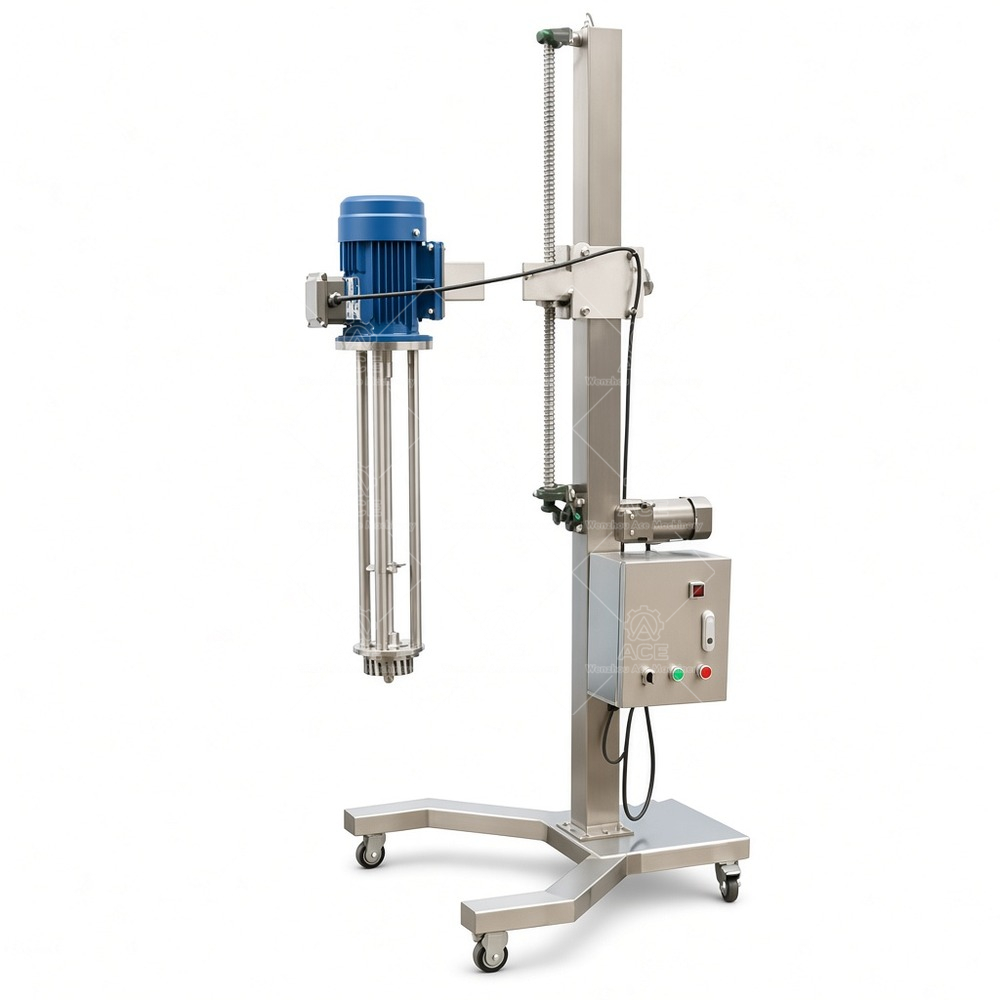

Movable Batch High Shear Mixer for Creams and Emulsions
This movable industrial high shear homogenizer mixer lets one unit serve several vessels, rooms, or trial batches without permanent tank modification. The lifting frame can be electric or pneumatic, bringing the rotor-stator head to the correct working position. We configure motor power, voltage, controls, shaft length, and head style around your batch size and container geometry.
As a mobile high shear mixer, layout decides whether it works well. Check floor condition, door widths, vessel height, and utility access before confirming the frame. A variable speed high shear mixer with VFD lets operators adjust shear without changing hardware. Motor power runs from 1.5 kW to 11 kW depending on viscosity and batch demand. Electrical options span 220V to 480V; frequency, phase, and local electrical details are confirmed before build.
Applications
Food and beverage processing, cosmetic and personal care creams, pharmaceutical and healthcare preparations, chemical products, paints, and compatible coatings use batch high shear mixing. The same high shear mixing equipment can handle powder dispersion into liquids and liquid-liquid emulsification when the head and speed are selected correctly. Contact parts can be specified in stainless steel and other materials to match the formulation and cleaning routine. Review washdown and CIP needs early.
What to Confirm Before Quoting
- Batch size and container height, diameter, and bottom clearance.
- Product viscosity, solids content, and powder wet-out needs.
- Target speed range and motor power.
- Voltage, frequency, phase, and control preference.
- Rotor-stator head, shaft length, and contact material.
- Mobile frame or fixed installation, including lifting method.
Suitable head design, materials, and operating parameters depend on viscosity, ingredients, and process requirements. We do not quote cycle times or shear gaps without reviewing the product.
FAQ
Can one mixer serve multiple tanks? Yes, if vessel openings, lifting height, and floor route suit the movable frame.
Electric or pneumatic lifting? Base this on plant utilities, lifting force, and operator preference. Frame configuration is checked against head and shaft weight.
Can you supply stainless steel contact parts? Yes. Share the formulation and cleaning chemicals so the stainless steel high shear mixer is configured correctly.
What is needed for a recommendation? Batch size, viscosity, target rpm, motor power, powder addition method, and local electrical specifications.
Send those details to Ace Mixer for a practical recommendation on your batch high shear mixer, high shear mixer for powder dispersion, or cream emulsifier duty.
A movable batch high shear homogenizer mixer for cosmetic creams, food, pharmaceutical, chemical, and coating emulsions. Electric or pneumatic lifting, 1.5 to 11 kW motor options, VFD speed control, and 220 to 480V configurations are matched to batch size, viscosity, container geometry, and local electrical requirements. Contact Ace Mixer with process details for a practical configuration and quote.
