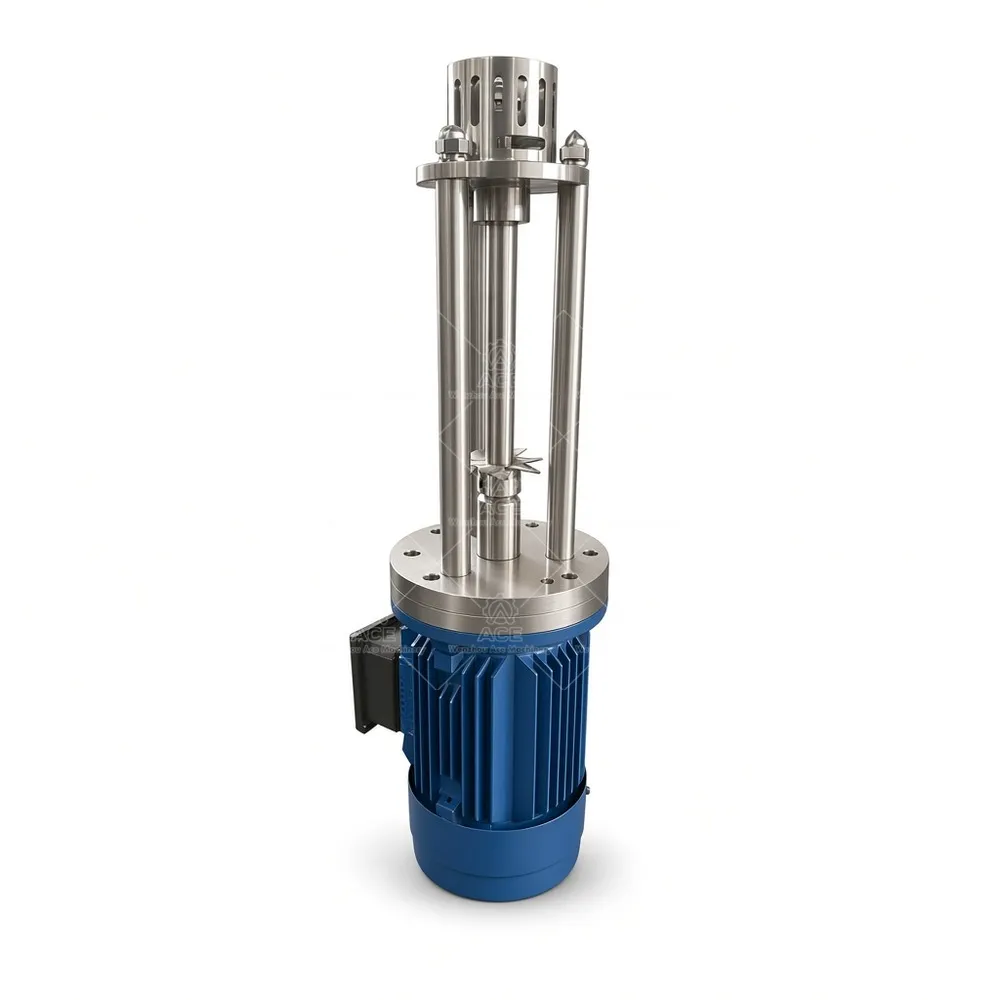

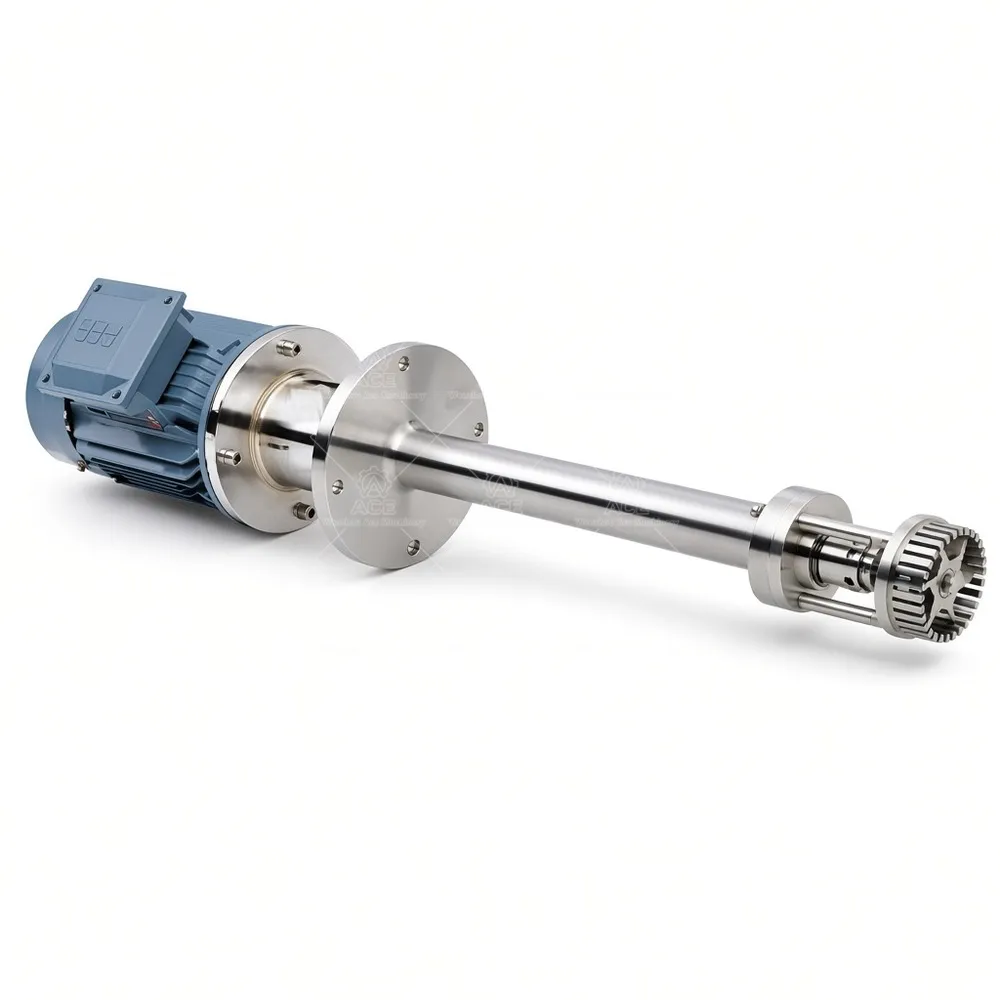

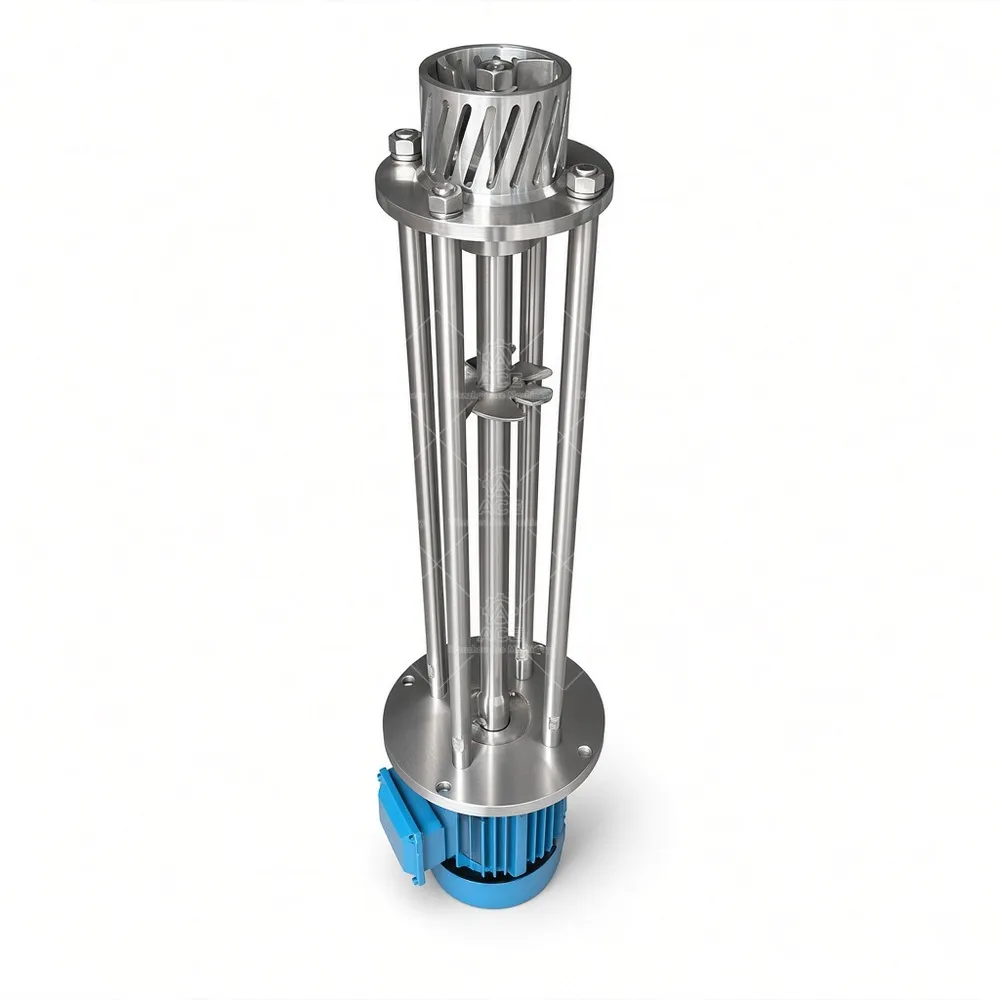

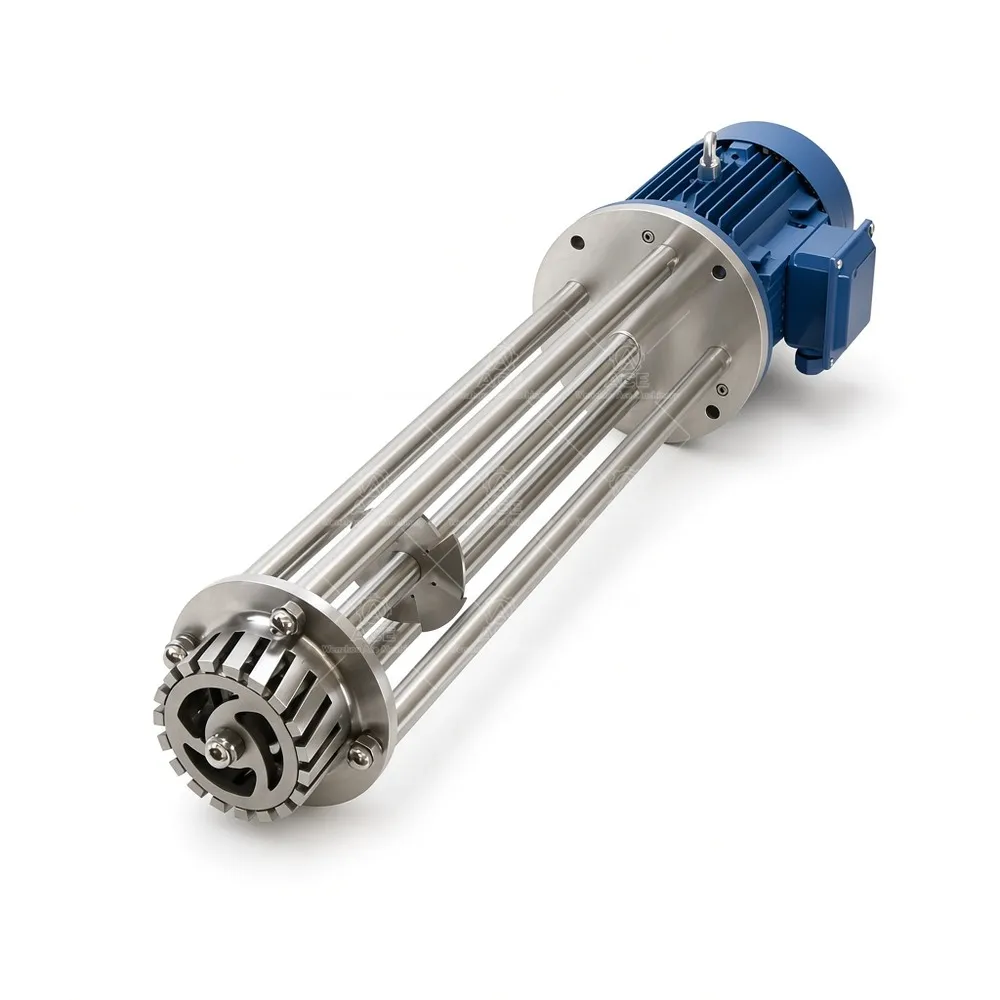

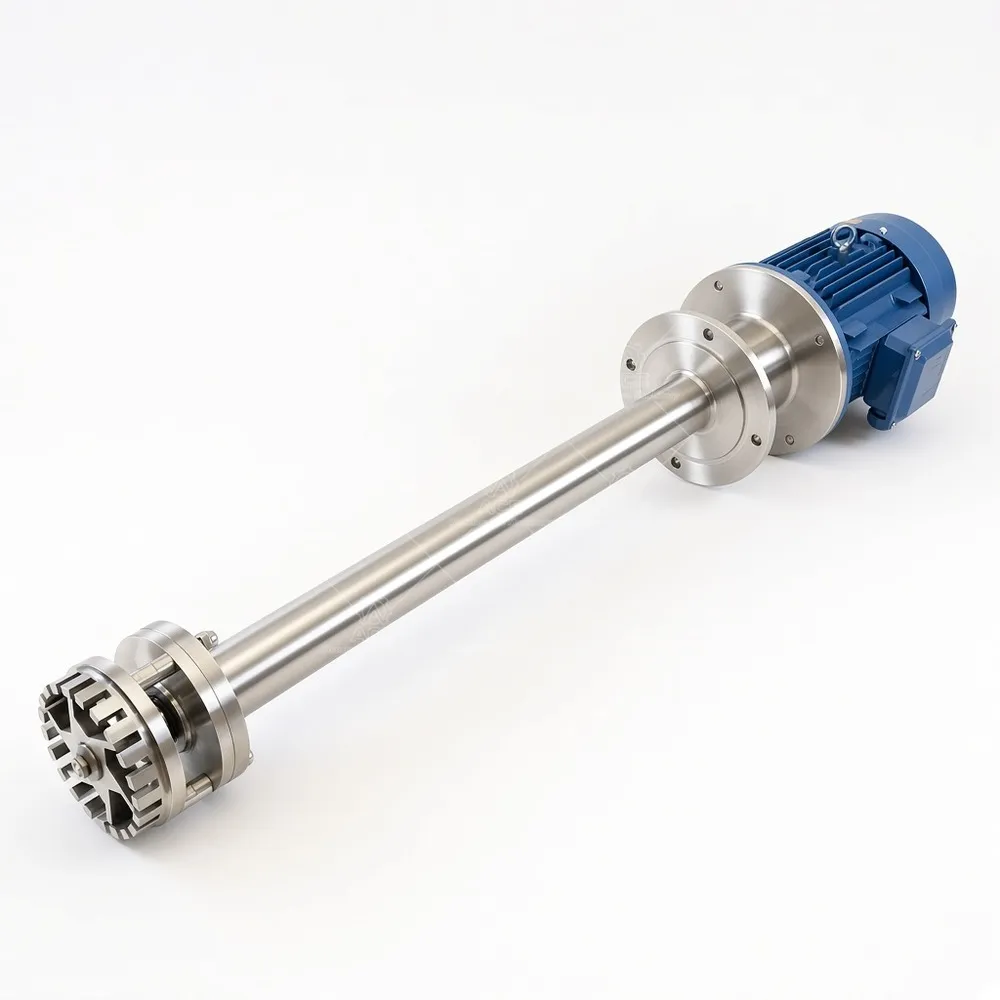

Batch High Shear Homogenizer Mixer for Cream Shampoo Gel Mayonnaise
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $741.85 through $806.39
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Built for batch emulsification and powder wet-out

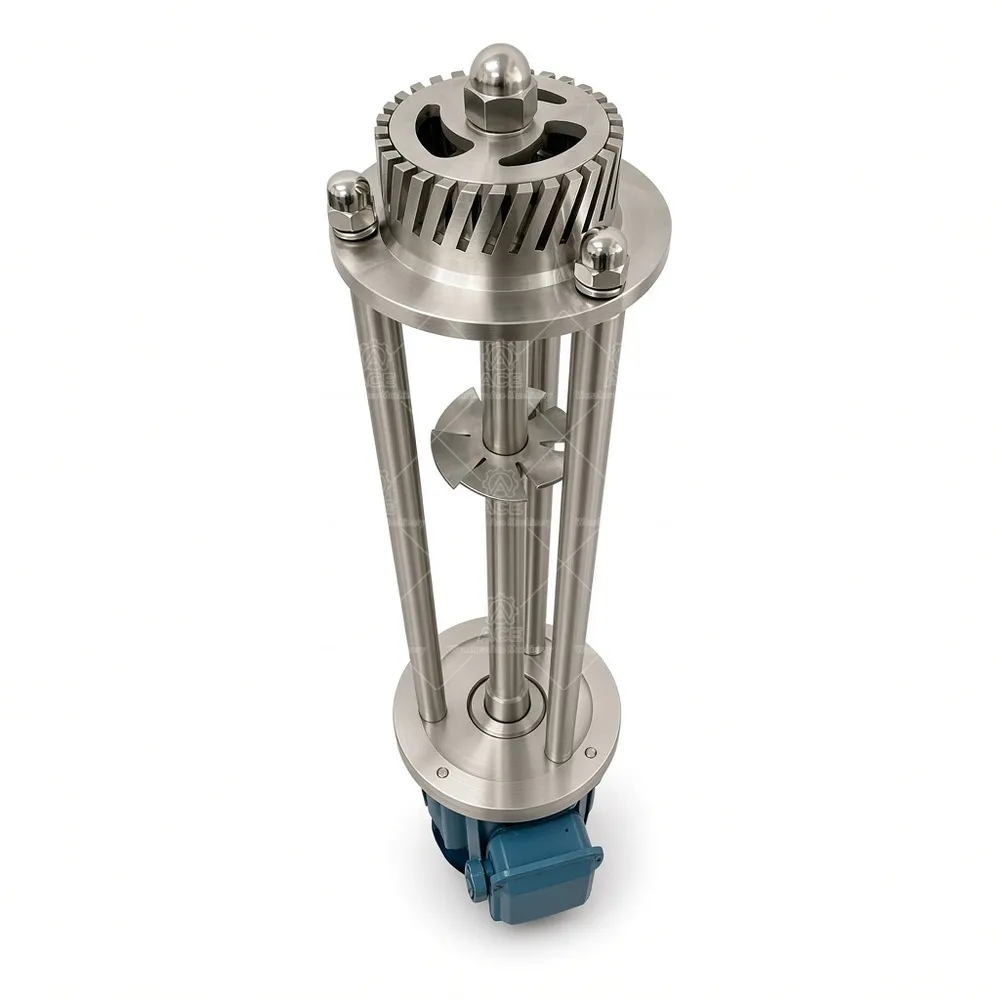

We build this batch high shear mixer for plants that need repeatable emulsification, dispersion, and powder incorporation in one tank. It suits cosmetic creams, shampoos, shower gels, mayonnaise, and xanthan or carbomer dispersions where lump-free hydration matters. The rotor-stator head creates high shear in the product zone; actual performance depends on viscosity, batch size, and head selection.
Configurable drive and wetted parts
Motor power ranges from 1.5 kW to 55 kW. A variable speed high shear mixer can be supplied with a high shear mixer with VFD for adjustable speed control from 0 to 3000 rpm, depending on motor and configuration. Voltage is confirmed for your market from 220V to 480V, including frequency and phase. This stainless steel high shear mixer can be supplied with wetted parts in 304 or 316L. Tell us about aggressive ingredients or cleaning regimes so material selection is not left to guesswork.
For pilot rooms and multi-tank production, a mobile high shear mixer can be easier to move between vessels. Fixed mounting may suit dedicated lines with repeat batch recipes. Both arrangements use the same selection logic: batch volume, vessel geometry, product viscosity, and required tip speed.
Where this industrial high shear homogenizer fits
- Food and beverage processing: sauces, mayonnaise, stabilizer slurries
- Cosmetics and personal care: creams, shampoos, shower gels, gels with carbomer or xanthan
- Pharmaceutical and healthcare preparations: compatible liquid and semisolid mixing
- Chemical processing and compatible coatings: dispersion and liquid-liquid emulsification
- Powder dispersion: high shear mixer for powder dispersion of gums and thickeners
Choosing a batch high shear mixer starts with the batch size and container dimensions. The head must be sized for the product viscosity and solids load. Too much motor for a small batch can create vortexing and aeration; too little power leaves agglomerates. Share your target rpm, ingredient addition order, and cleaning method early.
FAQ
Can one unit handle creams and mayonnaise? Often yes, but the head and power need to match the thickest product and batch size. We confirm before quoting.
Is a mobile high shear mixer practical? It can be for multiple vessels, provided the mounting and vessel height are checked.
Which stainless steel should we choose? 304 covers many cosmetic and food duties; 316L is specified where corrosion resistance or product contact requirements call for it.
Request a configuration
Send batch size, vessel dimensions, viscosity range, target rpm, required motor power, and local voltage/frequency/phase. We will recommend a suitable high shear mixing equipment configuration and quote accordingly.
Ace Mixer supplies batch high shear homogenizer mixers for creams, shampoos, shower gels, mayonnaise, xanthan and carbomer dispersions. Motor power ranges from 1.5 kW to 55 kW, with optional VFD speed control, 220V to 480V electrical configurations, and 304 or 316L stainless steel wetted parts. Share batch size, viscosity, target rpm, and local power details for a configured recommendation.
