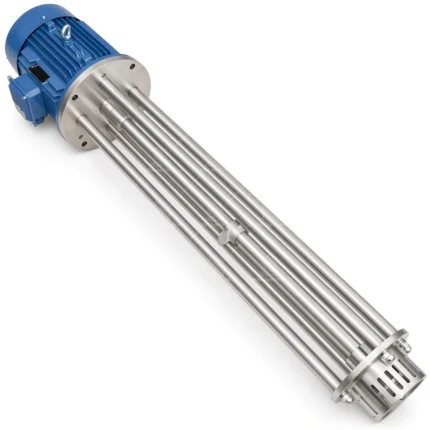

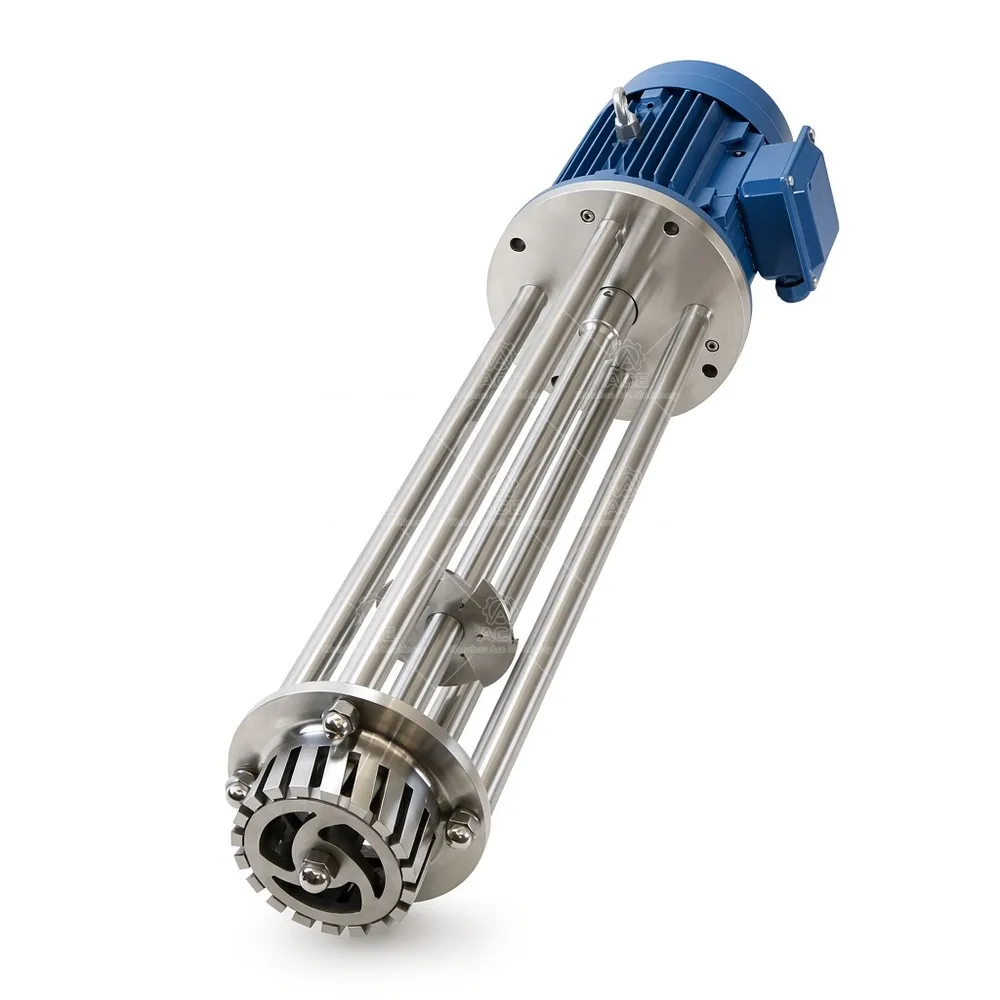

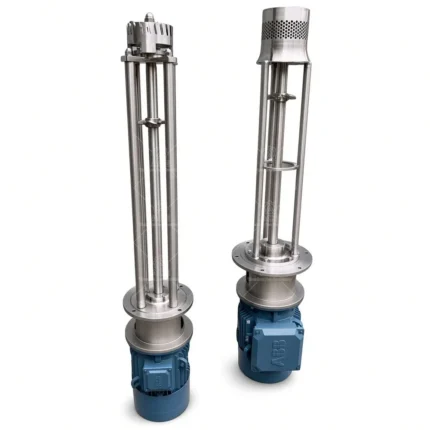

High Shear Emulsifier Mixer Homogenizer for Shampoo, Shower Gel, Xanthan Cream

Batch High Shear Mixers Built Around Your Process, Not a Catalog Number

Most inquiries we get start with a formulation problem rather than a machine request: a xanthan gum dispersion that keeps lumping, a shampoo batch that separates on the shelf, or a cream that never reaches the right droplet size in the tank they already own. The equipment answers are different in each case, which is why we configure this unit rather than sell it as a fixed package.

What the Drive and Head Actually Do

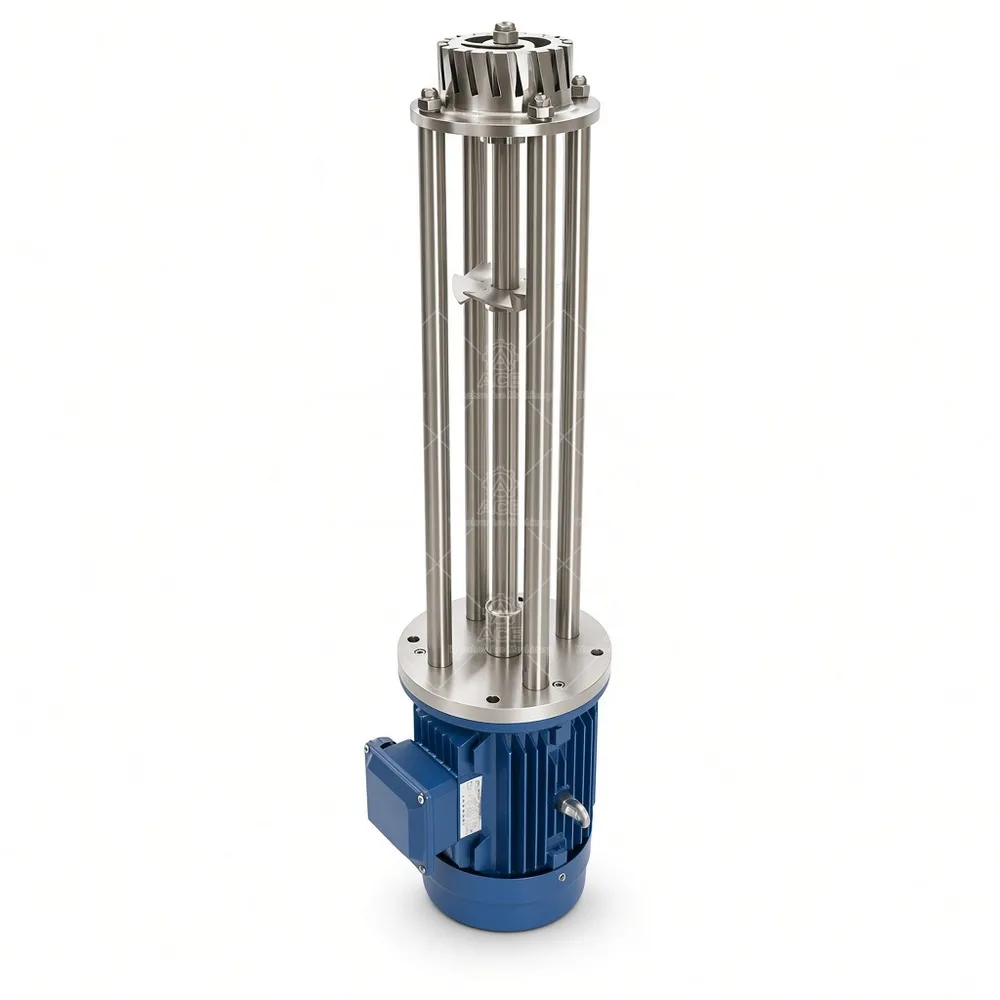

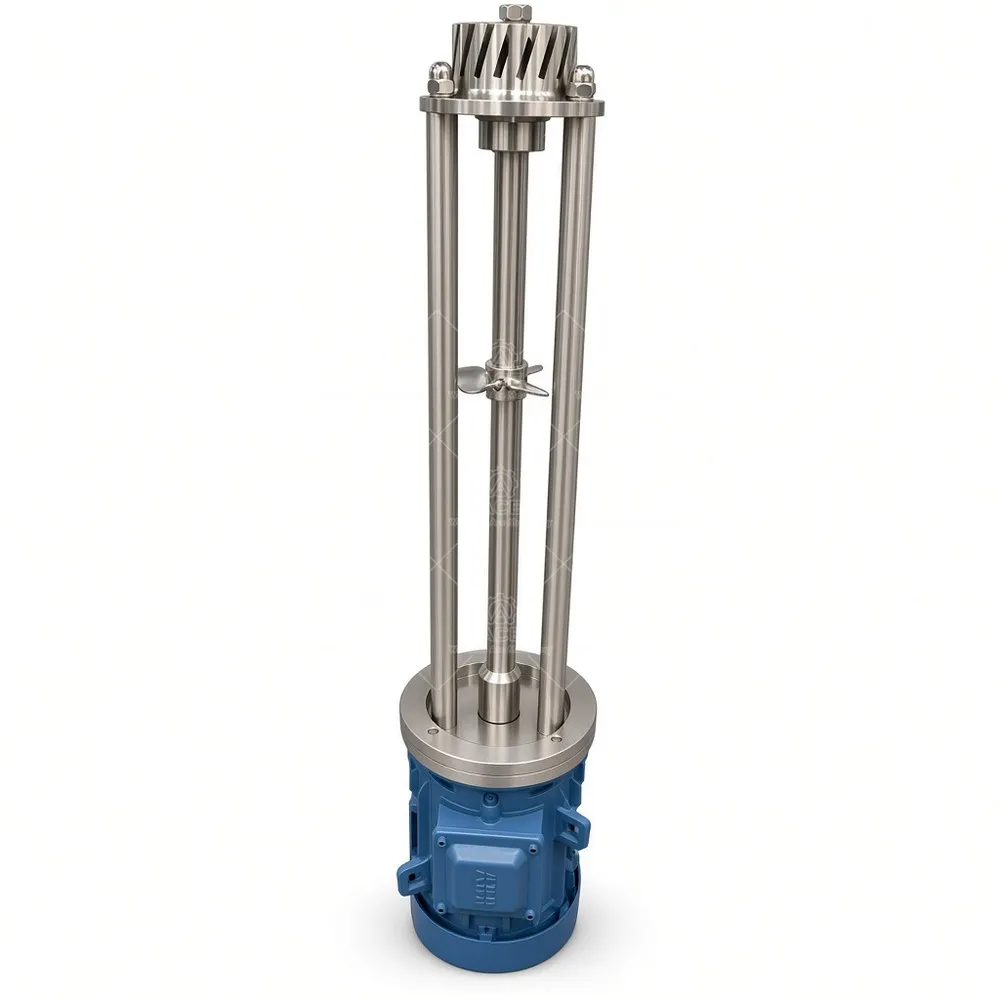

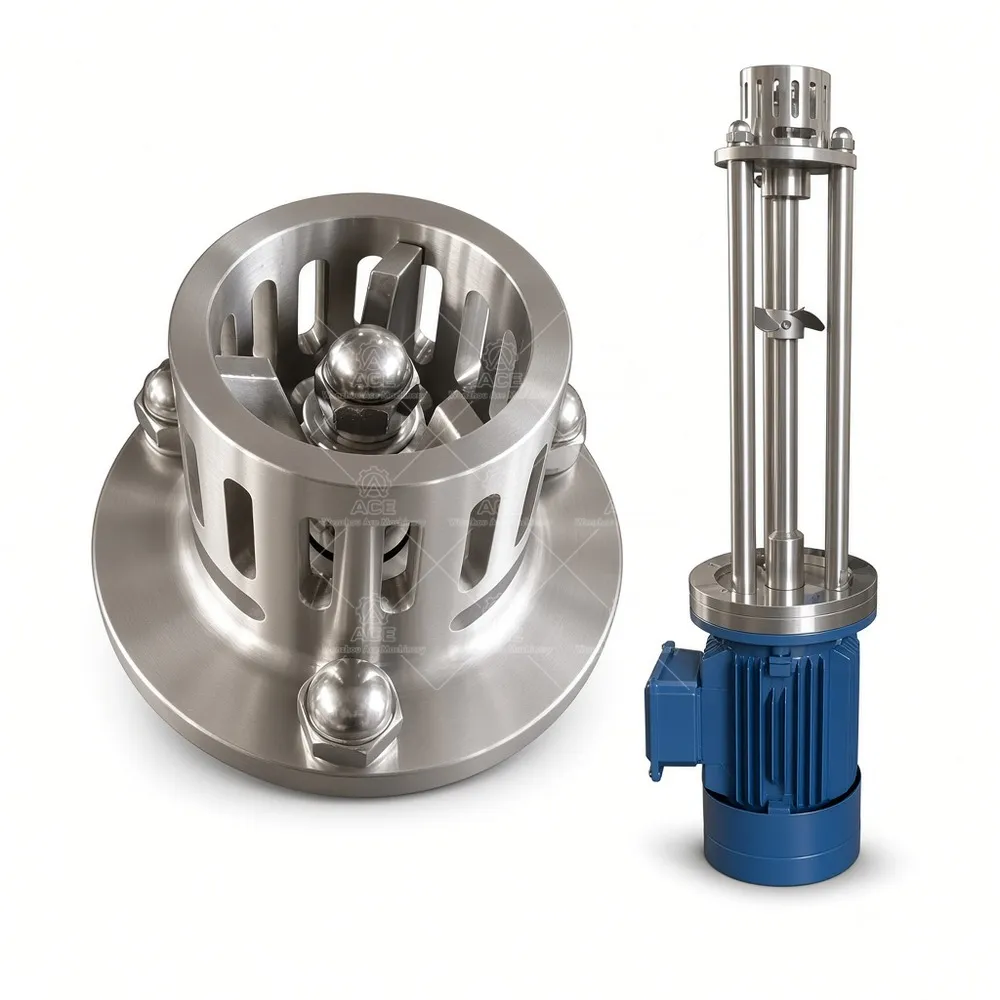

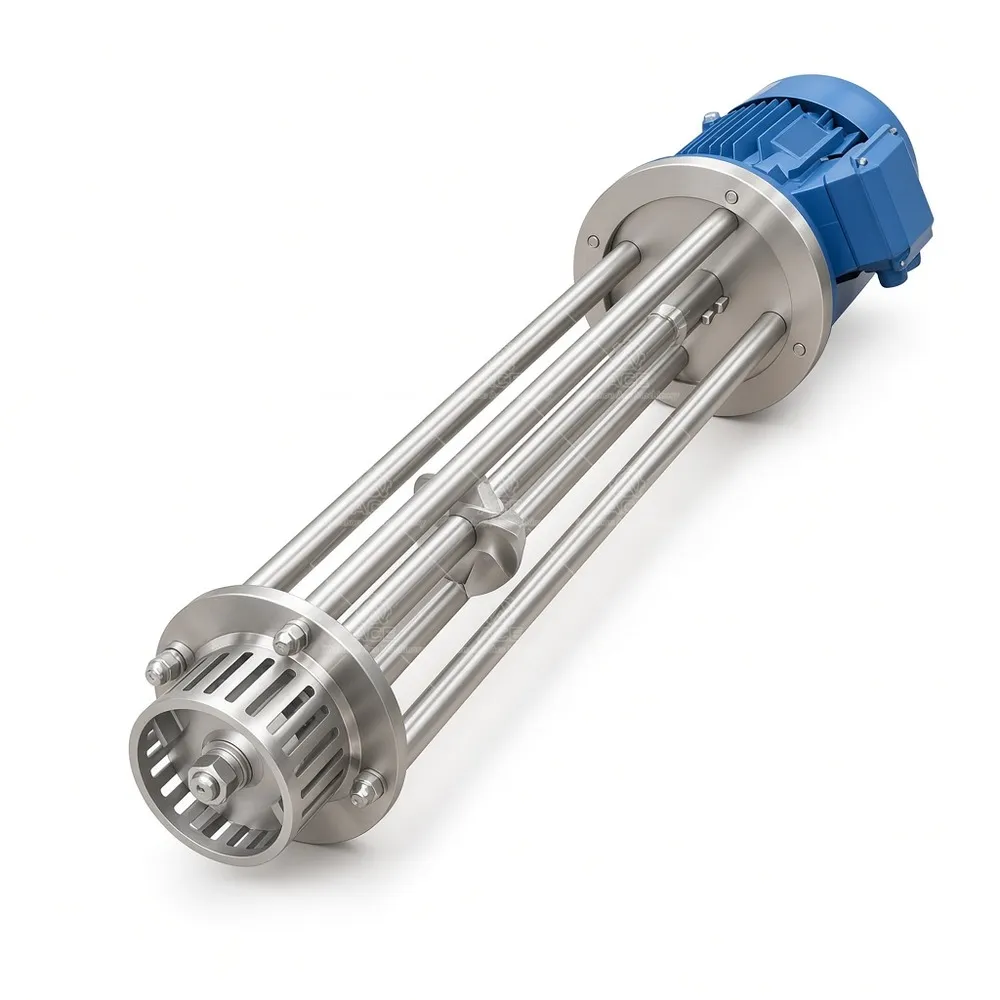

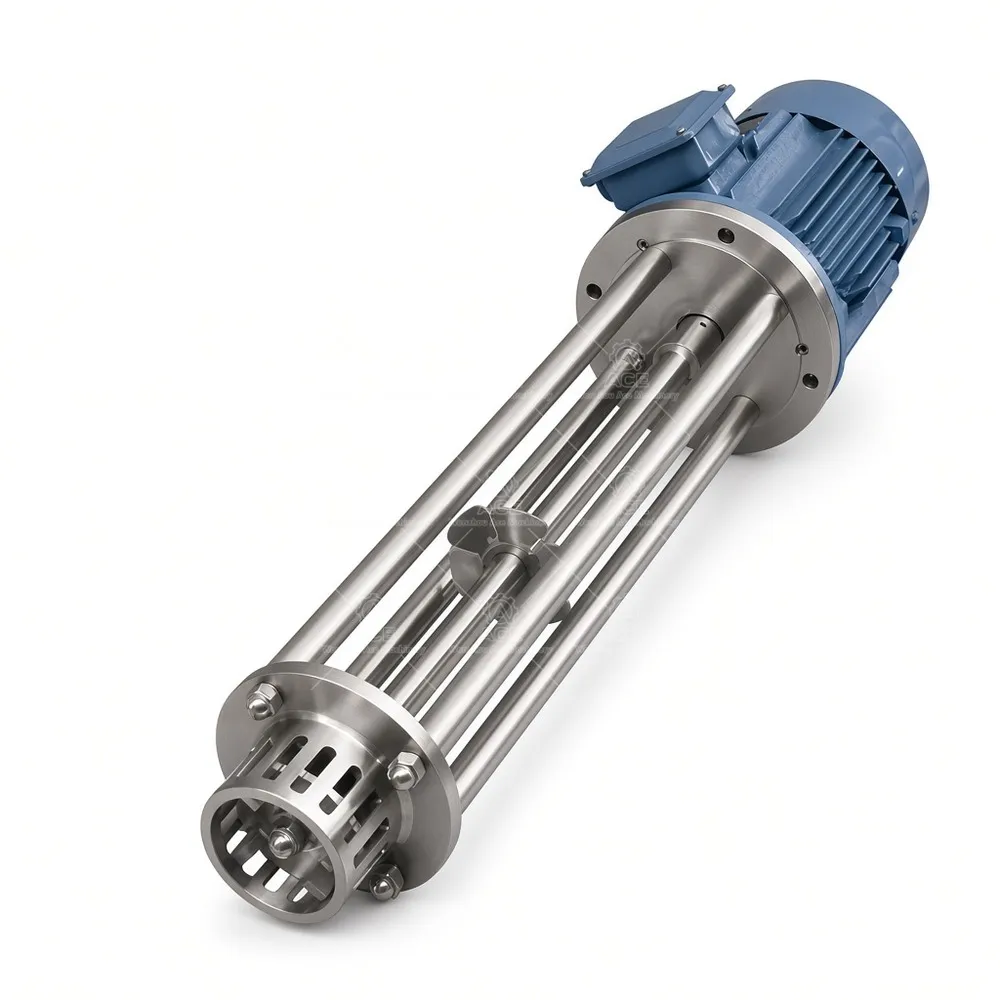

The high shear head creates intense local shear in the batch, which handles dispersion, emulsification, and powder wet-out in the same vessel. Motor power runs from 1.5 kW to 55 kW depending on batch size, viscosity, and how fast you need the powder to go in. VFD control is optional, giving adjustable speed from 0 to 3000 rpm; for viscous creams, the ability to slow the head down during addition and ramp up afterward often matters more than top-end rpm.

Wetted parts are available in 304 or 316L stainless steel. If your product is chloride-bearing or requires more corrosion resistance, specify 316L at the quoting stage rather than after fabrication.

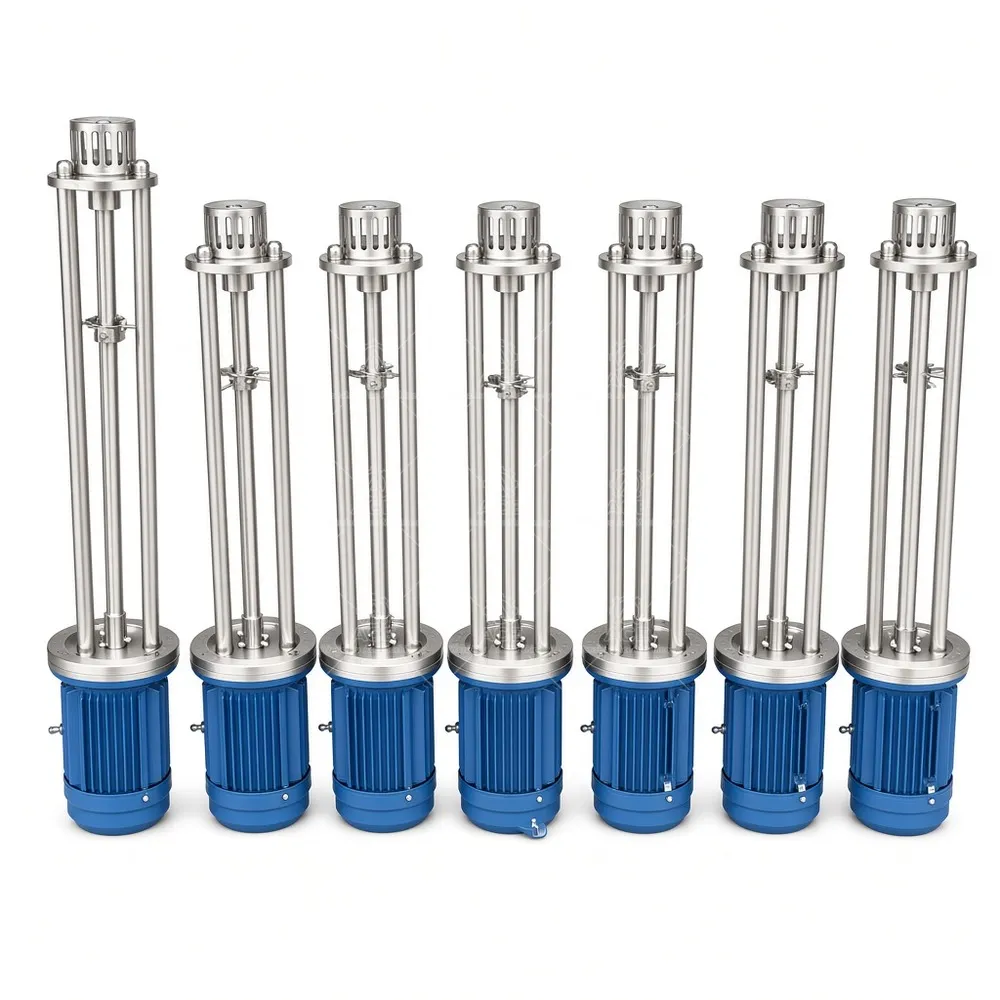

Shaft Length and Mounting: Two Decisions Buyers Get Wrong

Matching shaft length to vessel depth is where many first-time purchases go sideways. A head set too high leaves unmixed product at the bottom; set too low, it can starve the impeller and aerate the batch. Give us your vessel dimensions, working volume, and fill level range.

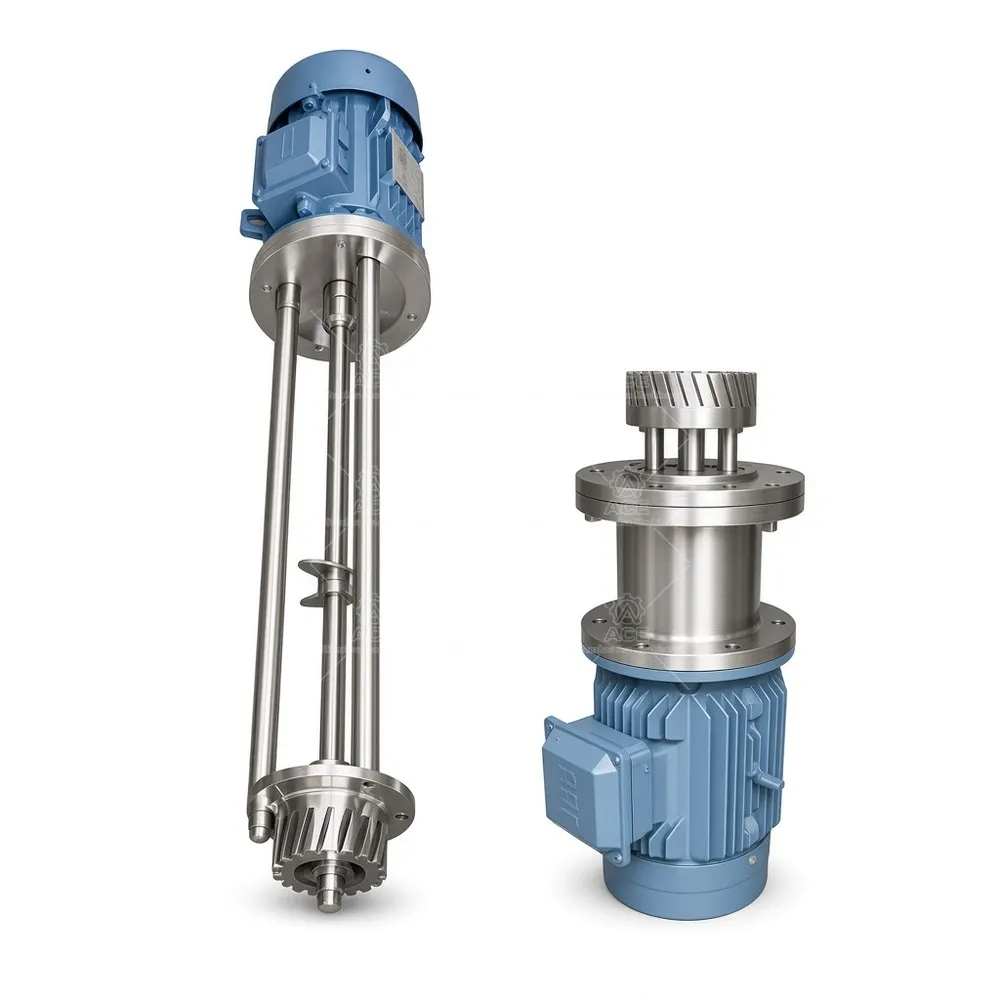

Mobile versus fixed mounting is the other common miss. A mobile high shear mixer suits multi-tank rooms and pilot areas; a fixed installation with a dedicated vessel is easier to validate and cleaner to operate at scale. Tell us the room layout and cleaning regime, and we will say which fits.

Where These Units Run

Typical service includes cosmetics and personal care (shampoos, shower gels, lotions), food and beverage sauces and bases, pharmaceutical and healthcare preparations, chemical and coating formulations, and powder-into-liquid dispersion. Liquid-liquid emulsification and gum hydration are frequent duties. The right head design, material, and operating parameters always depend on the product\’s viscosity, ingredients, and process targets; we do not quote shear gaps or cycle times without the product data.

Electrical Configuration

Voltage ranges from 220V to 480V. Final voltage, frequency, phase, and control arrangement are confirmed against the destination market and site supply before the order is released.

FAQ

Can one unit handle both 500 L shampoo and a thick cream? Often yes with VFD control, but the head and motor sizing change. Share both formulations.

How do I pick motor power? It follows batch volume, viscosity at process temperature, and required turnover rate — not tank size alone.

Is the mixer supplied with a vessel? We can quote the mixer alone or as a configured system; specify if the vessel already exists.

What about explosive atmospheres? Raise this early. Electrical arrangement is confirmed per project; we do not claim certifications that have not been issued for your configuration.

Send Your Process Data

For a usable recommendation, send batch size and vessel dimensions, product viscosity and key ingredients, target rpm and motor power, and your local voltage, frequency, and phase. Ace Mixer will come back with a configured batch high shear mixer proposal. If any of that is still undecided, say so — we would rather talk it through than quote the wrong shaft length.
