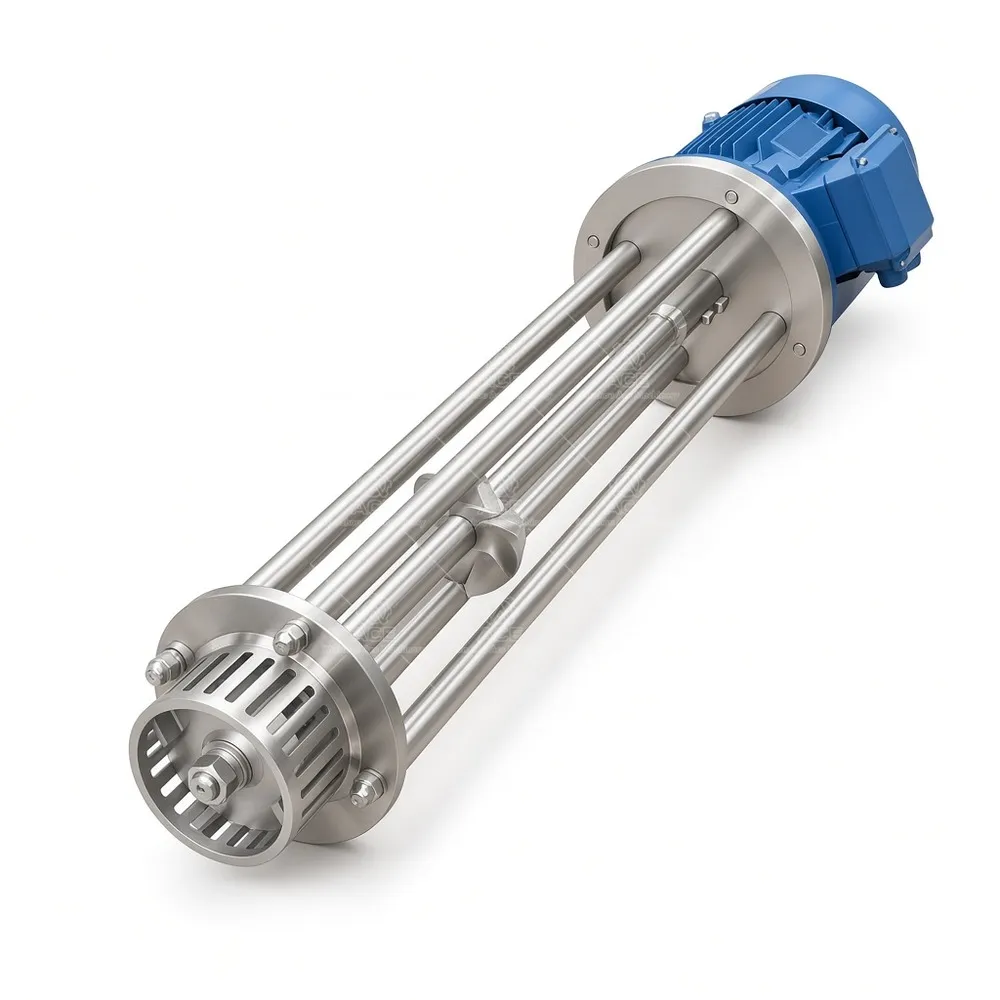

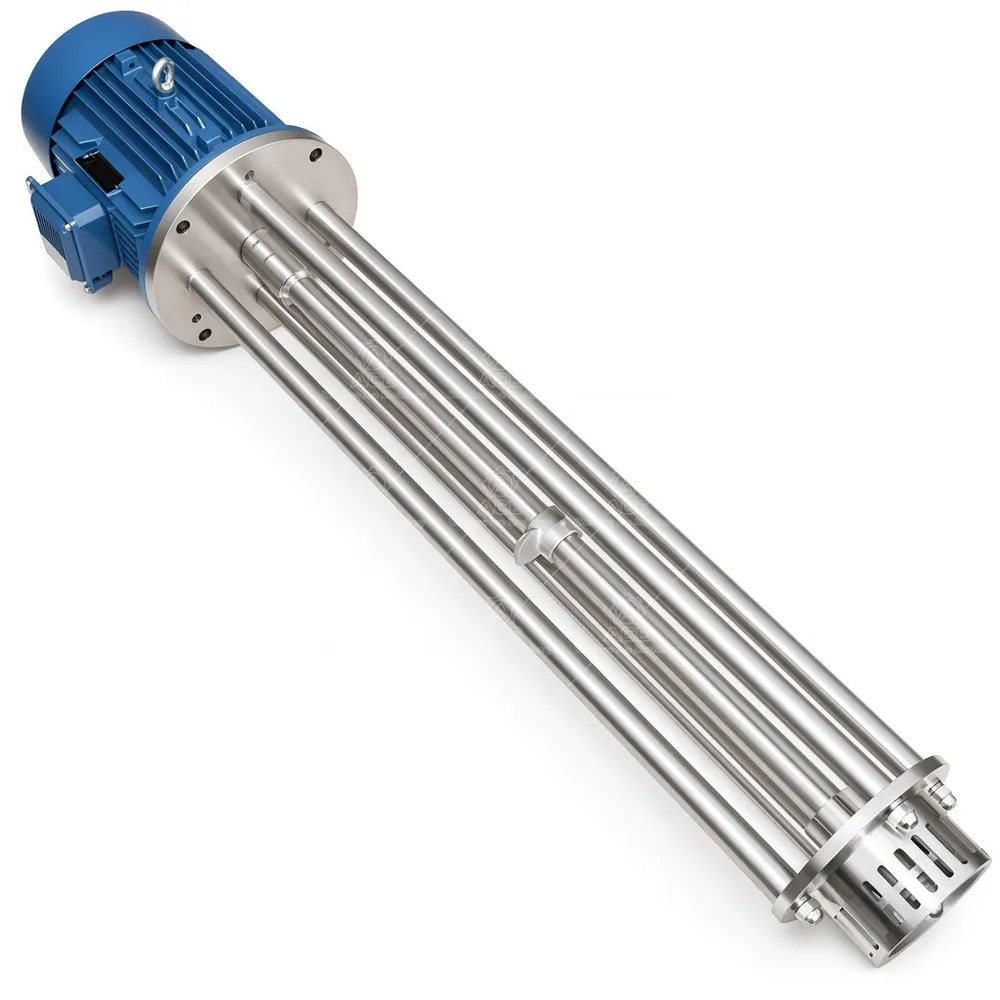

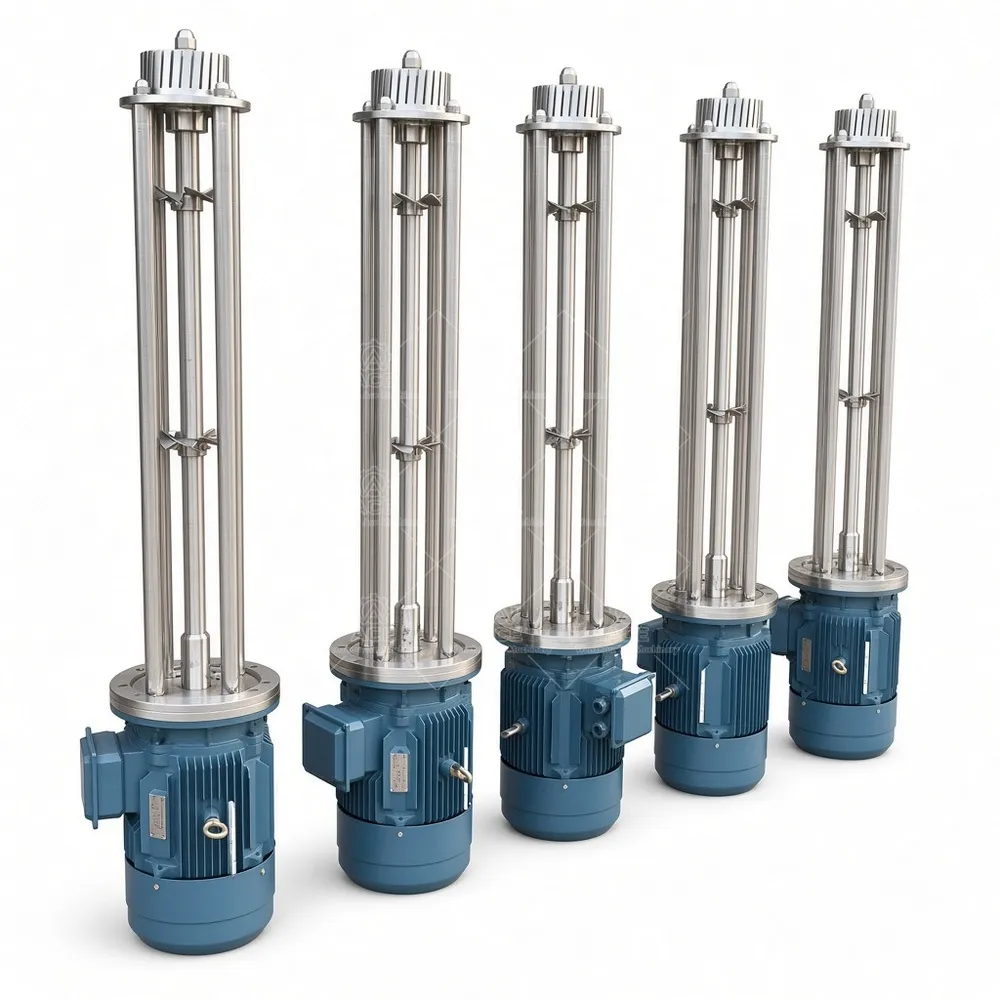

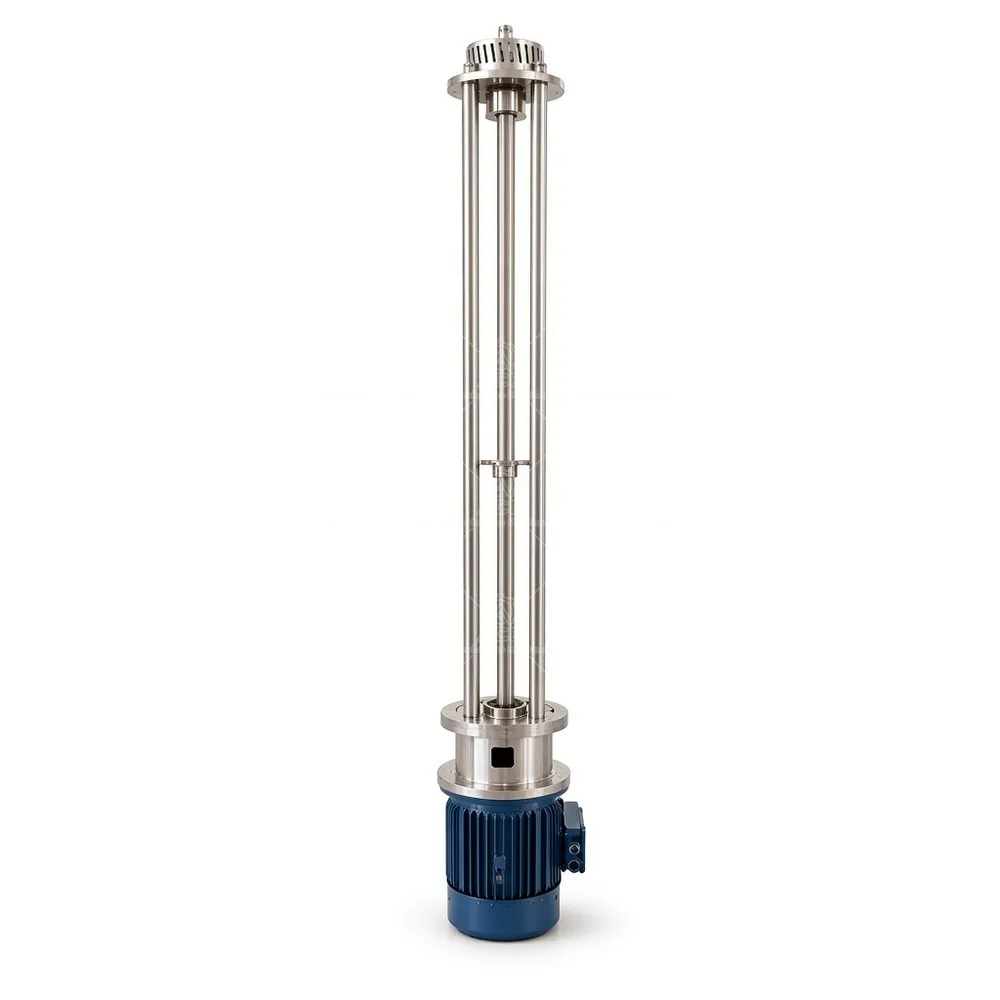

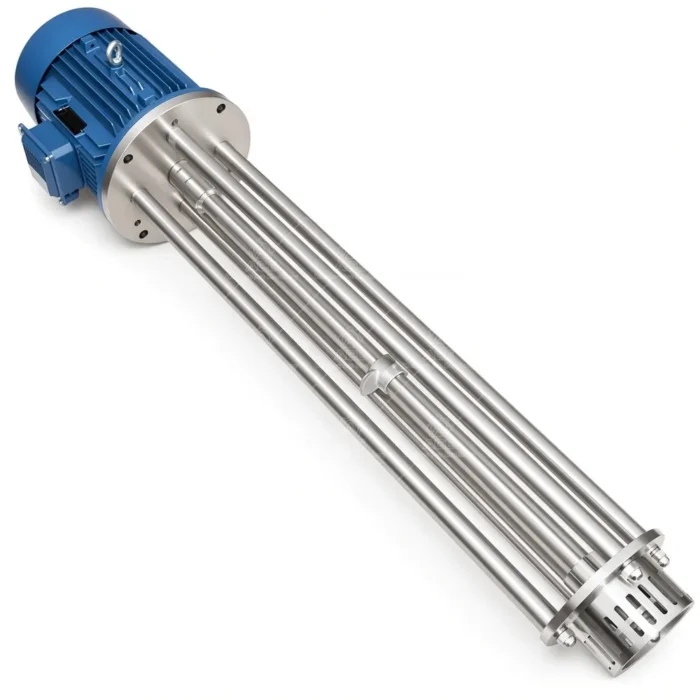

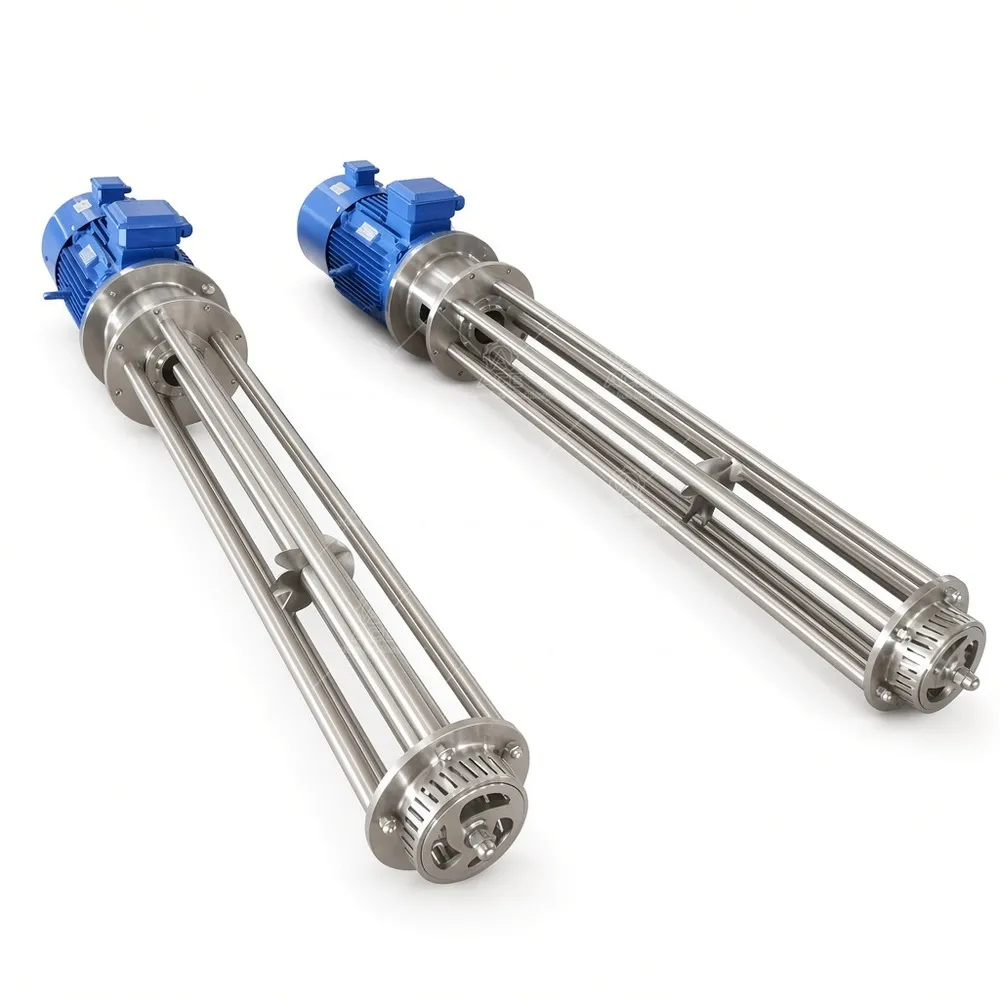

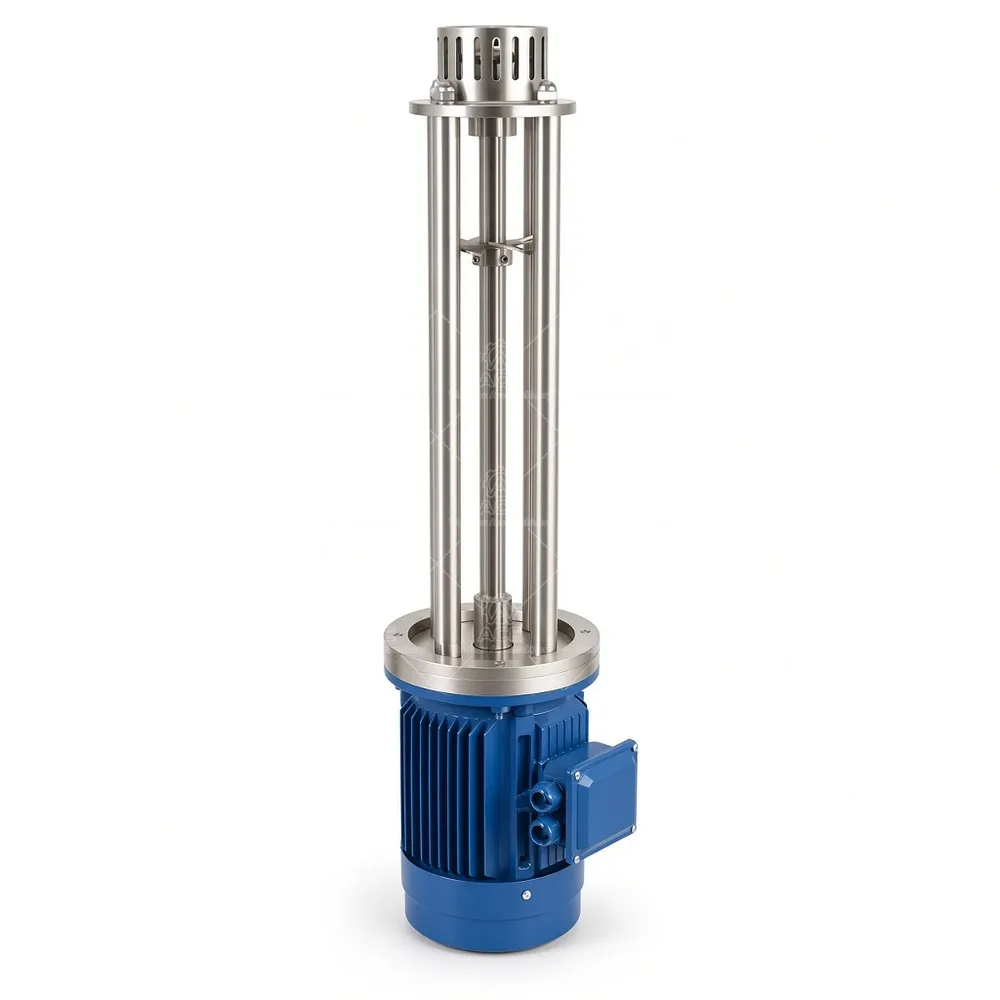

High Shear Emulsifier Mixer Homogenizer for Shampoo & Xanthan Cream
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $1,435.90 through $1,514.01
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Batch High Shear Mixer for Cosmetics, Shampoo, and Xanthan Creams
We build this batch high shear mixer for production teams that need repeatable emulsification, dispersion, and powder wet-in without turning the formulation into a trial-and-error exercise. The head combines high-speed shear with circulation in a batch vessel, so shampoos, shower gels, lotions, and xanthan-thickened creams can be processed in the same equipment family when the head, speed, and materials match the product.
Because batch size and viscosity drive the layout, we do not quote a single fixed model for every line. Motor power ranges from 1.5 kW to 55 kW. A VFD is available for adjustable speed control from 0 to 3000 rpm, depending on motor and configuration. Voltage can be confirmed for 220V to 480V, including frequency, phase, and local electrical arrangement. Wetted parts are available in 304 or 316L stainless steel. Fixed and portable high shear mixer arrangements are both possible; the choice usually comes down to vessel access, cleaning routine, and how often the unit moves between tanks.
Applications and Selection Notes
These units suit food and beverage processing, cosmetics and personal care, pharmaceutical and healthcare preparations, chemical processing, compatible paints and coatings, powder dispersion, and liquid-liquid emulsification. For powder dispersion, the challenge is often feeding solids without lumping or excessive aeration. For emulsions, oil phase addition rates and temperature matter as much as rpm. The correct mixing head, contact material, and operating parameters depend on product viscosity, ingredients, and process requirements.
FAQ
Can one mixer handle shampoo and xanthan cream? Often, yes, but the head and speed range must be selected for the thicker product and the powder addition step. Do you offer variable speed? Yes, a VFD high shear mixer configuration is available. What information helps with a recommendation? Batch size, vessel dimensions, viscosity, solids content, target rpm, motor power, and local voltage/frequency/phase.
Send your batch scale, material characteristics, target speed, required motor power, and electrical specifications. Our engineering team at Ace Mixer will review the application and recommend a suitable batch high shear mixer configuration for quotation.
Batch high shear emulsifier mixer for cosmetics, shampoo, shower gel, and xanthan creams. Motor power 1.5–55 kW, VFD speed control up to 3000 rpm, 220–480V options, and 304 or 316L stainless steel contact parts. Fixed or portable configurations. Share batch size, viscosity, target rpm, and electrical specs for a suitable recommendation.
