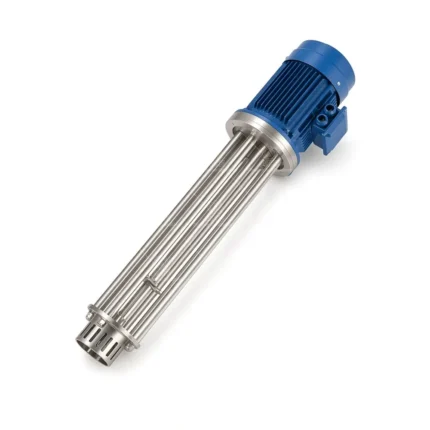

Mobile Lift High Shear Homogenizer Disperser Mixer for Cosmetic Shampoo Cream
Mobile Lift High Shear Homogenizer Disperser Mixer for Cosmetic Shampoo Cream Price range: $2,240.72 through $3,328.34
Back to products

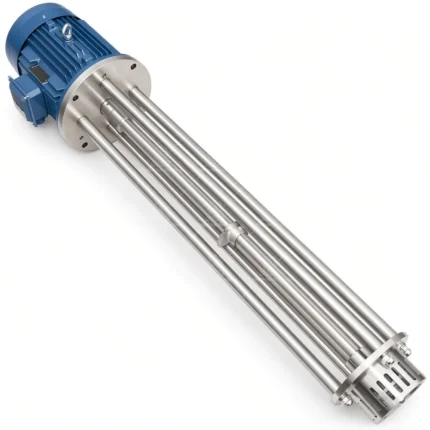

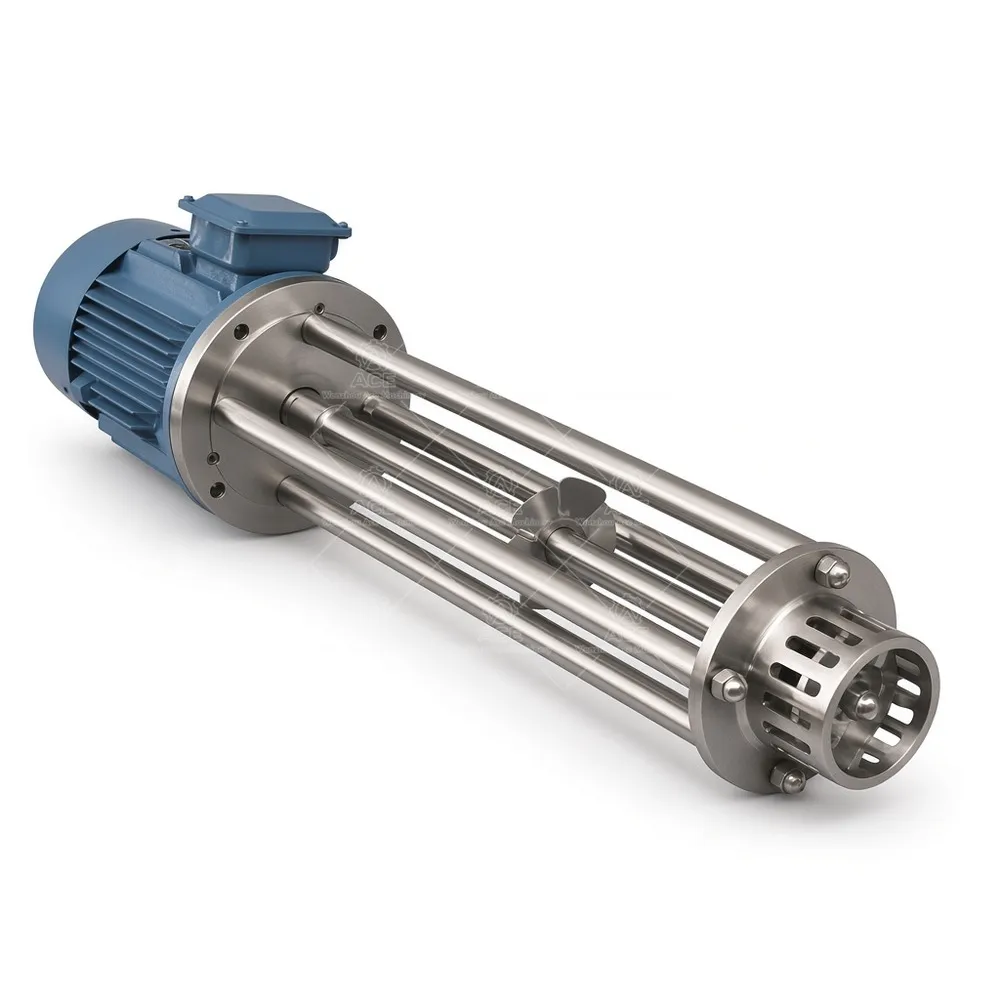

Batch High Shear Homogenizer Emulsifier Mixer for Cosmetic Creams
Batch High Shear Homogenizer Emulsifier Mixer for Cosmetic Creams Price range: $1,085.81 through $1,178.54

2.2–7.5 kW High Shear Batch Homogenizer | Liquid Powder Rotor-Stator Mixer

Please contact our sales team before placing your order.

Email:info@ace-chn.com

Tel:+86 18626835909

WeChat: ace-chn

Ask For A Quotation​

Price range: $580.15 through $614.90

Guaranteed Safe Checkout

We manufacture and sell the following types of mixers

High shear mixer

Mix, emulsify, homogenize, disintegrate and dissolve

Bottom Entry High Shear Mixer

Ideal for disintegrating solids and incorporating powders

Single-stage In-Line Mixer

Reduce mixing times by up to 80%

Three-stage In-Line Mixer

Reduce mixing times by up to 90%

Powder/Liquid Mixers

Quickly disperse and hydrate powders, even at higher viscosities

High-Shear Mixer with lift

Easy to move and lift

High-Shear Mixing Tank

Features heating, cooling, vacuum, and other functions

Dispersing mixer

Recommended RPM: 1480/2850 RPM

Product description

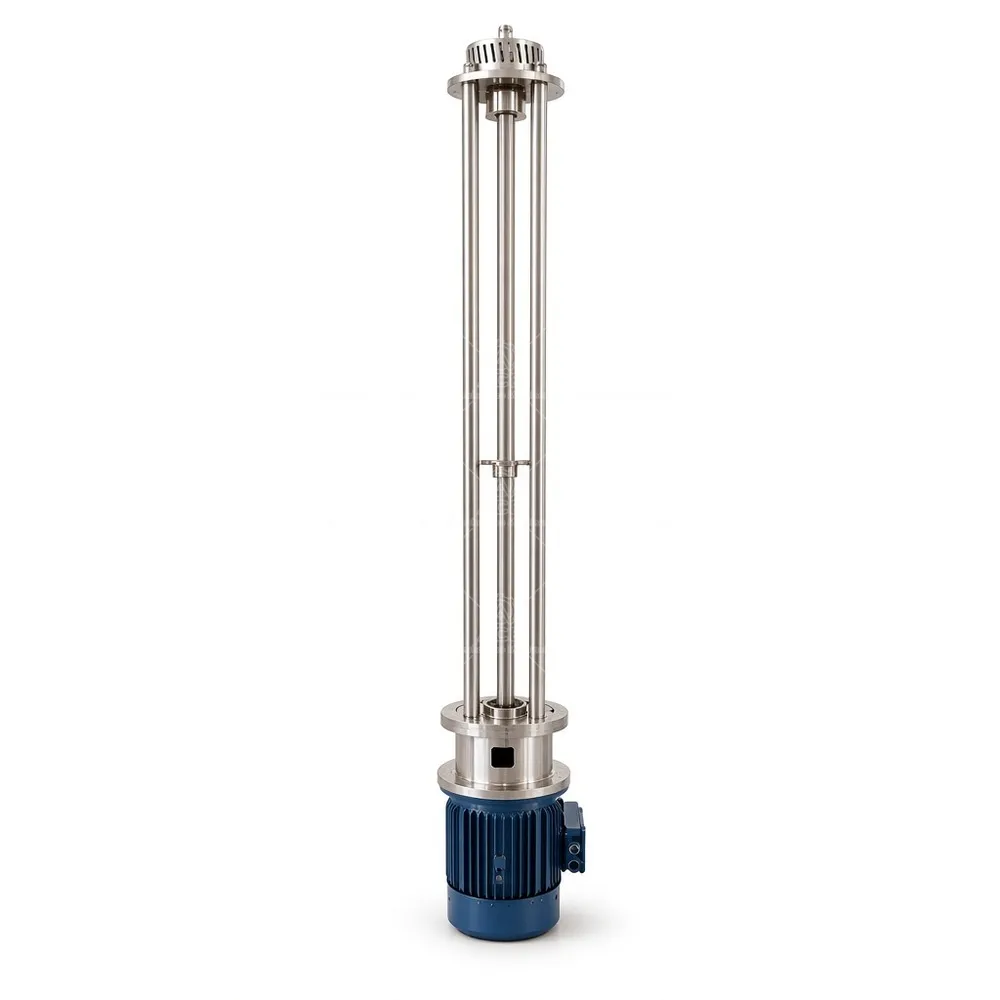

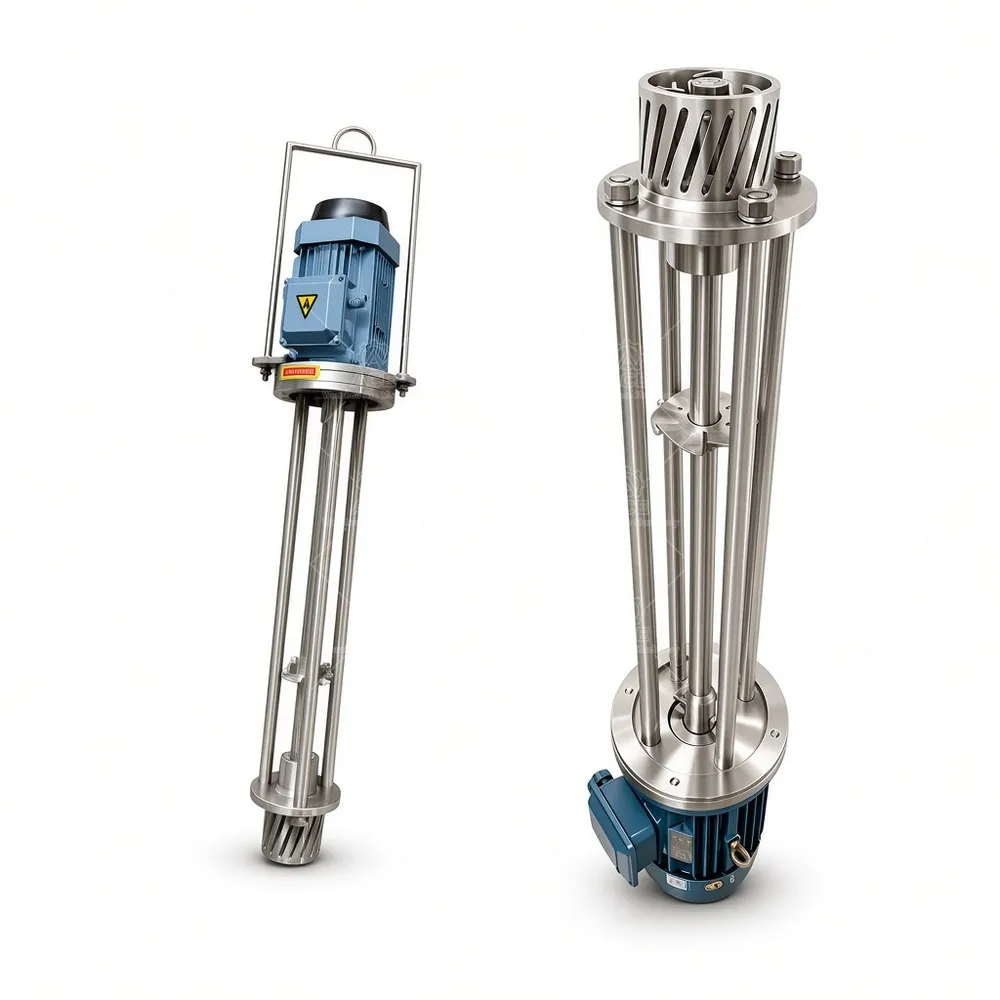

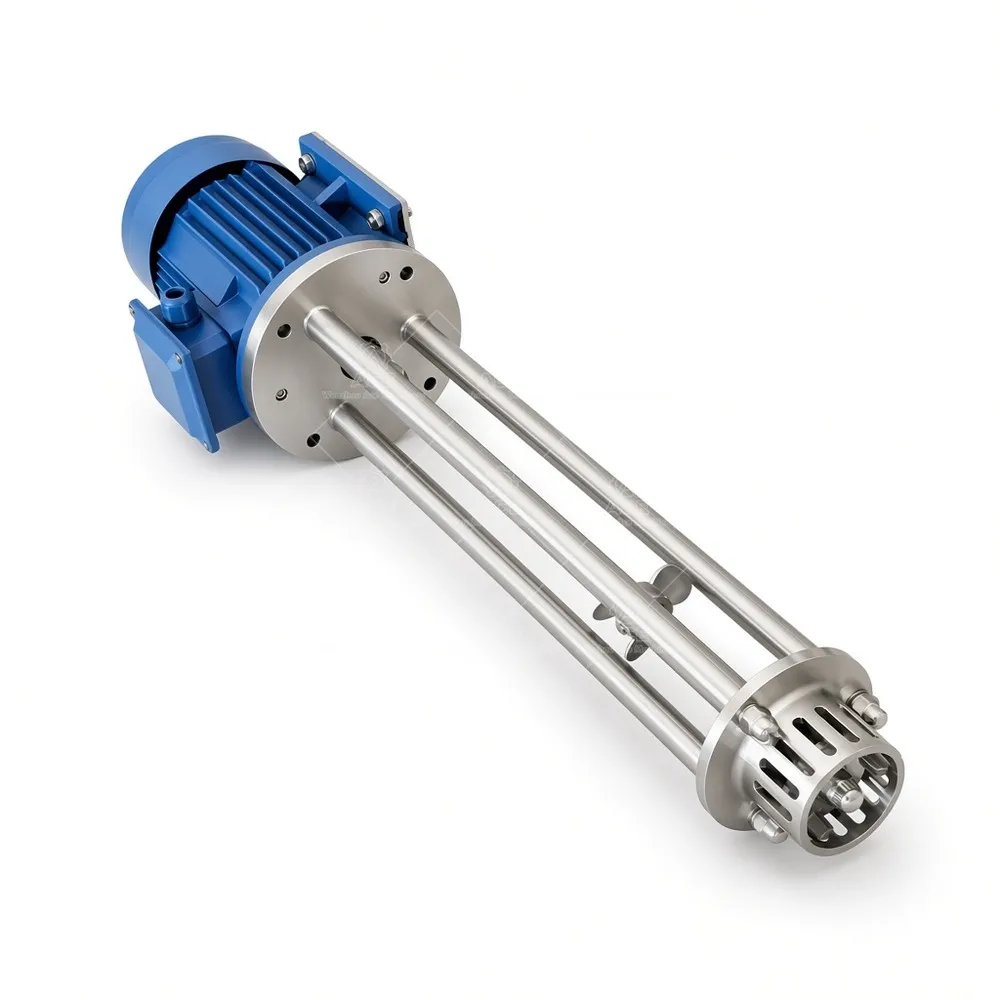

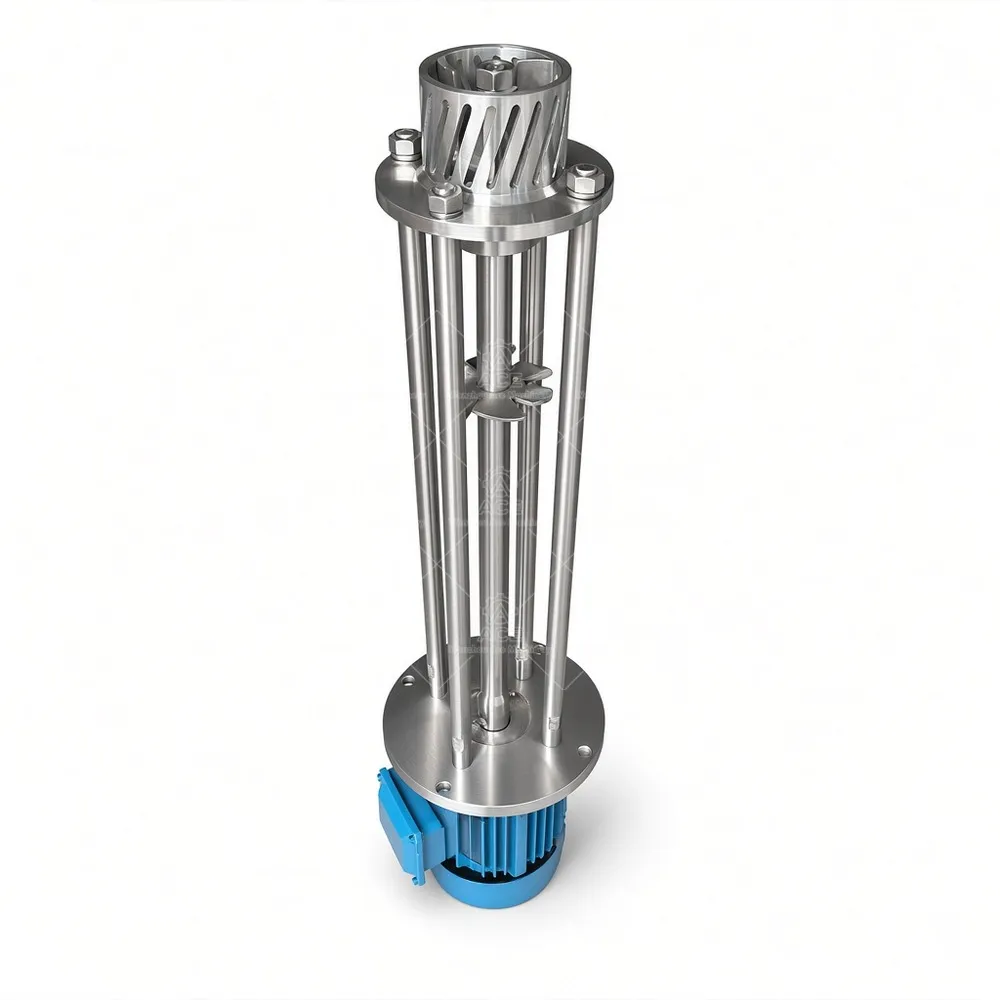

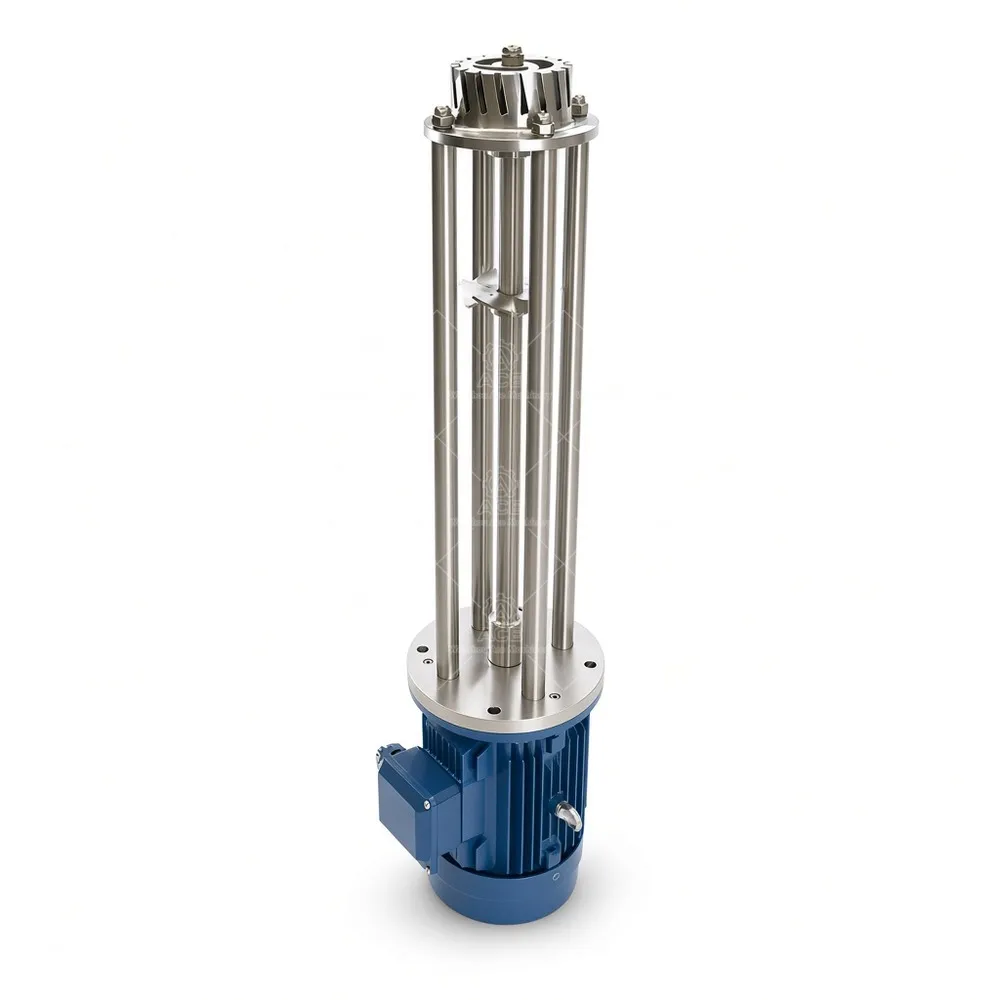

2.2–7.5 kW High Shear Batch Homogenizer for Liquid and Powder Processing

This batch high shear mixer is built for plants that need to wet out powders, break down agglomerates, or create emulsions in a single tank. The rotor-stator head combines high shear, dispersion, and emulsification, so production teams can move from powder addition to a uniform batch without transferring product between vessels.

Ace Mixer supplies these units as configurable industrial high shear homogenizers. Motor power ranges from 1.5 kW to 55 kW, with common 2.2, 4, 5.5, and 7.5 kW options covering pilot batches and small-to-mid production. Optional VFD control gives adjustable speed from 0 to 3000 rpm, depending on motor and configuration. Electrical setup is confirmed for 220V to 480V, including frequency, phase, and local electrical requirements.

Specifications

  • Mixing action: high shear, dispersion, emulsification; helps incorporate powders into liquids
  • Speed control: optional VFD, 0–3000 rpm based on selected motor and configuration
  • Motor power: 1.5 kW to 55 kW, configured to the process
  • Voltage: 220V to 480V; frequency and phase confirmed for destination market
  • Wetted parts: 304 or 316L stainless steel options
  • Mounting: fixed or portable high shear mixer arrangements available

Applications

Food and beverage processing, cosmetics and personal care, pharmaceutical and healthcare preparations, chemical processing, and compatible paints and coatings all use batch high shear mixing equipment. The same unit may handle powder dispersion and liquid-liquid emulsification, but the right head, contact material, and operating parameters depend on viscosity, ingredients, and process requirements.

Choosing a batch high shear homogenizer

Start with batch size and vessel dimensions, then confirm product viscosity and solids loading. Required mixing speed and motor power follow from those details—not from the kW label alone. Check voltage, frequency, and phase before quotation. For changeover-heavy rooms, a portable high shear mixer can make sense; for dedicated tanks, fixed mounting is simpler. Specify wetted parts early, especially for 316L stainless steel high shear homogenizer builds.

FAQ

Can one unit handle both powder and liquid addition? Often yes, but head design and speed need review against the formulation.

Is VFD required? It is optional; a high shear mixer with VFD gives more control during scale-up and product changeovers.

How do I confirm motor power? Share batch size, viscosity, and target rpm; Ace Mixer can recommend a configuration.

Send your batch size, material characteristics, target speed, required motor power, and local electrical specification for a suitable recommendation and quote.

Ace Mixer offers configurable batch high shear homogenizers from 1.5 kW to 55 kW, with optional VFD speed control, 220–480V electrical options, and 304 or 316L stainless steel contact parts. Use them for powder dispersion, emulsification, and high shear mixing in food, cosmetic, pharmaceutical, chemical, and coating production. Share batch size, viscosity, target rpm, and electrical details for a recommended configuration and quote.
