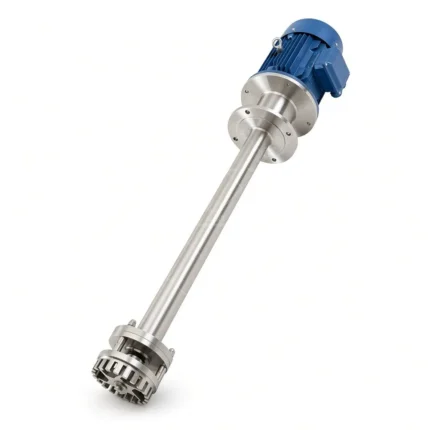

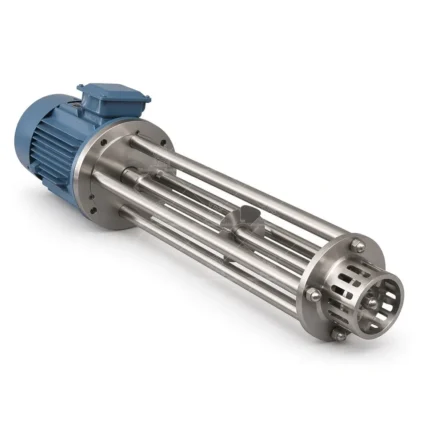

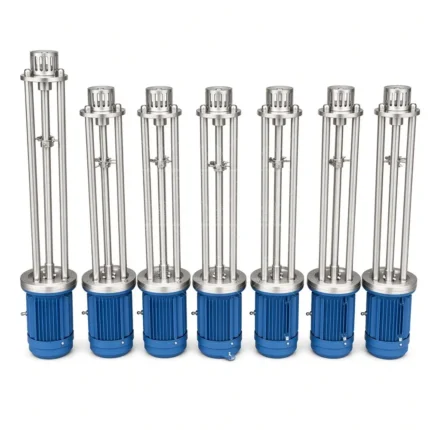

Batch High Shear Mixer Homogenizer Emulsifier for Cosmetic Cream
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $785.18 through $849.88
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM

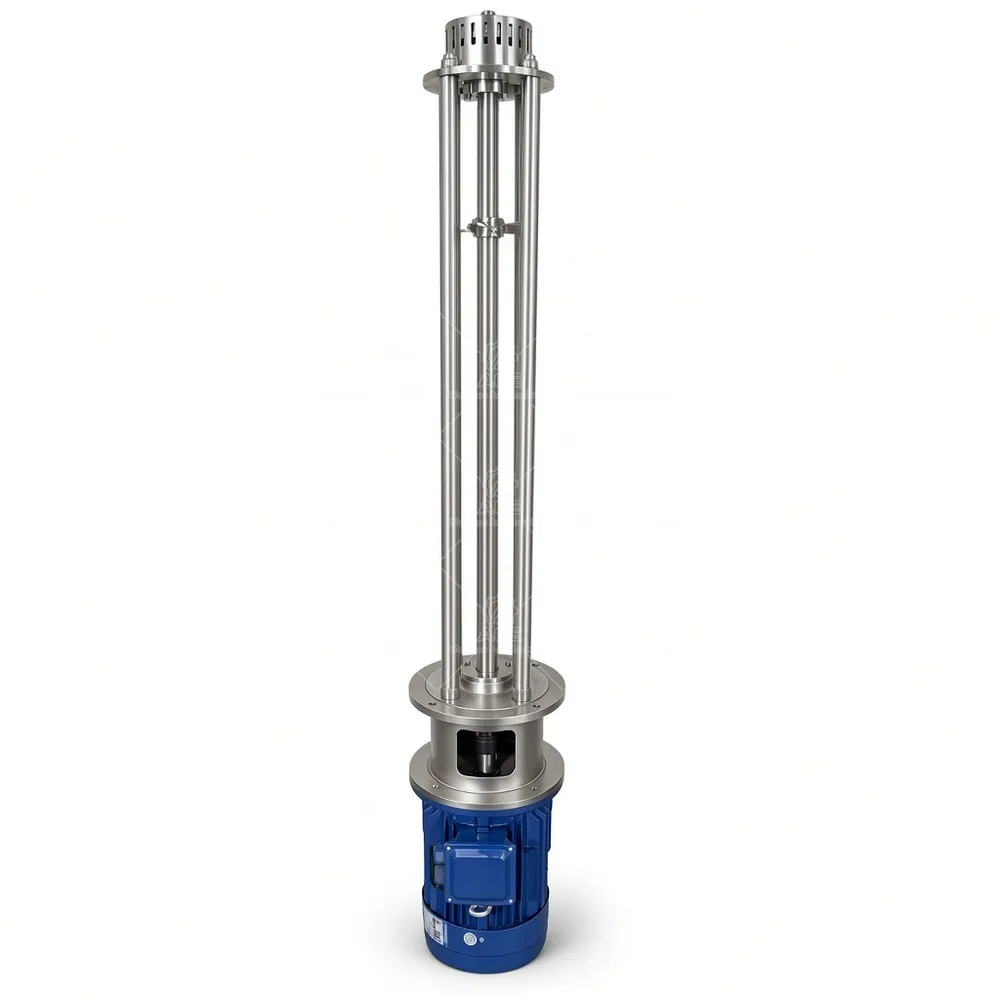

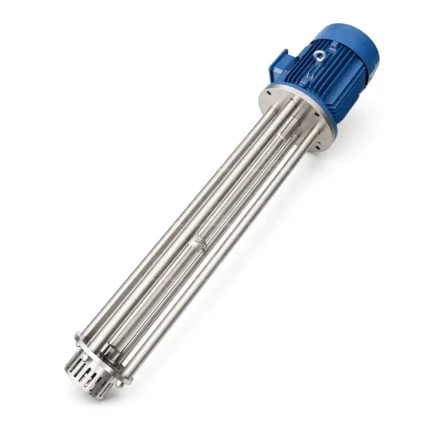

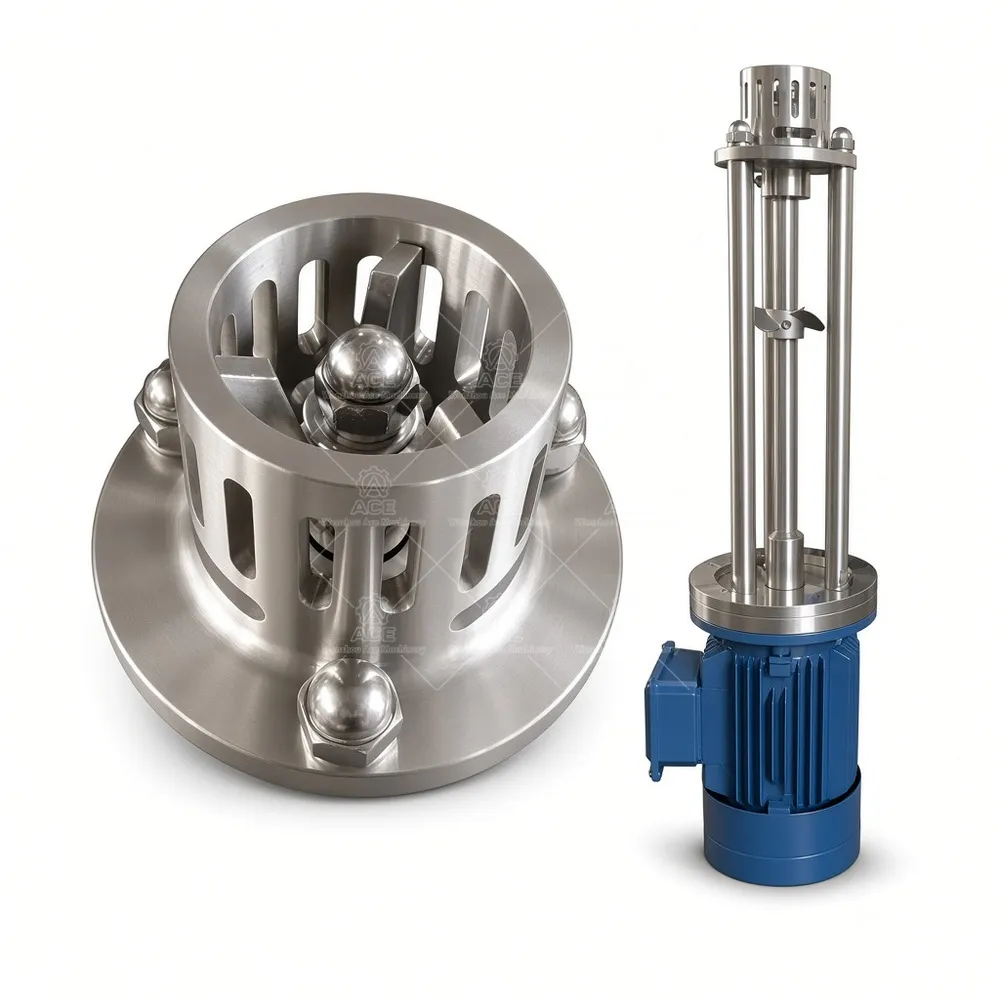

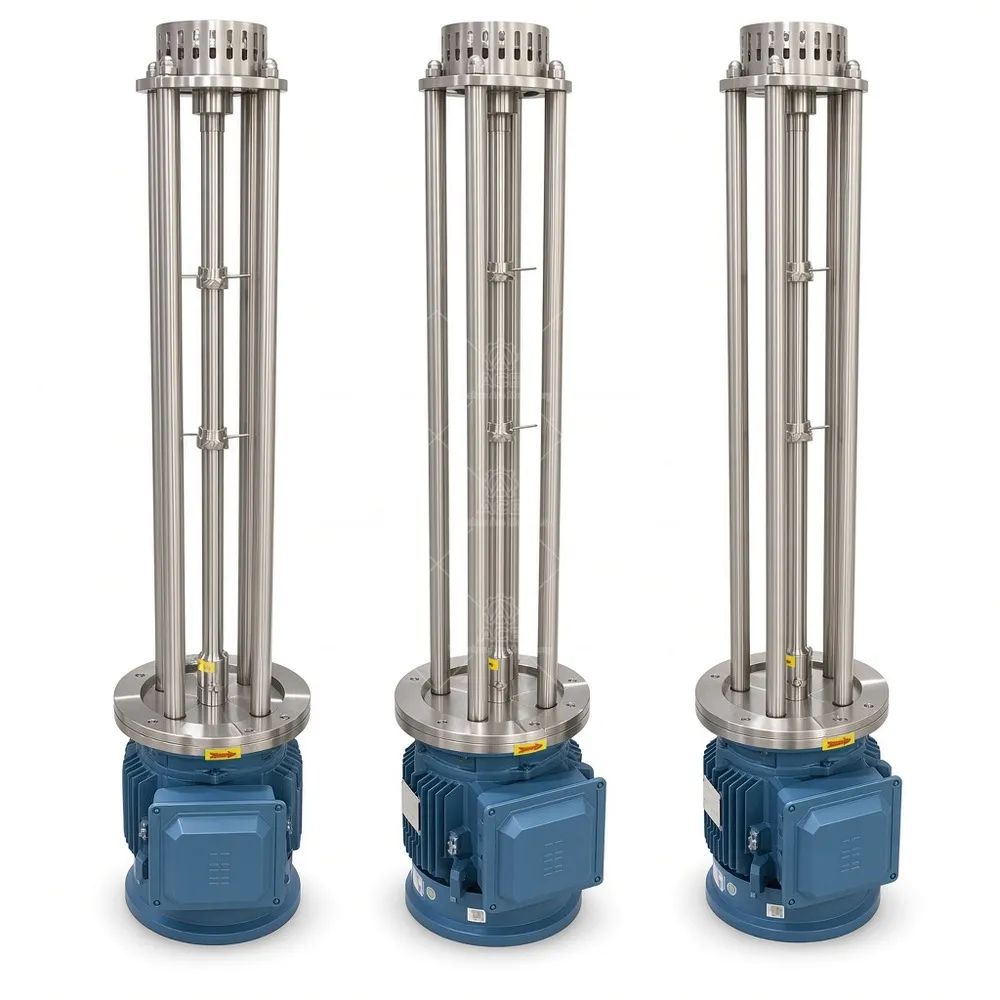

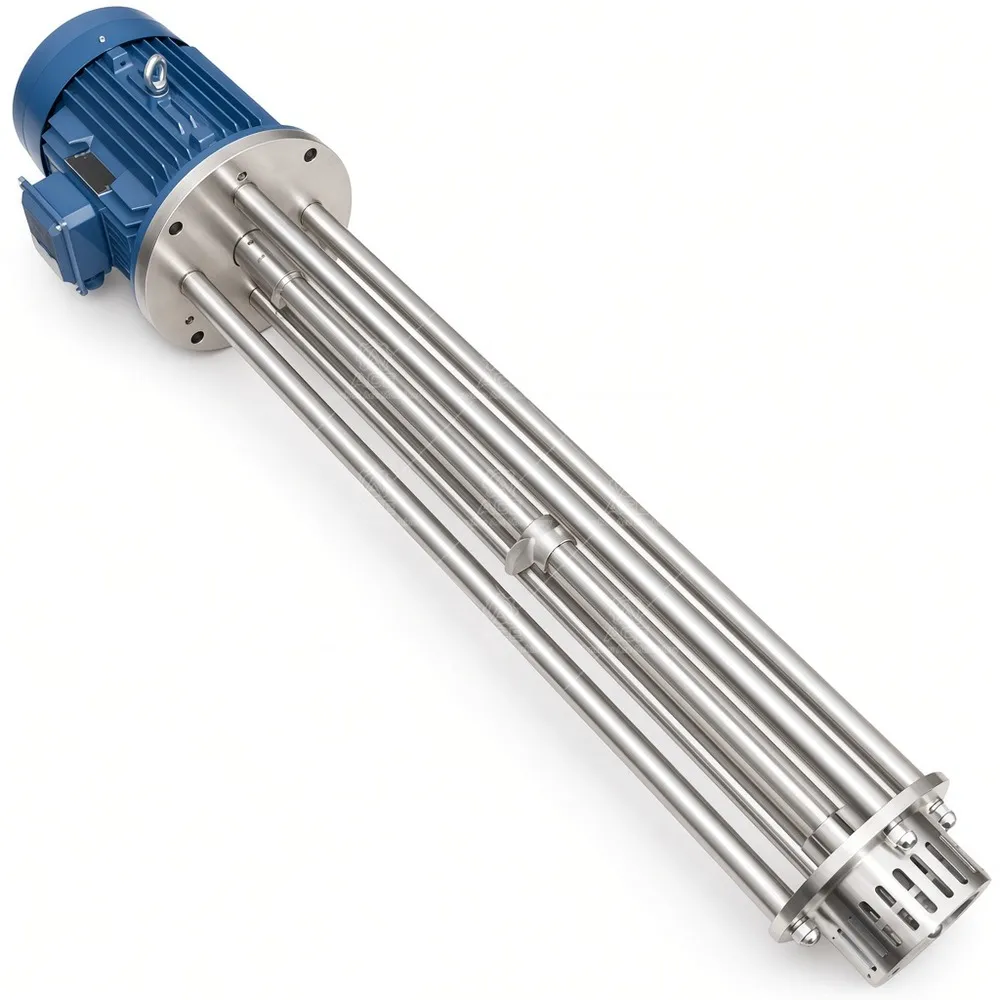

When a cream, gel, or shampoo batch fails on texture or powder lumps, the mixing step is usually where the problem starts. Our batch high shear mixer is built for that stage. A rotor-stator head works inside the vessel, creating intense shear for dispersion, homogenization, and emulsification without sending the whole batch through a separate line.
Ace Mixer, an industrial mixing equipment manufacturer, configures this industrial high shear mixer as a fixed tank-mounted unit or a mobile high shear mixer for shared vessels and multi-product rooms. A variable-speed high shear mixer with VFD gives operators room to adjust speed as viscosity changes. Speed control is optional VFD, 0 to 3000 rpm depending on motor and configuration. Motor power ranges from 1.5 kW to 55 kW. Voltage from 220V to 480V is confirmed by target market, frequency, phase, and electrical setup. This stainless steel high shear mixer uses 304 or 316L wetted parts; head style, shaft length, and contact materials are specified to the product. Motor power, voltage, controls, mixing head, and other configuration details are selected to the application.
What to confirm before specifying
- Batch size and vessel dimensions, including working volume and headroom.
- Product viscosity, solids load, and whether the main duty is emulsification or powder dispersion.
- Target mixing speed and motor power; more power is not automatically better for every cream.
- Voltage, frequency, and phase at the plant.

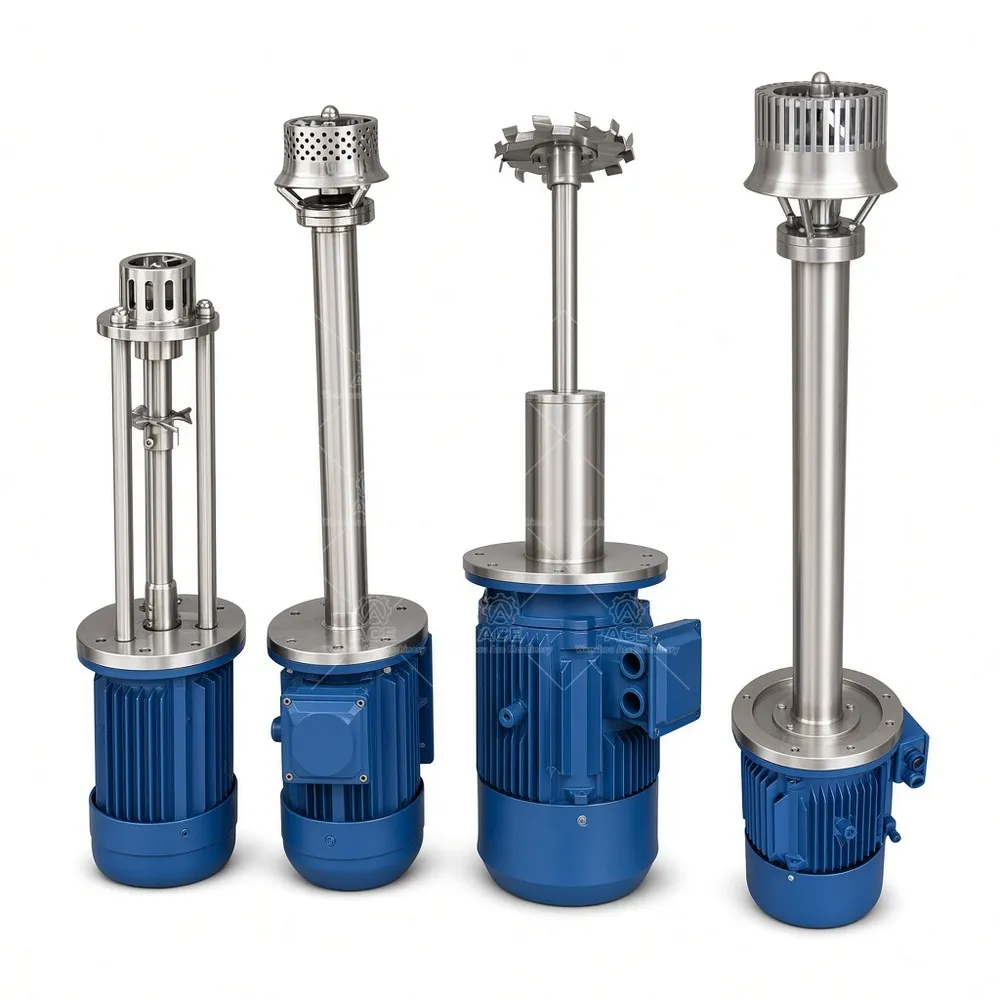

- Mixing head design and wetted-material requirements for contact parts.
- Mobile or fixed mounting, based on tank sharing and utility routing.
Common duties cover food and beverage processing, cosmetics and personal care, pharmaceutical and healthcare preparations, chemical processing, paints, coatings, and compatible industrial formulations. Powder dispersion into liquids and liquid-liquid emulsification are typical. The right head, material, and operating parameters depend on viscosity, ingredients, and process requirements.
FAQ
Can one unit run shampoo and skin cream? Often yes, but not with the same head and speed recipe. Surfactant load, gel viscosity, and powder addition method change the required shear and motor size.
How do we choose mobile or fixed? Use mobile for shared tanks and frequent changeovers; use fixed for dedicated vessels and clean utility routing.
What should be ready for a quote? Batch size, material characteristics, target rpm, required motor power, and local electrical specifications.
Send your batch size, material characteristics, target speed, motor power, and local electrical data. We will match the configuration and quote from Ace Mixer.
Ace Mixer supplies batch high shear mixers for cosmetic creams, shampoos, shower gels, and skin creams. Configure motor power from 1.5 to 55 kW, optional VFD speed control, 220–480V electrics, and 304 or 316L stainless steel wetted parts. Mobile or fixed mounting available. Share batch size, viscosity, and target rpm for a suitable recommendation.
