Automatic Stainless Steel CIP Washing System for Dairy Food Beverage
Automatic stainless steel CIP washing systems for dairy, food, beverage, brewery, cosmetic, and pharmaceutical plants. We build single- and multi-tank clean-in-place skids with electric or steam heating, supply and return pumps, PLC control, and custom circuits. Share your tank and pipe details, cleaning capacity, heat source, automation level, and stainless grade for a project-specific recommendation and quote.
- Tank Capacity: [100L–5000L or specify actual capacity]

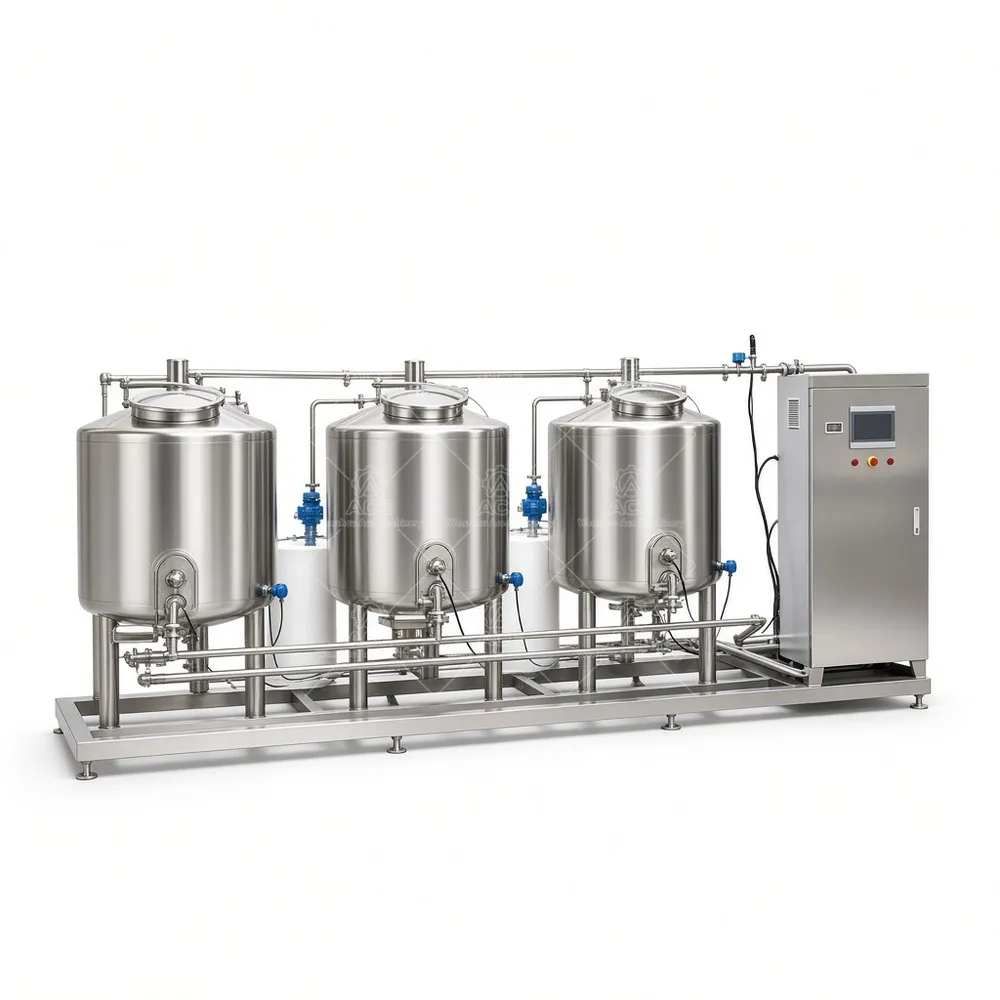

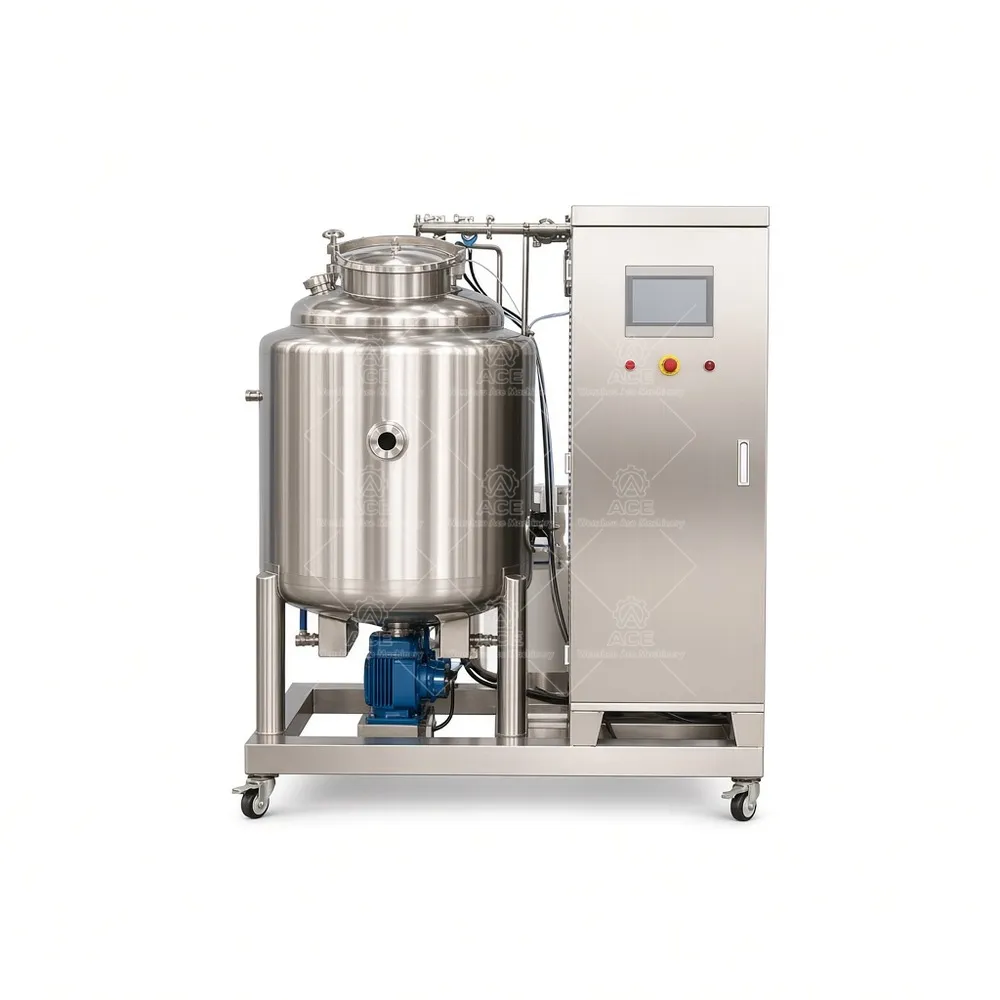

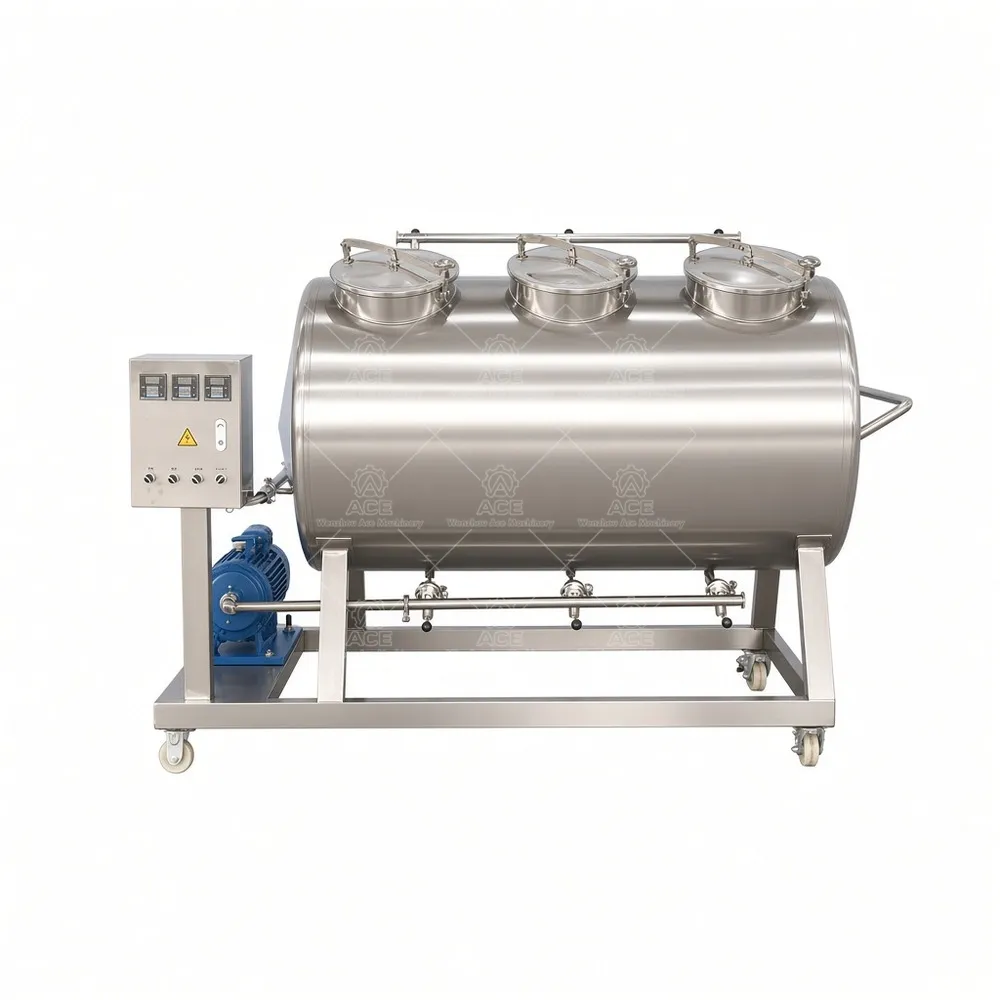

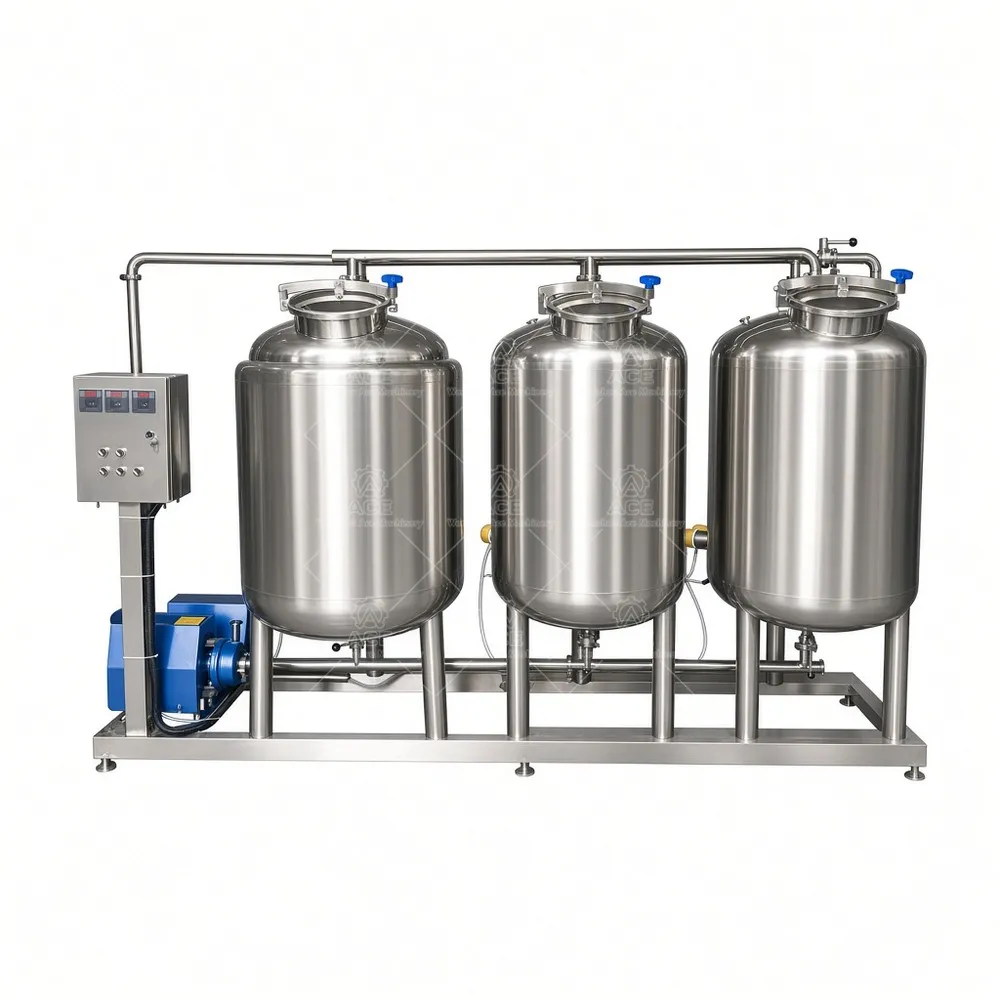

- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L

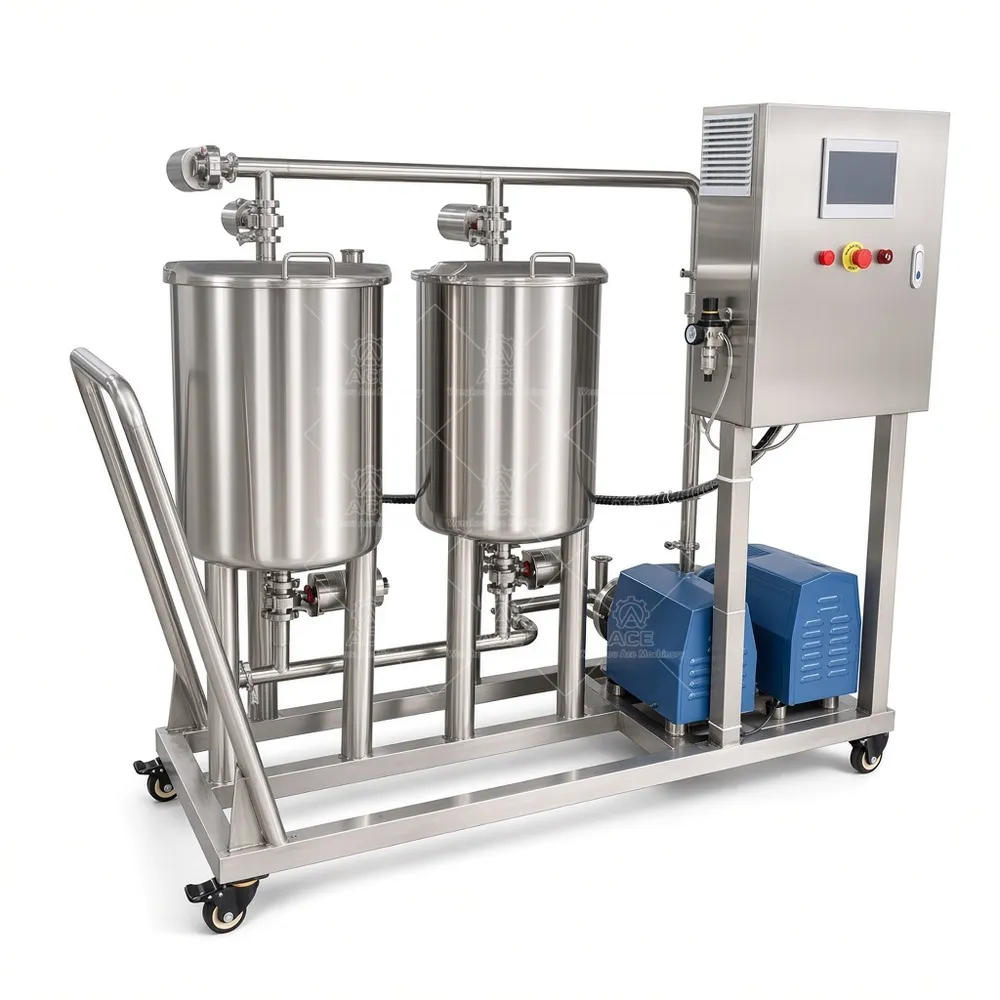

- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $6,333.19 through $7,944.99
Guaranteed Safe Checkout
Automatic CIP Washing System for Dairy, Food, and Beverage Plants
A CIP skid has one job: move detergent, rinse water, and heat through the right circuit at the right flow, temperature, and time. Dairy lines, beverage fillers, brewhouse vessels, sauce kettles, and cosmetic or pharmaceutical process piping all leave residue that manual cleaning struggles to reach. We build automatic clean-in-place systems around the vessel count, pipe route, and cleaning cycle your plant actually runs.
Typical cycles use a pre-rinse, alkaline wash, intermediate rinse, acid wash when needed, final rinse, and optional sanitizing step. Return flow, conductivity, temperature, and pressure tell the PLC whether the circuit is ready. Pump selection matters: too little flow leaves low-velocity branches behind; too much can damage valves or gaskets. Tank volume should match the largest circuit and rinse water demand, not just the skid footprint.
Common configurations
Single, double, triple, or multi-tank layouts; caustic and acid tanks; hot water tanks; electric or steam heating; supply and return pumps; stainless piping, valves, and fittings; temperature, flow, pressure, and level monitoring; manual, semi-automatic, or PLC/HMI control. These are options, not standard features. We confirm each one against the project scope.
| Cleaning tank capacity | 200 to 5,000 L per tank, project-specific |
|---|---|
| Number of tanks | 1 to 4, single or multi-tank |
| Stainless grade | 304 or 316L contact surfaces |
| Heating | Electric or steam; optional hot water tank |
| Pump flow and pressure | 10 to 50 m3/h at 2 to 6 bar, sized by circuit |
| Operating temperature | Up to 80 C typical; confirmed per cleaning cycle |
| Control system | Manual, semi-automatic, PLC with HMI |
| Cleaning circuits | 1 to 8 or custom |
| Power | 380/415/480 V, 3 phase, 50/60 Hz |
| Dimensions | Custom skid layout |
| Custom options | Tank volume, circuits, automation, insulation, conductivity monitoring |
The table is a planning range. Final specifications depend on circuit volume, soil load, and utility limits.
Where CIP systems fit
Dairy processors, breweries, wineries, juice and soft drink lines, sauce and liquid food plants, cosmetic mixing rooms, and pharmaceutical process piping use CIP systems. Cleaning requirements vary with soil load, pipe diameter, surface finish, and rinse water quality. We review those details before recommending tank size or circuit count. We fabricate the skid, tanks, piping, and control panel in-house, and our engineers review utility limits, layout, and maintenance access with your team.
FAQ
Can one skid serve several lines? Yes, with proper circuit separation and valve control. We map dead legs and return routes first.
Do I need acid and caustic tanks? Only if your cleaning regime requires both. Some plants run alkaline wash and sanitizing rinse; others need acid for mineral scale.
How much space is required? It depends on tank volume, pump arrangement, and service access. Send a layout sketch.
Request a CIP configuration
Tell us your industry and product, tank and pipe details, required cleaning capacity, heat source, automation level, stainless grade, and installation location. We will recommend the tank volume, pump duty, and control arrangement, then quote the build.
