150L Automatic CIP Cleaning System for Brewery Beer Tanks
150L CIP cleaning equipment for breweries and beverage plants. Automatic washing system with cleaning tank, pump, and controls. Factory-direct stainless construction with optional heating, multi-tank configurations, and PLC automation. Suitable for fermenters, bright tanks, and process lines. Request a custom quote with your tank and piping details.
- Tank Capacity: [100L–5000L or specify actual capacity]

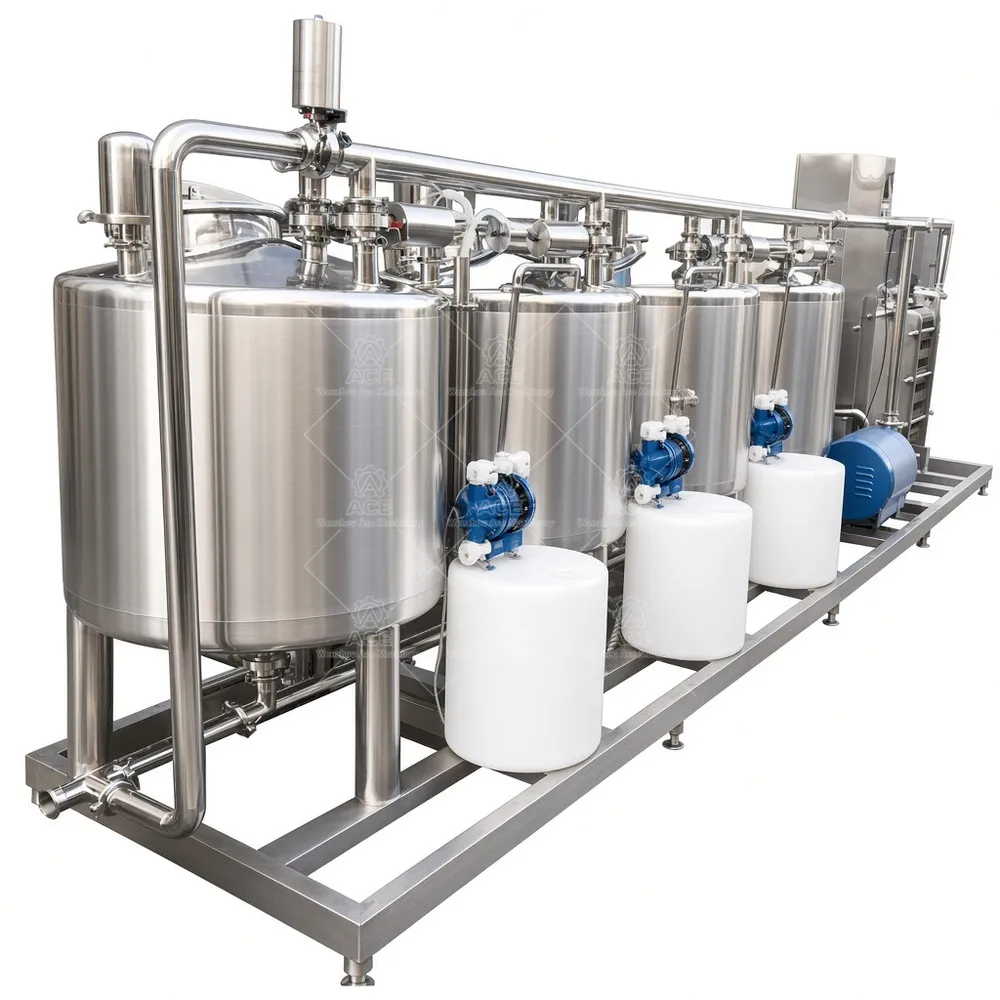

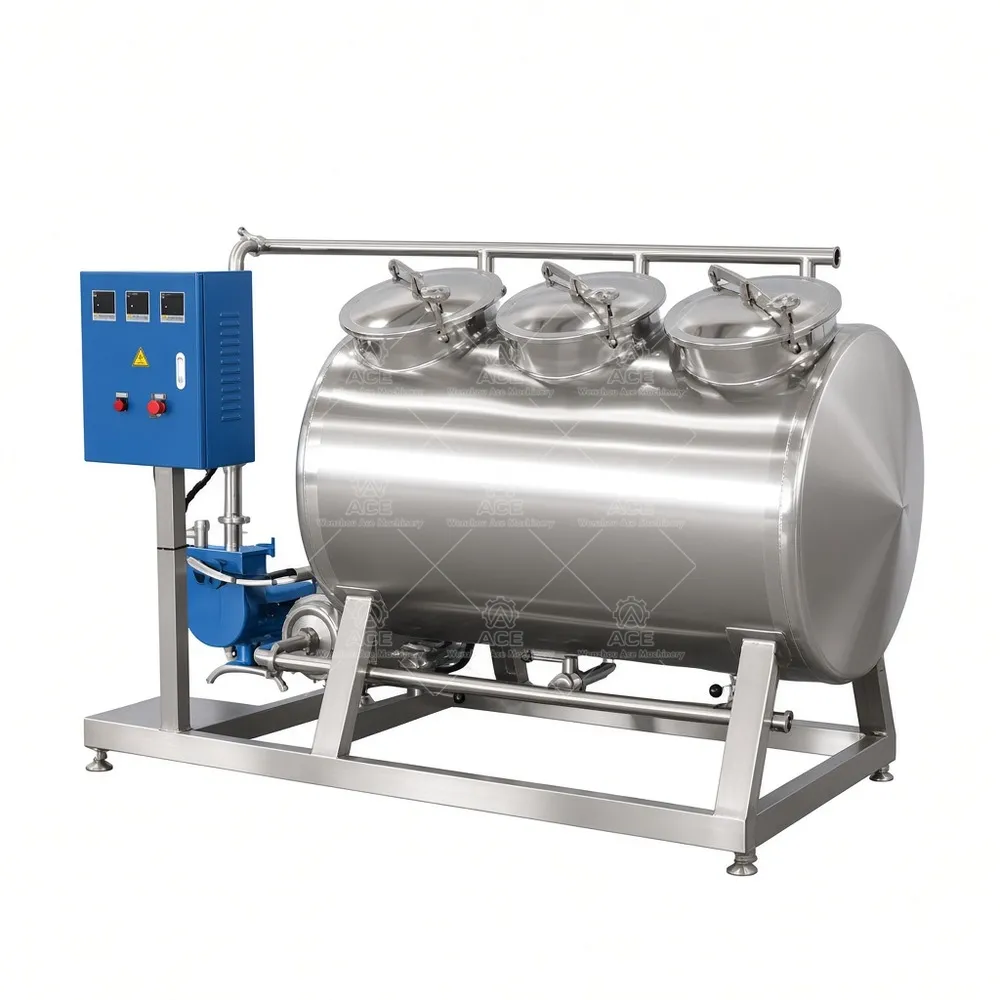

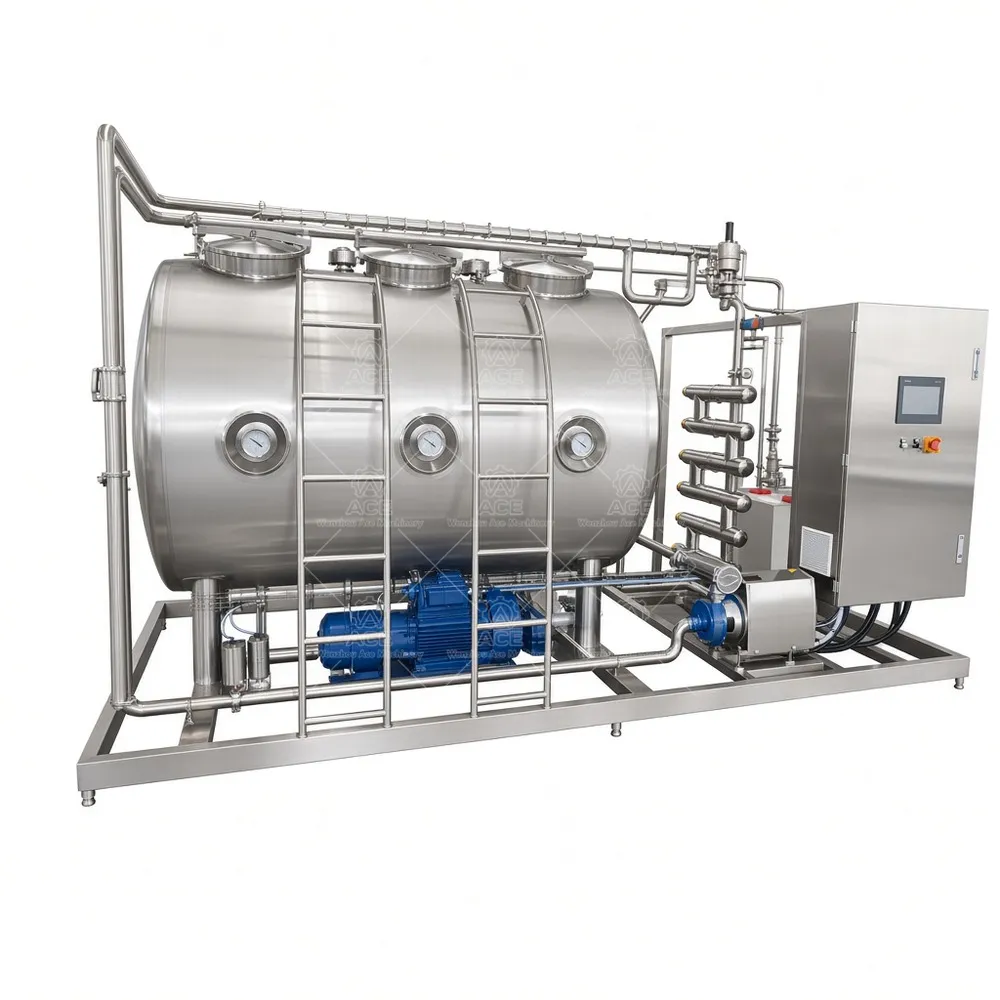

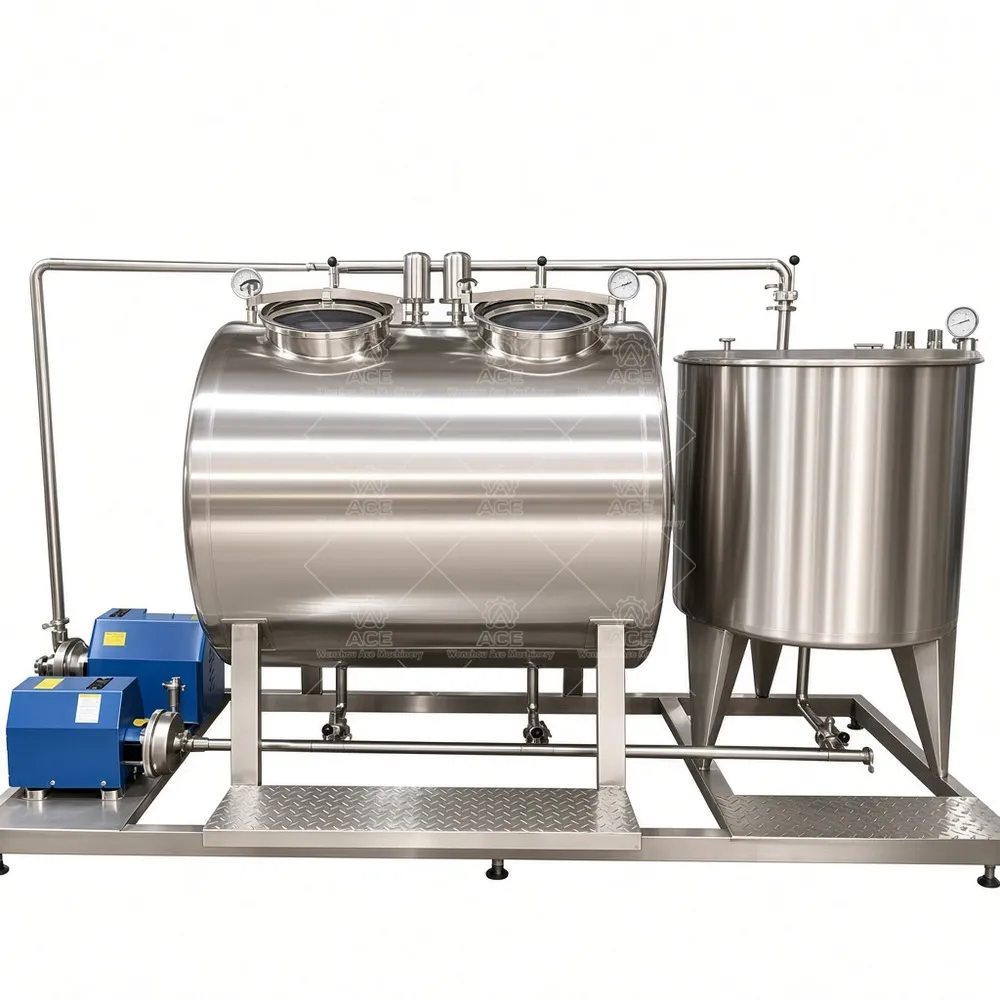

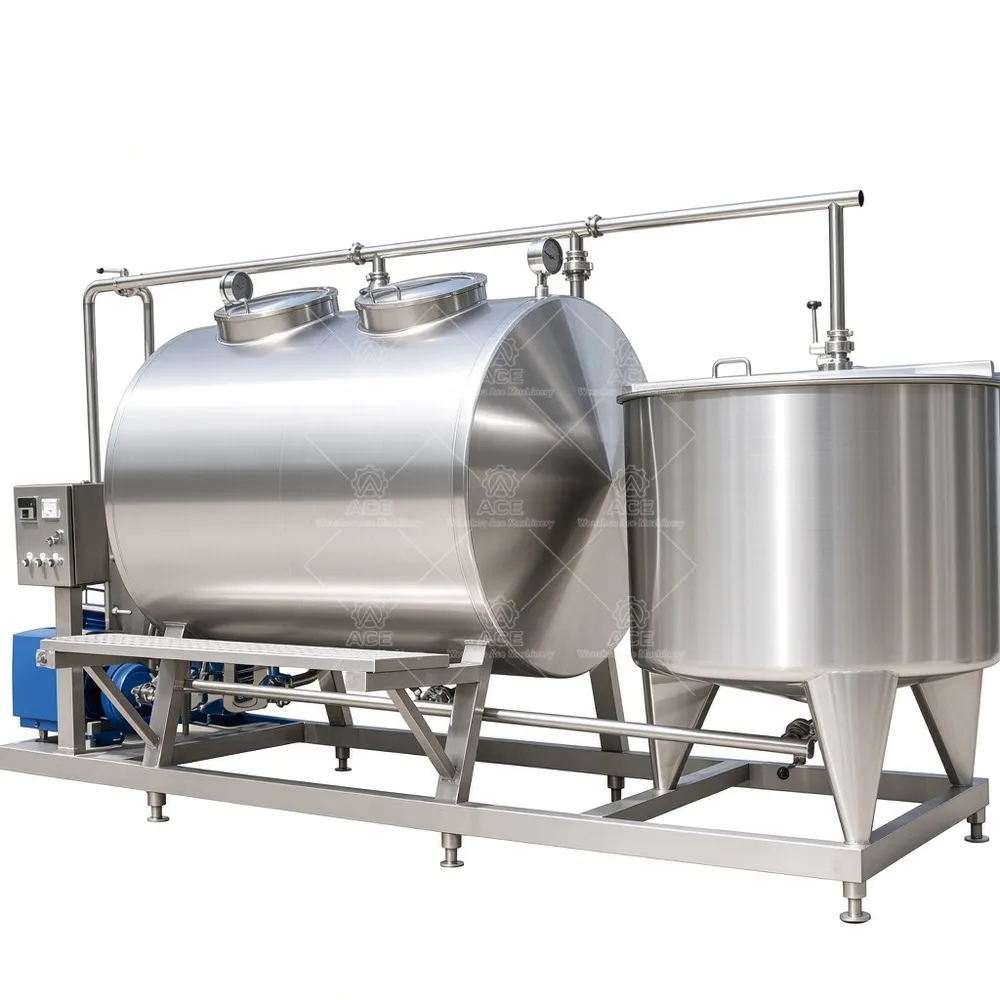

- CIP Types:Single-tank cleaning, two-tank system, three-tank system, four-tank system.
- Material: SUS304 / SUS316L
- Optional configurations: [trolley, mixer, PLC control, manual control]
- Surface Finish: [2B / Brushed / Polished / Mirror Polish]
- If you have drawings, we can process them for you.
Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909
Price range: $7,195.99 through $8,663.25
Guaranteed Safe Checkout
What a 150L CIP System Does on a Brewery Floor
We build 150L CIP units for breweries that need a reliable cleaning loop without overbuilding. This skid handles caustic, acid, and hot water rinses for fermenters, bright tanks, transfer lines, and fillers. The 150L tank volume suits small-to-mid batch breweries where a 300L system would waste chemicals and floor space. You get a compact footprint, but the pump and piping still deliver the flow and pressure to clean a 20-40 bbl tank circuit.
The cleaning cycle runs from a single control point: pre-rinse, caustic recirculation, intermediate rinse, acid wash, final rinse. Temperature, flow, and conductivity are monitored. We typically set the pump for 10-20 m3/h at 3-4 bar, but final numbers depend on your longest line and spray ball count. Heating is electric or steam. Electric is simpler for most craft breweries; steam makes sense if you already have a boiler.
Configuration Choices That Matter

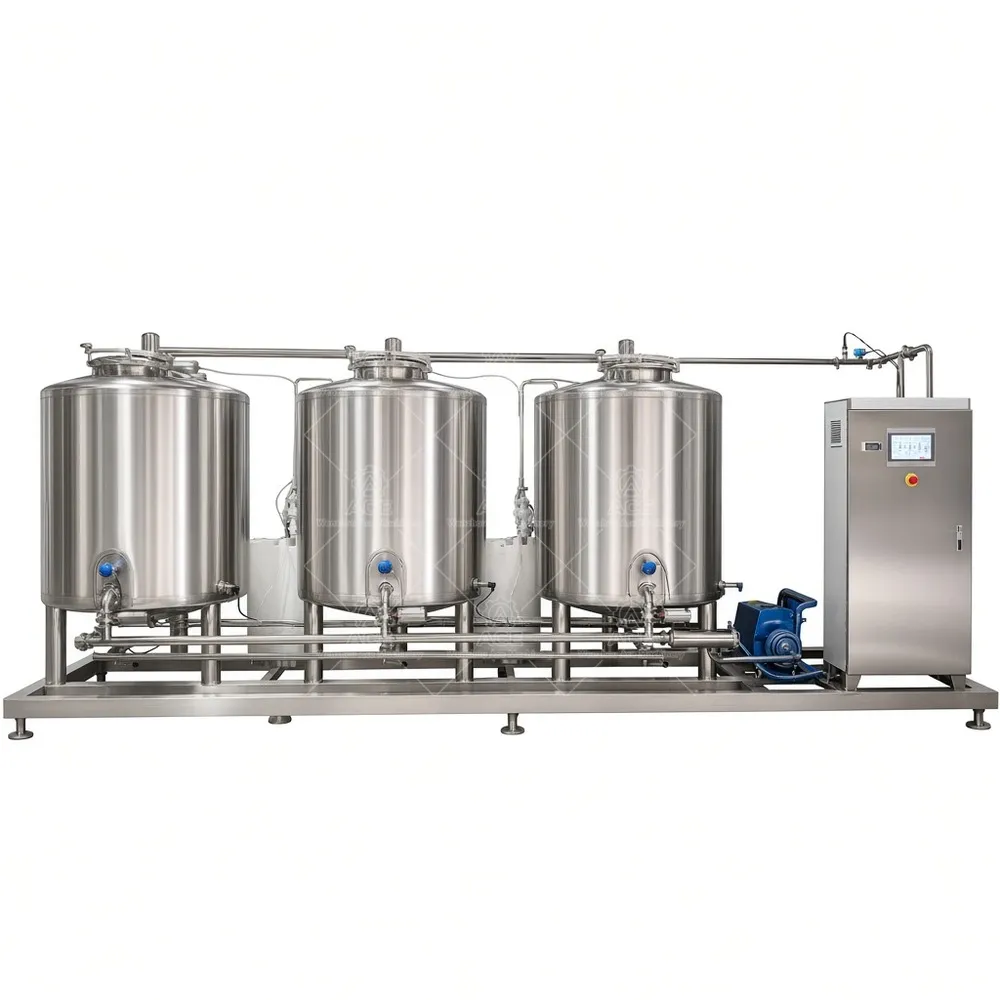

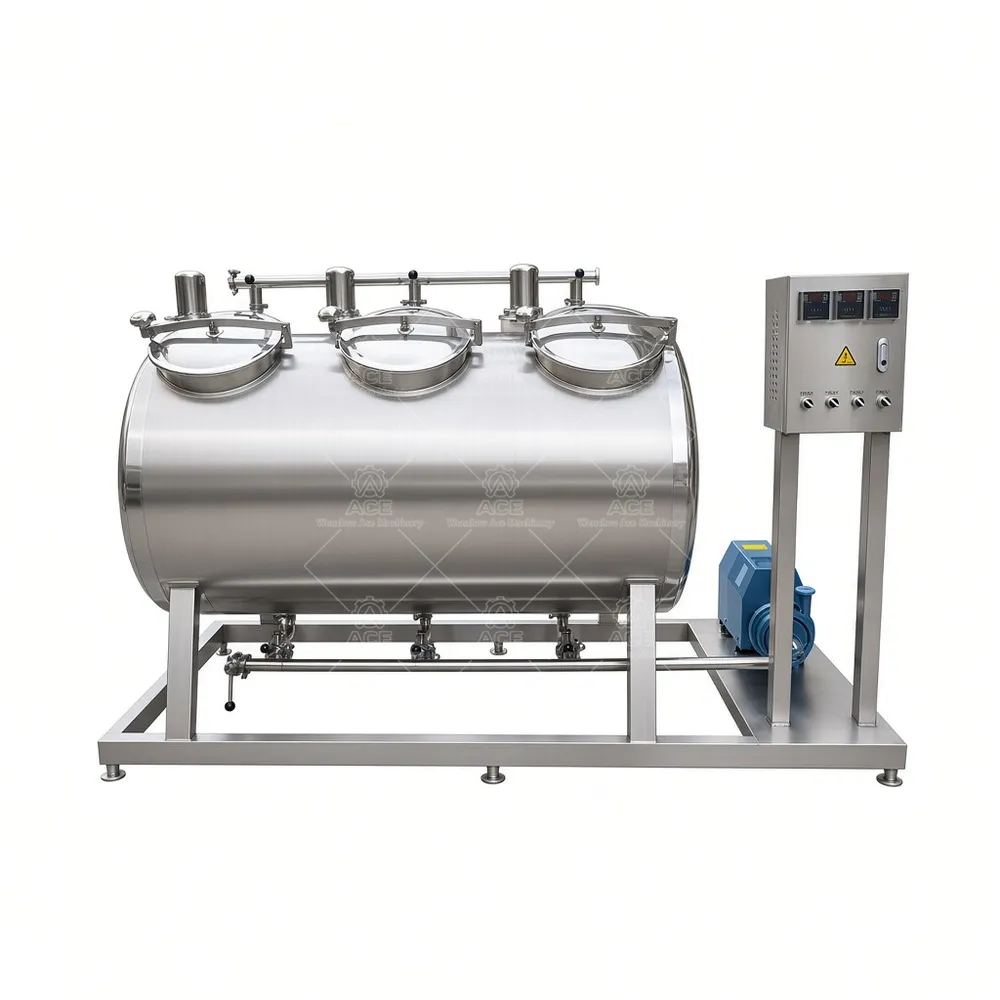

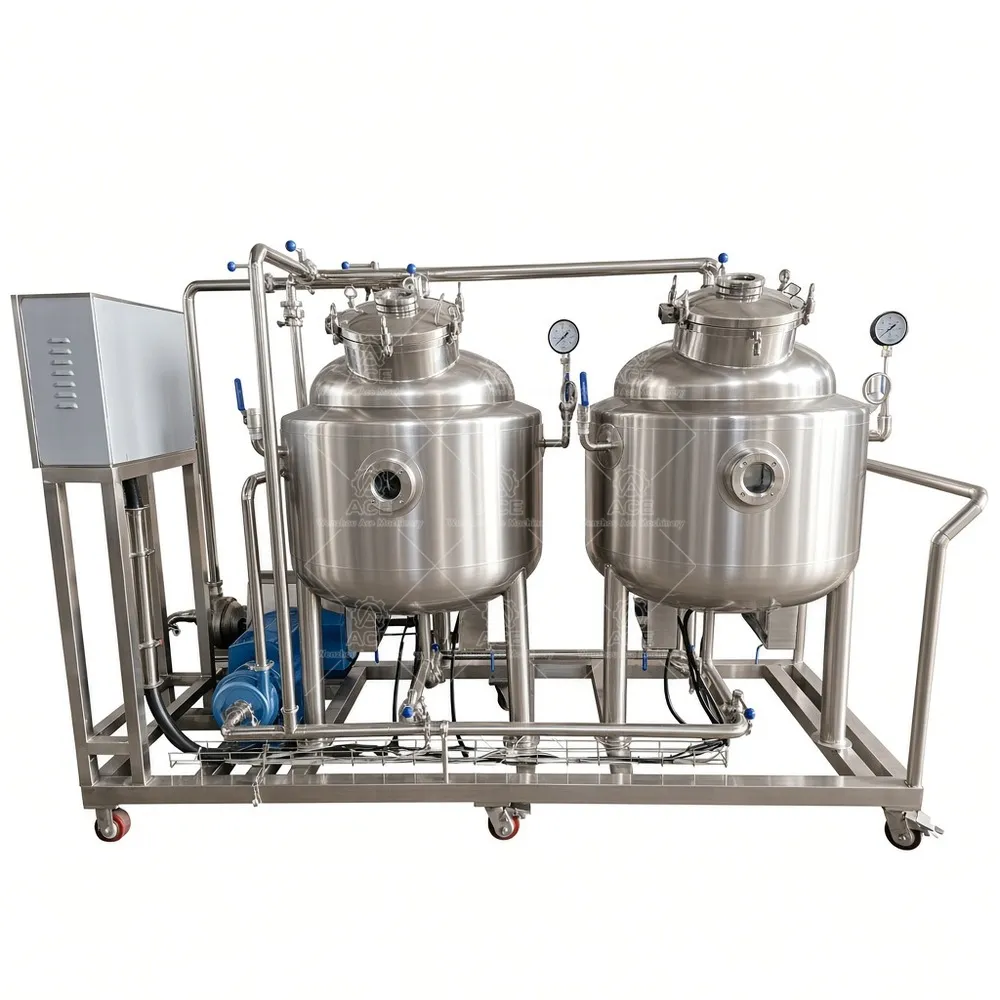

Single-tank units work for one chemical at a time. Two tanks let you keep caustic and acid ready without swapping. Three tanks add a dedicated hot water tank. We see buyers order a two-tank system, then regret not having a separate rinse tank. Think through your cleaning schedule before committing.
Controls range from manual valves to PLC with recipe storage. A semi-automatic panel with timers and temperature control covers most breweries. Full PLC is better when you clean multiple circuits daily and need traceability. All wetted parts are 304 or 316L stainless. 316L is the safer call for high-chloride water or extended acid contact.
Note: The options below are possible configurations, not standard features. We confirm every item against your specific model or project.
Technical Specifications (Typical 150L Unit)
| Parameter | Specification |
|---|---|
| Cleaning tank capacity | 150 L (custom sizes available) |
| Number of tanks | 1, 2, 3, or 4 (acid, caustic, hot water, rinse) |
| Stainless grade | 304 or 316L |
| Heating method | Electric immersion or steam coil |
| Pump flow and pressure | 10-20 m3/h at 3-4 bar (application-specific) |
| Operating temperature | Up to 85C (185F) |
| Control system | Manual, semi-automatic, or PLC with HMI |
| Cleaning circuits | Single or multiple, depending on valve manifold |
| Power supply | 220V/380V/480V, 3-phase, 50/60Hz |
| Dimensions | Approx. 1200 x 800 x 1500 mm (varies by configuration) |
| Custom options | Tank size, pump size, automation, skid layout |
Where These Systems Fit
Dairy processing, beverage production, breweries, distilleries, sauce manufacturing, liquid food processing, cosmetics, and pharmaceutical production. Cleaning requirements differ by product residue and hygiene regime. We size the system around your soil load, water hardness, and cycle time—not a generic template.
Common Questions from Buyers
Can I add a second tank later? Usually yes, if the skid frame and piping allow. We plan for that during the initial build.
How do I know the right pump size? Send us your longest pipe run, diameter, spray ball count, and tank size. We calculate the required flow and pressure.
Do I need PLC control? If you clean one circuit a day and have trained operators, semi-automatic works. For multi-circuit schedules and records, PLC pays back.
Tell Us What You Need to Clean
Send your industry and processed product, tank and piping details, required cleaning capacity, heat source, desired automation level, stainless grade, and installation location. We will recommend tank volume, pump size, and control configuration. Factory-direct manufacturing and engineering support come standard.
