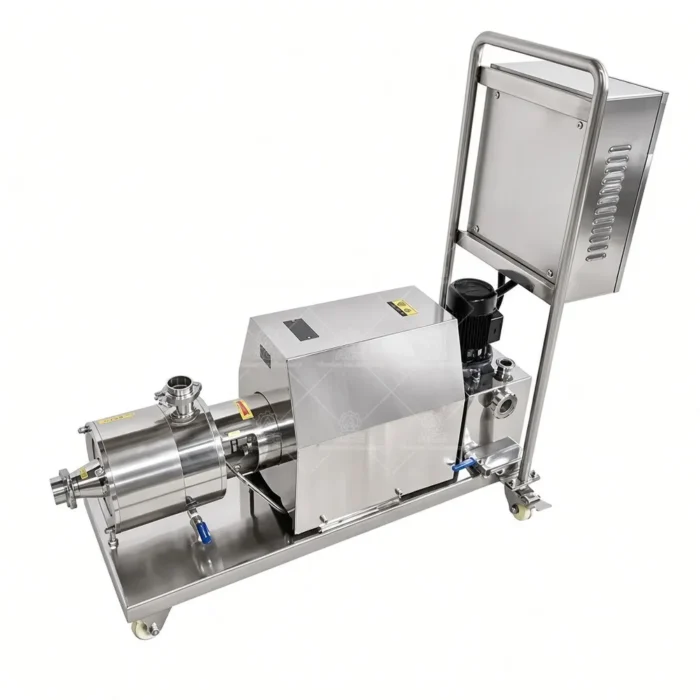

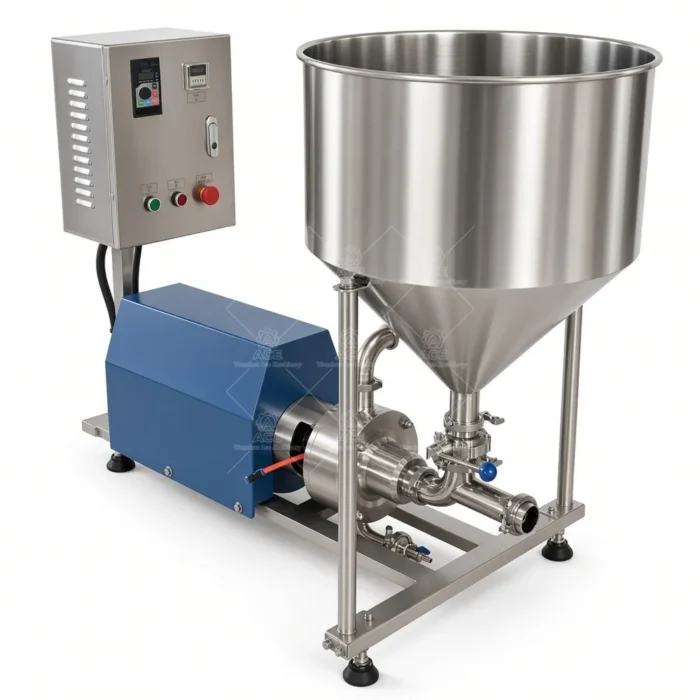

Ace Mixer 1-Stage High Shear Emulsifying Pump for Milk Syrup
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $1,639.66 through $1,800.02
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
Inline High Shear Mixing for Milk Syrup and Emulsions
We build the Ace Mixer 1-stage high shear emulsifying pump for plants that need faster powder wet-out, smoother emulsions, and fewer lumps in milk syrup, beverage concentrates, sauces, and similar fluids. The pump mounts in a pipe run or recirculation loop, so the rotor-stator head works in the product stream instead of tying up a batch tank.
How it works on your line
The high-speed rotor pulls liquid and powder into a close-clearance stator. Shear breaks down agglomerates, wets powders, and helps blend oil and water phases. Final performance depends on viscosity, solids loading, flow rate, and head selection. We size the unit around your recipe, not a generic headline.
- Inline installation fits existing tanks, transfer lines, and skids.
- Rotor-stator mixing improves batch consistency and can reduce manual whisking and hold time.
- Powder dispersion helps control fisheyes and dry pockets in stabilizers, gums, and syrups.
- Stainless construction suits food-grade processing; contact materials can be matched to your product.
- Optional VFD control lets operators tune speed to the formula.
Applications
Food and beverage plants use these pumps for syrups, dairy drinks, dressings, mayonnaise, sauces, and thickener slurries. Personal care producers run creams, lotions, shampoos, and liquid detergents. Pharmaceutical and chemical processors use them for compatible liquid formulations, emulsions, coatings, and water-based dispersions. Seal type, motor size, and materials still need to match the duty.
Common questions
Can it run continuously? Yes, in a suitable loop or inline line when flow, pressure, and seal arrangement are correct.
Will it remove every lump? No guarantee. Powder addition method, viscosity, and wet-out affect results. We often pair it with a hopper or eductor.
Can voltage and connections be customized? Yes. We match motor, seals, flange, and contact materials to your plant.
Get a recommendation
Send Ace Mixer your batch size, flow rate, viscosity, solids content, temperature, motor power requirement, and local electrical spec. We will review the duty and quote a suitable pump configuration.
Ace Mixer\’s 1-stage high shear emulsifying pump mounts inline for milk syrup, beverage, sauce, and emulsion processing. It combines rotor-stator shear with powder dispersion to improve batch consistency, reduce manual mixing, and fit existing tanks or recirculation loops. Stainless construction, optional VFD, and customizable motor, seals, and connections. Contact Ace Mixer with process details for sizing and pricing.
