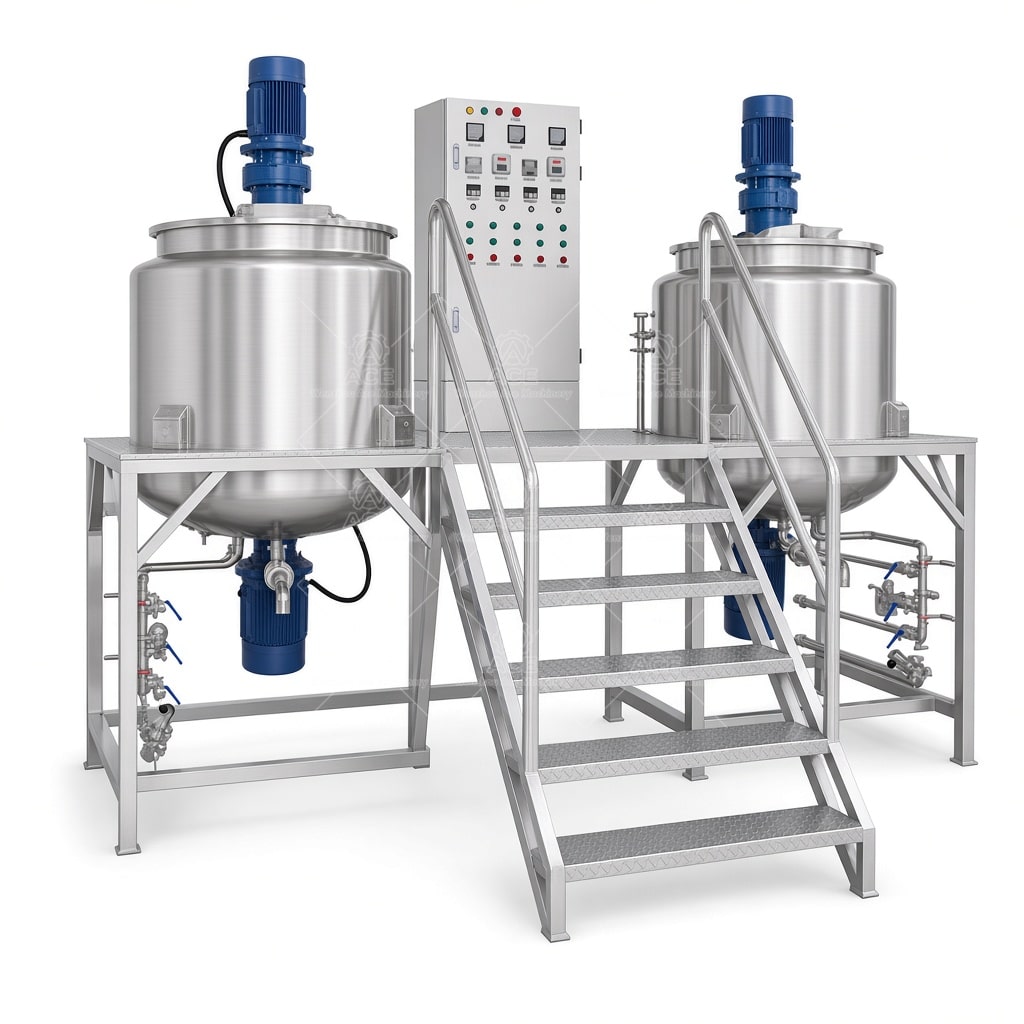

Vacuum Homogenizing Mixing Tank for Shampoo, Hair Masks and Cosmetics - Image 1

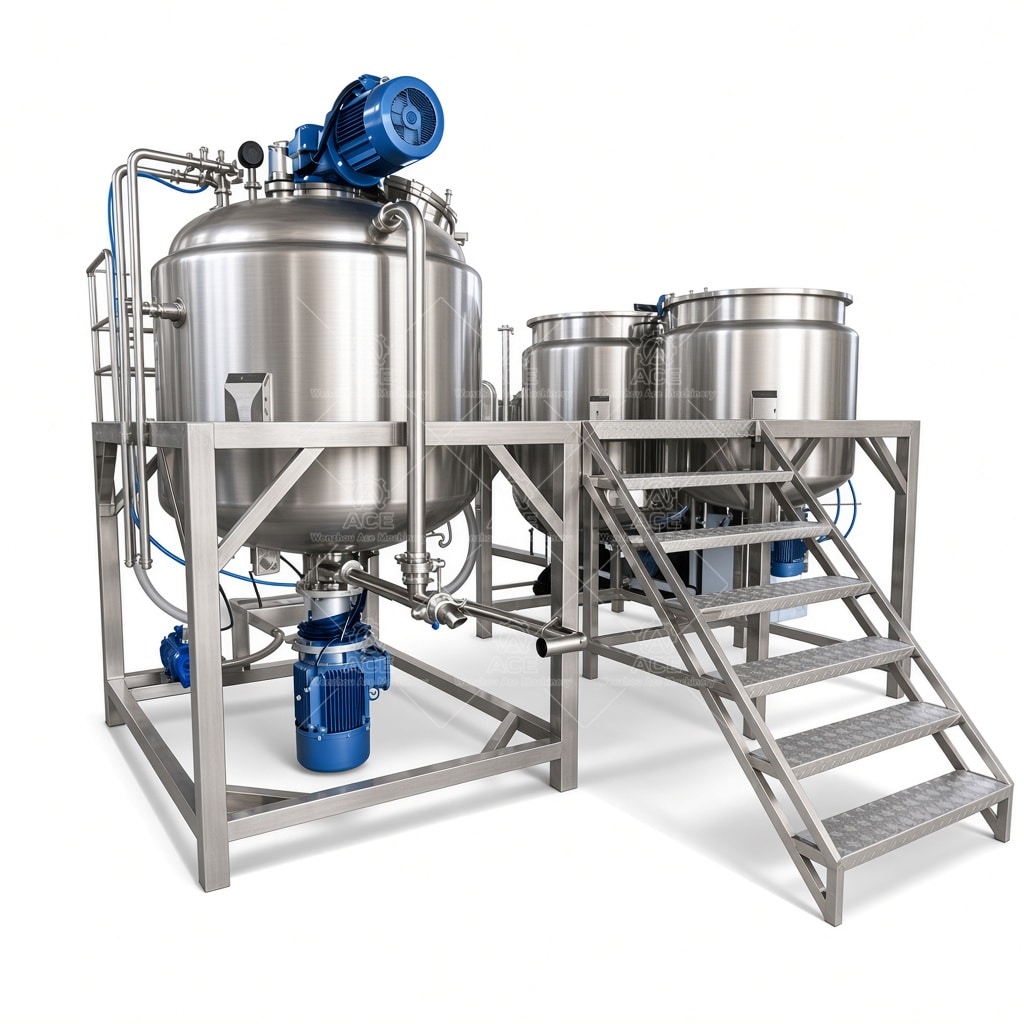

Vacuum Homogenizing Mixing Tank for Shampoo, Hair Masks and Cosmetics - Image 2

Vacuum Homogenizing Mixing Tank for Shampoo, Hair Masks and Cosmetics

This vacuum homogenizing mixing tank is configurable for shampoo, conditioner, hair masks, hair color liquids, and cosmetic serums. Vessel material, agitator, homogenizer, heating, vacuum, seals, and controls are selected according to batch size, formulation, viscosity, process temperature, and cleaning requirements. Share your production details to establish a suitable configuration without relying on unsupported standard specifications.

Capacity: 50 liters to 30,000 liters
Mixer power: 1.5 kW to 55 kW
Material: [SUS304 / SUS316L]
Voltage: 110V / 220V / 380V / 400V / 440V / 480V / 600V
Heating method: [Electric / Steam / Thermal Oil / Hot Water / No Heating]
Cooling method: [Cooling Jacket / Dimple Jacket / Coil / No Cooling]
Agitation system: [Top Entry Agitator / Anchor Mixer / Paddle / Turbine / High-Shear Mixer / Customized]
Optional features: [Insulation / Load Cells / Temperature Sensor / Pressure Gauge / Manhole / CIP / PLC Control / Explosion-Proof Motor]
Certificates: ASME, CE, GMP, UL, ATEX, ISO 9001
Working pressure: [Atmospheric / Positive Pressure / Vacuum / Specify pressure]
If you have drawings, we can process them for you.

Note: Please contact our sales team before placing an order. Website prices are for reference only; specific pricing requires understanding your requirements to provide a quote.
Email:info@ace-chn.com
Tel: +86 186 2683 5909
WeChat: ace-chn
WhatsApp: +86 186 2683 5909

Price range: $3,247.41 through $3,658.21

Ask For A Quotation

Guaranteed Safe Checkout

Vacuum Mixing for Viscous Hair Care Formulas

Shampoo, conditioner, hair masks, color liquids, and cosmetic serums place different demands on a mixing vessel. A vacuum emulsifying tank combines bulk agitation with high-shear homogenizing to help disperse powders, blend oil and water phases, and reduce entrained air. The required arrangement depends on the formula: a thick mask may need a scraper-style wall agitator, while a lower-viscosity shampoo may be adequately processed with a different impeller and mixing speed.

We configure the vessel around batch size, viscosity, solids, target temperature, and cleaning method. Vacuum can support deaeration and help limit foam, but the achievable vacuum level and cycle depend on the vessel design, seals, product behavior, and process conditions. For hair color products, tell us whether the formulation contains abrasive or sensitive ingredients and how quickly it must be dispersed.

Construction and Process Options

Product-contact surfaces are commonly specified in 304 or 316L stainless steel. The appropriate grade depends on the formula, cleaning chemicals, and corrosion exposure. Welds can be ground and polished to suit hygiene and cleanability requirements; the requested internal finish should be agreed during design rather than assumed. Seal materials are selected for product compatibility, temperature, and cleaning agents.

Heating may use an electric, steam, or hot-water jacket, subject to site utilities and temperature requirements. A temperature sensor and control system can be configured for the process. The drive and reducer are sized to the working volume and viscosity, while the homogenizer head, impeller type, and scraper arrangement are selected to match the mixing sequence. High shear can improve dispersion, but excessive shear may introduce heat or affect sensitive ingredients.

Configuration Information

Item	Specification basis
Working capacity	Set by batch size, headspace, and process sequence
Contact material	304 or 316L stainless steel, based on formulation
Agitation and homogenizing	Impeller, scraper, drive, and homogenizer selected for viscosity and dispersion needs
Heating and controls	Configured for available utilities, temperature range, and control requirements
Vacuum and discharge	Defined by deaeration needs, vessel design, and product transfer method

Applications and FAQs

Typical users include hair-care, personal-care, and cosmetic manufacturers producing shampoo, conditioner, masks, hair color preparations, and serum. Can one tank handle several products? Often, if the agitator, seals, heating, and cleaning plan suit each formula. Is a scraper always necessary? No; it is most useful with viscous products or where wall buildup affects heat transfer. Final selection requires the actual formulation and batch process.

Preparing a Quote Request

Send batch size, ingredient or viscosity range, solids content, operating temperature, heating utilities, vacuum purpose, cleaning method, discharge needs, and electrical requirements. Include the mixing sequence and any sensitive ingredients. These details let our engineers recommend a practical vessel and drive configuration rather than sizing the machine from capacity alone.
