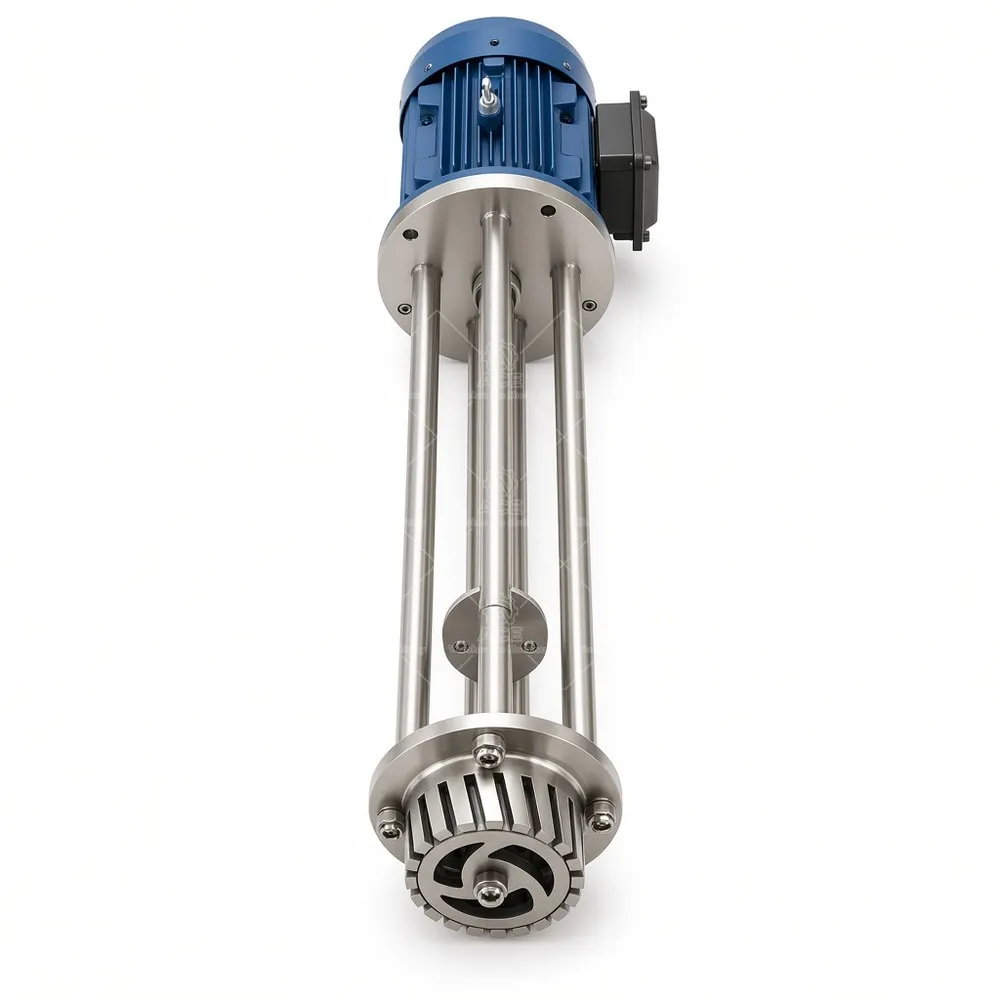

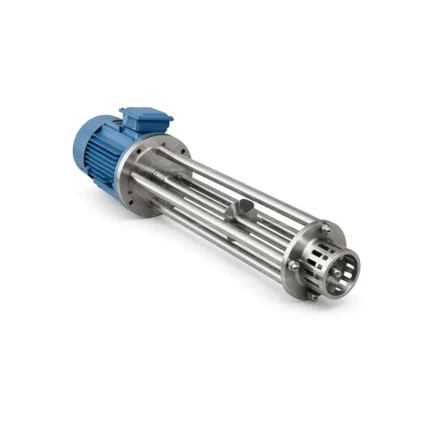

Batch High Shear Emulsifier Mixer for Shampoo and Cream Production
- Material: 304 or 316L
- Voltage: 110V 208V 220V 380V 400V 415V 480V 600V
- Certificates: CE, GMP, UL, ATEX, ISO 9001
- Power：0.75KW-55KW （1 HP – 74 HP）
- Motor brands: ABB, Chinese brands, SEW, Siemens (optional)
- 1-year free warranty with door-to-door delivery.
- Optional: Variable-frequency drive, control panel
- MADE IN CHINA
- We have it in stock.
Please contact our sales team before placing your order.
Email:info@ace-chn.com
Tel:+86 18626835909
WeChat: ace-chn
Price range: $643.54 through $678.16
Guaranteed Safe Checkout
We manufacture and sell the following types of mixers
Mix, emulsify, homogenize, disintegrate and dissolve
Ideal for disintegrating solids and incorporating powders
Reduce mixing times by up to 80%
Reduce mixing times by up to 90%
Quickly disperse and hydrate powders, even at higher viscosities
Easy to move and lift
Features heating, cooling, vacuum, and other functions
Recommended RPM: 1480/2850 RPM
What the head does inside the batch
Shampoo and cream batches usually fail in recognizable ways: thickener lumps that never hydrate, oily streaks that refuse to disperse, or an emulsion that splits two weeks after filling. A batch high shear mixer attacks the mechanical side of that problem. The rotor-stator head generates intense localized shear in the vessel, breaking agglomerates and pulling droplets down to a size the surfactant system can hold.
We size the unit around your product rather than the other way around, because a head that suits a 20,000 cps cream will cavitate in a 500 cps shampoo base.
Build options
- Speed control: optional VFD, 0 to 3000 rpm depending on motor and configuration
- Motor power: 1.5 kW to 55 kW
- Voltage: 220V to 480V, with frequency, phase and electrical arrangement confirmed for the destination market
- Wetted parts: 304 or 316L stainless steel, specified against the product
- Functions: high shear, dispersion, emulsification, and powder incorporation into liquids
- Mounting: portable frame or fixed vessel-mounted arrangement
Narrowing the specification
Four numbers decide most of the configuration: working batch volume and vessel geometry, product viscosity at process temperature, the rpm and tip speed you actually need, and the plant\’s electrical supply. Tell us those and the head design, shaft length and drive follow quickly. Powder dispersion duty generally calls for a different head than straight liquid-liquid emulsification — a detail that gets skipped when buyers compare units on motor kW alone.
Typical service
- Cosmetics and personal care: creams, lotions, shampoo, gels
- Food and beverage: sauces, dressings, dairy bases
- Pharmaceutical and healthcare preparations
- Chemical processing and compatible coatings
- Powder wetting and liquid-liquid emulsification
Head selection, material grade and operating parameters always depend on the specific viscosity, ingredients and process targets. No single configuration covers every product.
Before you request a quote
Fixed or portable? Portable units suit multi-vessel plants and pilot work; fixed mounting gives better shaft rigidity at higher power. Can we run it in an existing tank? Usually yes, if the vessel dimensions and baffling are known. What about cleaning? Wetted stainless and removable heads simplify changeover between product families.
Send your batch size, material characteristics, target rpm, required motor power and local electrical specification. Our engineers will come back with a configuration and a price.
A batch high shear emulsifier for shampoo, creams and lotions, built with 1.5 to 55 kW motors, optional VFD speed control, and 304 or 316L wetted stainless steel. Portable or fixed mounting, configured around your batch size, viscosity and electrical supply. Send your process details for a recommendation.
